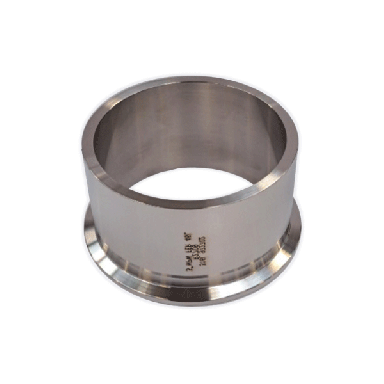

    MPW Tank Ferrules


    MPW Tank Ferrules
    Description
    MPW Tank Ferrules; material 1.4404, sizes 1" to 8". Flatness of sealing face meets or exceeds guidelines.

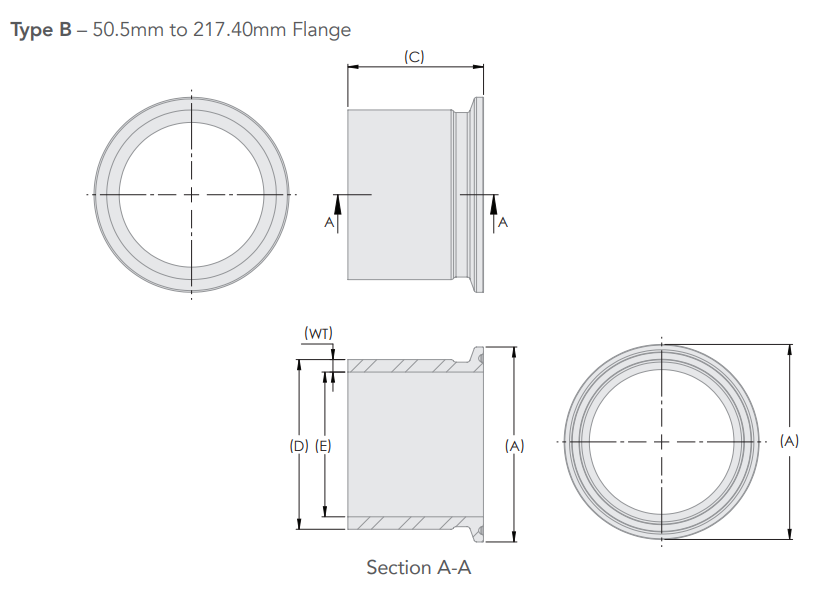

    Dimensional Image
    Features
    • Quality checks by ACL are at the highest level for fitting manufacturers:​ JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC​
    • Flatness of sealing face meets or exceeds guidelines​
    • Circularity of components is within 0.1mm​
    • Compatibility: BS4825-3
    • Durability: 0.51Ra um Int
    Materials
    • Materials are AD2000 (PED) and ASME VIII​
    • Surface finish is 0.8Ra um minimum​
    • 316L / 1,4404 3,1 Certified – Solid Bar
    Total: 16
    Industry
    PART#    		 Standard Nom
    Imperial    		 Nom
    Metric/ISO    		 Flange
    (A)    		 Material
    Grade    		 EN/ASTM
    Std    		 LIST
    PRICE
    Pharmaceutical
    FPM1050029041SD6L
    		14 MPW TANK 1" 25.4(metric) 1.99" (50.5mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     14 MPW TANK-Series Ferrule - 316L - 1" Nom GTIN:   840384307667 Legacy Part Number UK:   FR.MPW.0100 Legacy Part Number DK:   FRMPW0100
    Dimensional Image Key:
    • • Length (C) mm:  41.3
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  29.46
    • • Wall (WT) mm:  3.68
    • • Length (C) in:  1.63"
    • • Wall (WT) in:  0.14"
    • • Tube OD (D) mm:  29.46
    • • Tube OD (D) in:  1.16"
    • • Tube ID (E) mm:  22.1
    • • Tube ID (E) in:  0.87"
    Pharmaceutical
    FPM1050042041SD6L
    		14 MPW TANK 1 1/2" 38.1(metric) 1.99" (50.5mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     14 MPW TANK-Series Ferrule - 316L - 1 1/2" Nom GTIN:   840384307674 Legacy Part Number UK:   FR.MPW.0150 Legacy Part Number DK:   FRMPW0150
    Dimensional Image Key:
    • • Length (C) mm:  41.3
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  42.57
    • • Wall (WT) mm:  3.89
    • • Length (C) in:  1.63"
    • • Wall (WT) in:  0.15"
    • • Tube OD (D) mm:  42.57
    • • Tube OD (D) in:  1.68"
    • • Tube ID (E) mm:  34.8
    • • Tube ID (E) in:  1.37"
    Pharmaceutical
    FPM1064055044SD6L
    		14 MPW TANK 2" 50.8(metric) 2.52" (64mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     14 MPW TANK-Series Ferrule - 316L - 2" Nom GTIN:   840384307681 Legacy Part Number UK:   FR.MPW.0200 Legacy Part Number DK:   FRMPW0200
    Dimensional Image Key:
    • • Length (C) mm:  44.5
    • • Flange (A) mm:  64
    • • Flange (A) in:  2.52"
    • • OD 1 (D) mm:  55.68
    • • Wall (WT) mm:  4.09
    • • Length (C) in:  1.75"
    • • Wall (WT) in:  0.16"
    • • Tube OD (D) mm:  55.68
    • • Tube OD (D) in:  2.19"
    • • Tube ID (E) mm:  47.5
    • • Tube ID (E) in:  1.87"
    Pharmaceutical
    FPM1077068044SD6L
    		14 MPW TANK 2 1/2" 51(metric) 3.05" (77.5mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     14 MPW TANK-Series Ferrule - 316L - 2 1/2" Nom GTIN:   840384307698 Legacy Part Number UK:   FR.MPW.0250
    Dimensional Image Key:
    • • Length (C) mm:  44.5
    • • Flange (A) mm:  77.5
    • • Flange (A) in:  3.05"
    • • OD 1 (D) mm:  68.78
    • • Wall (WT) mm:  4.29
    • • Length (C) in:  1.75"
    • • Wall (WT) in:  0.17"
    • • Tube OD (D) mm:  68.78
    • • Tube OD (D) in:  2.71"
    • • Tube ID (E) mm:  60.2
    • • Tube ID (E) in:  2.37"
    Pharmaceutical
    FPM1091081046SD6L
    		14 MPW TANK 3" 76.2(metric) 3.58" (91mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     14 MPW TANK-Series Ferrule - 316L - 3" Nom GTIN:   840384307704 Legacy Part Number UK:   FR.MPW.0300 Legacy Part Number DK:   FRMPW0300
    Dimensional Image Key:
    • • Length (C) mm:  46
    • • Flange (A) mm:  91
    • • Flange (A) in:  3.58"
    • • OD 1 (D) mm:  81.89
    • • Wall (WT) mm:  4.5
    • • Length (C) in:  1.81"
    • • Wall (WT) in:  0.18"
    • • Tube OD (D) mm:  81.89
    • • Tube OD (D) in:  3.22"
    • • Tube ID (E) mm:  72.9
    • • Tube ID (E) in:  2.87"
    Pharmaceutical
    FPM1119108054SD6L
    		14 MPW TANK 4" 101.6(metric) 4.69" (119mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     14 MPW TANK-Series Ferrule - 316L - 4" Nom GTIN:   840384307728 Legacy Part Number UK:   FR.MPW.0400 Legacy Part Number DK:   FRMPW0400
    Dimensional Image Key:
    • • Length (C) mm:  54
    • • Flange (A) mm:  119
    • • Flange (A) in:  4.69"
    • • OD 1 (D) mm:  108.1
    • • Wall (WT) mm:  5.36
    • • Length (C) in:  2.13"
    • • Wall (WT) in:  0.21"
    • • Tube OD (D) mm:  108.1
    • • Tube OD (D) in:  4.26"
    • • Tube ID (E) mm:  97.38
    • • Tube ID (E) in:  3.83"
    Pharmaceutical
    FPM1167157063SD6L
    		14 MPW TANK 6" 152.4(metric) 6.57" (167mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     14 MPW TANK-Series Ferrule - 316L - 6" Nom Legacy Part Number UK:   FR.MPW.0600
    Dimensional Image Key:
    • • Length (C) mm:  63.5
    • • Flange (A) mm:  167
    • • Flange (A) in:  6.57"
    • • OD 1 (D) mm:  157.28
    • • Wall (WT) mm:  5.52
    • • Length (C) in:  2.5"
    • • Wall (WT) in:  0.22"
    • • Tube OD (D) mm:  157.28
    • • Tube OD (D) in:  6.19"
    • • Tube ID (E) mm:  146.25
    • • Tube ID (E) in:  5.76"
    Pharmaceutical
    FPM1217208063SD6L
    		14 MPW TANK 8" 203.2(metric) 8.56" (217.4mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     14 MPW TANK-Series Ferrule - 316L - 8" Nom Legacy Part Number UK:   FR.MPW.0800
    Dimensional Image Key:
    • • Length (C) mm:  63.5
    • • Flange (A) mm:  217.4
    • • Flange (A) in:  8.56"
    • • OD 1 (D) mm:  208.08
    • • Wall (WT) mm:  5.52
    • • Length (C) in:  2.5"
    • • Wall (WT) in:  0.22"
    • • Tube OD (D) mm:  208.08
    • • Tube OD (D) in:  8.19"
    • • Tube ID (E) mm:  197.08
    • • Tube ID (E) in:  7.76"
    Hygienic
    FDM1050029041SD6L
    		14 MPW TANK 1" 25.4(metric) 1.99" (50.5mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     14 MPW TANK-Series Ferrule - 316L - 1" Nom Legacy Part Number UK:   FR.MPW.0100
    Dimensional Image Key:
    • • Length (C) mm:  41.3
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  29.46
    • • Wall (WT) mm:  3.68
    • • Length (C) in:  1.63"
    • • Wall (WT) in:  0.14"
    • • Tube OD (D) mm:  29.46
    • • Tube OD (D) in:  1.16"
    • • Tube ID (E) mm:  22.1
    • • Tube ID (E) in:  0.87"
    Hygienic
    FDM1050042041SD6L
    		14 MPW TANK 1 1/2" 38.1(metric) 1.99" (50.5mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     14 MPW TANK-Series Ferrule - 316L - 1 1/2" Nom Legacy Part Number UK:   FR.MPW.0150
    Dimensional Image Key:
    • • Length (C) mm:  41.3
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  42.57
    • • Wall (WT) mm:  3.89
    • • Length (C) in:  1.63"
    • • Wall (WT) in:  0.15"
    • • Tube OD (D) mm:  42.57
    • • Tube OD (D) in:  1.68"
    • • Tube ID (E) mm:  34.8
    • • Tube ID (E) in:  1.37"
    Hygienic
    FDM1064055044SD6L
    		14 MPW TANK 2" 50.8(metric) 2.52" (64mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     14 MPW TANK-Series Ferrule - 316L - 2" Nom Legacy Part Number UK:   FR.MPW.0200
    Dimensional Image Key:
    • • Length (C) mm:  44.5
    • • Flange (A) mm:  64
    • • Flange (A) in:  2.52"
    • • OD 1 (D) mm:  55.68
    • • Wall (WT) mm:  4.09
    • • Length (C) in:  1.75"
    • • Wall (WT) in:  0.16"
    • • Tube OD (D) mm:  55.68
    • • Tube OD (D) in:  2.19"
    • • Tube ID (E) mm:  47.5
    • • Tube ID (E) in:  1.87"
    Hygienic
    FDM1077068044SD6L
    		14 MPW TANK 2 1/2" 51(metric) 3.05" (77.5mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     14 MPW TANK-Series Ferrule - 316L - 2 1/2" Nom Legacy Part Number UK:   FR.MPW.0250
    Dimensional Image Key:
    • • Length (C) mm:  44.5
    • • Flange (A) mm:  77.5
    • • Flange (A) in:  3.05"
    • • OD 1 (D) mm:  68.78
    • • Wall (WT) mm:  4.29
    • • Length (C) in:  1.75"
    • • Wall (WT) in:  0.17"
    • • Tube OD (D) mm:  68.78
    • • Tube OD (D) in:  2.71"
    • • Tube ID (E) mm:  60.2
    • • Tube ID (E) in:  2.37"
    Please Login To Order
