    ASME BPE Ferrules


    ASME BPE Ferrules
    Description

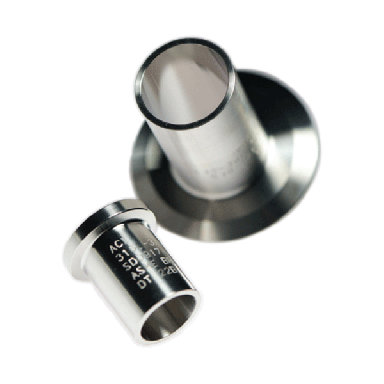

    ASME BPE ferrules; 1.4404 low sulphur /3.1 certified – solid bar material. Flatness of sealing face meets or exceeds guidelines.
    Dimensional Image
    Features
    • Quality checks by ACL are at the highest level for fitting manufacturers
    • JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC​
    • Flatness of sealing face meets or exceeds guidelines​
    • Circularity of components is within 0.1mm​
    • Sizes: ½” – 12” V DN 10 – 50
    • Compatibility: BS4825-3
    • Durability: 0.8Ra um Int
    ​
    Materials
    • Materials are AD2000 (PED) and ASME VIII​
    • Surface finish is 0.8Ra um minimum​
    • 316L / 1.4404 3.1 Certified – Solid Bar
    Total: 132
    Industry
    PART#    		 Standard Nom
    Imperial    		 Nom
    Metric/ISO    		 Flange
    (A)    		 Material
    Grade    		 EN/ASTM
    Std    		 LIST
    PRICE
    Pharmaceutical
    FPA1025635028S1B6
    		ASME BPE 1/4" 6.35(metric) 1" (25.4mm) 316L low sulphur for BPE 1.4404*/S31603
    Price On Request
    dimensional image
    View Page
     ASME BPE-Series Ferrule - 316L low sulphur for BPE - 25.4mm Flange, 1/4" Nom Legacy Part Number UK:   FR.BPES.0025
    Dimensional Image Key:
    • • Length (C) mm:  28.5
    • • Flange (A) mm:  25.4
    • • Flange (A) in:  1"
    • • OD 1 (D) mm:  6.35
    • • Wall (WT) mm:  0.89
    • • Length (C) in:  1.12"
    • • Wall (WT) in:  0.04"
    • • Tube OD (D) mm:  6.35
    • • Tube OD (D) in:  0.25"
    • • Tube ID (E) mm:  4.57
    • • Tube ID (E) in:  0.18"
    Pharmaceutical
    FPA1025952028S1B6
    		ASME BPE 3/8" 9.525(metric) 1" (25.4mm) 316L low sulphur for BPE 1.4404*/S31603
    Price On Request
    dimensional image
    View Page
     ASME BPE-Series Ferrule - 316L low sulphur for BPE - 25.4mm Flange, 3/8" Nom Legacy Part Number UK:   FR.BPES.0038
    Dimensional Image Key:
    • • Length (C) mm:  28.5
    • • Flange (A) mm:  25.4
    • • Flange (A) in:  1"
    • • OD 1 (D) mm:  9.52
    • • Wall (WT) mm:  0.89
    • • Length (C) in:  1.12"
    • • Wall (WT) in:  0.04"
    • • Tube OD (D) mm:  9.525
    • • Tube OD (D) in:  0.38"
    • • Tube ID (E) mm:  7.74
    • • Tube ID (E) in:  0.3"
    Pharmaceutical
    FPA1025127028S1B6
    		ASME BPE 1/2" 12.7(metric) 1" (25.4mm) 316L low sulphur for BPE 1.4404*/S31603
    Price On Request
    dimensional image
    View Page
     ASME BPE-Series Ferrule - 316L low sulphur for BPE - 25.4mm Flange, 1/2" Nom GTIN:   840384306219 Legacy Part Number UK:   FR.BPES.0050 Legacy Part Number DK:   FRBPES0050SF1
    Dimensional Image Key:
    • • Length (C) mm:  28.5
    • • Flange (A) mm:  25.4
    • • Flange (A) in:  1"
    • • OD 1 (D) mm:  10.7
    • • Wall (WT) mm:  1.65
    • • Length (C) in:  1.12"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  12.7
    • • Tube OD (D) in:  0.5"
    • • Tube ID (E) mm:  9.4
    • • Tube ID (E) in:  0.37"
    Pharmaceutical
    FPA1025195028S1B6
    		ASME BPE 3/4" 19.05(metric) 1" (25.4mm) 316L low sulphur for BPE 1.4404*/S31603
    Price On Request
    dimensional image
    View Page
     ASME BPE-Series Ferrule - 316L low sulphur for BPE - 25.4mm Flange, 3/4" Nom GTIN:   840384306233 Legacy Part Number UK:   FR.BPES.0075 Legacy Part Number DK:   FRBPES0075SF1
    Dimensional Image Key:
    • • Length (C) mm:  28.5
    • • Flange (A) mm:  25.4
    • • Flange (A) in:  1"
    • • OD 1 (D) mm:  19..05
    • • Wall (WT) mm:  1.65
    • • Length (C) in:  1.12"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  19.05
    • • Tube OD (D) in:  0.75"
    • • Tube ID (E) mm:  15.75
    • • Tube ID (E) in:  0.62"
    Pharmaceutical
    FPA1050025028S1B6
    		ASME BPE 1" 25.4(metric) 1.99" (50.5mm) 316L low sulphur for BPE 1.4404*/S31603
    Price On Request
    dimensional image
    View Page
     ASME BPE-Series Ferrule - 316L low sulphur for BPE - 50.5mm Flange, 1" Nom Legacy Part Number UK:   FR.BPES.0100
    Dimensional Image Key:
    • • Length (C) mm:  28.5
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  25.4
    • • Wall (WT) mm:  1.65
    • • Length (C) in:  1.12"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  25.4
    • • Tube OD (D) in:  1"
    • • Tube ID (E) mm:  22.1
    • • Tube ID (E) in:  0.87"
    Pharmaceutical
    FPA1050038028S1B6
    		ASME BPE 1 1/2" 38.1(metric) 1.99" (50.5mm) 316L low sulphur for BPE 1.4404*/S31603
    Price On Request
    dimensional image
    View Page
     ASME BPE-Series Ferrule - 316L low sulphur for BPE - 50.5mm Flange, 1 1/2" Nom GTIN:   840384306288 Legacy Part Number UK:   FR.BPES.0150 Legacy Part Number DK:   FRBPES0150SF1
    Dimensional Image Key:
    • • Length (C) mm:  28.5
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  38.1
    • • Wall (WT) mm:  1.65
    • • Length (C) in:  1.12"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  38.1
    • • Tube OD (D) in:  1.5"
    • • Tube ID (E) mm:  34.8
    • • Tube ID (E) in:  1.37"
    Pharmaceutical
    FPA1064050028S1B6
    		ASME BPE 2" 50.8(metric) 2.52" (64mm) 316L low sulphur for BPE 1.4404*/S31603
    Price On Request
    dimensional image
    View Page
     ASME BPE-Series Ferrule - 316L low sulphur for BPE - 64mm Flange, 2" Nom Legacy Part Number UK:   FR.BPES.0200
    Dimensional Image Key:
    • • Length (C) mm:  28.5
    • • Flange (A) mm:  64
    • • Flange (A) in:  2.52"
    • • OD 1 (D) mm:  50.8
    • • Wall (WT) mm:  1.65
    • • Length (C) in:  1.12"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  50.8
    • • Tube OD (D) in:  2"
    • • Tube ID (E) mm:  47.5
    • • Tube ID (E) in:  1.87"
    Pharmaceutical
    FPA1077063028S1B6
    		ASME BPE 2 1/2" 63.5(metric) 3.05" (77.5mm) 316L low sulphur for BPE 1.4404*/S31603
    Price On Request
    dimensional image
    View Page
     ASME BPE-Series Ferrule - 316L low sulphur for BPE - 77.5mm Flange, 2 1/2" Nom GTIN:   840384306325 Legacy Part Number UK:   FR.BPES.0250 Legacy Part Number DK:   FRBPES0250SF1
    Dimensional Image Key:
    • • Length (C) mm:  28.5
    • • Flange (A) mm:  77.5
    • • Flange (A) in:  3.05"
    • • OD 1 (D) mm:  63.5
    • • Wall (WT) mm:  1.65
    • • Length (C) in:  1.12"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  63.5
    • • Tube OD (D) in:  2.5"
    • • Tube ID (E) mm:  60.2
    • • Tube ID (E) in:  2.37"
    Pharmaceutical
    FPA1091076028S1B6
    		ASME BPE 3" 76.2(metric) 3.58" (91mm) 316L low sulphur for BPE 1.4404*/S31603
    Price On Request
    dimensional image
    View Page
     ASME BPE-Series Ferrule - 316L low sulphur for BPE - 91mm Flange, 3" Nom GTIN:   840384306349 Legacy Part Number UK:   FR.BPES.0300 Legacy Part Number DK:   FRBPES0300SF1
    Dimensional Image Key:
    • • Length (C) mm:  28.5
    • • Flange (A) mm:  91
    • • Flange (A) in:  3.58"
    • • OD 1 (D) mm:  76.2
    • • Wall (WT) mm:  1.65
    • • Length (C) in:  1.12"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  76.2
    • • Tube OD (D) in:  3"
    • • Tube ID (E) mm:  72.9
    • • Tube ID (E) in:  2.87"
    Pharmaceutical
    FPA1119101028S1B6
    		ASME BPE 4" 101.6(metric) 4.69" (119mm) 316L low sulphur for BPE 1.4404*/S31603
    Price On Request
    dimensional image
    View Page
     ASME BPE-Series Ferrule - 316L low sulphur for BPE - 119mm Flange, 4" Nom GTIN:   840384306363 Legacy Part Number UK:   FR.BPES.0400 Legacy Part Number DK:   FRBPES0400SF1
    Dimensional Image Key:
    • • Length (C) mm:  28.5
    • • Flange (A) mm:  119
    • • Flange (A) in:  4.69"
    • • OD 1 (D) mm:  101.6
    • • Wall (WT) mm:  2.11
    • • Length (C) in:  1.12"
    • • Wall (WT) in:  0.08"
    • • Tube OD (D) mm:  101.6
    • • Tube OD (D) in:  4"
    • • Tube ID (E) mm:  97.38
    • • Tube ID (E) in:  3.83"
    Pharmaceutical
    FPA1167152028S1B6
    		ASME BPE 6" 152.4(metric) 6.57" (167mm) 316L low sulphur for BPE 1.4404*/S31603
    Price On Request
    dimensional image
    View Page
     ASME BPE-Series Ferrule - 316L low sulphur for BPE - 167mm Flange, 6" Nom Legacy Part Number UK:   FR.BPES.0600
    Dimensional Image Key:
    • • Length (C) mm:  28.5
    • • Flange (A) mm:  167
    • • Flange (A) in:  6.57"
    • • OD 1 (D) mm:  152.4
    • • Wall (WT) mm:  2.77
    • • Length (C) in:  1.12"
    • • Wall (WT) in:  0.11"
    • • Tube OD (D) mm:  152.4
    • • Tube OD (D) in:  6"
    • • Tube ID (E) mm:  146.86
    • • Tube ID (E) in:  5.78"
    Pharmaceutical
    FPA1025635044S1B6
    		ASME BPE 1/4" 6.35(metric) 1" (25.4mm) 316L low sulphur for BPE 1.4404*/S31603
    Price On Request
    dimensional image
    View Page
     ASME BPE-Series Ferrule - 316L low sulphur for BPE - 25.4mm Flange, 1/4" Nom GTIN:   840384305939 Legacy Part Number DK:   FRBPEL0025SF1
    Dimensional Image Key:
    • • Length (C) mm:  44.5
    • • Flange (A) mm:  25.4
    • • Flange (A) in:  1"
    • • OD 1 (D) mm:  6.35
    • • Wall (WT) mm:  0.89
    • • Length (C) in:  1.75"
    • • Wall (WT) in:  0.04"
    • • Tube OD (D) mm:  6.35
    • • Tube OD (D) in:  0.25"
    • • Tube ID (E) mm:  4.57
    • • Tube ID (E) in:  0.18"
