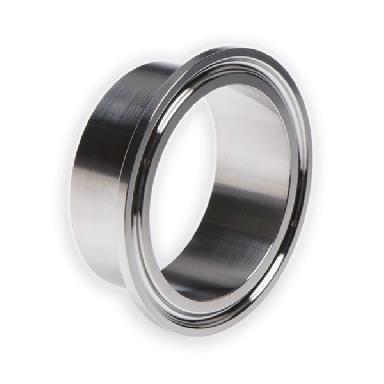

BS Schedule 5 Ferrules

Description

BS Schedule 5 Ferrule. Flatness of sealing face meets or exceeds guidelines. Quality checks by ACL are at the highest level for fitting manufacturers: JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC.

Dimensional Image

Features

Flatness of sealing face meets or exceeds guidelines
Circularity of components is within 0.1mm
Compatibility: BS4825-3
Durability: 0.8Ra um Int

Materials

316L / 1.4404 3.1 Certified – Solid Bar
Materials are AD2000 (PED) and ASME VIII
Surface finish is 0.8Ra um minimum

Industry PART#	Standard	Nom Imperial	Nom Metric/ISO	Flange (A)	Material Grade	EN/ASTM Std	LIST PRICE
Hygienic FDB1050021021SD6L	BS Schedule 5	1/2"	12.7(metric)	1.99" (50.5mm)	316L	1.4404/S31603	Price On Request
View Page BS Schedule 5-Series Ferrule - 316L - 1/2" Nom Legacy Part Number UK: FR.BS05.0050 Dimensional Image Key: • Length (C) mm: 21.5 • Flange (A) mm: 50.5 • Flange (A) in: 1.99" • Wall (WT) mm: 1.65 • Length (C) in: 0.85" • Wall (WT) in: 0.06" • Tube OD (D) mm: 21.34 • Tube OD (D) in: 0.84" • Tube ID (E) mm: 18.04 • Tube ID (E) in: 0.71"
Hygienic FDB1050026021SD6L	BS Schedule 5	3/4"	19.05(metric)	1.99" (50.5mm)	316L	1.4404/S31603	Price On Request
View Page BS Schedule 5-Series Ferrule - 316L - 3/4" Nom Legacy Part Number UK: FR.BS05.0075 Dimensional Image Key: • Length (C) mm: 21.5 • Flange (A) mm: 50.5 • Flange (A) in: 1.99" • Wall (WT) mm: 1.65 • Length (C) in: 0.85" • Wall (WT) in: 0.06" • Tube OD (D) mm: 26.67 • Tube OD (D) in: 1.05" • Tube ID (E) mm: 23.37 • Tube ID (E) in: 0.92"
Hygienic FDB1050033021SD6L	BS Schedule 5	1"	25.4(metric)	1.99" (50.5mm)	316L	1.4404/S31603	Price On Request
View Page BS Schedule 5-Series Ferrule - 316L - 1" Nom Legacy Part Number UK: FR.BS05.0100 Dimensional Image Key: • Length (C) mm: 21.5 • Flange (A) mm: 50.5 • Flange (A) in: 1.99" • Wall (WT) mm: 1.65 • Length (C) in: 0.85" • Wall (WT) in: 0.06" • Tube OD (D) mm: 33.4 • Tube OD (D) in: 1.31" • Tube ID (E) mm: 30.1 • Tube ID (E) in: 1.19"
Hygienic FDB1064042021SD6L	BS Schedule 5	1 1/4"	31.75(metric)	2.52" (64mm)	316L	1.4404/S31603	Price On Request
View Page BS Schedule 5-Series Ferrule - 316L - 1 1/4" Nom Legacy Part Number UK: FR.BS05.0125 Dimensional Image Key: • Length (C) mm: 21.5 • Flange (A) mm: 64 • Flange (A) in: 2.52" • Wall (WT) mm: 1.65 • Length (C) in: 0.85" • Wall (WT) in: 0.06" • Tube OD (D) mm: 42.16 • Tube OD (D) in: 1.66" • Tube ID (E) mm: 38.86 • Tube ID (E) in: 1.53"
Hygienic FDB1064048021SD6L	BS Schedule 5	1 1/2"	38.1(metric)	2.52" (64mm)	316L	1.4404/S31603	Price On Request
View Page BS Schedule 5-Series Ferrule - 316L - 1 1/2" Nom Legacy Part Number UK: FR.BS05.0150 Dimensional Image Key: • Length (C) mm: 21.5 • Flange (A) mm: 64 • Flange (A) in: 2.52" • Wall (WT) mm: 1.65 • Length (C) in: 0.85" • Wall (WT) in: 0.06" • Tube OD (D) mm: 48.26 • Tube OD (D) in: 1.9" • Tube ID (E) mm: 44.96 • Tube ID (E) in: 1.77"
Hygienic FDB1077060021SD6L	BS Schedule 5	2"	50.8(metric)	3.05" (77.5mm)	316L	1.4404/S31603	Price On Request
View Page BS Schedule 5-Series Ferrule - 316L - 2" Nom Legacy Part Number UK: FR.BS05.0200 Dimensional Image Key: • Length (C) mm: 21.5 • Flange (A) mm: 77.5 • Flange (A) in: 3.05" • Wall (WT) mm: 1.65 • Length (C) in: 0.85" • Wall (WT) in: 0.06" • Tube OD (D) mm: 60.32 • Tube OD (D) in: 2.37" • Tube ID (E) mm: 57.02 • Tube ID (E) in: 2.24"
Hygienic FDB1091073021SD6L	BS Schedule 5	2 1/2"	63.5(metric)	3.58" (91mm)	316L	1.4404/S31603	Price On Request
View Page BS Schedule 5-Series Ferrule - 316L - 2 1/2" Nom Legacy Part Number UK: FR.BS05.0250 Dimensional Image Key: • Length (C) mm: 21.5 • Flange (A) mm: 91 • Flange (A) in: 3.58" • Wall (WT) mm: 2.11 • Length (C) in: 0.85" • Wall (WT) in: 0.08" • Tube OD (D) mm: 73.03 • Tube OD (D) in: 2.88" • Tube ID (E) mm: 68.81 • Tube ID (E) in: 2.71"
Hygienic FDB1106088021SD6L	BS Schedule 5	3"	76.2(metric)	4.17" (106mm)	316L	1.4404/S31603	Price On Request
View Page BS Schedule 5-Series Ferrule - 316L - 3" Nom Legacy Part Number UK: FR.BS05.0300 Dimensional Image Key: • Length (C) mm: 21.5 • Flange (A) mm: 106 • Flange (A) in: 4.17" • Wall (WT) mm: 2.11 • Length (C) in: 0.85" • Wall (WT) in: 0.08" • Tube OD (D) mm: 88.9 • Tube OD (D) in: 3.5" • Tube ID (E) mm: 84.68 • Tube ID (E) in: 3.33"
Hygienic FDB1119101021SD6L	BS Schedule 5	3 1/2"	88.9(metric)	4.69" (119mm)	316L	1.4404/S31603	Price On Request
View Page BS Schedule 5-Series Ferrule - 316L - 3 1/2" Nom Legacy Part Number UK: FR.BS05.0350 Dimensional Image Key: • Length (C) mm: 21.5 • Flange (A) mm: 119 • Flange (A) in: 4.69" • Wall (WT) mm: 2.11 • Length (C) in: 0.85" • Wall (WT) in: 0.08" • Tube OD (D) mm: 101.6 • Tube OD (D) in: 4" • Tube ID (E) mm: 97.38 • Tube ID (E) in: 3.83"
Hygienic FDB1130114028SD6L	BS Schedule 5	4"	101.6(metric)	5.12" (130mm)	316L	1.4404/S31603	Price On Request
View Page BS Schedule 5-Series Ferrule - 316L - 4" Nom Legacy Part Number UK: FR.BS05.0400 Dimensional Image Key: • Length (C) mm: 28 • Flange (A) mm: 130 • Flange (A) in: 5.12" • Wall (WT) mm: 2.11 • Length (C) in: 1.1" • Wall (WT) in: 0.08" • Tube OD (D) mm: 114.3 • Tube OD (D) in: 4.5" • Tube ID (E) mm: 110.08 • Tube ID (E) in: 4.33"
Hygienic FDB1155141028SD6L	BS Schedule 5	5"	127(metric)	6.1" (155mm)	316L	1.4404/S31603	Price On Request
View Page BS Schedule 5-Series Ferrule - 316L - 5" Nom Legacy Part Number UK: FR.BS05.0500 Dimensional Image Key: • Length (C) mm: 28 • Flange (A) mm: 155 • Flange (A) in: 6.1" • Wall (WT) mm: 2.77 • Length (C) in: 1.1" • Wall (WT) in: 0.11" • Tube OD (D) mm: 141.3 • Tube OD (D) in: 5.56" • Tube ID (E) mm: 135.76 • Tube ID (E) in: 5.34"
Hygienic FDB1183168028SD6L	BS Schedule 5	6"	152.4(metric)	7.2" (183mm)	316L	1.4404/S31603	Price On Request
View Page BS Schedule 5-Series Ferrule - 316L - 6" Nom Legacy Part Number UK: FR.BS05.0600 Dimensional Image Key: • Length (C) mm: 28 • Flange (A) mm: 183 • Flange (A) in: 7.2" • Wall (WT) mm: 2.77 • Length (C) in: 1.1" • Wall (WT) in: 0.11" • Tube OD (D) mm: 168.28 • Tube OD (D) in: 6.63" • Tube ID (E) mm: 162.74 • Tube ID (E) in: 6.41"

Please Login To Order
