Safety Clamps

Description

Developed using the template of our market leading SH Clamp we have designed and manufactured the Safety Clamp to improve operator safety throughout the industry, targeting hazardous, high temperature process lines.

ACL can offer colored wing nuts for easy line identification on a system. For further details click here.

Patented – 7.883.121, 125175, 1693609

All Safety Clamps are available with an anti gall option.

Data Sheet

Specifications

Levels of safety for ACL clamps:

SAF: Level 1 (Stepped eyebolt)
SAFX: Level 2 (Stepped eyebolt, hex nut)
SAFS: Level 3 (Stepped eyebolt, hex nut, shroud)
SAFL: Level 4 (Stepped eyebolt, hex nut, shroud, lockout device)

Features

As companies lean more toward safety requirements, this clamp is a must for frequent disassembly of unions in higher safety applications.

Specified in several Pharmaceutical companies due to safety requirements
ACL's #1 selling product
Materials to ASME

Industry PART#	Standard	Nom Imperial	Nom Metric/ISO	Flange (A)	Material Grade	EN/ASTM Std	Mechanism	Nut Type	MAWP Bar (metric)	PSI (imperial)	LIST PRICE

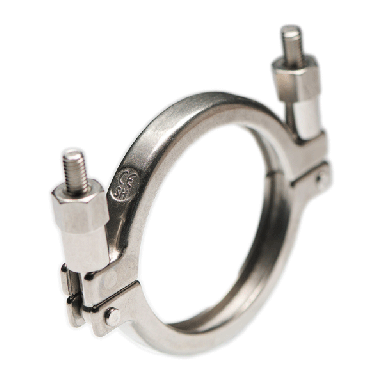

Pharmaceutical SHSFDX07706	SH	2 1/2"	DN50(ISO)	3" (77.5mm)	316L	1.4408/J92900	2-Bolt	Hex Nut	50	725.1886887	Price On Request
View Page SH-Series 2-Bolt Hex Nut - 316L - 2,5" (77.5mm) Flange - 2,5" Nom GTIN: 840384304390 Legacy Part Number IE: CL.SAFDX.0250 Legacy Part Number UK: CL02500-0SH-S6N5 Dimensional Image Key: • Flange (A) mm: 77.5 • Flange (A) in: 3" • B in: 2.98" • B mm: 75.7 • C mm: 123.8 • C in: 4.87" • W mm: 19 • W in: 0.75"
Pharmaceutical SHSFDX09106	SH	3"	DN65/DN65	3 1/2" (91mm)	316L	1.4408/J92900	2-Bolt	Hex Nut	40	580.1509509	Price On Request
View Page SH-Series 2-Bolt Hex Nut - 316L - 3" (91mm) Flange - 3" Nom GTIN: 840384304406 Legacy Part Number IE: CL.SAFDX.0300 Legacy Part Number UK: CL03000-0SH-S6N6 Dimensional Image Key: • Flange (A) mm: 91 • Flange (A) in: 3 1/2" • B in: 3.19" • B mm: 80.9 • C mm: 136.3 • C in: 5.37" • W mm: 19 • W in: 0.75"
Pharmaceutical SHSFDX10606	SH	3 1/2"	DN80/DN80	4 1/8" (106mm)	316L	1.4408/J92900	2-Bolt	Hex Nut	40	580.1509509	Price On Request
View Page SH-Series 2-Bolt Hex Nut - 316L - 3,5" (106mm) Flange - 3,5" Nom GTIN: 840384304413 Legacy Part Number IE: CL.SAFDX.0350 Legacy Part Number UK: CL03500-0SH-S6N6 Dimensional Image Key: • Flange (A) mm: 106 • Flange (A) in: 4 1/8" • B in: 3.44" • B mm: 87.3 • C mm: 151.3 • C in: 5.96" • W mm: 19 • W in: 0.75"
Pharmaceutical SHSFDX11906	SH	4"	DN100/DN80	4 3/4" (119mm)	316L	1.4408/J92900	2-Bolt	Hex Nut	35	507.6320821	Price On Request
View Page SH-Series 2-Bolt Hex Nut - 316L - 4" (119mm) Flange - 4" Nom GTIN: 840384304420 Legacy Part Number IE: CL.SAFDX.0400 Legacy Part Number UK: CL04000-0SH-S6N6 Dimensional Image Key: • Flange (A) mm: 119 • Flange (A) in: 4 3/4" • B in: 3.66" • B mm: 93 • C mm: 164.3 • C in: 6.47" • W mm: 19 • W in: 0.75"
Pharmaceutical SHSFDX13006	SH	4 1/2"	DN100/DN100	5 1/8" (130mm)	316L	1.4408/J92900	2-Bolt	Hex Nut	30	435.1132132	Price On Request
View Page SH-Series 2-Bolt Hex Nut - 316L - 4,5" (130mm) Flange - 4,5" Nom GTIN: 840384304437 Legacy Part Number IE: CL.SAFDX.0450 Legacy Part Number UK: CL04500-0SH-S6N6 Dimensional Image Key: • Flange (A) mm: 130 • Flange (A) in: 5 1/8" • B in: 3.44" • B mm: 87.4 • C mm: 176.6 • C in: 6.95" • W mm: 19 • W in: 0.75"
Pharmaceutical SHSFDX14406	SH	5"		5 5/8" (144.4mm)	316L	1.4408/J92900	2-Bolt	Hex Nut	30	435.1132132	Price On Request
View Page SH-Series 2-Bolt Hex Nut - 316L - 5" (144.4mm) Flange - 5" Nom GTIN: 840384304444 Legacy Part Number IE: CL.SAFDX.0500 Legacy Part Number UK: CL05000-0SH-S6N6 Dimensional Image Key: • Flange (A) mm: 144.4 • Flange (A) in: 5 5/8" • B in: 4.18" • B mm: 106.1 • C mm: 193.5 • C in: 7.62" • W mm: 19 • W in: 0.75"

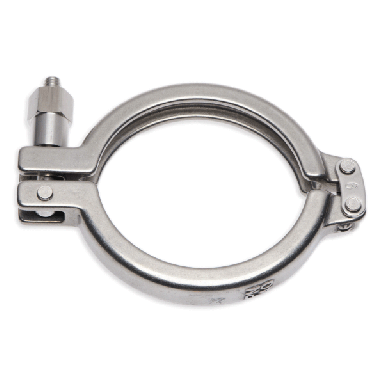

Pharmaceutical SHSFHX02506	SH	1/4 - 3/4"	DN6-8/DN8-10	1" (25.4mm)	316L	1.4408/J92900	2-Pin	Hex Nut	50	725.1886887	Price On Request
View Page SH-Series 2-Pin Hex Nut - 316L - 1/4" - 3/4" (25.4mm) Flange - 1/4" - 3/4" Nom GTIN: 840384301788 Legacy Part Number IE: CL.SAFX.0050 Legacy Part Number UK: CL00500750SHS6N3 Legacy Part Number DK: CLSAFX0050 Dimensional Image Key: • Flange (A) mm: 25.4 • Flange (A) in: 1" • B in: 2.48" • B mm: 63 • C mm: 75 • C in: 2.95" • W mm: 17 • W in: 0.67"
Pharmaceutical SHSFHX03406	SH	DN10	DN10-15-20(metric)	1 3/8" (34mm)	316L	1.4408/J92900	2-Pin	Hex Nut	50	725.1886887	Price On Request
View Page SH-Series 2-Pin Hex Nut - 316L - DN10 (34mm) Flange - DN10 Nom GTIN: 840384301962 Legacy Part Number IE: CL.SAFX.D010 Legacy Part Number UK: CL101520SHSBS6N3 Legacy Part Number DK: CLSAFXD010 Dimensional Image Key: • Flange (A) mm: 34 • Flange (A) in: 1 3/8" • B in: 2.24" • B mm: 57 • C mm: 75 • C in: 2.95" • W mm: 17 • W in: 0.67"
Pharmaceutical SHSFHX05006	SH	1 - 1 1/2"	DN25-40/DN15-20-25	2" (50.5mm)	316L	1.4408/J92900	2-Pin	Hex Nut	50	725.1886887	Price On Request
View Page SH-Series 2-Pin Hex Nut - 316L - 1" - 1 1/2" (50.5mm) Flange - 1" - 1 1/2" Nom GTIN: 840384301795 Legacy Part Number IE: CL.SAFX.0100 Legacy Part Number UK: CL01000500SHS6N3 Legacy Part Number DK: CLSAFX0100 Dimensional Image Key: • Flange (A) mm: 50.5 • Flange (A) in: 2" • B in: 3.03" • B mm: 77 • C mm: 102 • C in: 4.02" • W mm: 17 • W in: 0.67"
Pharmaceutical SHSFHX06406	SH	2"	DN50/DN32-40	2 1/2" (64mm)	316L	1.4408/J92900	2-Pin	Hex Nut	50	725.1886887	Price On Request
View Page SH-Series 2-Pin Hex Nut - 316L - 2" (64mm) Flange - 2" Nom GTIN: 840384301801 Legacy Part Number IE: CL.SAFX.0200 Legacy Part Number UK: CL02000-0SH-S6N3 Legacy Part Number DK: CLSAFX0200 Dimensional Image Key: • Flange (A) mm: 64 • Flange (A) in: 2 1/2" • B in: 3.66" • B mm: 93 • C mm: 123 • C in: 4.84" • W mm: 17 • W in: 0.67"
Pharmaceutical SHSFHX07706	SH	2 1/2"	DN50(ISO)	3" (77.5mm)	316L	1.4408/J92900	2-Pin	Hex Nut	50	725.1886887	Price On Request
View Page SH-Series 2-Pin Hex Nut - 316L - 2,5" (77.5mm) Flange - 2,5" Nom GTIN: 840384301818 Legacy Part Number IE: CL.SAFX.0250 Legacy Part Number UK: CL02000250SHS6N3 Legacy Part Number DK: CLSAFX0250 Dimensional Image Key: • Flange (A) mm: 77.5 • Flange (A) in: 3" • B in: 3.94" • B mm: 100 • C mm: 140 • C in: 5.51" • W mm: 17 • W in: 0.67"
Pharmaceutical SHSFHX09106	SH	3"	DN65/DN65	3 1/2" (91mm)	316L	1.4408/J92900	2-Pin	Hex Nut	40	580.1509509	Price On Request
View Page SH-Series 2-Pin Hex Nut - 316L - 3" (91mm) Flange - 3" Nom GTIN: 840384301825 Legacy Part Number IE: CL.SAFX.0300 Legacy Part Number UK: CL03000-0SH-S6N3 Legacy Part Number DK: CLSAFX0300 Dimensional Image Key: • Flange (A) mm: 91 • Flange (A) in: 3 1/2" • B in: 4.13" • B mm: 105 • C mm: 150 • C in: 5.91" • W mm: 17 • W in: 0.67"
