Hose Adapters

Description

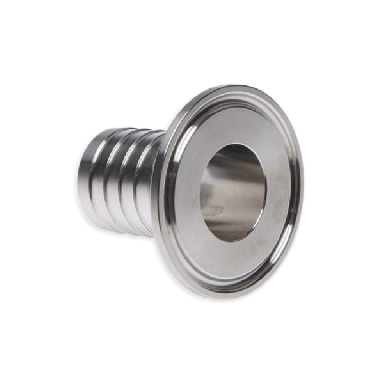

ACL offers a comprehensive range of ferrule to hose adapter fittings that are designed to allow a clamp flange to be connected directly to a flexible hose. Our standard range of ferrule to hose adapter fittings are designed to suit both imperial and metric flexible hose sizes that are commonly available throughout the industry.

All our hose adapters are manufactured from 316L S/S. This offers both excellent material properties and guarantees good controllable surface finishes. The ferrule to hose adapters fittings are machined with flanges to match BS4825, ISO & DIN32676 standard ferrules.

In the detailed section you will find information relating to our standard range of ferrule to hose adapter fittings. Due to the manufacturing process we are able to offer “non-standard” hose adapter to suit all customer requirements. If the following data does not show a ferrule to hose adapter to meet your specification, please do not hesitate to contact our sales staff.

Dimensional Image

Features

Material: 316L / 1.4404
Surface Finish: equal to, or better than 0.8 Ra(ųm) / 32 Ra(ųin)
Manufactured: 3.1 Certified
Produced in the UK
Quality checks by ACL are at the highest level for fitting manufacturers: JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC
Circularity of components is within 0.1mm
Materials are AD2000 (PED) and ASME VIII
Surface finish is 0.8Ra um minimum

Industry PART#	Standard	Nom Metric/ISO	Flange (A)	Material Grade	EN/ASTM Std	Hose Conn.(T)	Hose ID (E)	Hose OD (D)	Mating (F)	Length (C)	LIST PRICE
Hygienic ADADHM0136350406L	Metric	DIN 10(metric)	1.34" (34mm)	316L	1.4404/≈ SS2348	1/4"	0.13" (3.4mm)	0.25" (6.4mm)	0.39" (10mm)	1.57" (40mm)	Price On Request
View Page Hose Adapter, Metric, DIN10 Nominal, ¼” Connection Legacy Part Number IE: HTD.D10.025 Legacy Part Number UK: HTD.D10.025 Dimensional Image Key: • Length (C) mm: 40 • Flange (A) mm: 34 • Flange (A) in: 1.34" • Mating (F) mm: 10 • Hose ID (E) mm: 3.4 • Ferrule Connection (T): .25" • Hose OD (D) in: 0.25" • Mating (F) in: 0.39" • Length (C) in: 1.57" • Hose OD (D) mm: 6.4 • Hose ID (E) in: 0.13"
Hygienic ADADHM0139520406L	Metric	DIN 10(metric)	1.34" (34mm)	316L	1.4404/≈ SS2348	3/8"	0.26" (6.5mm)	0.37" (9.5mm)	0.39" (10mm)	1.57" (40mm)	Price On Request
View Page Hose Adapter, Metric, DIN10 Nominal, 3/8” Connection Legacy Part Number IE: HTD.D10.038 Legacy Part Number UK: HTD.D10.038 Dimensional Image Key: • Length (C) mm: 40 • Flange (A) mm: 34 • Flange (A) in: 1.34" • Mating (F) mm: 10 • Hose ID (E) mm: 6.5 • Ferrule Connection (T): .375" • Hose OD (D) in: 0.37" • Mating (F) in: 0.39" • Length (C) in: 1.57" • Hose OD (D) mm: 9.5 • Hose ID (E) in: 0.26"
Hygienic ADADHM0131270406L	Metric	DIN 10(metric)	1.34" (34mm)	316L	1.4404/≈ SS2348	1/2"	0.38" (9.7mm)	0.5" (12.7mm)	0.39" (10mm)	1.57" (40mm)	Price On Request
View Page Hose Adapter, Metric, DIN10 Nominal, ½” Connection Legacy Part Number IE: HTD.D10.050 Legacy Part Number UK: HTD.D10.050 Dimensional Image Key: • Length (C) mm: 40 • Flange (A) mm: 34 • Flange (A) in: 1.34" • Mating (F) mm: 10 • Hose ID (E) mm: 9.7 • Ferrule Connection (T): .5" • Hose OD (D) in: 0.5" • Mating (F) in: 0.39" • Length (C) in: 1.57" • Hose OD (D) mm: 12.7 • Hose ID (E) in: 0.38"
Hygienic ADADHM0131950406L	Metric	DIN 10(metric)	1.34" (34mm)	316L	1.4404/≈ SS2348	3/4"	0.63" (16mm)	0.75" (19mm)	0.39" (10mm)	1.57" (40mm)	Price On Request
View Page Hose Adapter, Metric, DIN10 Nominal, ¾” Connection Legacy Part Number IE: HTD.D10.075 Legacy Part Number UK: HTD.D10.075 Dimensional Image Key: • Length (C) mm: 40 • Flange (A) mm: 34 • Flange (A) in: 1.34" • Mating (F) mm: 10 • Hose ID (E) mm: 16 • Ferrule Connection (T): .75" • Hose OD (D) in: 0.75" • Mating (F) in: 0.39" • Length (C) in: 1.57" • Hose OD (D) mm: 19 • Hose ID (E) in: 0.63"
Hygienic ADADHM0196350406L	Metric	DIN 15(metric)	1.34" (34mm)	316L	1.4404/≈ SS2348	1/4"	0.13" (3.4mm)	0.25" (6.4mm)	0.63" (16mm)	1.57" (40mm)	Price On Request
View Page Hose Adapter, Metric, DIN15 Nominal, ¼” Connection Legacy Part Number IE: HTD.D15.025 Legacy Part Number UK: HTD.D15.025 Dimensional Image Key: • Length (C) mm: 40 • Flange (A) mm: 34 • Flange (A) in: 1.34" • Mating (F) mm: 16 • Hose ID (E) mm: 3.4 • Ferrule Connection (T): .25" • Hose OD (D) in: 0.25" • Mating (F) in: 0.63" • Length (C) in: 1.57" • Hose OD (D) mm: 6.4 • Hose ID (E) in: 0.13"
Hygienic ADADHM0199520406L	Metric	DIN 15(metric)	1.34" (34mm)	316L	1.4404/≈ SS2348	3/8"	0.26" (6.5mm)	0.37" (9.5mm)	0.63" (16mm)	1.57" (40mm)	Price On Request
View Page Hose Adapter, Metric, DIN15 Nominal, 3/8” Connection Legacy Part Number IE: HTD.D15.038 Legacy Part Number UK: HTD.D15.038 Dimensional Image Key: • Length (C) mm: 40 • Flange (A) mm: 34 • Flange (A) in: 1.34" • Mating (F) mm: 16 • Hose ID (E) mm: 6.5 • Ferrule Connection (T): .375" • Hose OD (D) in: 0.37" • Mating (F) in: 0.63" • Length (C) in: 1.57" • Hose OD (D) mm: 9.5 • Hose ID (E) in: 0.26"
Hygienic ADADHM0191270406L	Metric	DIN 15(metric)	1.34" (34mm)	316L	1.4404/≈ SS2348	1/2"	0.38" (9.7mm)	0.5" (12.7mm)	0.63" (16mm)	1.57" (40mm)	Price On Request
View Page Hose Adapter, Metric, DIN15 Nominal, ½” Connection Legacy Part Number IE: HTD.D15.050 Legacy Part Number UK: HTD.D15.050 Dimensional Image Key: • Length (C) mm: 40 • Flange (A) mm: 34 • Flange (A) in: 1.34" • Mating (F) mm: 16 • Hose ID (E) mm: 9.7 • Ferrule Connection (T): .5" • Hose OD (D) in: 0.5" • Mating (F) in: 0.63" • Length (C) in: 1.57" • Hose OD (D) mm: 12.7 • Hose ID (E) in: 0.38"
Hygienic ADADHM0191950406L	Metric	DIN 15(metric)	1.34" (34mm)	316L	1.4404/≈ SS2348	3/4"	0.63" (16mm)	0.75" (19mm)	0.63" (16mm)	1.57" (40mm)	Price On Request
View Page Hose Adapter, Metric, DIN15 Nominal, ¾” Connection Legacy Part Number IE: HTD.D15.075 Legacy Part Number UK: HTD.D15.075 Dimensional Image Key: • Length (C) mm: 40 • Flange (A) mm: 34 • Flange (A) in: 1.34" • Mating (F) mm: 16 • Hose ID (E) mm: 16 • Ferrule Connection (T): .75" • Hose OD (D) in: 0.75" • Mating (F) in: 0.63" • Length (C) in: 1.57" • Hose OD (D) mm: 19 • Hose ID (E) in: 0.63"
Hygienic ADADHM0296350406L	Metric	DIN 20(metric)	1.34" (34mm)	316L	1.4404/≈ SS2348	1/4"	0.13" (3.4mm)	0.25" (6.4mm)	0.79" (20mm)	1.57" (40mm)	Price On Request
View Page Hose Adapter, Metric, DIN20 Nominal, ¼” Connection Legacy Part Number IE: HTD.D20.025 Legacy Part Number UK: HTD.D20.025 Dimensional Image Key: • Length (C) mm: 40 • Flange (A) mm: 34 • Flange (A) in: 1.34" • Mating (F) mm: 20 • Hose ID (E) mm: 3.4 • Ferrule Connection (T): .25" • Hose OD (D) in: 0.25" • Mating (F) in: 0.79" • Length (C) in: 1.57" • Hose OD (D) mm: 6.4 • Hose ID (E) in: 0.13"
Hygienic ADADHM0299520406L	Metric	DIN 20(metric)	1.34" (34mm)	316L	1.4404/≈ SS2348	3/8"	0.26" (6.5mm)	0.37" (9.5mm)	0.79" (20mm)	1.57" (40mm)	Price On Request
View Page Hose Adapter, Metric, DIN20 Nominal, 3/8” Connection Legacy Part Number IE: HTD.D20.038 Legacy Part Number UK: HTD.D20.038 Dimensional Image Key: • Length (C) mm: 40 • Flange (A) mm: 34 • Flange (A) in: 1.34" • Mating (F) mm: 20 • Hose ID (E) mm: 6.5 • Ferrule Connection (T): .375" • Hose OD (D) in: 0.37" • Mating (F) in: 0.79" • Length (C) in: 1.57" • Hose OD (D) mm: 9.5 • Hose ID (E) in: 0.26"
Hygienic ADADHM0291270406L	Metric	DIN 20(metric)	1.34" (34mm)	316L	1.4404/≈ SS2348	1/2"	0.38" (9.7mm)	0.5" (12.7mm)	0.79" (20mm)	1.57" (40mm)	Price On Request
View Page Hose Adapter, Metric, DIN20 Nominal, ½” Connection Legacy Part Number IE: HTD.D20.050 Legacy Part Number UK: HTD.D20.050 Dimensional Image Key: • Length (C) mm: 40 • Flange (A) mm: 34 • Flange (A) in: 1.34" • Mating (F) mm: 20 • Hose ID (E) mm: 9.7 • Ferrule Connection (T): .5" • Hose OD (D) in: 0.5" • Mating (F) in: 0.79" • Length (C) in: 1.57" • Hose OD (D) mm: 12.7 • Hose ID (E) in: 0.38"
Hygienic ADADHM0291950406L	Metric	DIN 20(metric)	1.34" (34mm)	316L	1.4404/≈ SS2348	3/4"	0.63" (16mm)	0.75" (19mm)	0.79" (20mm)	1.57" (40mm)	Price On Request
View Page Hose Adapter, Metric, DIN20 Nominal, ¾” Connection Legacy Part Number IE: HTD.D20.075 Legacy Part Number UK: HTD.D20.075 Dimensional Image Key: • Length (C) mm: 40 • Flange (A) mm: 34 • Flange (A) in: 1.34" • Mating (F) mm: 20 • Hose ID (E) mm: 16 • Ferrule Connection (T): .75" • Hose OD (D) in: 0.75" • Mating (F) in: 0.79" • Length (C) in: 1.57" • Hose OD (D) mm: 19 • Hose ID (E) in: 0.63"
