    DIN 32676 Table B Ferrules Long


    DIN 32676 Table B Ferrules Long
    Description

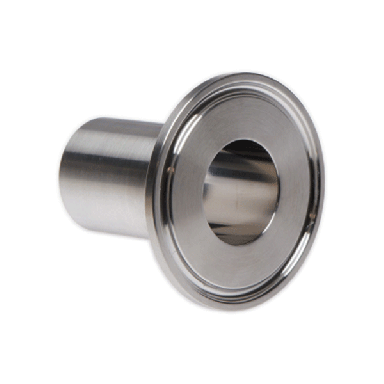

    ACL DIN 32676 Tabel B Ferrules, long (28.6mm - 66mm), material 1.4404. Flatness of sealing face meets or exceeds guidelines.
    Dimensional Image
    Features
    • Quality checks by ACL are at the highest level for fitting manufacturers:​ JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC​
    • Flatness of sealing face meets or exceeds guidelines​
    • Circularity of components is within 0.1mm​
    • Compatibility: DIN 32676
    • Durability: 0.8Ra um Int
    Materials
    • Materials are AD2000 (PED) and ASME VIII​
    • Surface finish is 0.8Ra um minimum​
    • 316L / 1.4404
    Total: 30
    Industry
    PART#    		 Standard Nom
    Imperial    		 Nom
    Metric/ISO    		 Flange
    (A)    		 Material
    Grade    		 EN/ASTM
    Std    		 LIST
    PRICE
    Pharmaceutical
    FPDB025010286SD6L
    		DIN 32676 Table B Long DN 06(metric) 0.98" (25mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Table B Long-Series Ferrule - 316L - DIN 06 Nom Legacy Part Number UK:   FR.DNBL.006
    Dimensional Image Key:
    • • Length (C) mm:  28.6
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • OD 1 (D) mm:  10.2
    • • Wall (WT) mm:  1.6
    • • Length (C) in:  1.13"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  10.2
    • • Tube OD (D) in:  0.4"
    • • Tube ID (E) mm:  7
    • • Tube ID (E) in:  0.28"
    Pharmaceutical
    FPDB025013286SD6L
    		DIN 32676 Table B Long DN 08(metric) 0.98" (25mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Table B Long-Series Ferrule - 316L - DIN 08 Nom Legacy Part Number UK:   FR.DNBL.008
    Dimensional Image Key:
    • • Length (C) mm:  28.6
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • OD 1 (D) mm:  13.5
    • • Wall (WT) mm:  1.6
    • • Length (C) in:  1.13"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  13.5
    • • Tube OD (D) in:  0.53"
    • • Tube ID (E) mm:  10.3
    • • Tube ID (E) in:  0.41"
    Pharmaceutical
    FPDB025017286SD6L
    		DIN 32676 Table B Long DN 10(metric) 0.98" (25mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Table B Long-Series Ferrule - 316L - DIN 10 Nom Legacy Part Number UK:   FR.DNBL.010
    Dimensional Image Key:
    • • Length (C) mm:  28.6
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • OD 1 (D) mm:  17.2
    • • Wall (WT) mm:  1.6
    • • Length (C) in:  1.13"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  17.2
    • • Tube OD (D) in:  0.68"
    • • Tube ID (E) mm:  14
    • • Tube ID (E) in:  0.55"
    Pharmaceutical
    FPDB050021286SD6L
    		DIN 32676 Table B Long DN 15(metric) 1.99" (50.5mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Table B Long-Series Ferrule - 316L - DIN 15 Nom Legacy Part Number UK:   FR.DNBL.015
    Dimensional Image Key:
    • • Length (C) mm:  28.6
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  21.3
    • • Wall (WT) mm:  1.6
    • • Length (C) in:  1.13"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  21.3
    • • Tube OD (D) in:  0.84"
    • • Tube ID (E) mm:  18.1
    • • Tube ID (E) in:  0.71"
    Pharmaceutical
    FPDB050026286SD6L
    		DIN 32676 Table B Long DN 20(metric) 1.99" (50.5mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Table B Long-Series Ferrule - 316L - DIN 20 Nom Legacy Part Number UK:   FR.DNBL.020
    Dimensional Image Key:
    • • Length (C) mm:  28.6
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  26.9
    • • Wall (WT) mm:  1.6
    • • Length (C) in:  1.13"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  26.9
    • • Tube OD (D) in:  1.06"
    • • Tube ID (E) mm:  23.7
    • • Tube ID (E) in:  0.93"
    Pharmaceutical
    FPDB050033036SD6L
    		DIN 32676 Table B Long DN 25(metric) 1.99" (50.5mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Table B Long-Series Ferrule - 316L - DIN 25 Nom Legacy Part Number UK:   FR.DNBL.025
    Dimensional Image Key:
    • • Length (C) mm:  36
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  33.7
    • • Wall (WT) mm:  2
    • • Length (C) in:  1.42"
    • • Wall (WT) in:  0.08"
    • • Tube OD (D) mm:  33.7
    • • Tube OD (D) in:  1.33"
    • • Tube ID (E) mm:  29.7
    • • Tube ID (E) in:  1.17"
    Pharmaceutical
    FPDB064042036SD6L
    		DIN 32676 Table B Long DN 32(metric) 2.52" (64mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Table B Long-Series Ferrule - 316L - DIN 32 Nom Legacy Part Number UK:   FR.DNBL.032
    Dimensional Image Key:
    • • Length (C) mm:  36
    • • Flange (A) mm:  64
    • • Flange (A) in:  2.52"
    • • OD 1 (D) mm:  42.4
    • • Wall (WT) mm:  2
    • • Length (C) in:  1.42"
    • • Wall (WT) in:  0.08"
    • • Tube OD (D) mm:  42.4
    • • Tube OD (D) in:  1.67"
    • • Tube ID (E) mm:  38.4
    • • Tube ID (E) in:  1.51"
    Pharmaceutical
    FPDB064048036SD6L
    		DIN 32676 Table B Long DN 40(metric) 2.52" (64mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Table B Long-Series Ferrule - 316L - DIN 40 Nom Legacy Part Number UK:   FR.DNBL.040
    Dimensional Image Key:
    • • Length (C) mm:  36
    • • Flange (A) mm:  64
    • • Flange (A) in:  2.52"
    • • OD 1 (D) mm:  48.3
    • • Wall (WT) mm:  2
    • • Length (C) in:  1.42"
    • • Wall (WT) in:  0.08"
    • • Tube OD (D) mm:  48.3
    • • Tube OD (D) in:  1.9"
    • • Tube ID (E) mm:  44.3
    • • Tube ID (E) in:  1.74"
    Pharmaceutical
    FPDB077060036SD6L
    		DIN 32676 Table B Long DN 50(metric) 3.05" (77.5mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Table B Long-Series Ferrule - 316L - DIN 50 Nom Legacy Part Number UK:   FR.DNBL.050
    Dimensional Image Key:
    • • Length (C) mm:  36
    • • Flange (A) mm:  77.5
    • • Flange (A) in:  3.05"
    • • OD 1 (D) mm:  60.3
    • • Wall (WT) mm:  2
    • • Length (C) in:  1.42"
    • • Wall (WT) in:  0.08"
    • • Tube OD (D) mm:  60.3
    • • Tube OD (D) in:  2.37"
    • • Tube ID (E) mm:  56.3
    • • Tube ID (E) in:  2.22"
    Pharmaceutical
    FPDB091076048SD6L
    		DIN 32676 Table B Long DN 65(metric) 3.58" (91mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Table B Long-Series Ferrule - 316L - DIN 65 Nom Legacy Part Number UK:   FR.DNBL.065
    Dimensional Image Key:
    • • Length (C) mm:  48
    • • Flange (A) mm:  91
    • • Flange (A) in:  3.58"
    • • OD 1 (D) mm:  76.1
    • • Wall (WT) mm:  2
    • • Length (C) in:  1.89"
    • • Wall (WT) in:  0.08"
    • • Tube OD (D) mm:  76.1
    • • Tube OD (D) in:  3"
    • • Tube ID (E) mm:  72.1
    • • Tube ID (E) in:  2.84"
    Pharmaceutical
    FPDB106088048SD6L
    		DIN 32676 Table B Long DN 80(metric) 4.17" (106mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Table B Long-Series Ferrule - 316L - DIN 80 Nom Legacy Part Number UK:   FR.DNBL.080
    Dimensional Image Key:
    • • Length (C) mm:  48
    • • Flange (A) mm:  106
    • • Flange (A) in:  4.17"
    • • OD 1 (D) mm:  88.9
    • • Wall (WT) mm:  2.3
    • • Length (C) in:  1.89"
    • • Wall (WT) in:  0.09"
    • • Tube OD (D) mm:  88.9
    • • Tube OD (D) in:  3.5"
    • • Tube ID (E) mm:  84.3
    • • Tube ID (E) in:  3.32"
    Pharmaceutical
    FPDB130114048SD6L
    		DIN 32676 Table B Long DN 100(metric) 5.12" (130mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Table B Long-Series Ferrule - 316L - DN 100 Nom Legacy Part Number UK:   FR.DNBL.100
    Dimensional Image Key:
    • • Length (C) mm:  48
    • • Flange (A) mm:  130
    • • Flange (A) in:  5.12"
    • • OD 1 (D) mm:  114.3
    • • Wall (WT) mm:  2.3
    • • Length (C) in:  1.89"
    • • Wall (WT) in:  0.09"
    • • Tube OD (D) mm:  114.3
    • • Tube OD (D) in:  4.5"
    • • Tube ID (E) mm:  109.7
    • • Tube ID (E) in:  4.32"
