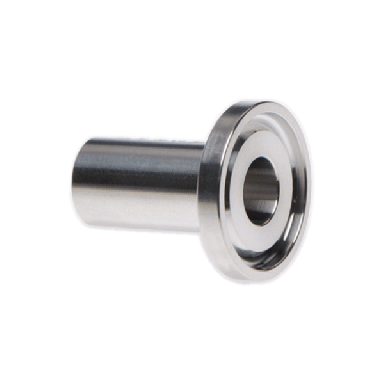

    Mini Series Ultra-Bore Ferrules Metric & Imperial


    Mini Series Ultra-Bore Ferrules Metric & Imperial
    Description
    Mini-Series Ultra-Bore Ferrules Metric & Imperial; material 1.4404. Flatness of sealing face meets or exceeds guidelines.
    Dimensional Image
    Features
    • Quality checks by ACL are at the highest level for fitting manufacturers:​ JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC​
    • Flatness of sealing face meets or exceeds guidelines​
    • Circularity of components is within 0.1mm​
    Materials
    • Materials are AD2000 (PED) and ASME VIII​
    • Surface finish is 0.8Ra um minimum​
    Total: 9
    Industry
    PART#    		 Standard Nom
    Imperial    		 Nom
    Metric/ISO    		 Flange
    (A)    		 Material
    Grade    		 EN/ASTM
    Std    		 LIST
    PRICE
    Hygienic
    FDM2025006021SD6L
    		Mini-Series Ultra-Bore 6 x 4(metric) 0.98" (25mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     Mini-Series Ultra-Bore-Series Ferrule - 316L - 6 x 4 Nom GTIN:   840384308510 Legacy Part Number UK:   FR.MS.0604 Legacy Part Number DK:   FRMS0604
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • OD 1 (D) mm:  6
    • • Wall (WT) mm:  1
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.04"
    • • Tube OD (D) mm:  6
    • • Tube OD (D) in:  0.24"
    • • Tube ID (E) mm:  4
    • • Tube ID (E) in:  0.16"
    Hygienic
    FDM2025008021SD6L
    		Mini-Series Ultra-Bore 8 x 6(metric) 0.98" (25mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     Mini-Series Ultra-Bore-Series Ferrule - 316L - 8 x 6 Nom GTIN:   840384308527 Legacy Part Number UK:   FR.MS.0806 Legacy Part Number DK:   FRMS0806
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • OD 1 (D) mm:  8
    • • Wall (WT) mm:  1
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.04"
    • • Tube OD (D) mm:  8
    • • Tube OD (D) in:  0.31"
    • • Tube ID (E) mm:  6
    • • Tube ID (E) in:  0.24"
    Hygienic
    FDM2025010021SD6L
    		Mini-Series Ultra-Bore 10 x 8(metric) 0.98" (25mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     Mini-Series Ultra-Bore-Series Ferrule - 316L - 10 x 8 Nom GTIN:   840384308534 Legacy Part Number UK:   FR.MS.1008 Legacy Part Number DK:   FRMS1008
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • OD 1 (D) mm:  10
    • • Wall (WT) mm:  1
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.04"
    • • Tube OD (D) mm:  10
    • • Tube OD (D) in:  0.39"
    • • Tube ID (E) mm:  8
    • • Tube ID (E) in:  0.31"
    Hygienic
    FDM2025012021SD6L
    		Mini-Series Ultra-Bore 12 x 10(metric) 0.98" (25mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     Mini-Series Ultra-Bore-Series Ferrule - 316L - 12 x 10 Nom GTIN:   840384308541 Legacy Part Number UK:   FR.MS.1210 Legacy Part Number DK:   FRMS1210
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • OD 1 (D) mm:  12
    • • Wall (WT) mm:  1
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.04"
    • • Tube OD (D) mm:  12
    • • Tube OD (D) in:  0.47"
    • • Tube ID (E) mm:  10
    • • Tube ID (E) in:  0.39"
    Hygienic
    FDM2025014021SD6L
    		Mini-Series Ultra-Bore 14 x 12(metric) 0.98" (25mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     Mini-Series Ultra-Bore-Series Ferrule - 316L - 14 x 12 Nom GTIN:   840384308558 Legacy Part Number UK:   FR.MS.1412 Legacy Part Number DK:   FRMS1412
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • OD 1 (D) mm:  14
    • • Wall (WT) mm:  1
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.04"
    • • Tube OD (D) mm:  14
    • • Tube OD (D) in:  0.55"
    • • Tube ID (E) mm:  12
    • • Tube ID (E) in:  0.47"
    Hygienic
    FDM2025016021SD6L
    		Mini-Series Ultra-Bore 16 x 14(metric) 0.98" (25mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     Mini-Series Ultra-Bore-Series Ferrule - 316L - 16 x 14 Nom GTIN:   840384308565 Legacy Part Number UK:   FR.MS.1614 Legacy Part Number DK:   FRMS1614
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • OD 1 (D) mm:  16
    • • Wall (WT) mm:  1
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.04"
    • • Tube OD (D) mm:  16
    • • Tube OD (D) in:  0.63"
    • • Tube ID (E) mm:  14
    • • Tube ID (E) in:  0.55"
    Hygienic
    FDM2025018021SD6L
    		Mini-Series Ultra-Bore 18 x 16(metric) 0.98" (25mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     Mini-Series Ultra-Bore-Series Ferrule - 316L - 18 x 16 Nom GTIN:   840384308572 Legacy Part Number UK:   FR.MS.1816 Legacy Part Number DK:   FRMS1816
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • OD 1 (D) mm:  18
    • • Wall (WT) mm:  1
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.04"
    • • Tube OD (D) mm:  18
    • • Tube OD (D) in:  0.71"
    • • Tube ID (E) mm:  16
    • • Tube ID (E) in:  0.63"
    Hygienic
    FDM2025635021SD6L
    		Mini-Series Ultra-Bore 1/4" 6.35(metric) 0.98" (25mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     Mini-Series Ultra-Bore-Series Ferrule - 316L - 1/4" Nom Legacy Part Number UK:   FR.MSI.025
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • OD 1 (D) mm:  6.35
    • • Wall (WT) mm:  0.89
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.04"
    • • Tube OD (D) mm:  6.35
    • • Tube OD (D) in:  0.25"
    • • Tube ID (E) mm:  4.57
    • • Tube ID (E) in:  0.18"
    Hygienic
    FDM2025952021SD6L
    		Mini-Series Ultra-Bore 3/8" 9.525(metric) 0.98" (25mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     Mini-Series Ultra-Bore-Series Ferrule - 316L - 3/8" Nom Legacy Part Number UK:   FR.MSI.038
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • OD 1 (D) mm:  9.53
    • • Wall (WT) mm:  0.91
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.04"
    • • Tube OD (D) mm:  9.53
    • • Tube OD (D) in:  0.38"
    • • Tube ID (E) mm:  7.71
    • • Tube ID (E) in:  0.3"
