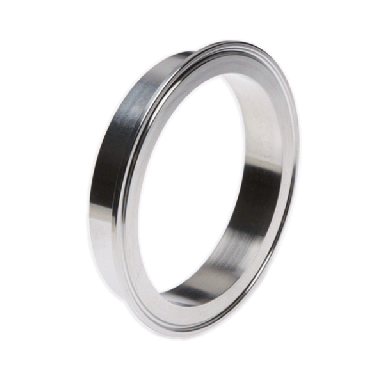

    BS Schedule 40 Ferrules


    BS Schedule 40 Ferrules
    Description
    BS Schedule 40 Ferrules. Flatness of sealing face meets or exceeds guidelines. Quality checks by ACL are at the highest level for fitting manufacturers:​ JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC​.

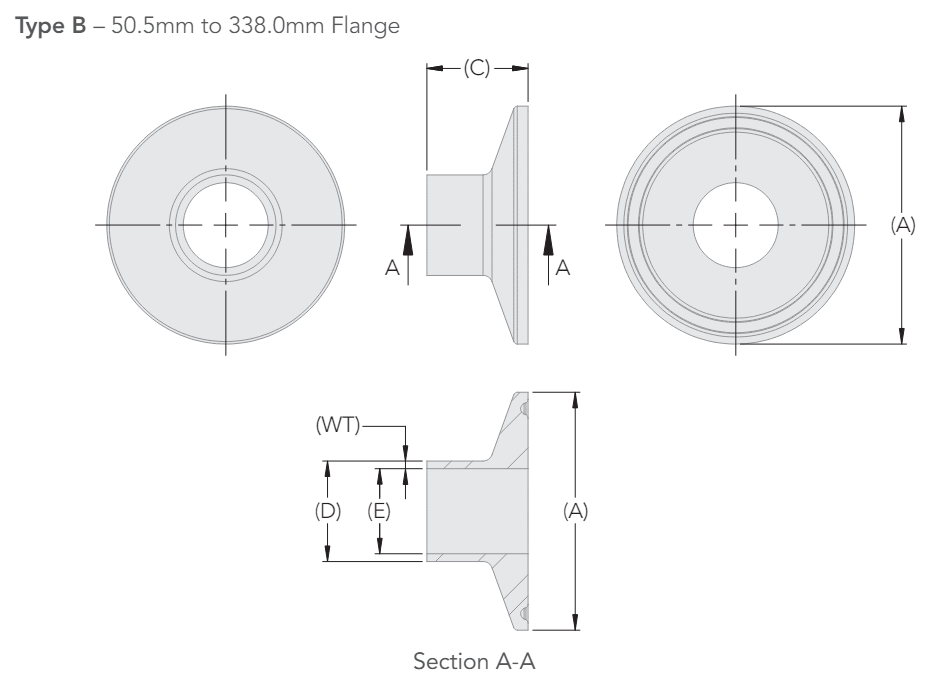

    Dimensional Image
    Features
    • Flatness of sealing face meets or exceeds guidelines​
    • Circularity of components is within 0.1mm​
    • Compatibility: BS4825-3
    • Durability: 0.8Ra um Int
    Materials
    • 316L / 1.4404 3.1 Certified – Solid Bar
    • Materials are AD2000 (PED) and ASME VIII​
    • Surface finish is 0.8Ra um minimum
    Total: 30
    Industry
    PART#    		 Standard Nom
    Imperial    		 Nom
    Metric/ISO    		 Flange
    (A)    		 Material
    Grade    		 EN/ASTM
    Std    		 LIST
    PRICE
    Hygienic
    FDB3050021021SD6L
    		BS Schedule 40 1/2" 12.7(metric) 1.99" (50.5mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     BS Schedule 40-Series Ferrule - 316L - 1/2" Nom Legacy Part Number UK:   FR.BS40.0050
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • Wall (WT) mm:  2.77
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.11"
    • • Tube OD (D) mm:  21.34
    • • Tube OD (D) in:  0.84"
    • • Tube ID (E) mm:  15.8
    • • Tube ID (E) in:  0.62"
    Hygienic
    FDB3050026021SD6L
    		BS Schedule 40 3/4" 19.05(metric) 1.99" (50.5mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     BS Schedule 40-Series Ferrule - 316L - 3/4" Nom Legacy Part Number UK:   FR.BS40.0075
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • Wall (WT) mm:  2.87
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.11"
    • • Tube OD (D) mm:  26.67
    • • Tube OD (D) in:  1.05"
    • • Tube ID (E) mm:  20.93
    • • Tube ID (E) in:  0.82"
    Hygienic
    FDB3050033021SD6L
    		BS Schedule 40 1" 25.4(metric) 1.99" (50.5mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     BS Schedule 40-Series Ferrule - 316L - 1" Nom Legacy Part Number UK:   FR.BS40.0100
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • Wall (WT) mm:  3.38
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.13"
    • • Tube OD (D) mm:  33.4
    • • Tube OD (D) in:  1.31"
    • • Tube ID (E) mm:  26.64
    • • Tube ID (E) in:  1.05"
    Hygienic
    FDB3064042021SD6L
    		BS Schedule 40 1 1/4" 31.75(metric) 2.52" (64mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     BS Schedule 40-Series Ferrule - 316L - 1 1/4" Nom Legacy Part Number UK:   FR.BS40.0125
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  64
    • • Flange (A) in:  2.52"
    • • Wall (WT) mm:  3.56
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.14"
    • • Tube OD (D) mm:  42.16
    • • Tube OD (D) in:  1.66"
    • • Tube ID (E) mm:  35.04
    • • Tube ID (E) in:  1.38"
    Hygienic
    FDB3064048021SD6L
    		BS Schedule 40 1 1/2" 38.1(metric) 2.52" (64mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     BS Schedule 40-Series Ferrule - 316L - 1 1/2" Nom Legacy Part Number UK:   FR.BS40.0150
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  64
    • • Flange (A) in:  2.52"
    • • Wall (WT) mm:  3.69
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.15"
    • • Tube OD (D) mm:  48.26
    • • Tube OD (D) in:  1.9"
    • • Tube ID (E) mm:  40.88
    • • Tube ID (E) in:  1.61"
    Hygienic
    FDB3077060021SD6L
    		BS Schedule 40 2" 50.8(metric) 3.05" (77.5mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     BS Schedule 40-Series Ferrule - 316L - 2" Nom Legacy Part Number UK:   FR.BS40.0200
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  77.5
    • • Flange (A) in:  3.05"
    • • Wall (WT) mm:  3.91
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.15"
    • • Tube OD (D) mm:  60.32
    • • Tube OD (D) in:  2.37"
    • • Tube ID (E) mm:  52.51
    • • Tube ID (E) in:  2.07"
    Hygienic
    FDB3091073021SD6L
    		BS Schedule 40 2 1/2" 63.5(metric) 3.58" (91mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     BS Schedule 40-Series Ferrule - 316L - 2 1/2" Nom Legacy Part Number UK:   FR.BS40.0250
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  91
    • • Flange (A) in:  3.58"
    • • Wall (WT) mm:  5.16
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.2"
    • • Tube OD (D) mm:  73.03
    • • Tube OD (D) in:  2.88"
    • • Tube ID (E) mm:  62.71
    • • Tube ID (E) in:  2.47"
    Hygienic
    FDB3106088021SD6L
    		BS Schedule 40 3" 76.2(metric) 4.17" (106mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     BS Schedule 40-Series Ferrule - 316L - 3" Nom Legacy Part Number UK:   FR.BS40.0300
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  106
    • • Flange (A) in:  4.17"
    • • Wall (WT) mm:  5.49
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.22"
    • • Tube OD (D) mm:  88.9
    • • Tube OD (D) in:  3.5"
    • • Tube ID (E) mm:  77.92
    • • Tube ID (E) in:  3.07"
    Hygienic
    FDB3119101021SD6L
    		BS Schedule 40 3 1/2" 88.9(metric) 4.69" (119mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     BS Schedule 40-Series Ferrule - 316L - 3 1/2" Nom Legacy Part Number UK:   FR.BS40.0350
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  119
    • • Flange (A) in:  4.69"
    • • Wall (WT) mm:  5.74
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.23"
    • • Tube OD (D) mm:  101.6
    • • Tube OD (D) in:  4"
    • • Tube ID (E) mm:  90.12
    • • Tube ID (E) in:  3.55"
    Hygienic
    FDB3130114028SD6L
    		BS Schedule 40 4" 101.6(metric) 5.12" (130mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     BS Schedule 40-Series Ferrule - 316L - 4" Nom Legacy Part Number UK:   FR.BS40.0400
    Dimensional Image Key:
    • • Length (C) mm:  28
    • • Flange (A) mm:  130
    • • Flange (A) in:  5.12"
    • • Wall (WT) mm:  6.02
    • • Length (C) in:  1.1"
    • • Wall (WT) in:  0.24"
    • • Tube OD (D) mm:  114.3
    • • Tube OD (D) in:  4.5"
    • • Tube ID (E) mm:  102.26
    • • Tube ID (E) in:  4.03"
    Hygienic
    FDB3155141028SD6L
    		BS Schedule 40 5" 127(metric) 6.1" (155mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     BS Schedule 40-Series Ferrule - 316L - 5" Nom Legacy Part Number UK:   FR.BS40.0500
    Dimensional Image Key:
    • • Length (C) mm:  28
    • • Flange (A) mm:  155
    • • Flange (A) in:  6.1"
    • • Wall (WT) mm:  6.55
    • • Length (C) in:  1.1"
    • • Wall (WT) in:  0.26"
    • • Tube OD (D) mm:  141.3
    • • Tube OD (D) in:  5.56"
    • • Tube ID (E) mm:  128.2
    • • Tube ID (E) in:  5.05"
    Hygienic
    FDB3183168028SD6L
    		BS Schedule 40 6" 152.4(metric) 7.2" (183mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     BS Schedule 40-Series Ferrule - 316L - 6" Nom Legacy Part Number UK:   FR.BS40.0600
    Dimensional Image Key:
    • • Length (C) mm:  28
    • • Flange (A) mm:  183
    • • Flange (A) in:  7.2"
    • • Wall (WT) mm:  7.11
    • • Length (C) in:  1.1"
    • • Wall (WT) in:  0.28"
    • • Tube OD (D) mm:  168.28
    • • Tube OD (D) in:  6.63"
    • • Tube ID (E) mm:  154.06
    • • Tube ID (E) in:  6.07"
    Please Login To Order
