DIN 32676 Table B Ferrules Short

Description

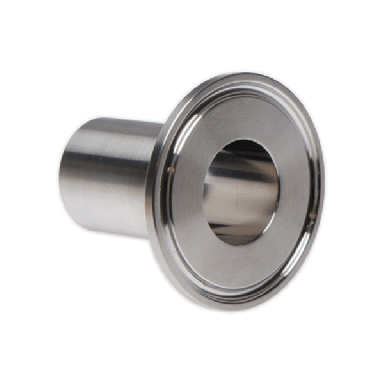

ACL DIN 32676 Tabel B Ferrules, short (12.7mm - 28mm), material 1.4404. Flatness of sealing face meets or exceeds guidelines.

Dimensional Image

Features

Quality checks by ACL are at the highest level for fitting manufacturers: JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC
Flatness of sealing face meets or exceeds guidelines
Circularity of components is within 0.1mm
Compatibility: DIN 32676
Durability: 0.8Ra um Int

Materials

Materials are AD2000 (PED) and ASME VIII
Surface finish is 0.8Ra um minimum
316L / 1.4404

Industry PART#	Standard	Nom Metric/ISO	Flange (A)	Material Grade	EN/ASTM Std	LIST PRICE
Pharmaceutical FPDB025010127SD6L	DIN 32676 Table B Short	DN 06(metric)	0.98" (25mm)	316L	1.4404/S31603	Price On Request
View Page DIN 32676 Table B Short-Series Ferrule - 316L - DIN 06 Nom Legacy Part Number UK: FR.DNBS.006 Dimensional Image Key: • Length (C) mm: 12.7 • Flange (A) mm: 25 • Flange (A) in: 0.98" • OD 1 (D) mm: 10.2 • Wall (WT) mm: 1.6 • Length (C) in: 0.5" • Wall (WT) in: 0.06" • Tube OD (D) mm: 10.2 • Tube OD (D) in: 0.4" • Tube ID (E) mm: 7 • Tube ID (E) in: 0.28"
Pharmaceutical FPDB025013127SD6L	DIN 32676 Table B Short	DN 08(metric)	0.98" (25mm)	316L	1.4404/S31603	Price On Request
View Page DIN 32676 Table B Short-Series Ferrule - 316L - DIN 08 Nom Legacy Part Number UK: FR.DNBS.008 Dimensional Image Key: • Length (C) mm: 12.7 • Flange (A) mm: 25 • Flange (A) in: 0.98" • OD 1 (D) mm: 13.5 • Wall (WT) mm: 1.6 • Length (C) in: 0.5" • Wall (WT) in: 0.06" • Tube OD (D) mm: 13.5 • Tube OD (D) in: 0.53" • Tube ID (E) mm: 10.3 • Tube ID (E) in: 0.41"
Pharmaceutical FPDB025017018SD6L	DIN 32676 Table B Short	DN 10(metric)	0.98" (25mm)	316L	1.4404/S31603	Price On Request
View Page DIN 32676 Table B Short-Series Ferrule - 316L - DIN 10 Nom Legacy Part Number UK: FR.DNBS.010 Dimensional Image Key: • Length (C) mm: 18 • Flange (A) mm: 25 • Flange (A) in: 0.98" • OD 1 (D) mm: 17.2 • Wall (WT) mm: 1.6 • Length (C) in: 0.71" • Wall (WT) in: 0.06" • Tube OD (D) mm: 17.2 • Tube OD (D) in: 0.68" • Tube ID (E) mm: 14 • Tube ID (E) in: 0.55"
Pharmaceutical FPDB050021018SD6L	DIN 32676 Table B Short	DN 15(metric)	1.99" (50.5mm)	316L	1.4404/S31603	Price On Request
View Page DIN 32676 Table B Short-Series Ferrule - 316L - DIN 15 Nom Legacy Part Number UK: FR.DNBS.015 Dimensional Image Key: • Length (C) mm: 18 • Flange (A) mm: 50.5 • Flange (A) in: 1.99" • OD 1 (D) mm: 21.3 • Wall (WT) mm: 1.6 • Length (C) in: 0.71" • Wall (WT) in: 0.06" • Tube OD (D) mm: 21.3 • Tube OD (D) in: 0.84" • Tube ID (E) mm: 18.1 • Tube ID (E) in: 0.71"
Pharmaceutical FPDB050026018SD6L	DIN 32676 Table B Short	DN 20(metric)	1.99" (50.5mm)	316L	1.4404/S31603	Price On Request
View Page DIN 32676 Table B Short-Series Ferrule - 316L - DIN 20 Nom Legacy Part Number UK: FR.DNBS.020 Dimensional Image Key: • Length (C) mm: 18 • Flange (A) mm: 50.5 • Flange (A) in: 1.99" • OD 1 (D) mm: 26.9 • Wall (WT) mm: 1.6 • Length (C) in: 0.71" • Wall (WT) in: 0.06" • Tube OD (D) mm: 26.9 • Tube OD (D) in: 1.06" • Tube ID (E) mm: 23.7 • Tube ID (E) in: 0.93"
Pharmaceutical FPDB050033021SD6L	DIN 32676 Table B Short	DN 25(metric)	1.99" (50.5mm)	316L	1.4404/S31603	Price On Request
View Page DIN 32676 Table B Short-Series Ferrule - 316L - DIN 25 Nom Legacy Part Number UK: FR.DNBS.025 Dimensional Image Key: • Length (C) mm: 21.5 • Flange (A) mm: 50.5 • Flange (A) in: 1.99" • OD 1 (D) mm: 33.7 • Wall (WT) mm: 2 • Length (C) in: 0.85" • Wall (WT) in: 0.08" • Tube OD (D) mm: 33.7 • Tube OD (D) in: 1.33" • Tube ID (E) mm: 29.7 • Tube ID (E) in: 1.17"
Pharmaceutical FPDB064048021SD6L	DIN 32676 Table B Short	DN 40(metric)	2.52" (64mm)	316L	1.4404/S31603	Price On Request
View Page DIN 32676 Table B Short-Series Ferrule - 316L - DIN 40 Nom Legacy Part Number UK: FR.DNBS.040 Dimensional Image Key: • Length (C) mm: 21.5 • Flange (A) mm: 64 • Flange (A) in: 2.52" • OD 1 (D) mm: 48.3 • Wall (WT) mm: 2 • Length (C) in: 0.85" • Wall (WT) in: 0.08" • Tube OD (D) mm: 48.3 • Tube OD (D) in: 1.9" • Tube ID (E) mm: 44.3 • Tube ID (E) in: 1.74"
Pharmaceutical FPDB077060021SD6L	DIN 32676 Table B Short	DN 50(metric)	3.05" (77.5mm)	316L	1.4404/S31603	Price On Request
View Page DIN 32676 Table B Short-Series Ferrule - 316L - DIN 50 Nom Legacy Part Number UK: FR.DNBS.050 Dimensional Image Key: • Length (C) mm: 21.5 • Flange (A) mm: 77.5 • Flange (A) in: 3.05" • OD 1 (D) mm: 60.3 • Wall (WT) mm: 2 • Length (C) in: 0.85" • Wall (WT) in: 0.08" • Tube OD (D) mm: 60.3 • Tube OD (D) in: 2.37" • Tube ID (E) mm: 56.3 • Tube ID (E) in: 2.22"
Pharmaceutical FPDB091076021SD6L	DIN 32676 Table B Short	DN 65(metric)	3.58" (91mm)	316L	1.4404/S31603	Price On Request
View Page DIN 32676 Table B Short-Series Ferrule - 316L - DIN 65 Nom Legacy Part Number UK: FR.DNBS.065 Dimensional Image Key: • Length (C) mm: 28 • Flange (A) mm: 91 • Flange (A) in: 3.58" • OD 1 (D) mm: 76.1 • Wall (WT) mm: 2 • Length (C) in: 1.1" • Wall (WT) in: 0.08" • Tube OD (D) mm: 76.1 • Tube OD (D) in: 3" • Tube ID (E) mm: 72.1 • Tube ID (E) in: 2.84"
Pharmaceutical FPDB106088028SD6L	DIN 32676 Table B Short	DN 80(metric)	4.17" (106mm)	316L	1.4404/S31603	Price On Request
View Page DIN 32676 Table B Short-Series Ferrule - 316L - DIN 80 Nom Legacy Part Number UK: FR.DNBS.080 Dimensional Image Key: • Length (C) mm: 28 • Flange (A) mm: 106 • Flange (A) in: 4.17" • OD 1 (D) mm: 88.9 • Wall (WT) mm: 2.3 • Length (C) in: 1.1" • Wall (WT) in: 0.09" • Tube OD (D) mm: 88.9 • Tube OD (D) in: 3.5" • Tube ID (E) mm: 84.3 • Tube ID (E) in: 3.32"
Pharmaceutical FPDB130114028SD6L	DIN 32676 Table B Short	DN 100(metric)	5.12" (130mm)	316L	1.4404/S31603	Price On Request
View Page DIN 32676 Table B Short-Series Ferrule - 316L - DN 100 Nom Legacy Part Number UK: FR.DNBS.100 Dimensional Image Key: • Length (C) mm: 28 • Flange (A) mm: 130 • Flange (A) in: 5.12" • OD 1 (D) mm: 114.3 • Wall (WT) mm: 2.3 • Length (C) in: 1.1" • Wall (WT) in: 0.09" • Tube OD (D) mm: 114.3 • Tube OD (D) in: 4.5" • Tube ID (E) mm: 109.7 • Tube ID (E) in: 4.32"
Pharmaceutical FPDB155139028SD6L	DIN 32676 Table B Short	DN 125(metric)	6.1" (155mm)	316L	1.4404/S31603	Price On Request
View Page DIN 32676 Table B Short-Series Ferrule - 316L - DIN 125 Nom Legacy Part Number UK: FR.DNBS.125 Dimensional Image Key: • Length (C) mm: 28 • Flange (A) mm: 155 • Flange (A) in: 6.1" • OD 1 (D) mm: 139.7 • Wall (WT) mm: 2.6 • Length (C) in: 1.1" • Wall (WT) in: 0.1" • Tube OD (D) mm: 139.7 • Tube OD (D) in: 5.5" • Tube ID (E) mm: 134.5 • Tube ID (E) in: 5.3"
