SMS 3008/3017 Ferrules

Description

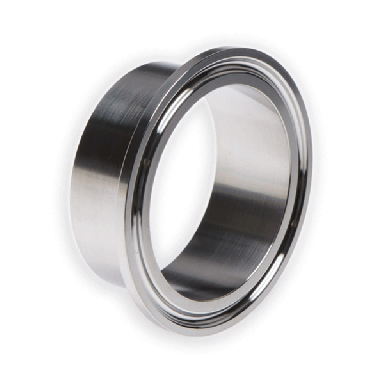

ACL® SMS 3008/3017 Ferrules; material 1.4404. Flatness of sealing face meets or exceeds guidelines.

Dimensional Image

Features

Quality checks by ACL are at the highest level for fitting manufacturers: JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC
Flatness of sealing face meets or exceeds guidelines
Circularity of components is within 0.1mm

Materials

Materials are AD2000 (PED) and ASME VIII
Surface finish is 0.8Ra um minimum

Industry PART#	Standard	Nom Imperial	Nom Metric/ISO	Flange (A)	Material Grade	EN/ASTM Std	LIST PRICE
Hygienic FDS8025018021SD6L	SMS 3008	3/4"	19.05(metric)	0.98" (25mm)	316L	1.4404/S31603	Price On Request
View Page SMS 3008-Series Ferrule - 316L - 3/4" Nom Legacy Part Number UK: FR.SM8.0075 Dimensional Image Key: • Length (C) mm: 21.5 • Flange (A) mm: 25 • Flange (A) in: 0.98" • OD 1 (D) mm: 18 • Wall (WT) mm: 1 • Length (C) in: 0.85" • Wall (WT) in: 0.04" • Tube OD (D) mm: 18 • Tube OD (D) in: 0.71" • Tube ID (E) mm: 16 • Tube ID (E) in: 0.63"
Hygienic FDS8050025021SD6L	SMS 3008	1"	25.4(metric)	1.99" (50.5mm)	316L	1.4404/S31603	Price On Request
View Page SMS 3008-Series Ferrule - 316L - 1" Nom GTIN: 840384308640 Legacy Part Number UK: FR.SM8.0100 Legacy Part Number DK: FRSM80100 Dimensional Image Key: • Length (C) mm: 21.5 • Flange (A) mm: 50.5 • Flange (A) in: 1.99" • OD 1 (D) mm: 25 • Wall (WT) mm: 1.2 • Length (C) in: 0.85" • Wall (WT) in: 0.05" • Tube OD (D) mm: 25 • Tube OD (D) in: 0.98" • Tube ID (E) mm: 22.6 • Tube ID (E) in: 0.89"
Hygienic FDS8050038021SD6L	SMS 3008	1 1/2"	38.1(metric)	1.99" (50.5mm)	316L	1.4404/S31603	Price On Request
View Page SMS 3008-Series Ferrule - 316L - 1 1/2" Nom GTIN: 840384308657 Legacy Part Number UK: FR.SM8.0150 Legacy Part Number DK: FRSM80150 Dimensional Image Key: • Length (C) mm: 21.5 • Flange (A) mm: 50.5 • Flange (A) in: 1.99" • OD 1 (D) mm: 38 • Wall (WT) mm: 1.2 • Length (C) in: 0.85" • Wall (WT) in: 0.05" • Tube OD (D) mm: 38 • Tube OD (D) in: 1.5" • Tube ID (E) mm: 35.6 • Tube ID (E) in: 1.4"
Hygienic FDS8064051021SD6L	SMS 3008	2"	50.8(metric)	2.52" (64mm)	316L	1.4404/S31603	Price On Request
View Page SMS 3008-Series Ferrule - 316L - 2" Nom GTIN: 840384308664 Legacy Part Number UK: FR.SM8.0200 Legacy Part Number DK: FRSM80200 Dimensional Image Key: • Length (C) mm: 21.5 • Flange (A) mm: 64 • Flange (A) in: 2.52" • OD 1 (D) mm: 51 • Wall (WT) mm: 1.2 • Length (C) in: 0.85" • Wall (WT) in: 0.05" • Tube OD (D) mm: 51 • Tube OD (D) in: 2.01" • Tube ID (E) mm: 48.6 • Tube ID (E) in: 1.91"
Hygienic FDS8077063021SD6L	SMS 3008	2 1/2"	63.5(metric)	3.05" (77.5mm)	316L	1.4404/S31603	Price On Request
View Page SMS 3008-Series Ferrule - 316L - 2 1/2" Nom Legacy Part Number UK: FR.SM8.0250 Dimensional Image Key: • Length (C) mm: 21.5 • Flange (A) mm: 77.5 • Flange (A) in: 3.05" • OD 1 (D) mm: 63.5 • Wall (WT) mm: 1.6 • Length (C) in: 0.85" • Wall (WT) in: 0.06" • Tube OD (D) mm: 63.5 • Tube OD (D) in: 2.5" • Tube ID (E) mm: 60.3 • Tube ID (E) in: 2.37"
Hygienic FDS8091076021SD6L	SMS 3008	3"	76.2(metric)	3.58" (91mm)	316L	1.4404/S31603	Price On Request
View Page SMS 3008-Series Ferrule - 316L - 3" Nom Legacy Part Number UK: FR.SM8.0300 Dimensional Image Key: • Length (C) mm: 21.5 • Flange (A) mm: 91 • Flange (A) in: 3.58" • OD 1 (D) mm: 76.1 • Wall (WT) mm: 1.6 • Length (C) in: 0.85" • Wall (WT) in: 0.06" • Tube OD (D) mm: 76.1 • Tube OD (D) in: 3" • Tube ID (E) mm: 72.9 • Tube ID (E) in: 2.87"
Hygienic FDS8106089021SD6L	SMS 3008	3 1/2"	88.9(metric)	4.17" (106mm)	316L	1.4404/S31603	Price On Request
View Page SMS 3008-Series Ferrule - 316L - 3 1/2" Nom Legacy Part Number UK: FR.SM8.0350 Dimensional Image Key: • Length (C) mm: 21.5 • Flange (A) mm: 106 • Flange (A) in: 4.17" • OD 1 (D) mm: 89 • Wall (WT) mm: 2 • Length (C) in: 0.85" • Wall (WT) in: 0.08" • Tube OD (D) mm: 89 • Tube OD (D) in: 3.5" • Tube ID (E) mm: 85 • Tube ID (E) in: 3.35"
Hygienic FDS8119101021SD6L	SMS 3008	4"	101.6(metric)	4.69" (119mm)	316L	1.4404/S31603	Price On Request
View Page SMS 3008-Series Ferrule - 316L - 4" Nom Legacy Part Number UK: FR.SM8.0400 Dimensional Image Key: • Length (C) mm: 21.5 • Flange (A) mm: 119 • Flange (A) in: 4.69" • OD 1 (D) mm: 101.6 • Wall (WT) mm: 2 • Length (C) in: 0.85" • Wall (WT) in: 0.08" • Tube OD (D) mm: 101.6 • Tube OD (D) in: 4" • Tube ID (E) mm: 97.6 • Tube ID (E) in: 3.84"
Hygienic FDS7050025021SD6L	SMS 3017	1"	25.4(metric)	1.99" (50.5mm)	316L	1.4404/S31603	Price On Request
View Page SMS 3017-Series Ferrule - 316L - 1" Nom GTIN: 840384308589 Legacy Part Number UK: FR.SM7.0100 Legacy Part Number DK: FRSM70100 Dimensional Image Key: • Length (C) mm: 21.5 • Flange (A) mm: 50.5 • Flange (A) in: 1.99" • OD 1 (D) mm: 25.6 • Wall (WT) mm: 1.5 • Length (C) in: 0.85" • Wall (WT) in: 0.06" • Tube OD (D) mm: 25.6 • Tube OD (D) in: 1.01" • Tube ID (E) mm: 22.6 • Tube ID (E) in: 0.89"
Hygienic FDS7050033021SD6L	SMS 3017	1 1/4"	31.75(metric)	1.99" (50.5mm)	316L	1.4404/S31603	Price On Request
View Page SMS 3017-Series Ferrule - 316L - 1 1/4" Nom Legacy Part Number UK: FR.SM7.0125 Dimensional Image Key: • Length (C) mm: 21.5 • Flange (A) mm: 50.5 • Flange (A) in: 1.99" • OD 1 (D) mm: 33.7 • Wall (WT) mm: 1.5 • Length (C) in: 0.85" • Wall (WT) in: 0.06" • Tube OD (D) mm: 33.7 • Tube OD (D) in: 1.33" • Tube ID (E) mm: 30.7 • Tube ID (E) in: 1.21"
Hygienic FDS7050038021SD6L	SMS 3017	1 1/2"	38.1(metric)	1.99" (50.5mm)	316L	1.4404/S31603	Price On Request
View Page SMS 3017-Series Ferrule - 316L - 1 1/2" Nom GTIN: 840384308596 Legacy Part Number UK: FR.SM7.0150 Legacy Part Number DK: FRSM70150 Dimensional Image Key: • Length (C) mm: 21.5 • Flange (A) mm: 50.5 • Flange (A) in: 1.99" • OD 1 (D) mm: 38 • Wall (WT) mm: 1.5 • Length (C) in: 0.85" • Wall (WT) in: 0.06" • Tube OD (D) mm: 38 • Tube OD (D) in: 1.5" • Tube ID (E) mm: 35.6 • Tube ID (E) in: 1.4"
Hygienic FDS7064051021SD6L	SMS 3017	2"	50.8(metric)	2.52" (64mm)	316L	1.4404/S31603	Price On Request
View Page SMS 3017-Series Ferrule - 316L - 2" Nom GTIN: 840384308602 Legacy Part Number UK: FR.SM7.0200 Legacy Part Number DK: FRSM70200 Dimensional Image Key: • Length (C) mm: 21.5 • Flange (A) mm: 64 • Flange (A) in: 2.52" • OD 1 (D) mm: 51 • Wall (WT) mm: 1.6 • Length (C) in: 0.85" • Wall (WT) in: 0.06" • Tube OD (D) mm: 51 • Tube OD (D) in: 2.01" • Tube ID (E) mm: 48.6 • Tube ID (E) in: 1.91"
