    DIN 32676 Table A Ferrules Long


    DIN 32676 Table A Ferrules Long
    Description

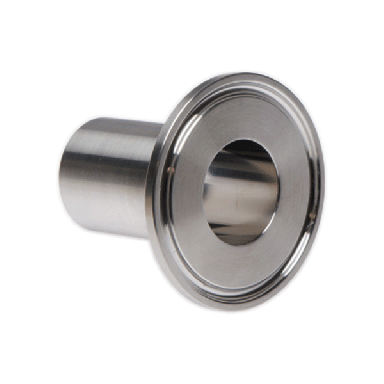

    ACL DIN 32676 Tabel A Ferrules, Long. Material 316L / 1.4404. Flatness of sealing face meets or exceeds guidelines.
    Dimensional Image
    Features
    • Quality checks by ACL are at the highest level for fitting manufacturers:​ JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC​
    • Flatness of sealing face meets or exceeds guidelines​
    • Circularity of components is within 0.1mm​
    • Compatibility: DIN 32676
    • Durability: 0.8Ra um Int
    Materials
    • Materials are AD2000 (PED) and ASME VIII​
    • Surface finish is 0.8Ra um minimum​
    • 316L / 1.4404
    Total: 30
    Industry
    PART#    		 Standard Nom
    Imperial    		 Nom
    Metric/ISO    		 Flange
    (A)    		 Material
    Grade    		 EN/ASTM
    Std    		 LIST
    PRICE
    Hygienic
    FDDA025008028SD6L
    		DIN 32676 Table A Long DN 06(metric) 0.98" (25mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Table A Long-Series Ferrule - 316L - DIN 06 Nom Legacy Part Number UK:   FR.DNAL.006
    Dimensional Image Key:
    • • Length (C) mm:  28.6
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • OD 1 (D) mm:  8
    • • Wall (WT) mm:  1
    • • Length (C) in:  1.13"
    • • Wall (WT) in:  0.04"
    • • Tube OD (D) mm:  8
    • • Tube OD (D) in:  0.31"
    • • Tube ID (E) mm:  6
    • • Tube ID (E) in:  0.24"
    Hygienic
    FDDA025010028SD6L
    		DIN 32676 Table A Long DN 08(metric) 0.98" (25mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Table A Long-Series Ferrule - 316L - DIN 08 Nom Legacy Part Number UK:   FR.DNAL.008
    Dimensional Image Key:
    • • Length (C) mm:  28.6
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • OD 1 (D) mm:  10
    • • Wall (WT) mm:  1
    • • Length (C) in:  1.13"
    • • Wall (WT) in:  0.04"
    • • Tube OD (D) mm:  10
    • • Tube OD (D) in:  0.39"
    • • Tube ID (E) mm:  8
    • • Tube ID (E) in:  0.31"
    Hygienic
    FDDA034013028SD6L
    		DIN 32676 Table A Long DN 10(metric) 1.34" (34mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Table A Long-Series Ferrule - 316L - DIN 10 Nom Legacy Part Number UK:   FR.DNAL.010
    Dimensional Image Key:
    • • Length (C) mm:  28.6
    • • Flange (A) mm:  34
    • • Flange (A) in:  1.34"
    • • OD 1 (D) mm:  13
    • • Wall (WT) mm:  1.5
    • • Length (C) in:  1.13"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  13
    • • Tube OD (D) in:  0.51"
    • • Tube ID (E) mm:  10
    • • Tube ID (E) in:  0.39"
    Hygienic
    FDDA034019028SD6L
    		DIN 32676 Table A Long DN 15(metric) 1.34" (34mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Table A Long-Series Ferrule - 316L - DIN 15 Nom Legacy Part Number UK:   FR.DNAL.015
    Dimensional Image Key:
    • • Length (C) mm:  28.6
    • • Flange (A) mm:  34
    • • Flange (A) in:  1.34"
    • • OD 1 (D) mm:  19
    • • Wall (WT) mm:  1.5
    • • Length (C) in:  1.13"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  19
    • • Tube OD (D) in:  0.75"
    • • Tube ID (E) mm:  16
    • • Tube ID (E) in:  0.63"
    Hygienic
    FDDA034023028SD6L
    		DIN 32676 Table A Long DN 20(metric) 1.34" (34mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Table A Long-Series Ferrule - 316L - DIN 20 Nom Legacy Part Number UK:   FR.DNAL.020
    Dimensional Image Key:
    • • Length (C) mm:  28.6
    • • Flange (A) mm:  34
    • • Flange (A) in:  1.34"
    • • OD 1 (D) mm:  23
    • • Wall (WT) mm:  1.5
    • • Length (C) in:  1.13"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  23
    • • Tube OD (D) in:  0.91"
    • • Tube ID (E) mm:  20
    • • Tube ID (E) in:  0.79"
    Hygienic
    FDDA050029036SD6L
    		DIN 32676 Table A Long DN 25(metric) 1.99" (50.5mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Table A Long-Series Ferrule - 316L - DIN 25 Nom Legacy Part Number UK:   FR.DNAL.025
    Dimensional Image Key:
    • • Length (C) mm:  36
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  29
    • • Wall (WT) mm:  1.5
    • • Length (C) in:  1.42"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  29
    • • Tube OD (D) in:  1.14"
    • • Tube ID (E) mm:  26
    • • Tube ID (E) in:  1.02"
    Hygienic
    FDDA050035036SD6L
    		DIN 32676 Table A Long DN 32(metric) 1.99" (50.5mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Table A Long-Series Ferrule - 316L - DIN 32 Nom Legacy Part Number UK:   FR.DNAL.032
    Dimensional Image Key:
    • • Length (C) mm:  36
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  35
    • • Wall (WT) mm:  1.5
    • • Length (C) in:  1.42"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  35
    • • Tube OD (D) in:  1.38"
    • • Tube ID (E) mm:  32
    • • Tube ID (E) in:  1.26"
    Hygienic
    FDDA050041036SD6L
    		DIN 32676 Table A Long DN 40(metric) 1.99" (50.5mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Table A Long-Series Ferrule - 316L - DIN 40 Nom Legacy Part Number UK:   FR.DNAL.040
    Dimensional Image Key:
    • • Length (C) mm:  36
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  41
    • • Wall (WT) mm:  1.5
    • • Length (C) in:  1.42"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  41
    • • Tube OD (D) in:  1.61"
    • • Tube ID (E) mm:  38
    • • Tube ID (E) in:  1.5"
    Hygienic
    FDDA064053036SD6L
    		DIN 32676 Table A Long DN 50(metric) 2.52" (64mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Table A Long-Series Ferrule - 316L - DIN 50 Nom Legacy Part Number UK:   FR.DNAL.050
    Dimensional Image Key:
    • • Length (C) mm:  36
    • • Flange (A) mm:  64
    • • Flange (A) in:  2.52"
    • • OD 1 (D) mm:  53
    • • Wall (WT) mm:  1.5
    • • Length (C) in:  1.42"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  53
    • • Tube OD (D) in:  2.09"
    • • Tube ID (E) mm:  50
    • • Tube ID (E) in:  1.97"
    Hygienic
    FDDA091070048SD6L
    		DIN 32676 Table A Long DN 65(metric) 3.58" (91mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Table A Long-Series Ferrule - 316L - DIN 65 Nom Legacy Part Number UK:   FR.DNAL.065
    Dimensional Image Key:
    • • Length (C) mm:  48
    • • Flange (A) mm:  91
    • • Flange (A) in:  3.58"
    • • OD 1 (D) mm:  70
    • • Wall (WT) mm:  2
    • • Length (C) in:  1.89"
    • • Wall (WT) in:  0.08"
    • • Tube OD (D) mm:  70
    • • Tube OD (D) in:  2.76"
    • • Tube ID (E) mm:  66
    • • Tube ID (E) in:  2.6"
    Hygienic
    FDDA106085048SD6L
    		DIN 32676 Table A Long DN 80(metric) 4.17" (106mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Table A Long-Series Ferrule - 316L - DIN 80 Nom Legacy Part Number UK:   FR.DNAL.080
    Dimensional Image Key:
    • • Length (C) mm:  48
    • • Flange (A) mm:  106
    • • Flange (A) in:  4.17"
    • • OD 1 (D) mm:  85
    • • Wall (WT) mm:  2
    • • Length (C) in:  1.89"
    • • Wall (WT) in:  0.08"
    • • Tube OD (D) mm:  85
    • • Tube OD (D) in:  3.35"
    • • Tube ID (E) mm:  81
    • • Tube ID (E) in:  3.19"
    Hygienic
    FDDA119104048SD6L
    		DIN 32676 Table A Long DN 100(metric) 4.69" (119mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Table A Long-Series Ferrule - 316L - DN 100 Nom Legacy Part Number UK:   FR.DNAL.100
    Dimensional Image Key:
    • • Length (C) mm:  48
    • • Flange (A) mm:  119
    • • Flange (A) in:  4.69"
    • • OD 1 (D) mm:  104
    • • Wall (WT) mm:  2
    • • Length (C) in:  1.89"
    • • Wall (WT) in:  0.08"
    • • Tube OD (D) mm:  104
    • • Tube OD (D) in:  4.09"
    • • Tube ID (E) mm:  100
    • • Tube ID (E) in:  3.94"
