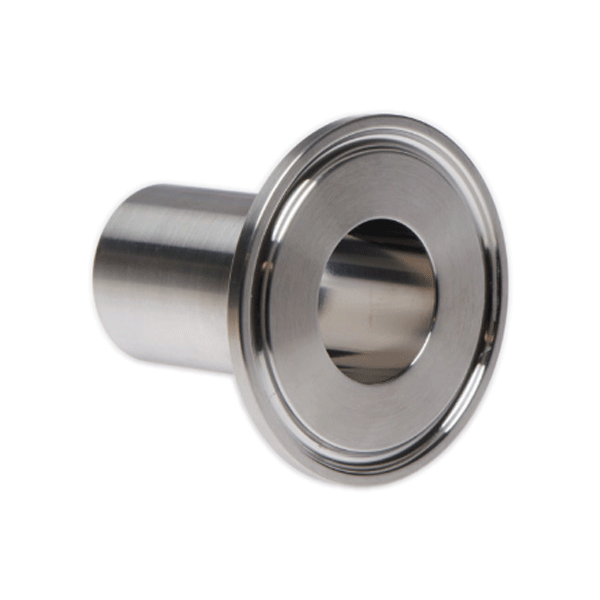

    DIN 32676 Table C Ferrules Short


    DIN 32676 Table C Ferrules Short

    Description
    ACL DIN 32676 Tabel C Ferrules, short (12.7mm - 28mm), material 1.4404 low sulphur. Flatness of sealing face meets or exceeds guidelines.
    Dimensional Image
    Features
    • Quality checks by ACL are at the highest level for fitting manufacturers:​ JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC​
    • Flatness of sealing face meets or exceeds guidelines​
    • Circularity of components is within 0.1mm​
    • Compatibility: DIN 32676
    • Durability: 0.8Ra um Int
    Materials
    • Materials are AD2000 (PED) and ASME VIII​
    • Surface finish is 0.8Ra um minimum​
    • 316L / 1.4404
    Number of Products to Show
    NAME
    PART#
    ASTM Standard
    EN Standard
    Flange (A) in
    Flange (A) mm
    ID (E) in
    ID (E) mm
    Length (C) in
    Length (C) mm
    Material Grade
    Nom Imperial
    OD (D) in
    OD 1 (D) mm
    Wall (WT) in
    Wall (WT) mm
    LIST PRICE
    P
    DIN 32676 Table B Ferrule, short, Nominal ¼”, 25.4mm Flange, 12.7mm Length
    FPDC025635127SD6L
    ≈ SS2348
    1.4404
    —
    25.4
    —
    4.57
    —
    12.7
    316L
    1/4"
    —
    6.35
    —
    0.89
    Price On Request
    P
    DIN 32676 Table B Ferrule, short, Nominal 3/8", 25.4mm Flange, 12.7mm Length
    FPDC025952127SD6L
    ≈ SS2348
    1.4404
    —
    25.4
    —
    7.74
    —
    12.7
    316L
    3/8"
    —
    9.52
    —
    0.89
    Price On Request
    P
    DIN 32676 Table B Ferrule, short, Nominal ½", 25.4mm Flange, 12.7mm Length
    FPDC025127127SD6L
    ≈ SS2348
    1.4404
    —
    25.4
    —
    9.4
    —
    12.7
    316L
    1/2"
    —
    10.7
    —
    1.65
    Price On Request
    P
    DIN 32676 Table B Ferrule, short, Nominal ¾", 25.4mm Flange, 12.7mm Length
    FPDC025195127SD6L
    ≈ SS2348
    1.4404
    —
    25.4
    —
    15.75
    —
    12.7
    316L
    3/4"
    —
    19.05
    —
    1.65
    Price On Request
    P
    DIN 32676 Table B Ferrule, short, Nominal 1”, 50.5mm Flange, 21.5mm Length
    FPDC050025021SD6L
    ≈ SS2348
    1.4404
    —
    50.5
    —
    22.1
    —
    21.5
    316L
    1"
    —
    25.4
    —
    1.65
    Price On Request
    P
    DIN 32676 Table B Ferrule, short, Nominal 1½", 50.5mm Flange, 21.5mm Length
    FPDC050038021SD6L
    ≈ SS2348
    1.4404
    —
    50.5
    —
    34.8
    —
    21.5
    316L
    1 1/2"
    —
    38.1
    —
    1.65
    Price On Request
    P
    DIN 32676 Table B Ferrule, short, Nominal 2”, 64mm Flange, 21.5mm Length
    FPDC0645051021SD6L
    ≈ SS2348
    1.4404
    —
    64
    —
    47.5
    —
    21.5
    316L
    2"
    —
    50.8
    —
    1.65
    Price On Request
    P
    DIN 32676 Table B Ferrule, short, Nominal 2½”, 77.5mm Flange, 28mm Length
    FPDC077063028SD6L
    ≈ SS2348
    1.4404
    —
    77.5
    —
    60.2
    —
    28
    316L
    2 1/2"
    —
    63.5
    —
    1.65
    Price On Request
    P
    DIN 32676 Table B Ferrule, short, Nominal 3”, 91mm Flange, 28mm Length
    FPDC091076028SD6L
    ≈ SS2348
    1.4404
    —
    91
    —
    72.9
    —
    28
    316L
    3"
    —
    76.2
    —
    1.65
    Price On Request
    P
    DIN 32676 Table B Ferrule, short, Nominal 4", 119mm Flange, 28mm Length
    FPDC119101028SD6L
    ≈ SS2348
    1.4404
    —
    119
    —
    97.38
    —
    28
    316L
    4"
    —
    101.6
    —
    2.11
    Price On Request
    Please Login To Order
