    BS 4825 Part 3 Ferrules


    BS 4825 Part 3 Ferrules
    Description

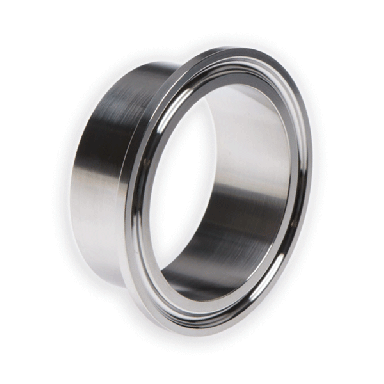

    BS 4825 Part 3 Ferrules, stainless steel BS 4825 compatible, flatness of sealing face meets or exceeds guidelines. Quality checks by ACL are at the highest level for fitting manufacturers:​ JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC​.
    Dimensional Image
    Features
    • Flatness of sealing face meets or exceeds guidelines​
    • Circularity of components is within 0.1mm​
    • Compatibility: BS4825-3
    • Durability: 0.8Ra um Int
    Materials
    • 316L / 1.4404 3.1 Certified – Solid Bar
    • Materials are AD2000 (PED) and ASME VIII​
    • Surface finish is 0.8Ra um minimum
    Total: 36
    Industry
    PART#    		 Standard Nom
    Imperial    		 Nom
    Metric/ISO    		 Flange
    (A)    		 Material
    Grade    		 EN/ASTM
    Std    		 LIST
    PRICE
    Hygienic
    FDB4025127021SD6L
    		BS4825 1/2" 12.7(metric) 1" (25.4mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     BS4825-Series Ferrule - 316L - 1/2" Nom GTIN:   840384308077 Legacy Part Number UK:   FR.BS.0050 Legacy Part Number DK:   FRMSI050. FRBS0050
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  25.4
    • • Flange (A) in:  1"
    • • Wall (WT) mm:  1.59
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.06"
    • • Thickness (T) in:  0.062992126
    • • Tube OD (D) mm:  12.7
    • • Tube OD (D) in:  0.5"
    • • Tube ID (E) mm:  9.52
    • • Tube ID (E) in:  0.37"
    Hygienic
    FDB4025195021SD6L
    		BS4825 3/4" 19.05(metric) 1" (25.4mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     BS4825-Series Ferrule - 316L - 3/4" Nom GTIN:   840384308084 Legacy Part Number UK:   FR.BS.0075 Legacy Part Number DK:   FRMSI075/FRBS0075
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  25.4
    • • Flange (A) in:  1"
    • • Wall (WT) mm:  1.59
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.06"
    • • Thickness (T) in:  0.062992126
    • • Tube OD (D) mm:  19.05
    • • Tube OD (D) in:  0.75"
    • • Tube ID (E) mm:  15.87
    • • Tube ID (E) in:  0.62"
    Hygienic
    FDB4050025021SD6L
    		BS4825 1" 25.4(metric) 1.99" (50.5mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     BS4825-Series Ferrule - 316L - 1" Nom GTIN:   840384308091 Legacy Part Number UK:   FR.BS.0100 Legacy Part Number DK:   FRBS0100
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • Wall (WT) mm:  1.73
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.07"
    • • Thickness (T) in:  0.067913386
    • • Tube OD (D) mm:  25.65
    • • Tube OD (D) in:  1.01"
    • • Tube ID (E) mm:  22.2
    • • Tube ID (E) in:  0.87"
    Hygienic
    FDB4050038021SD6L
    		BS4825 1 1/2" 38.1(metric) 1.99" (50.5mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     BS4825-Series Ferrule - 316L - 1 1/2" Nom GTIN:   840384308107 Legacy Part Number UK:   FR.BS.0150 Legacy Part Number DK:   FRBS0150
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • Wall (WT) mm:  1.73
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.07"
    • • Thickness (T) in:  0.067913386
    • • Tube OD (D) mm:  38.35
    • • Tube OD (D) in:  1.51"
    • • Tube ID (E) mm:  34.9
    • • Tube ID (E) in:  1.37"
    Hygienic
    FDB4064051021SD6L
    		BS4825 2" 50.8(metric) 2.52" (64mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     BS4825-Series Ferrule - 316L - 2" Nom GTIN:   840384308114 Legacy Part Number UK:   FR.BS.0200 Legacy Part Number DK:   FRBS0200
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  64
    • • Flange (A) in:  2.52"
    • • Wall (WT) mm:  1.73
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.07"
    • • Thickness (T) in:  0.067913386
    • • Tube OD (D) mm:  51.05
    • • Tube OD (D) in:  2.01"
    • • Tube ID (E) mm:  47.6
    • • Tube ID (E) in:  1.87"
    Hygienic
    FDB4077063021SD6L
    		BS4825 2 1/2" 63.5(metric) 3.05" (77.5mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     BS4825-Series Ferrule - 316L - 2 1/2" Nom GTIN:   840384308121 Legacy Part Number UK:   FR.BS.0250 Legacy Part Number DK:   FRSM80250.FRBS0250
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  77.5
    • • Flange (A) in:  3.05"
    • • Wall (WT) mm:  1.73
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.07"
    • • Thickness (T) in:  0.062992126
    • • Tube OD (D) mm:  63.75
    • • Tube OD (D) in:  2.51"
    • • Tube ID (E) mm:  60.3
    • • Tube ID (E) in:  2.37"
    Hygienic
    FDB4091076021SD6L
    		BS4825 3" 76.2(metric) 3.58" (91mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     BS4825-Series Ferrule - 316L - 3" Nom GTIN:   840384308138 Legacy Part Number UK:   FR.BS.0300 Legacy Part Number DK:   FRSM80300.FRBS0300.D065
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  91
    • • Flange (A) in:  3.58"
    • • Wall (WT) mm:  1.73
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.07"
    • • Thickness (T) in:  0.059055118
    • • Tube OD (D) mm:  76.45
    • • Tube OD (D) in:  3.01"
    • • Tube ID (E) mm:  73
    • • Tube ID (E) in:  2.87"
    Hygienic
    FDB4119101021SD6L
    		BS4825 4" 101.6(metric) 4.69" (119mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     BS4825-Series Ferrule - 316L - 4" Nom GTIN:   840384308145 Legacy Part Number UK:   FR.BS.0400
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  119
    • • Flange (A) in:  4.69"
    • • Wall (WT) mm:  2.13
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.08"
    • • Tube OD (D) mm:  101.85
    • • Tube OD (D) in:  4.01"
    • • Tube ID (E) mm:  97.6
    • • Tube ID (E) in:  3.84"
    Hygienic
    FDB4144127028SD6L
    		BS4825 5" 127(metric) 5.69" (144.4mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     BS4825-Series Ferrule - 316L - 5" Nom Legacy Part Number UK:   FR.BS.0500
    Dimensional Image Key:
    • • Length (C) mm:  28
    • • Flange (A) mm:  144.4
    • • Flange (A) in:  5.69"
    • • Wall (WT) mm:  2
    • • Length (C) in:  1.1"
    • • Wall (WT) in:  0.08"
    • • Tube OD (D) mm:  127
    • • Tube OD (D) in:  5"
    • • Tube ID (E) mm:  123
    • • Tube ID (E) in:  4.84"
    Hygienic
    FDB4167154028SD6L
    		BS4825 6" 152.4(metric) 6.57" (167mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     BS4825-Series Ferrule - 316L - 6" Nom GTIN:   840384308152 Legacy Part Number UK:   FR.BS.0600 Legacy Part Number DK:   FRDDNX150.FRBS0600
    Dimensional Image Key:
    • • Length (C) mm:  28
    • • Flange (A) mm:  167
    • • Flange (A) in:  6.57"
    • • Wall (WT) mm:  2
    • • Length (C) in:  1.1"
    • • Wall (WT) in:  0.08"
    • • Thickness (T) in:  0.047244094
    • • Tube OD (D) mm:  154
    • • Tube OD (D) in:  6.06"
    • • Tube ID (E) mm:  150
    • • Tube ID (E) in:  5.91"
    Hygienic
    FDB4183169028SD6L
    		BS4825 6 5/8" 168.275(metric) 7.2" (183mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     BS4825-Series Ferrule - 316L - 6 5/8" Nom GTIN:   840384308169 Legacy Part Number UK:   FR.BS.0658
    Dimensional Image Key:
    • • Length (C) mm:  28
    • • Flange (A) mm:  183
    • • Flange (A) in:  7.2"
    • • Wall (WT) mm:  3.13
    • • Length (C) in:  1.1"
    • • Wall (WT) in:  0.12"
    • • Thickness (T) in:  0.101870079
    • • Tube OD (D) mm:  169.35
    • • Tube OD (D) in:  6.67"
    • • Tube ID (E) mm:  163.1
    • • Tube ID (E) in:  6.42"
    Hygienic
    FDB4217204028SD6L
    		BS4825 8" 203.2(metric) 8.56" (217.4mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     BS4825-Series Ferrule - 316L - 8" Nom GTIN:   840384308176 Legacy Part Number UK:   FR.BS.0800 Legacy Part Number DK:   FRDDNX200.FRBS0800
    Dimensional Image Key:
    • • Length (C) mm:  28
    • • Flange (A) mm:  217.4
    • • Flange (A) in:  8.56"
    • • Wall (WT) mm:  2
    • • Length (C) in:  1.1"
    • • Wall (WT) in:  0.08"
    • • Thickness (T) in:  0.062992126
    • • Tube OD (D) mm:  204
    • • Tube OD (D) in:  8.03"
    • • Tube ID (E) mm:  200
    • • Tube ID (E) in:  7.87"
