DIN 32676 Table C Ferrules Long

Description

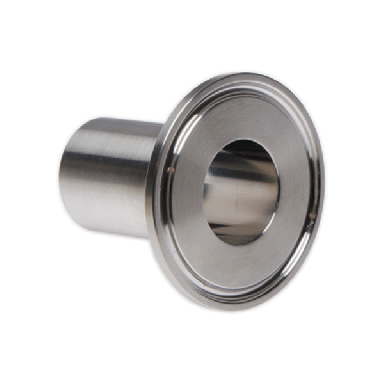

ACL DIN 32676 Tabel C Ferrules, long (28.6mm - 66mm), material 1.4404 low sulphur. Flatness of sealing face meets or exceeds guidelines.

Dimensional Image

Features

Quality checks by ACL are at the highest level for fitting manufacturers: JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC
Flatness of sealing face meets or exceeds guidelines
Circularity of components is within 0.1mm
Durability: 0.8Ra um Int
Compatibility: DIN 32676

Materials

316L / 1.4404
Materials are AD2000 (PED) and ASME VIII
Surface finish is 0.8Ra um minimum

Industry PART#	Standard	Nom Imperial	Nom Metric/ISO	Flange (A)	Material Grade	EN/ASTM Std	LIST PRICE
Pharmaceutical FPDC025635286SD6L	DIN 32676 Table C Long	1/4"	6.35(metric)	1" (25.4mm)	316L	1.4404/S31603	Price On Request
View Page DIN 32676 Table C Long-Series Ferrule - 316L - 1/4" Nom Legacy Part Number UK: FR.DNCL.025 Dimensional Image Key: • Length (C) mm: 28.6 • Flange (A) mm: 25.4 • Flange (A) in: 1" • OD 1 (D) mm: 6.35 • Wall (WT) mm: 0.89 • Length (C) in: 1.13" • Wall (WT) in: 0.04" • Tube OD (D) mm: 6.35 • Tube OD (D) in: 0.25" • Tube ID (E) mm: 4.57 • Tube ID (E) in: 0.18"
Pharmaceutical FPDC025952286SD6L	DIN 32676 Table C Long	3/8"	9.525(metric)	1" (25.4mm)	316L	1.4404/S31603	Price On Request
View Page DIN 32676 Table C Long-Series Ferrule - 316L - 3/8" Nom Legacy Part Number UK: FR.DNCL.038 Dimensional Image Key: • Length (C) mm: 28.6 • Flange (A) mm: 25.4 • Flange (A) in: 1" • OD 1 (D) mm: 9.52 • Wall (WT) mm: 0.89 • Length (C) in: 1.13" • Wall (WT) in: 0.04" • Tube OD (D) mm: 9.525 • Tube OD (D) in: 0.38" • Tube ID (E) mm: 7.74 • Tube ID (E) in: 0.3"
Pharmaceutical FPDC025127286SD6L	DIN 32676 Table C Long	1/2"	12.7(metric)	1" (25.4mm)	316L	1.4404/S31603	Price On Request
View Page DIN 32676 Table C Long-Series Ferrule - 316L - 1/2" Nom Legacy Part Number UK: FR.DNCL.050 Dimensional Image Key: • Length (C) mm: 28.6 • Flange (A) mm: 25.4 • Flange (A) in: 1" • OD 1 (D) mm: 10.7 • Wall (WT) mm: 1.65 • Length (C) in: 1.13" • Wall (WT) in: 0.06" • Tube OD (D) mm: 12.7 • Tube OD (D) in: 0.5" • Tube ID (E) mm: 9.4 • Tube ID (E) in: 0.37"
Pharmaceutical FPDC025195286SD6L	DIN 32676 Table C Long	3/4"	19.05(metric)	1" (25.4mm)	316L	1.4404/S31603	Price On Request
View Page DIN 32676 Table C Long-Series Ferrule - 316L - 3/4" Nom Legacy Part Number UK: FR.DNCL.075 Dimensional Image Key: • Length (C) mm: 28.6 • Flange (A) mm: 25.4 • Flange (A) in: 1" • OD 1 (D) mm: 19.05 • Wall (WT) mm: 1.65 • Length (C) in: 1.13" • Wall (WT) in: 0.06" • Tube OD (D) mm: 19.05 • Tube OD (D) in: 0.75" • Tube ID (E) mm: 15.75 • Tube ID (E) in: 0.62"
Pharmaceutical FPDC050025036SD6L	DIN 32676 Table C Long	1"	25.4(metric)	1.99" (50.5mm)	316L	1.4404/S31603	Price On Request
View Page DIN 32676 Table C Long-Series Ferrule - 316L - 1" Nom Legacy Part Number UK: FR.DNCL.100 Dimensional Image Key: • Length (C) mm: 36 • Flange (A) mm: 50.5 • Flange (A) in: 1.99" • OD 1 (D) mm: 25.4 • Wall (WT) mm: 1.65 • Length (C) in: 1.42" • Wall (WT) in: 0.06" • Tube OD (D) mm: 25.4 • Tube OD (D) in: 1" • Tube ID (E) mm: 22.1 • Tube ID (E) in: 0.87"
Pharmaceutical FPDC050038036SD6L	DIN 32676 Table C Long	1 1/2"	38.1(metric)	1.99" (50.5mm)	316L	1.4404/S31603	Price On Request
View Page DIN 32676 Table C Long-Series Ferrule - 316L - 1 1/2" Nom Legacy Part Number UK: FR.DNCL.150 Dimensional Image Key: • Length (C) mm: 36 • Flange (A) mm: 50.5 • Flange (A) in: 1.99" • OD 1 (D) mm: 38.1 • Wall (WT) mm: 1.65 • Length (C) in: 1.42" • Wall (WT) in: 0.06" • Tube OD (D) mm: 38.1 • Tube OD (D) in: 1.5" • Tube ID (E) mm: 34.8 • Tube ID (E) in: 1.37"
Pharmaceutical FPDC064050036SD6L	DIN 32676 Table C Long	2"	50.8(metric)	2.52" (64mm)	316L	1.4404/S31603	Price On Request
View Page DIN 32676 Table C Long-Series Ferrule - 316L - 2" Nom Legacy Part Number UK: FR.DNCL.200 Dimensional Image Key: • Length (C) mm: 36 • Flange (A) mm: 64 • Flange (A) in: 2.52" • OD 1 (D) mm: 50.8 • Wall (WT) mm: 1.65 • Length (C) in: 1.42" • Wall (WT) in: 0.06" • Tube OD (D) mm: 50.8 • Tube OD (D) in: 2" • Tube ID (E) mm: 47.5 • Tube ID (E) in: 1.87"
Pharmaceutical FPDC077063036SD6L	DIN 32676 Table C Long	2 1/2"	63.5(metric)	3.05" (77.5mm)	316L	1.4404/S31603	Price On Request
View Page DIN 32676 Table C Long-Series Ferrule - 316L - 2 1/2" Nom Legacy Part Number UK: FR.DNCL.250 Dimensional Image Key: • Length (C) mm: 36 • Flange (A) mm: 77.5 • Flange (A) in: 3.05" • OD 1 (D) mm: 63.5 • Wall (WT) mm: 1.65 • Length (C) in: 1.42" • Wall (WT) in: 0.06" • Tube OD (D) mm: 63.5 • Tube OD (D) in: 2.5" • Tube ID (E) mm: 60.2 • Tube ID (E) in: 2.37"
Pharmaceutical FPDC091076048SD6L	DIN 32676 Table C Long	3"	76.2(metric)	3.58" (91mm)	316L	1.4404/S31603	Price On Request
View Page DIN 32676 Table C Long-Series Ferrule - 316L - 3" Nom Legacy Part Number UK: FR.DNCL.300 Dimensional Image Key: • Length (C) mm: 48 • Flange (A) mm: 91 • Flange (A) in: 3.58" • OD 1 (D) mm: 76.2 • Wall (WT) mm: 1.65 • Length (C) in: 1.89" • Wall (WT) in: 0.06" • Tube OD (D) mm: 76.2 • Tube OD (D) in: 3" • Tube ID (E) mm: 72.9 • Tube ID (E) in: 2.87"
Pharmaceutical FPDC119101048SD6L	DIN 32676 Table C Long	4"	101.6(metric)	4.69" (119mm)	316L	1.4404/S31603	Price On Request
View Page DIN 32676 Table C Long-Series Ferrule - 316L - 4" Nom Legacy Part Number UK: FR.DNCL.400 Dimensional Image Key: • Length (C) mm: 48 • Flange (A) mm: 119 • Flange (A) in: 4.69" • OD 1 (D) mm: 101.6 • Wall (WT) mm: 2.11 • Length (C) in: 1.89" • Wall (WT) in: 0.08" • Tube OD (D) mm: 101.6 • Tube OD (D) in: 4" • Tube ID (E) mm: 97.38 • Tube ID (E) in: 3.83"
Pharmaceutical FPDC167152060SD6L	DIN 32676 Table C Long	6"	152.4(metric)	6.57" (167mm)	316L	1.4404/S31603	Price On Request
View Page DIN 32676 Table C Long-Series Ferrule - 316L - 6" Nom Legacy Part Number UK: FR.DNCL.600 Dimensional Image Key: • Length (C) mm: 60 • Flange (A) mm: 167 • Flange (A) in: 6.57" • OD 1 (D) mm: 152.4 • Wall (WT) mm: 2.77 • Length (C) in: 2.36" • Wall (WT) in: 0.11" • Tube OD (D) mm: 152.4 • Tube OD (D) in: 6" • Tube ID (E) mm: 146.86 • Tube ID (E) in: 5.78"
Hygienic FDDC025635286SD6L	DIN 32676 Table C Long	1/4"	6.35(metric)	1" (25.4mm)	316L	1.4404/S31603	Price On Request
View Page DIN 32676 Table C Long-Series Ferrule - 316L - 1/4" Nom Legacy Part Number UK: FR.DNCL.025 Dimensional Image Key: • Length (C) mm: 28.6 • Flange (A) mm: 25.4 • Flange (A) in: 1" • OD 1 (D) mm: 6.35 • Wall (WT) mm: 0.89 • Length (C) in: 1.13" • Wall (WT) in: 0.04" • Tube OD (D) mm: 6.35 • Tube OD (D) in: 0.25" • Tube ID (E) mm: 4.57 • Tube ID (E) in: 0.18"
