    DIN 32676 Table A Ferrules Short


    DIN 32676 Table A Ferrules Short
    Description

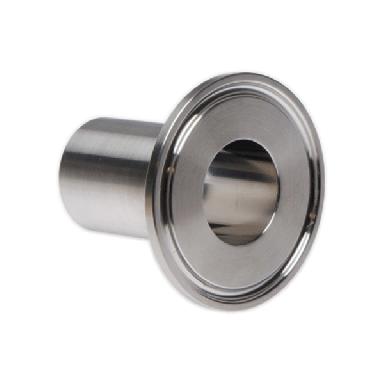

    ACL DIN 32676 Tabel A Ferrules, Short. Material 316L / 1.4404. Flatness of sealing face meets or exceeds guidelines.
    Dimensional Image
    Features
    • Quality checks by ACL are at the highest level for fitting manufacturers:​ JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC​
    • Flatness of sealing face meets or exceeds guidelines​
    • Circularity of components is within 0.1mm​
    • Compatibility: DIN 32676
    • Durability: 0.8Ra um Int
    Materials
    • Materials are AD2000 (PED) and ASME VIII​
    • Surface finish is 0.8Ra um minimum​
    • 316L / 1.4404
    Total: 30
    Industry
    PART#    		 Standard Nom
    Imperial    		 Nom
    Metric/ISO    		 Flange
    (A)    		 Material
    Grade    		 EN/ASTM
    Std    		 LIST
    PRICE
    Hygienic
    FDDA025008012SD6L
    		DIN 32676 Table A Short DN 06(metric) 0.98" (25mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Table A Short-Series Ferrule - 316L - DIN 06 Nom Legacy Part Number UK:   FR.DNAS.006
    Dimensional Image Key:
    • • Length (C) mm:  12.7
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • OD 1 (D) mm:  8
    • • Wall (WT) mm:  1
    • • Length (C) in:  0.5"
    • • Wall (WT) in:  0.04"
    • • Tube OD (D) mm:  8
    • • Tube OD (D) in:  0.31"
    • • Tube ID (E) mm:  6
    • • Tube ID (E) in:  0.24"
    Hygienic
    FDDA025010012SD6L
    		DIN 32676 Table A Short DN 08(metric) 0.98" (25mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Table A Short-Series Ferrule - 316L - DIN 08 Nom Legacy Part Number UK:   FR.DNAS.008
    Dimensional Image Key:
    • • Length (C) mm:  12.7
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • OD 1 (D) mm:  10
    • • Wall (WT) mm:  1
    • • Length (C) in:  0.5"
    • • Wall (WT) in:  0.04"
    • • Tube OD (D) mm:  10
    • • Tube OD (D) in:  0.39"
    • • Tube ID (E) mm:  8
    • • Tube ID (E) in:  0.31"
    Hygienic
    FDD2034013018SD6L
    		DIN 32676 Series 2 DN10(metric) 1.34" (34mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Series 2-Series Ferrule - 316L - DN10 Nom GTIN:   840384308220 Legacy Part Number UK:   0.8Ra Surface Finish Legacy Part Number DK:   FRDDN2010
    Dimensional Image Key:
    • • Length (C) mm:  18
    • • Flange (A) mm:  34
    • • Flange (A) in:  1.34"
    • • OD 1 (D) mm:  13
    • • Wall (WT) mm:  1.5
    • • Length (C) in:  0.71"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  13
    • • Tube OD (D) in:  0.51"
    • • Tube ID (E) mm:  10
    • • Tube ID (E) in:  0.39"
    Hygienic
    FDD2034019018SD6L
    		DIN 32676 Series 2 DN15(metric) 1.34" (34mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Series 2-Series Ferrule - 316L - DN15 Nom GTIN:   840384308237 Legacy Part Number UK:   0.8Ra Surface Finish Legacy Part Number DK:   FRDDN2015
    Dimensional Image Key:
    • • Length (C) mm:  18
    • • Flange (A) mm:  34
    • • Flange (A) in:  1.34"
    • • OD 1 (D) mm:  19
    • • Wall (WT) mm:  1.5
    • • Length (C) in:  0.71"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  19
    • • Tube OD (D) in:  0.75"
    • • Tube ID (E) mm:  16
    • • Tube ID (E) in:  0.63"
    Hygienic
    FDD2034023018SD6L
    		DIN 32676 Series 2 DN20(metric) 1.34" (34mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Series 2-Series Ferrule - 316L - DN20 Nom GTIN:   840384308244 Legacy Part Number UK:   0.8Ra Surface Finish Legacy Part Number DK:   FRDDN2020
    Dimensional Image Key:
    • • Length (C) mm:  18
    • • Flange (A) mm:  34
    • • Flange (A) in:  1.34"
    • • OD 1 (D) mm:  23
    • • Wall (WT) mm:  1.5
    • • Length (C) in:  0.71"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  23
    • • Tube OD (D) in:  0.91"
    • • Tube ID (E) mm:  20
    • • Tube ID (E) in:  0.79"
    Hygienic
    FDD2050029021SD6L
    		DIN 32676 Series 2 DN25(metric) 1.99" (50.5mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Series 2-Series Ferrule - 316L - DN25 Nom GTIN:   840384308251 Legacy Part Number UK:   0.8Ra Surface Finish Legacy Part Number DK:   FRDDN2025
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  29
    • • Wall (WT) mm:  1.5
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  29
    • • Tube OD (D) in:  1.14"
    • • Tube ID (E) mm:  26
    • • Tube ID (E) in:  1.02"
    Hygienic
    FDD2050035021SD6L
    		DIN 32676 Series 2 DN32(metric) 1.99" (50.5mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Series 2-Series Ferrule - 316L - DN32 Nom GTIN:   840384308268 Legacy Part Number UK:   0.8Ra Surface Finish Legacy Part Number DK:   FRDDN2032
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  35
    • • Wall (WT) mm:  1.5
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  35
    • • Tube OD (D) in:  1.38"
    • • Tube ID (E) mm:  32
    • • Tube ID (E) in:  1.26"
    Hygienic
    FDD2050041021SD6L
    		DIN 32676 Series 2 DN40(metric) 1.99" (50.5mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Series 2-Series Ferrule - 316L - DN40 Nom GTIN:   840384308275 Legacy Part Number UK:   0.8Ra Surface Finish Legacy Part Number DK:   FRDDN2040
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  41
    • • Wall (WT) mm:  1.5
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  41
    • • Tube OD (D) in:  1.61"
    • • Tube ID (E) mm:  38
    • • Tube ID (E) in:  1.5"
    Hygienic
    FDD2064053021SD6L
    		DIN 32676 Series 2 DN50(metric) 2.52" (64mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Series 2-Series Ferrule - 316L - DN50 Nom GTIN:   840384308282 Legacy Part Number UK:   0.8Ra Surface Finish Legacy Part Number DK:   FRDDN2050
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  64
    • • Flange (A) in:  2.52"
    • • OD 1 (D) mm:  53
    • • Wall (WT) mm:  2
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.08"
    • • Tube OD (D) mm:  53
    • • Tube OD (D) in:  2.09"
    • • Tube ID (E) mm:  50
    • • Tube ID (E) in:  1.97"
    Hygienic
    FDD2091070028SD6L
    		DIN 32676 Series 2 DN65(metric) 3.58" (91mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Series 2-Series Ferrule - 316L - DN65 Nom GTIN:   840384308299 Legacy Part Number UK:   0.8Ra Surface Finish Legacy Part Number DK:   FRDDN2065
    Dimensional Image Key:
    • • Length (C) mm:  28
    • • Flange (A) mm:  91
    • • Flange (A) in:  3.58"
    • • OD 1 (D) mm:  70
    • • Wall (WT) mm:  2
    • • Length (C) in:  1.1"
    • • Wall (WT) in:  0.08"
    • • Tube OD (D) mm:  70
    • • Tube OD (D) in:  2.76"
    • • Tube ID (E) mm:  66
    • • Tube ID (E) in:  2.6"
    Hygienic
    FDD2106085028SD6L
    		DIN 32676 Series 2 DN80(metric) 4.17" (106mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Series 2-Series Ferrule - 316L - DN80 Nom GTIN:   840384308305 Legacy Part Number UK:   0.8Ra Surface Finish Legacy Part Number DK:   FRDDN2080
    Dimensional Image Key:
    • • Length (C) mm:  28
    • • Flange (A) mm:  106
    • • Flange (A) in:  4.17"
    • • OD 1 (D) mm:  85
    • • Wall (WT) mm:  2
    • • Length (C) in:  1.1"
    • • Wall (WT) in:  0.08"
    • • Tube OD (D) mm:  85
    • • Tube OD (D) in:  3.35"
    • • Tube ID (E) mm:  81
    • • Tube ID (E) in:  3.19"
    Hygienic
    FDD2119104028SD6L
    		DIN 32676 Series 2 DN100(metric) 4.69" (119mm) 316L 1.4404/S31603
    Price On Request
    dimensional image
    View Page
     DIN 32676 Series 2-Series Ferrule - 316L - DN100 Nom GTIN:   840384308312 Legacy Part Number UK:   0.8Ra Surface Finish Legacy Part Number DK:   FRDDN2100
    Dimensional Image Key:
    • • Length (C) mm:  28
    • • Flange (A) mm:  119
    • • Flange (A) in:  4.69"
    • • OD 1 (D) mm:  104
    • • Wall (WT) mm:  2
    • • Length (C) in:  1.1"
    • • Wall (WT) in:  0.08"
    • • Tube OD (D) mm:  104
    • • Tube OD (D) in:  4.09"
    • • Tube ID (E) mm:  100
    • • Tube ID (E) in:  3.94"
