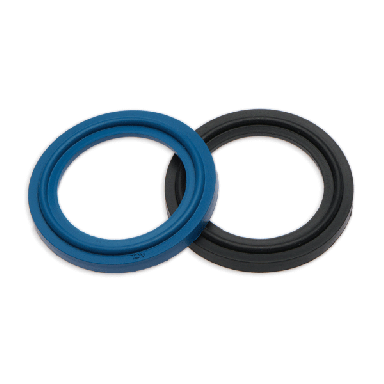

    Metal Detectable (EPDM Blue / EPDM Black)


    Metal Detectable (EPDM Blue / EPDM Black)
    Description

    Advanced Couplings Ltd are delighted to offer a Metal Detectable gasket – fully produced in the UK from UK sourced compound – to FDA grade.

    The inclusion of ferrites in the compound make it metal & x-ray detectable so that any fragments of rubber, for example by abrasion or breakdown of the seal, can be identified by standard metal detectable software in use in Food & Pharmaceutical production lines.

    Please choose a size and material to see relevant gaskets.

    Specifications
    • BS / DIN / SMS / ISO – all standards are available
    • All gaskets are FDA tested. Some are USP VI <87> <88> ​
    Dimensional Image
    Features
    • Mesh gaskets inners are interchangeable (reducing end user cost)​
    • Full range of common materials and colours are available​
    • Unlipped gaskets are available for all stock items​
    • Full range of temperatures and chemical compatibility can be covered​
    Total: 12
    Industry
    PART#    		 Standard Nom
    Imperial    		 Nom
    Metric/ISO    		 Flange
    (A)    		 Material
    Grade    		 EN/ASTM
    Std    		 Actual ID
    (V)    		 ID
    (E)    		 LIST
    PRICE
    Pharmaceutical
    GDLPB4050025UX
    		Metal Detectable 1" 1.99" (50.5mm) EPDM Blue 0.87" (22.2mm)
    Price On Request
    dimensional image
    View Page
     Hygienic Gasket (1") | Metal Detectable (Lipped) | EPDM Blue GTIN:   840384312630 Legacy Part Number IE:   GK.BSM.0100
    Dimensional Image Key:
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • ID (E) mm:  22.2
    • • ID (E) in:  0.87"
    • • Actual ID (V) in:  0
    Pharmaceutical
    GDLPB4050038UX
    		Metal Detectable 1 1/2" 1.99" (50.5mm) EPDM Blue 1.37" (34.9mm)
    Price On Request
    dimensional image
    View Page
     Hygienic Gasket (1 1/2") | Metal Detectable (Lipped) | EPDM Blue GTIN:   840384312654 Legacy Part Number IE:   GK.BSM.0150
    Dimensional Image Key:
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • ID (E) mm:  34.9
    • • ID (E) in:  1.37"
    • • Actual ID (V) in:  0
    Pharmaceutical
    GDLPB4064051UX
    		Metal Detectable 2" 2.52" (64mm) EPDM Blue 1.87" (47.6mm)
    Price On Request
    dimensional image
    View Page
     Hygienic Gasket (2") | Metal Detectable (Lipped) | EPDM Blue GTIN:   840384312678 Legacy Part Number IE:   GK.BSM.0200
    Dimensional Image Key:
    • • Flange (A) mm:  64
    • • Flange (A) in:  2.52"
    • • ID (E) mm:  47.6
    • • ID (E) in:  1.87"
    • • Actual ID (V) in:  0
    Pharmaceutical
    GDLPB4077063UX
    		Metal Detectable 2 1/2" 3.05" (77.5mm) EPDM Blue 2.37" (60.3mm)
    Price On Request
    dimensional image
    View Page
     Hygienic Gasket (2 1/2") | Metal Detectable (Lipped) | EPDM Blue GTIN:   840384312692 Legacy Part Number IE:   GK.BSM.0250
    Dimensional Image Key:
    • • Flange (A) mm:  77.5
    • • Flange (A) in:  3.05"
    • • ID (E) mm:  60.3
    • • ID (E) in:  2.37"
    • • Actual ID (V) in:  0
    Pharmaceutical
    GDLPB4091076UX
    		Metal Detectable 3" 3.58" (91mm) EPDM Blue 2.87" (73mm)
    Price On Request
    dimensional image
    View Page
     Hygienic Gasket (3") | Metal Detectable (Lipped) | EPDM Blue GTIN:   840384312715 Legacy Part Number IE:   GK.BSM.0300
    Dimensional Image Key:
    • • Flange (A) mm:  91
    • • Flange (A) in:  3.58"
    • • ID (E) mm:  73
    • • ID (E) in:  2.87"
    • • Actual ID (V) in:  0
    Pharmaceutical
    GDLPB4119101UX
    		Metal Detectable 4" 4.69" (119mm) EPDM Blue 3.84" (97.6mm)
    Price On Request
    dimensional image
    View Page
     Hygienic Gasket (4") | Metal Detectable (Lipped) | EPDM Blue GTIN:   840384312739 Legacy Part Number IE:   GK.BSM.0400
    Dimensional Image Key:
    • • Flange (A) mm:  119
    • • Flange (A) in:  4.69"
    • • ID (E) mm:  97.6
    • • ID (E) in:  3.84"
    • • Actual ID (V) in:  0
    Pharmaceutical
    GDLPB4050025EX
    		Metal Detectable 1" 1.99" (50.5mm) EPDM Black 0.87" (22.2mm)
    Price On Request
    dimensional image
    View Page
     Hygienic Gasket (1") | Metal Detectable (Lipped) | EPDM Black GTIN:   840384312623 Legacy Part Number IE:   GK.BSM.0100
    Dimensional Image Key:
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • ID (E) mm:  22.2
    • • ID (E) in:  0.87"
    • • Actual ID (V) in:  0
    Pharmaceutical
    GDLPB4050038EX
    		Metal Detectable 1 1/2" 1.99" (50.5mm) EPDM Black 1.37" (34.9mm)
    Price On Request
    dimensional image
    View Page
     Hygienic Gasket (1 1/2") | Metal Detectable (Lipped) | EPDM Black GTIN:   840384312647 Legacy Part Number IE:   GK.BSM.0150
    Dimensional Image Key:
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • ID (E) mm:  34.9
    • • ID (E) in:  1.37"
    • • Actual ID (V) in:  0
    Pharmaceutical
    GDLPB4064051EX
    		Metal Detectable 2" 2.52" (64mm) EPDM Black 1.87" (47.6mm)
    Price On Request
    dimensional image
    View Page
     Hygienic Gasket (2") | Metal Detectable (Lipped) | EPDM Black GTIN:   840384312661 Legacy Part Number IE:   GK.BSM.0200
    Dimensional Image Key:
    • • Flange (A) mm:  64
    • • Flange (A) in:  2.52"
    • • ID (E) mm:  47.6
    • • ID (E) in:  1.87"
    • • Actual ID (V) in:  0
    Pharmaceutical
    GDLPB4077063EX
    		Metal Detectable 2 1/2" 3.05" (77.5mm) EPDM Black 2.37" (60.3mm)
    Price On Request
    dimensional image
    View Page
     Hygienic Gasket (2 1/2") | Metal Detectable (Lipped) | EPDM Black GTIN:   840384312685 Legacy Part Number IE:   GK.BSM.0250
    Dimensional Image Key:
    • • Flange (A) mm:  77.5
    • • Flange (A) in:  3.05"
    • • ID (E) mm:  60.3
    • • ID (E) in:  2.37"
    • • Actual ID (V) in:  0
    Pharmaceutical
    GDLPB4091076EX
    		Metal Detectable 3" 3.58" (91mm) EPDM Black 2.87" (73mm)
    Price On Request
    dimensional image
    View Page
     Hygienic Gasket (3") | Metal Detectable (Lipped) | EPDM Black GTIN:   840384312708 Legacy Part Number IE:   GK.BSM.0300
    Dimensional Image Key:
    • • Flange (A) mm:  91
    • • Flange (A) in:  3.58"
    • • ID (E) mm:  73
    • • ID (E) in:  2.87"
    • • Actual ID (V) in:  0
    Pharmaceutical
    GDLPB4119101EX
    		Metal Detectable 4" 4.69" (119mm) EPDM Black 3.84" (97.6mm)
    Price On Request
    dimensional image
    View Page
     Hygienic Gasket (4") | Metal Detectable (Lipped) | EPDM Black GTIN:   840384312722 Legacy Part Number IE:   GK.BSM.0400
    Dimensional Image Key:
    • • Flange (A) mm:  119
    • • Flange (A) in:  4.69"
    • • ID (E) mm:  97.6
    • • ID (E) in:  3.84"
    • • Actual ID (V) in:  0
