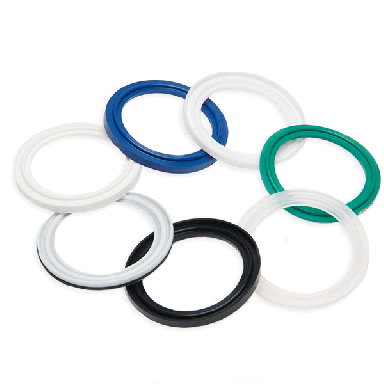

BS 4825 Gaskets

Description

Acl BS 4825 gaskets; creating an airtight fit between parts.

Specifications

BS / DIN / SMS / ISO – all standards are available
All gaskets are FDA tested. Some are USP VI <87> <88>

Dimensional Image

Features

Mesh gaskets inners are interchangeable (reducing end user cost)
Full range of common materials and colours are available
Gasket are FDA Tested (some are USP <87> <88>)
Unlipped gaskets are available for all stock items
Full range of temperatures and chemical compatibility can be covered
Supplied in Black UV resistant bags

Industry PART#	Nom Imperial	Flange (A)	Material Grade	ID (E)	LIST PRICE
Hygienic GDULB4025127EU	1/2"	0.87" (22.0mm)	EPDM Blue	0.37" (9.52mm)	Price On Request
View Page Hygienic Gasket (1/2") \| BS 4825 (Unlipped) \| EPDM Blue (FDA) GTIN: 840384309463 Legacy Part Number IE: GK.BS.0050 Dimensional Image Key: • Flange (A) mm: 22.0* • Flange (A) in: 0.87*" • ID (E) mm: 9.52 • ID (E) in: 0.37"
Hygienic GDULB4025195EU	3/4"	0.87" (22.0mm)	EPDM Blue	0.62" (15.87mm)	Price On Request
View Page Hygienic Gasket (3/4") \| BS 4825 (Unlipped) \| EPDM Blue (FDA) GTIN: 840384309630 Legacy Part Number IE: GK.BS.0075 Dimensional Image Key: • Flange (A) mm: 22.0* • Flange (A) in: 0.87*" • ID (E) mm: 15.87 • ID (E) in: 0.62"
Hygienic GDLPB4050025EU	1"	1.99" (50.5mm)	EPDM Blue	0.87" (22.2mm)	Price On Request
View Page Hygienic Gasket (1") \| BS 4825 (Lipped) \| EPDM Blue (FDA) GTIN: 840384309777 Legacy Part Number IE: GK.BS.0100 Dimensional Image Key: • Flange (A) mm: 50.5 • Flange (A) in: 1.99" • ID (E) mm: 22.2 • ID (E) in: 0.87"
Hygienic GDLPB4050038EU	1 1/2"	1.99" (50.5mm)	EPDM Blue	1.37" (34.9mm)	Price On Request
View Page Hygienic Gasket (1 1/2") \| BS 4825 (Lipped) \| EPDM Blue (FDA) GTIN: 840384309913 Legacy Part Number IE: GK.BS.0150 Dimensional Image Key: • Flange (A) mm: 50.5 • Flange (A) in: 1.99" • ID (E) mm: 34.9 • ID (E) in: 1.37"
Hygienic GDLPB4064051EU	2"	2.52" (64mm)	EPDM Blue	1.87" (47.6mm)	Price On Request
View Page Hygienic Gasket (2") \| BS 4825 (Lipped) \| EPDM Blue (FDA) GTIN: 840384310056 Legacy Part Number IE: GK.BS.0200 Dimensional Image Key: • Flange (A) mm: 64 • Flange (A) in: 2.52" • ID (E) mm: 47.6 • ID (E) in: 1.87"
Hygienic GDLPB4077063EU	2 1/2"	3.05" (77.5mm)	EPDM Blue	2.37" (60.3mm)	Price On Request
View Page Hygienic Gasket (2 1/2") \| BS 4825 (Lipped) \| EPDM Blue (FDA) GTIN: 840384310193 Legacy Part Number IE: GK.BS.0250 Dimensional Image Key: • Flange (A) mm: 77.5 • Flange (A) in: 3.05" • ID (E) mm: 60.3 • ID (E) in: 2.37"
Hygienic GDLPB4091076EU	3"	3.58" (91mm)	EPDM Blue	2.87" (73mm)	Price On Request
View Page Hygienic Gasket (3") \| BS 4825 (Lipped) \| EPDM Blue (FDA) GTIN: 840384310315 Legacy Part Number IE: GK.BS.0300 Dimensional Image Key: • Flange (A) mm: 91 • Flange (A) in: 3.58" • ID (E) mm: 73 • ID (E) in: 2.87"
Hygienic GDLPB4106089EU	3 1/2"	4.17" (106mm)	EPDM Blue	3.33" (84.7mm)	Price On Request
View Page Hygienic Gasket (3 1/2") \| BS 4825 (Lipped) \| EPDM Blue (FDA) GTIN: 840384310445 Legacy Part Number IE: GK.BS.0350 Dimensional Image Key: • Flange (A) mm: 106 • Flange (A) in: 4.17" • ID (E) mm: 84.7 • ID (E) in: 3.33"
Hygienic GDLPB4119101EU	4"	4.69" (119mm)	EPDM Blue	3.84" (97.6mm)	Price On Request
View Page Hygienic Gasket (4") \| BS 4825 (Lipped) \| EPDM Blue (FDA) GTIN: 840384310490 Legacy Part Number IE: GK.BS.0400 Dimensional Image Key: • Flange (A) mm: 119 • Flange (A) in: 4.69" • ID (E) mm: 97.6 • ID (E) in: 3.84"
Hygienic GDLPB4130114EU	4 1/2"	5.12" (130mm)	EPDM Blue	4.34" (110.3mm)	Price On Request
View Page Hygienic Gasket (4 1/2") \| BS 4825 (Lipped) \| EPDM Blue (FDA) Legacy Part Number IE: GK.BS.0450 Dimensional Image Key: • Flange (A) mm: 130 • Flange (A) in: 5.12" • ID (E) mm: 110.3 • ID (E) in: 4.34"
Hygienic GDLPB4144127EU	5"	5.67" (144mm)	EPDM Blue	4.84" (123mm)	Price On Request
View Page Hygienic Gasket (5") \| BS 4825 (Lipped) \| EPDM Blue (FDA) GTIN: 840384310643 Legacy Part Number IE: GK.BS.0500 Dimensional Image Key: • Flange (A) mm: 144 • Flange (A) in: 5.67" • ID (E) mm: 123 • ID (E) in: 4.84"
Hygienic GDLPB4155140EU	5 1/2"	6.1" (155mm)	EPDM Blue	5.34" (135.76mm)	Price On Request
View Page Hygienic Gasket (5 1/2") \| BS 4825 (Lipped) \| EPDM Blue (FDA) Legacy Part Number IE: GK.BS.0550 Dimensional Image Key: • Flange (A) mm: 155 • Flange (A) in: 6.1" • ID (E) mm: 135.76 • ID (E) in: 5.34"
