BS Schedule 5 Gaskets

Description

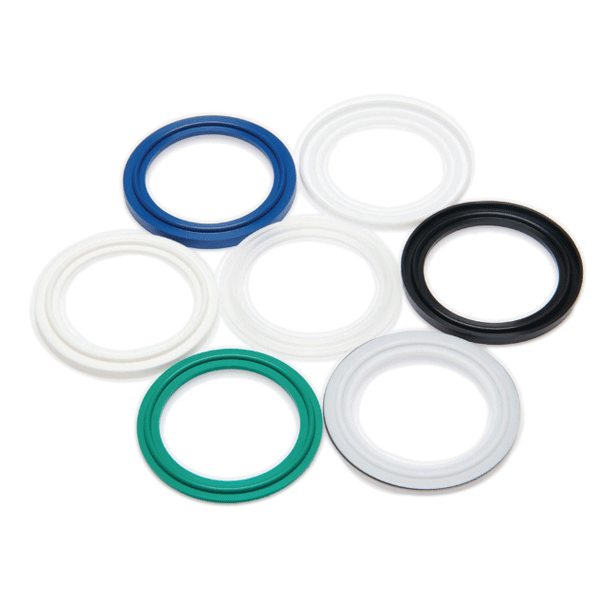

Acl BS schedule 5 gaskets, sizes ½” – 12 5/8” , create an airtight fit between parts.

Specifications

BS / DIN / SMS / ISO – all standards are available
All gaskets are FDA tested. Some are USP VI <87> <88>

Dimensional Image

Features

Mesh gaskets inners are interchangeable (reducing end user cost)
Full range of common materials and colours are available
Gasket are FDA Tested (some are USP <87> <88>)
Unlipped gaskets are available for all stock items
Full range of temperatures and chemical compatibility can be covered
Supplied in Black UV resistant bags

Materials

EPDM
Silicone
VITON®
EPDM USP Class VI
Silicone USP Class VI
PTFE Solid
PTFE Envelope

Industry PART#	Standard	Nom Imperial	Flange (A)	Material Grade	ID (E)	LIST PRICE
Pharmaceutical GPLPB1050021EU	BS Schedule 5	1/2"	50.5mm	EPDM Blue	0.71" (18.03mm)	Price On Request
View Page BS Schedule 5 Gasket, ½”, EPDM Blue Dimensional Image Key: • Flange (A) mm: 50.5 • ID (E) mm: 18.03 • ID (E) in: 0.71" • Actual ID (V) in: 0
Pharmaceutical GPLPB1064026EU	BS Schedule 5	3/4"	50.5mm	EPDM Blue	0.92" (23.37mm)	Price On Request
View Page BS Schedule 5 Gasket, ¾”, EPDM Blue Dimensional Image Key: • Flange (A) mm: 50.5 • ID (E) mm: 23.37 • ID (E) in: 0.92" • Actual ID (V) in: 0
Pharmaceutical GPLPB1077033EU	BS Schedule 5	1”	50.5mm	EPDM Blue	1.19" (30.1mm)	Price On Request
View Page BS Schedule 5 Gasket, 1”, EPDM Blue Dimensional Image Key: • Flange (A) mm: 50.5 • ID (E) mm: 30.1 • ID (E) in: 1.19" • Actual ID (V) in: 0
Pharmaceutical GPLPB1064042EU	BS Schedule 5	1 1/4"	64mm	EPDM Blue	1.53" (38.86mm)	Price On Request
View Page BS Schedule 5 Gasket, 1¼”, EPDM Blue Dimensional Image Key: • Flange (A) mm: 64 • ID (E) mm: 38.86 • ID (E) in: 1.53" • Actual ID (V) in: 0
Pharmaceutical GPLPB1064048EU	BS Schedule 5	1 1/2"	64mm	EPDM Blue	1.77" (44.96mm)	Price On Request
View Page BS Schedule 5 Gasket, 1½”, EPDM Blue Dimensional Image Key: • Flange (A) mm: 64 • ID (E) mm: 44.96 • ID (E) in: 1.77" • Actual ID (V) in: 0
Pharmaceutical GPLPB1091060EU	BS Schedule 5	2”	77.5mm	EPDM Blue	2.24" (57.02mm)	Price On Request
View Page BS Schedule 5 Gasket, 2”, EPDM Blue Dimensional Image Key: • Flange (A) mm: 77.5 • ID (E) mm: 57.02 • ID (E) in: 2.24" • Actual ID (V) in: 0
Pharmaceutical GPLPB1091073EU	BS Schedule 5	2 1/2"	91mm	EPDM Blue	2.71" (68.81mm)	Price On Request
View Page BS Schedule 5 Gasket, 2½”, EPDM Blue Dimensional Image Key: • Flange (A) mm: 91 • ID (E) mm: 68.81 • ID (E) in: 2.71" • Actual ID (V) in: 0
Pharmaceutical GPLPB1106089EU	BS Schedule 5	3”	106mm	EPDM Blue	3.33" (84.68mm)	Price On Request
View Page BS Schedule 5 Gasket, 3”, EPDM Blue Dimensional Image Key: • Flange (A) mm: 106 • ID (E) mm: 84.68 • ID (E) in: 3.33" • Actual ID (V) in: 0
Pharmaceutical GPLPB1119101EU	BS Schedule 5	3 1/2"	119mm	EPDM Blue	3.83" (97.38mm)	Price On Request
View Page BS Schedule 5 Gasket, 3½”, EPDM Blue Dimensional Image Key: • Flange (A) mm: 119 • ID (E) mm: 97.38 • ID (E) in: 3.83" • Actual ID (V) in: 0
Pharmaceutical GPLPB1130114EU	BS Schedule 5	4”	130mm	EPDM Blue	4.33" (110.08mm)	Price On Request
View Page BS Schedule 5 Gasket, 4”, EPDM Blue Dimensional Image Key: • Flange (A) mm: 130 • ID (E) mm: 110.08 • ID (E) in: 4.33" • Actual ID (V) in: 0
Pharmaceutical GPLPB1155141EU	BS Schedule 5	5”	155mm	EPDM Blue	5.34" (135.76mm)	Price On Request
View Page BS Schedule 5 Gasket, 5”, EPDM Blue Dimensional Image Key: • Flange (A) mm: 155 • ID (E) mm: 135.76 • ID (E) in: 5.34" • Actual ID (V) in: 0
Pharmaceutical GPLPB1183168EU	BS Schedule 5	6”	183mm	EPDM Blue	6.41" (162.74mm)	Price On Request
View Page BS Schedule 5 Gasket, 6”, EPDM Blue Dimensional Image Key: • Flange (A) mm: 183 • ID (E) mm: 162.74 • ID (E) in: 6.41" • Actual ID (V) in: 0
