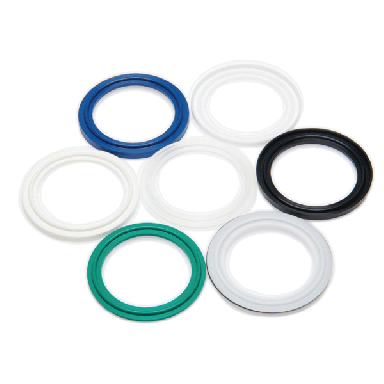

BS Schedule 40 Gaskets

Description

Acl BS schedule 40 gaskets, sizes ½” – 12 5/8” , create an airtight fit between parts.

Specifications

BS / DIN / SMS / ISO – all standards are available
All gaskets are FDA tested. Some are USP VI <87> <88>

Dimensional Image

Features

Mesh gaskets inners are interchangeable (reducing end user cost)
Full range of common materials and colours are available
Gasket are FDA Tested (some are USP <87> <88>)
Unlipped gaskets are available for all stock items
Full range of temperatures and chemical compatibility can be covered
Supplied in Black UV resistant bags

Materials

EPDM
Silicone
VITON®
EPDM USP Class VI
Silicone USP Class VI
PTFE Solid
PTFE Envelope

Industry PART#	Standard	Nom Imperial	Flange (A)	Material Grade	ID (E)	LIST PRICE
Pharmaceutical GPLPB3050021EU	BS Schedule 40	1/2"	50.5mm	EPDM Blue	0.62" (15.8mm)	Price On Request
View Page Pharmaceutical Gasket (1/2") \| BS Schedule 40 (Lipped) \| EPDM Blue Legacy Part Number IE: GK.BS40.0050 Dimensional Image Key: • Flange (A) mm: 50.5 • ID (E) mm: 15.8 • ID (E) in: 0.62" • Actual ID (V) in: 0
Pharmaceutical GPLPB3050026EU	BS Schedule 40	3/4"	50.5mm	EPDM Blue	0.82" (20.93mm)	Price On Request
View Page Pharmaceutical Gasket (3/4") \| BS Schedule 40 (Lipped) \| EPDM Blue Legacy Part Number IE: GK.BS40.0075 Dimensional Image Key: • Flange (A) mm: 50.5 • ID (E) mm: 20.93 • ID (E) in: 0.82" • Actual ID (V) in: 0
Pharmaceutical GPLPB3050033EU	BS Schedule 40	1”	50.5mm	EPDM Blue	1.05" (26.64mm)	Price On Request
View Page Pharmaceutical Gasket (1") \| BS Schedule 40 (Lipped) \| EPDM Blue Legacy Part Number IE: GK.BS40.0100 Dimensional Image Key: • Flange (A) mm: 50.5 • ID (E) mm: 26.64 • ID (E) in: 1.05" • Actual ID (V) in: 0
Pharmaceutical GPLPB3064042EU	BS Schedule 40	1 1/4"	64mm	EPDM Blue	1.38" (35.04mm)	Price On Request
View Page Pharmaceutical Gasket (1 1/4") \| BS Schedule 40 (Lipped) \| EPDM Blue Legacy Part Number IE: GK.BS40.0125 Dimensional Image Key: • Flange (A) mm: 64 • ID (E) mm: 35.04 • ID (E) in: 1.38" • Actual ID (V) in: 0
Pharmaceutical GPLPB3064048EU	BS Schedule 40	1 1/2"	64mm	EPDM Blue	1.61" (40.88mm)	Price On Request
View Page Pharmaceutical Gasket (1 1/2") \| BS Schedule 40 (Lipped) \| EPDM Blue Legacy Part Number IE: GK.BS40.0150 Dimensional Image Key: • Flange (A) mm: 64 • ID (E) mm: 40.88 • ID (E) in: 1.61" • Actual ID (V) in: 0
Pharmaceutical GPLPB3077060EU	BS Schedule 40	2”	77.5mm	EPDM Blue	2.07" (52.51mm)	Price On Request
View Page Pharmaceutical Gasket (2") \| BS Schedule 40 (Lipped) \| EPDM Blue Legacy Part Number IE: GK.BS40.0200 Dimensional Image Key: • Flange (A) mm: 77.5 • ID (E) mm: 52.51 • ID (E) in: 2.07" • Actual ID (V) in: 0
Pharmaceutical GPLPB3091073EU	BS Schedule 40	2 1/2"	91mm	EPDM Blue	2.47" (62.71mm)	Price On Request
View Page Pharmaceutical Gasket (2 1/2") \| BS Schedule 40 (Lipped) \| EPDM Blue Legacy Part Number IE: GK.BS40.0250 Dimensional Image Key: • Flange (A) mm: 91 • ID (E) mm: 62.71 • ID (E) in: 2.47" • Actual ID (V) in: 0
Pharmaceutical GPLPB3106089EU	BS Schedule 40	3”	106mm	EPDM Blue	3.07" (77.92mm)	Price On Request
View Page Pharmaceutical Gasket (3") \| BS Schedule 40 (Lipped) \| EPDM Blue Legacy Part Number IE: GK.BS40.0300 Dimensional Image Key: • Flange (A) mm: 106 • ID (E) mm: 77.92 • ID (E) in: 3.07" • Actual ID (V) in: 0
Pharmaceutical GPLPB3119101EU	BS Schedule 40	3 1/2"	119mm	EPDM Blue	3.55" (90.12mm)	Price On Request
View Page Pharmaceutical Gasket (3 1/2") \| BS Schedule 40 (Lipped) \| EPDM Blue Legacy Part Number IE: GK.BS40.0350 Dimensional Image Key: • Flange (A) mm: 119 • ID (E) mm: 90.12 • ID (E) in: 3.55" • Actual ID (V) in: 0
Pharmaceutical GPLPB3130114EU	BS Schedule 40	4”	130mm	EPDM Blue	4.03" (102.26mm)	Price On Request
View Page Pharmaceutical Gasket (4") \| BS Schedule 40 (Lipped) \| EPDM Blue Legacy Part Number IE: GK.BS40.0400 Dimensional Image Key: • Flange (A) mm: 130 • ID (E) mm: 102.26 • ID (E) in: 4.03" • Actual ID (V) in: 0
Pharmaceutical GPLPB3155141EU	BS Schedule 40	5”	155mm	EPDM Blue	5.05" (128.2mm)	Price On Request
View Page Pharmaceutical Gasket (5") \| BS Schedule 40 (Lipped) \| EPDM Blue Legacy Part Number IE: GK.BS40.0500 Dimensional Image Key: • Flange (A) mm: 155 • ID (E) mm: 128.2 • ID (E) in: 5.05" • Actual ID (V) in: 0
Pharmaceutical GPLPB3183168EU	BS Schedule 40	6”	183mm	EPDM Blue	6.07" (154.06mm)	Price On Request
View Page Pharmaceutical Gasket (6") \| BS Schedule 40 (Lipped) \| EPDM Blue Legacy Part Number IE: GK.BS40.0600 Dimensional Image Key: • Flange (A) mm: 183 • ID (E) mm: 154.06 • ID (E) in: 6.07" • Actual ID (V) in: 0
