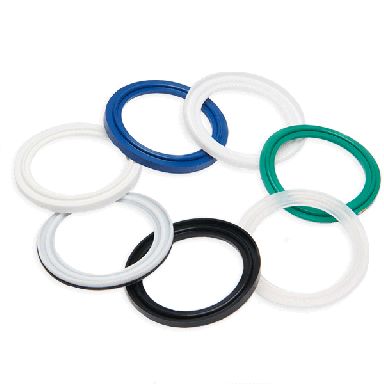

BS Schedule 10 Gaskets

Description

Acl BS schedule 10 gaskets, sizes ½” – 12 5/8” , create an airtight fit between parts.

Installation

Ease of Installation: outer lip wraps itself around the flange.

Specifications

BS / DIN / SMS / ISO – all standards are available
All gaskets are FDA tested. Some are USP VI <87> <88>

Dimensional Image

Features

Mesh gaskets inners are interchangeable (reducing end user cost)
Full range of common materials and colours are available
Gasket are FDA Tested (some are USP <87> <88>)
Unlipped gaskets are available for all stock items
Full range of temperatures and chemical compatibility can be covered
Supplied in Black UV resistant bags

Materials

EPDM
Silicone
VITON®
EPDM USP Class VI
Silicone USP Class VI
PTFE Solid
PTFE Envelope

Industry PART#	Standard	Nom Imperial	Flange (A)	Material Grade	ID (E)	LIST PRICE
Pharmaceutical GPLPB2050021EU	BS Schedule 10	1/2"	50.5mm	EPDM Blue	0.67" (17.1mm)	Price On Request
View Page Pharmaceutical Gasket (1/2") \| BS Schedule 10 (Lipped) \| EPDM Blue Dimensional Image Key: • Flange (A) mm: 50.5 • ID (E) mm: 17.1 • ID (E) in: 0.67" • Actual ID (V) in: 0
Pharmaceutical GPLPB2050026EU	BS Schedule 10	3/4"	50.5mm	EPDM Blue	0.88" (22.45mm)	Price On Request
View Page Pharmaceutical Gasket (3/4") \| BS Schedule 10 (Lipped) \| EPDM Blue Dimensional Image Key: • Flange (A) mm: 50.5 • ID (E) mm: 22.45 • ID (E) in: 0.88" • Actual ID (V) in: 0
Pharmaceutical GPLPB2050033EU	BS Schedule 10	1”	50.5mm	EPDM Blue	1.1" (27.86mm)	Price On Request
View Page Pharmaceutical Gasket (1") \| BS Schedule 10 (Lipped) \| EPDM Blue Dimensional Image Key: • Flange (A) mm: 50.5 • ID (E) mm: 27.86 • ID (E) in: 1.1" • Actual ID (V) in: 0
Pharmaceutical GPLPB2064042EU	BS Schedule 10	1 1/4"	64mm	EPDM Blue	1.44" (36.62mm)	Price On Request
View Page Pharmaceutical Gasket (1 1/4") \| BS Schedule 10 (Lipped) \| EPDM Blue Dimensional Image Key: • Flange (A) mm: 64 • ID (E) mm: 36.62 • ID (E) in: 1.44" • Actual ID (V) in: 0
Pharmaceutical GPLPB2064048EU	BS Schedule 10	1 1/2"	64mm	EPDM Blue	1.68" (42.72mm)	Price On Request
View Page Pharmaceutical Gasket (1 1/2") \| BS Schedule 10 (Lipped) \| EPDM Blue Dimensional Image Key: • Flange (A) mm: 64 • ID (E) mm: 42.72 • ID (E) in: 1.68" • Actual ID (V) in: 0
Pharmaceutical GPLPB2077060EU	BS Schedule 10	2”	77.5mm	EPDM Blue	2.16" (54.79mm)	Price On Request
View Page Pharmaceutical Gasket (2") \| BS Schedule 10 (Lipped) \| EPDM Blue Dimensional Image Key: • Flange (A) mm: 77.5 • ID (E) mm: 54.79 • ID (E) in: 2.16" • Actual ID (V) in: 0
Pharmaceutical GPLPB2091073EU	BS Schedule 10	2 1/2"	91mm	EPDM Blue	2.64" (66.93mm)	Price On Request
View Page Pharmaceutical Gasket (2 1/2") \| BS Schedule 10 (Lipped) \| EPDM Blue Dimensional Image Key: • Flange (A) mm: 91 • ID (E) mm: 66.93 • ID (E) in: 2.64" • Actual ID (V) in: 0
Pharmaceutical GPLPB2106089EU	BS Schedule 10	3”	106mm	EPDM Blue	3.26" (82.8mm)	Price On Request
View Page Pharmaceutical Gasket (3") \| BS Schedule 10 (Lipped) \| EPDM Blue Dimensional Image Key: • Flange (A) mm: 106 • ID (E) mm: 82.8 • ID (E) in: 3.26" • Actual ID (V) in: 0
Pharmaceutical GPLPB2119101EU	BS Schedule 10	3 1/2"	119mm	EPDM Blue	3.76" (95.5mm)	Price On Request
View Page Pharmaceutical Gasket (3 1/2") \| BS Schedule 10 (Lipped) \| EPDM Blue Dimensional Image Key: • Flange (A) mm: 119 • ID (E) mm: 95.5 • ID (E) in: 3.76" • Actual ID (V) in: 0
Pharmaceutical GPLPB2130114EU	BS Schedule 10	4”	130mm	EPDM Blue	4.26" (108.2mm)	Price On Request
View Page Pharmaceutical Gasket (4") \| BS Schedule 10 (Lipped) \| EPDM Blue Dimensional Image Key: • Flange (A) mm: 130 • ID (E) mm: 108.2 • ID (E) in: 4.26" • Actual ID (V) in: 0
Pharmaceutical GPLPB2155141EU	BS Schedule 10	5”	155mm	EPDM Blue	5.3" (134.5mm)	Price On Request
View Page Pharmaceutical Gasket (5") \| BS Schedule 10 (Lipped) \| EPDM Blue Dimensional Image Key: • Flange (A) mm: 155 • ID (E) mm: 134.5 • ID (E) in: 5.3" • Actual ID (V) in: 0
Pharmaceutical GPLPB2183168EU	BS Schedule 10	6”	183mm	EPDM Blue	6.36" (161.47mm)	Price On Request
View Page Pharmaceutical Gasket (6") \| BS Schedule 10 (Lipped) \| EPDM Blue Dimensional Image Key: • Flange (A) mm: 183 • ID (E) mm: 161.47 • ID (E) in: 6.36" • Actual ID (V) in: 0
