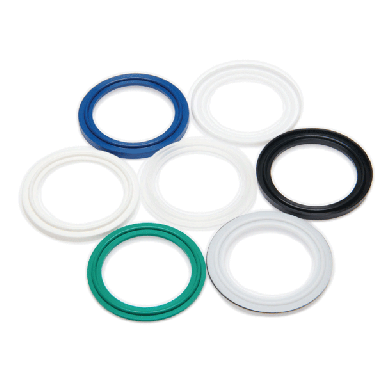

Mini Series Gaskets Metric & Imperial

Description

Mini Series Gaskets Metric and Imperial, creating an airtight fit between parts.

Specifications

BS / DIN / SMS / ISO – all standards are available
All gaskets are FDA tested. Some are USP VI <87> <88>

Dimensional Image

Features

Mesh gaskets inners are interchangeable (reducing end user cost)
Full range of common materials and colours are available
Unlipped gaskets are available for all stock items
Full range of temperatures and chemical compatibility can be covered

Industry PART#	Standard	Nom Imperial	Nom Metric/ISO	Flange (A)	Material Grade	Actual ID (V)	ID (E)	LIST PRICE
Hygienic GDULM2025006EU			4(metric)	0.87" (22mm)	EPDM Blue	0.25 (6.32mm)	0.16" (4mm)	Price On Request
View Page Hygienic Gasket (4) \| Mini Series - Metric (Unlipped) \| EPDM Blue Legacy Part Number IE: GK.MS.04 Dimensional Image Key: • Flange (A) mm: 22 • Flange (A) in: 0.87" • ID (E) mm: 4 • Actual ID (V) mm: 6.32 • ID (E) in: 0.16" • Actual ID (V) in: 0.25
Hygienic GDULM2025008EU			6(metric)	0.87" (22mm)	EPDM Blue	0.29 (7.32mm)	0.24" (6mm)	Price On Request
View Page Hygienic Gasket (6) \| Mini Series - Metric (Unlipped) \| EPDM Blue Legacy Part Number IE: GK.MS.06 Dimensional Image Key: • Flange (A) mm: 22 • Flange (A) in: 0.87" • ID (E) mm: 6 • Actual ID (V) mm: 7.32 • ID (E) in: 0.24" • Actual ID (V) in: 0.29
Hygienic GDULM2025010EU			8(metric)	0.87" (22mm)	EPDM Blue	0.38 (9.54mm)	0.31" (8mm)	Price On Request
View Page Hygienic Gasket (8) \| Mini Series - Metric (Unlipped) \| EPDM Blue Legacy Part Number IE: GK.MS.08 Dimensional Image Key: • Flange (A) mm: 22 • Flange (A) in: 0.87" • ID (E) mm: 8 • Actual ID (V) mm: 9.54 • ID (E) in: 0.31" • Actual ID (V) in: 0.38
Hygienic GDULM2025012EU			10(metric)	0.87" (22mm)	EPDM Blue	0.45 (11.32mm)	0.39" (10mm)	Price On Request
View Page Hygienic Gasket (10) \| Mini Series - Metric (Unlipped) \| EPDM Blue Legacy Part Number IE: GK.MS.10 Dimensional Image Key: • Flange (A) mm: 22 • Flange (A) in: 0.87" • ID (E) mm: 10 • Actual ID (V) mm: 11.32 • ID (E) in: 0.39" • Actual ID (V) in: 0.45
Hygienic GDULM2025014EU			12(metric)	0.87" (22mm)	EPDM Blue	0.53 (13.34mm)	0.47" (12mm)	Price On Request
View Page Hygienic Gasket (12) \| Mini Series - Metric (Unlipped) \| EPDM Blue Legacy Part Number IE: GK.MS.12 Dimensional Image Key: • Flange (A) mm: 22 • Flange (A) in: 0.87" • ID (E) mm: 12 • Actual ID (V) mm: 13.34 • ID (E) in: 0.47" • Actual ID (V) in: 0.53
Hygienic GDULM2025016EU			14(metric)	0.87" (22mm)	EPDM Blue	0.61 (15.61mm)	0.63" (16mm)	Price On Request
View Page Hygienic Gasket (14) \| Mini Series - Metric (Unlipped) \| EPDM Blue Legacy Part Number IE: GK.MS.14 Dimensional Image Key: • Flange (A) mm: 22 • Flange (A) in: 0.87" • ID (E) mm: 16 • Actual ID (V) mm: 15.61 • ID (E) in: 0.63" • Actual ID (V) in: 0.61
Hygienic GDULM2025018EU			16(metric)	0.87" (22mm)	EPDM Blue	0.65 (16.49mm)	0.63" (16mm)	Price On Request
View Page Hygienic Gasket (16) \| Mini Series - Metric (Unlipped) \| EPDM Blue Legacy Part Number IE: GK.MS.16 Dimensional Image Key: • Flange (A) mm: 22 • Flange (A) in: 0.87" • ID (E) mm: 16 • Actual ID (V) mm: 16.49 • ID (E) in: 0.63" • Actual ID (V) in: 0.65
Hygienic GDULM2025635EU		1/4"		0.87" (22mm)	EPDM Blue	0.25 (6.32mm)	0.18" (4.57mm)	Price On Request
View Page Hygienic Gasket (1/4") \| Mini Series - Imperial (Unlipped) \| EPDM Blue Legacy Part Number IE: GK.MSI.025 Dimensional Image Key: • Flange (A) mm: 22 • Flange (A) in: 0.87" • ID (E) mm: 4.57 • Actual ID (V) mm: 6.32 • ID (E) in: 0.18" • Actual ID (V) in: 0.25
Hygienic GDULM2025952EU		3/8"		0.87" (22mm)	EPDM Blue	0.38 (9.54mm)	0.3" (7.71mm)	Price On Request
View Page Hygienic Gasket (3/8") \| Mini Series - Imperial (Unlipped) \| EPDM Blue Legacy Part Number IE: GK.MSI.038 Dimensional Image Key: • Flange (A) mm: 22 • Flange (A) in: 0.87" • ID (E) mm: 7.71 • Actual ID (V) mm: 9.54 • ID (E) in: 0.3" • Actual ID (V) in: 0.38
Hygienic GDULM2025127EU		1/2"		0.87" (22mm)	EPDM Blue	0.44 (11.21mm)	0.37" (9.52mm)	Price On Request
View Page Hygienic Gasket (1/2") \| Mini Series - Imperial (Unlipped) \| EPDM Blue Legacy Part Number IE: GK.MSI.050 Dimensional Image Key: • Flange (A) mm: 22 • Flange (A) in: 0.87" • ID (E) mm: 9.52 • Actual ID (V) mm: 11.21 • ID (E) in: 0.37" • Actual ID (V) in: 0.44
Hygienic GDULM2025195EU		3/4"		0.87" (22mm)	EPDM Blue	0.65 (16.49mm)	0.62" (15.87mm)	Price On Request
View Page Hygienic Gasket (3/4") \| Mini Series - Imperial (Unlipped) \| EPDM Blue Legacy Part Number IE: GK.MSI.075 Dimensional Image Key: • Flange (A) mm: 22 • Flange (A) in: 0.87" • ID (E) mm: 15.87 • Actual ID (V) mm: 16.49 • ID (E) in: 0.62" • Actual ID (V) in: 0.65
Pharmaceutical GPULM2025006EU	Mini Series - Metric		4(metric)	22mm	EPDM Blue	0.25 (6.32mm)	0.16" (4mm)	Price On Request
View Page Pharmaceutical Gasket (4) \| Mini Series - Metric (Unlipped) \| EPDM Blue Legacy Part Number IE: GK.MS.04 Dimensional Image Key: • Flange (A) mm: 22 • ID (E) mm: 4 • Actual ID (V) mm: 6.32 • ID (E) in: 0.16" • Actual ID (V) in: 0.25
