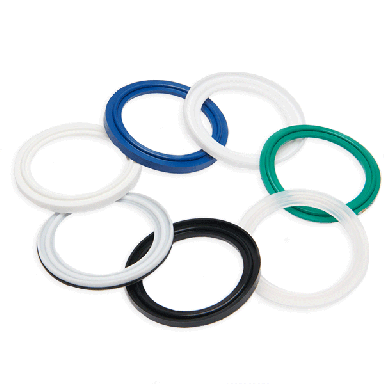

DIN 32676 Gaskets

Description

Acl DIN 32676 gaskets, create an airtight fit between parts.

Specifications

BS / DIN / SMS / ISO – all standards are available
All gaskets are FDA tested. Some are USP VI <87> <88>

Dimensional Image

Features

Mesh gaskets inners are interchangeable (reducing end user cost)
Full range of common materials and colours are available
Gasket are FDA Tested (some are USP <87> <88>)
Unlipped gaskets are available for all stock items
Full range of temperatures and chemical compatibility can be covered
Supplied in Black UV resistant bags

Materials

EPDM
Silicone
VITON®
PTFE Solid
PTFE Envelope

Industry PART#	Standard	Nom Metric/ISO	Flange (A)	Material Grade	ID (E)	LIST PRICE
Pharmaceutical GPLPD2034013EU	DIN 32676	DIN 10(metric)	1.34" (34mm)	EPDM Blue	0.39" (10mm)	Price On Request
View Page Pharmaceutical Gasket (DN10) \| DIN 32676 (Lipped) \| EPDM Blue Legacy Part Number IE: GK.DN.010 Dimensional Image Key: • Flange (A) mm: 34 • Flange (A) in: 1.34" • ID (E) mm: 10 • ID (E) in: 0.39" • Actual ID (V) in: 0
Pharmaceutical GPLPD2034019EU	DIN 32676	DIN 15(metric)	34mm	EPDM Blue	0.63" (16mm)	Price On Request
View Page Pharmaceutical Gasket (DN15) \| DIN 32676 (Lipped) \| EPDM Blue Legacy Part Number IE: GK.DN.015 Dimensional Image Key: • Flange (A) mm: 34 • ID (E) mm: 16 • ID (E) in: 0.63" • Actual ID (V) in: 0
Pharmaceutical GPLPD2034023EU	DIN 32676	DIN 20(metric)	1.34" (34mm)	EPDM Blue	0.79" (20mm)	Price On Request
View Page Pharmaceutical Gasket (DN20) \| DIN 32676 (Lipped) \| EPDM Blue Legacy Part Number IE: GK.DN.020 Dimensional Image Key: • Flange (A) mm: 34 • Flange (A) in: 1.34" • ID (E) mm: 20 • ID (E) in: 0.79" • Actual ID (V) in: 0
Pharmaceutical GPLPD2050029EU	DIN 32676	DIN 25(metric)	50.5mm	EPDM Blue	1.02" (26mm)	Price On Request
View Page Pharmaceutical Gasket (DN25) \| DIN 32676 (Lipped) \| EPDM Blue Legacy Part Number IE: GK.DN.025 Dimensional Image Key: • Flange (A) mm: 50.5 • ID (E) mm: 26 • ID (E) in: 1.02" • Actual ID (V) in: 0
Pharmaceutical GPLPD2050035EU	DIN 32676	DIN 32(metric)	50.5mm	EPDM Blue	1.26" (32mm)	Price On Request
View Page Pharmaceutical Gasket (DN32) \| DIN 32676 (Lipped) \| EPDM Blue Legacy Part Number IE: GK.DN.032 Dimensional Image Key: • Flange (A) mm: 50.5 • ID (E) mm: 32 • ID (E) in: 1.26" • Actual ID (V) in: 0
Pharmaceutical GPLPD2050041EU	DIN 32676	DIN 40(metric)	50.5mm	EPDM Blue	1.5" (38mm)	Price On Request
View Page Pharmaceutical Gasket (DN40) \| DIN 32676 (Lipped) \| EPDM Blue Legacy Part Number IE: GK.DN.040 Dimensional Image Key: • Flange (A) mm: 50.5 • ID (E) mm: 38 • ID (E) in: 1.5" • Actual ID (V) in: 0
Pharmaceutical GPLPD2064053EU	DIN 32676	DIN 50(metric)	64mm	EPDM Blue	1.97" (50mm)	Price On Request
View Page Pharmaceutical Gasket (DN50) \| DIN 32676 (Lipped) \| EPDM Blue Legacy Part Number IE: GK.DN.050 Dimensional Image Key: • Flange (A) mm: 64 • ID (E) mm: 50 • ID (E) in: 1.97" • Actual ID (V) in: 0
Pharmaceutical GPLPD2091070EU	DIN 32676	DIN 65(metric)	91mm	EPDM Blue	2.6" (66mm)	Price On Request
View Page Pharmaceutical Gasket (DN65) \| DIN 32676 (Lipped) \| EPDM Blue Legacy Part Number IE: GK.DN.065 Dimensional Image Key: • Flange (A) mm: 91 • ID (E) mm: 66 • ID (E) in: 2.6" • Actual ID (V) in: 0
Pharmaceutical GPLPD2106085EU	DIN 32676	DIN 80(metric)	106mm	EPDM Blue	3.19" (81mm)	Price On Request
View Page Pharmaceutical Gasket (DN80) \| DIN 32676 (Lipped) \| EPDM Blue Legacy Part Number IE: GK.DN.080 Dimensional Image Key: • Flange (A) mm: 106 • ID (E) mm: 81 • ID (E) in: 3.19" • Actual ID (V) in: 0
Pharmaceutical GPLPD2119104EU	DIN 32676	DN 100(metric)	119mm	EPDM Blue	3.94" (100mm)	Price On Request
View Page Pharmaceutical Gasket (DN100) \| DIN 32676 (Lipped) \| EPDM Blue Legacy Part Number IE: GK.DN.100 Dimensional Image Key: • Flange (A) mm: 119 • ID (E) mm: 100 • ID (E) in: 3.94" • Actual ID (V) in: 0
Pharmaceutical GPLPD2155129EU	DIN 32676	DIN 125(metric)	155mm	EPDM Blue	4.92" (125mm)	Price On Request
View Page Pharmaceutical Gasket (DN125) \| DIN 32676 (Lipped) \| EPDM Blue Legacy Part Number IE: GK.DN.125 Dimensional Image Key: • Flange (A) mm: 155 • ID (E) mm: 125 • ID (E) in: 4.92" • Actual ID (V) in: 0
Pharmaceutical GPLPD2183154EU	DIN 32676	DIN 150(metric)	183mm	EPDM Blue	5.91" (150mm)	Price On Request
View Page Pharmaceutical Gasket (DN150) \| DIN 32676 (Lipped) \| EPDM Blue Legacy Part Number IE: GK.DN.150 Dimensional Image Key: • Flange (A) mm: 183 • ID (E) mm: 150 • ID (E) in: 5.91" • Actual ID (V) in: 0
