    SH Clamp 316 Double Bolt


    SH Clamp 316 Double Bolt
    Description
    Sanitary (pharmaceutical) SH 316 stainless steel double bolt clamps with length adjustable eyebolts are corrosion resistant, and polished to a high quality surface finish for cleanability. SH 316 clamps are designed and optimised for installation and maintenance, a proven design in the industry for over 30 years. SH316 clamps are for use in normal to heavy duty pharmaceutical applications.
    Installation
    Ease of Installation: parts can be partially disassembled to reduce the loss of components during maintenance​. Swing bolt design is more forgiving than through bolts​.
    Specifications
    • 316 / 1.4408 stainless steel
    • Wing nut & hex nut compatible
    • Double bolt, length adjustable eyebolt
    • Tested by TUV, Forbairt, FORCE

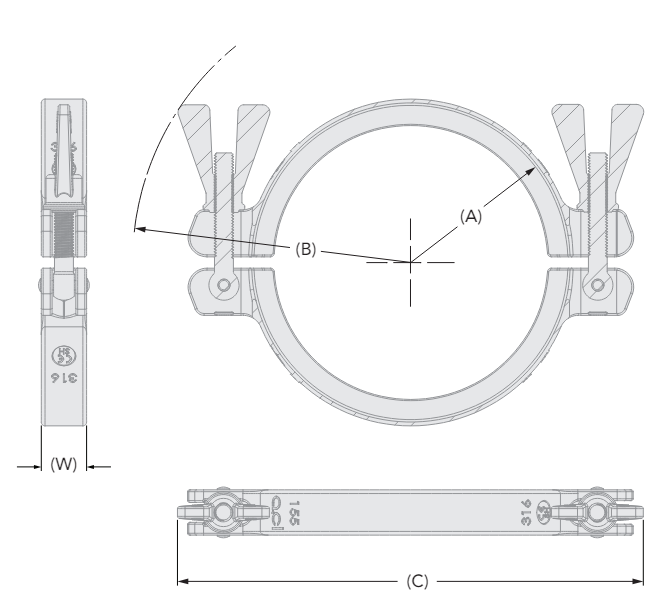

    Dimensional Image
    Features
    • Clamps are tested periodically to ensure safety and consistency​.
    • Minimum of 0.8Ra um surface finish (external).​
    • Fastener options designed to resist galling​.
    • Clamps are sized between batches to ensure consistency of fit on the union.
    • Majority of clamp MAWP are calculated to ASME VIII APP 24​.
    • Reduction of CO2. The Euro-Pure clamp is designed to reduce the amount of CO2 used in all aspects of the product life-cycle.​
    • ​Clamps (2.5" to 5" SAF) - designed for AD2000-A5 (PED). Testing to be concluded.​
    • Packaged loose, in cardboard boxes. No plastic.​
    Total: 15
    Industry
    PART#    		 Type Nom
    Imperial    		 Nom
    Metric/ISO    		 Flange
    (A)    		 Material
    Grade    		 EN/ASTM
    Std    		 Mechanism Nut
    Type    		 MAWP Bar
    (metric)    		 PSI
    (imperial)    		 LIST
    PRICE
    Pharmaceutical
    SHWNDW07706
    		2 1/2" DN50(ISO) 77.5mm 316L 1.4408/J92900 50
    Price On Request
    dimensional image
    View Page
     SH Clamp 316SS, Double Bolt, 77.5mm GTIN:   77.5 Legacy Part Number IE:   CL.SHD.0250
    Dimensional Image Key:
    • • Flange (A) mm:  77.5
    • • B mm:  75.7
    • • C mm:  123.8
    • • W mm:  19
    Pharmaceutical
    SHWNDW09106
    		3" DN65/DN65 91mm 316L 1.4408/J92900 40
    Price On Request
    dimensional image
    View Page
     SH Clamp 316SS, Double Bolt, 91mm GTIN:   91 Legacy Part Number IE:   CL.SHD.0300
    Dimensional Image Key:
    • • Flange (A) mm:  91
    • • B mm:  80.9
    • • C mm:  136.3
    • • W mm:  19
    Pharmaceutical
    SHWNDW10606
    		3 1/2" DN80/DN80 106mm 316L 1.4408/J92900 40
    Price On Request
    dimensional image
    View Page
     SH Clamp 316SS, Double Bolt, 106mm GTIN:   106 Legacy Part Number IE:   CL.SHD.0350
    Dimensional Image Key:
    • • Flange (A) mm:  106
    • • B mm:  87.3
    • • C mm:  151.3
    • • W mm:  19
    Pharmaceutical
    SHWNDW11906
    		4" DN100(ISO) 119mm 316L 1.4408/J92900 35
    Price On Request
    dimensional image
    View Page
     SH Clamp 316SS, Double Bolt, 119mm GTIN:   119 Legacy Part Number IE:   CL.SHD.0400
    Dimensional Image Key:
    • • Flange (A) mm:  119
    • • B mm:  93
    • • C mm:  164.3
    • • W mm:  19
    Pharmaceutical
    SHWNDW13006
    		4 1/2" DN100(ISO) 130mm 316L 1.4408/J92900 30
    Price On Request
    dimensional image
    View Page
     SH Clamp 316SS, Double Bolt, 130mm GTIN:   130 Legacy Part Number IE:   CL.SHD.0450
    Dimensional Image Key:
    • • Flange (A) mm:  130
    • • B mm:  87.4
    • • C mm:  176.6
    • • W mm:  19
    Pharmaceutical
    SHWNDW14406
    		5" 144mm 316L 1.4408/J92900 30
    Price On Request
    dimensional image
    View Page
     SH Clamp 316SS, Double Bolt, 144mm GTIN:   144 Legacy Part Number IE:   CL.SHD.0500
    Dimensional Image Key:
    • • Flange (A) mm:  144
    • • B mm:  106.1
    • • C mm:  193.5
    • • W mm:  19
    Pharmaceutical
    SHWNDW15506
    		SH 5 1/2" DN125/DN125 6 1/8" (155mm) 316L 1.4408/J92900 2-Bolt Wingnut 30 435.1132132
    Price On Request
    dimensional image
    View Page
     SH-Series 2-Bolt Wingnut Clamp - 316L - 6 1/8" (155mm) Flange - 5,5" Nom GTIN:   840384301412 Legacy Part Number IE:   CL.SHD.0550 Legacy Part Number UK:   CL05500-SHDBS4N1 Legacy Part Number DK:   CLSHD0550
    Dimensional Image Key:
    • • Flange (A) mm:  155
    • • Flange (A) in:  6 1/8"
    • • B in:  6.10"
    • • B mm:  155
    • • C mm:  265
    • • C in:  10.43"
    • • W mm:  24
    • • W in:  0.94"
    Pharmaceutical
    SHWNDW16706
    		SH 6" 6 5/8" (167mm) 316L 1.4408/J92900 2-Bolt Wingnut 30 435.1132132
    Price On Request
    dimensional image
    View Page
     SH-Series 2-Bolt Wingnut Clamp - 316L - 6 5/8" (167mm) Flange - 6" Nom GTIN:   840384301429 Legacy Part Number IE:   CL.SHD.0600 Legacy Part Number UK:   CL06000-SHDBS4N1 Legacy Part Number DK:   CLSHD0600
    Dimensional Image Key:
    • • Flange (A) mm:  167
    • • Flange (A) in:  6 5/8"
    • • B in:  6.14"
    • • B mm:  156
    • • C mm:  277
    • • C in:  10.91"
    • • W mm:  24
    • • W in:  0.94"
    Pharmaceutical
    SHWNDW18306
    		SH 6 5/8" DN150/DN150 7 1/4" (183mm) 316L 1.4408/J92900 2-Bolt Wingnut 25 362.5943443
    Price On Request
    dimensional image
    View Page
     SH-Series 2-Bolt Wingnut Clamp - 316L - 7 1/4" (183mm) Flange - 6,625" Nom GTIN:   840384301436 Legacy Part Number IE:   CL.SHD.0658 Legacy Part Number UK:   CL06580-SHDBS4N1 Legacy Part Number DK:   CLSHD0658
    Dimensional Image Key:
    • • Flange (A) mm:  183
    • • Flange (A) in:  7 1/4"
    • • B in:  6.46"
    • • B mm:  164
    • • C mm:  297
    • • C in:  11.69"
    • • W mm:  24
    • • W in:  0.94"
    Pharmaceutical
    SHWNDW21706
    		SH 8" 8 1/2" (217.4mm) 316L 1.4408/J92900 2-Bolt Wingnut 20 290.0754755
    Price On Request
    dimensional image
    View Page
     SH-Series 2-Bolt Wingnut Clamp - 316L - 8 1/2" (217.4mm) Flange - 8" Nom GTIN:   840384301443 Legacy Part Number IE:   CL.SHD.0800 Legacy Part Number UK:   CL08000-SHDBS4N1 Legacy Part Number DK:   CLSHD0800
    Dimensional Image Key:
    • • Flange (A) mm:  217.4
    • • Flange (A) in:  8 1/2"
    • • B in:  7.24"
    • • B mm:  184
    • • C mm:  332
    • • C in:  13.07"
    • • W mm:  24
    • • W in:  0.94"
    Pharmaceutical
    SHWNDW23306
    		SH 8 5/8" DN200/DN200 9 1/8" (233.5mm) 316L 1.4408/J92900 2-Bolt Wingnut 20 290.0754755
    Price On Request
    dimensional image
    View Page
     SH-Series 2-Bolt Wingnut Clamp - 316L - 9 1/8" (233.5mm) Flange - 8,625" Nom GTIN:   840384301450 Legacy Part Number IE:   CL.SHD.0858 Legacy Part Number UK:   CL08850-SHDBS4N1 Legacy Part Number DK:   CLSHD0858
    Dimensional Image Key:
    • • Flange (A) mm:  233.5
    • • Flange (A) in:  9 1/8"
    • • B in:  7.28"
    • • B mm:  185
    • • C mm:  353
    • • C in:  13.90"
    • • W mm:  24
    • • W in:  0.94"
    Pharmaceutical
    SHWNDW26806
    		SH 10" DN250/DN250 10 1/2" (268mm) 316L 1.4408/J92900 2-Bolt Wingnut 16 232.0603804
    Price On Request
    dimensional image
    View Page
     SH-Series 2-Bolt Wingnut Clamp - 316L - 10 1/2" (268mm) Flange - 10" Nom GTIN:   840384301467 Legacy Part Number IE:   CL.SHD.1000 Legacy Part Number UK:   CL10000-0SH-S4N1 Legacy Part Number DK:   CLSHD1000
    Dimensional Image Key:
    • • Flange (A) mm:  268
    • • Flange (A) in:  10 1/2"
    • • B in:  8.07"
    • • B mm:  205
    • • C mm:  382
    • • C in:  15.04"
    • • W mm:  24
    • • W in:  0.94"
