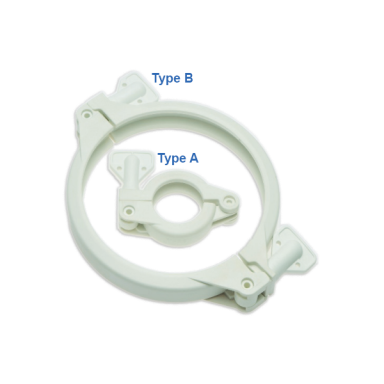

Nylon Clamp Thumb screw nylon tri-clamp – 13MHM

Nylon Clamp Thumb screw nylon tri-clamp – 13MHM

Description

Nylon Clamp Thumb screw nylon tri-clamp – 13MHM

Specifications

Maximum tightening torque 2NM (1.48 LB/F)
Maximum operating pressure 10 bar (145psi) @ 20°C (68°F)

Dimensional Image

Industry PART#	Type	Nom Imperial	Nom Metric/ISO	Flange (A)	Material Grade	EN/ASTM Std	Mechanism	Nut Type	MAWP Bar (metric)	PSI (imperial)	LIST PRICE
Pharmaceutical PSWN00025NY	NY	1/4 - 3/4"	DN6-8/DN8-10	1" (25.4mm)	Nylon	NYLON 66/NYLON 66	1-Pin	Wingnut	10	145.0377377	Price On Request
View Page NY-Series 1-Pin Wingnut Clamp - Nylon - 1" (25.4mm) Flange - 1/4" - 3/4" Nom GTIN: 840384303867 Legacy Part Number UK: CL00500-000-P1X1 Dimensional Image Key: • Flange (A) mm: 25.4 • Flange (A) in: 1" • B in: 2.48" • B mm: 63 • C mm: 60 • C in: 2.36" • W mm: 18 • W in: 0.71"
Pharmaceutical PSWN00050NY	NY	1 - 1 1/2"	DN25-40/DN15-20-25	2" (50.5mm)	Nylon	NYLON 66/NYLON 66	1-Pin	Wingnut	10	145.0377377	Price On Request
View Page NY-Series 1-Pin Wingnut Clamp - Nylon - 2" (50.5mm) Flange - 1" - 1 1/2" Nom GTIN: 840384303874 Legacy Part Number UK: CL01000-000-P1X1 Dimensional Image Key: • Flange (A) mm: 50.5 • Flange (A) in: 2" • B in: 3.07" • B mm: 78 • C mm: 85 • C in: 3.35" • W mm: 18 • W in: 0.71"
Pharmaceutical PSWN00064NY	NY	2"	DN50/DN32-40	2 1/2" (64mm)	Nylon	NYLON 66/NYLON 66	1-Pin	Wingnut	8	116.0301902	Price On Request
View Page NY-Series 1-Pin Wingnut Clamp - Nylon - 2 1/2" (64mm) Flange - 2" Nom GTIN: 840384303881 Legacy Part Number UK: CL02000-000-P1X1 Dimensional Image Key: • Flange (A) mm: 64 • Flange (A) in: 2 1/2" • B in: 3.23" • B mm: 82 • C mm: 99 • C in: 3.90" • W mm: 18 • W in: 0.71"
Pharmaceutical PSWN00077NY	NY	2 1/2"	DN50(ISO)	3" (77.5mm)	Nylon	NYLON 66/NYLON 66	1-Pin	Wingnut	8	116.0301902	Price On Request
View Page NY-Series 1-Pin Wingnut Clamp - Nylon - 3" (77.5mm) Flange - 2,5" Nom GTIN: 840384303898 Legacy Part Number UK: CL02500-000-P1X1 Dimensional Image Key: • Flange (A) mm: 77.5 • Flange (A) in: 3" • B in: 3.50" • B mm: 89 • C mm: 112 • C in: 4.41" • W mm: 18 • W in: 0.71"
Pharmaceutical PSWN00106NY	NY	3 1/2"	DN80/DN80	4 1/8" (106mm)	Nylon	NYLON 66/NYLON 66	1-Pin	Wingnut	8	116.0301902	Price On Request
View Page NY-Series 1-Pin Wingnut Clamp - Nylon - 4 1/8" (106mm) Flange - 3,5" Nom GTIN: 840384303911 Dimensional Image Key: • Flange (A) mm: 106 • Flange (A) in: 4 1/8" • B in: 4.06" • B mm: 103 • C mm: 140 • C in: 5.51" • W mm: 18 • W in: 0.71"
Pharmaceutical PSWN00119NY	NY	4"	DN100(metric)	4 3/4" (119mm)	Nylon	NYLON 66/NYLON 66	1-Pin	Wingnut	6	87.02264264	Price On Request
View Page NY-Series 1-Pin Wingnut Clamp - Nylon - 4 3/4" (119mm) Flange - 4" Nom GTIN: 840384303928 Legacy Part Number UK: CL04000-000-P1X1 Dimensional Image Key: • Flange (A) mm: 119 • Flange (A) in: 4 3/4" • B in: 4.33" • B mm: 110 • C mm: 154 • C in: 6.06" • W mm: 18 • W in: 0.71"
Pharmaceutical PSWN00167NY	NY	6"		6 5/8" (167mm)	Nylon	NYLON 66/NYLON 66	2-Bolt	Wingnut	3.5	50.76320821	Price On Request
View Page NY-Series 2-Bolt Wingnut Clamp - Nylon - 6 5/8" (167mm) Flange - 6" Nom GTIN: 840384303966 Legacy Part Number UK: CL06000-000-P1X1 Dimensional Image Key: • Flange (A) mm: 167 • Flange (A) in: 6 5/8" • B in: 6.14" • B mm: 156 • C mm: 216 • C in: 8.50" • W mm: 24 • W in: 0.94"
Pharmaceutical PSWN00217NY	NY	8"		8 1/2" (217.4mm)	Nylon	NYLON 66/NYLON 66	2-Bolt	Wingnut	2	29.00754755	Price On Request
View Page NY-Series 2-Bolt Wingnut Clamp - Nylon - 8 1/2" (217.4mm) Flange - 8" Nom GTIN: 840384303980 Legacy Part Number UK: CL08000-000-P1X1 Dimensional Image Key: • Flange (A) mm: 217.4 • Flange (A) in: 8 1/2" • B in: 7.24" • B mm: 184 • C mm: 271 • C in: 10.67" • W mm: 24 • W in: 0.94"

Please Login To Order

NY-Series 1-Pin Wingnut Clamp - Nylon - 1" (25.4mm) Flange - 1/4" - 3/4" Nom
Pharmaceutical
PSWN00025NY

Price On Request

NY-Series 1-Pin Wingnut Clamp - Nylon - 2" (50.5mm) Flange - 1" - 1 1/2" Nom
Pharmaceutical
PSWN00050NY

Price On Request

NY-Series 1-Pin Wingnut Clamp - Nylon - 2 1/2" (64mm) Flange - 2" Nom
Pharmaceutical
PSWN00064NY

Price On Request

NY-Series 1-Pin Wingnut Clamp - Nylon - 3" (77.5mm) Flange - 2,5" Nom
Pharmaceutical
PSWN00077NY

Price On Request

NY-Series 1-Pin Wingnut Clamp - Nylon - 4 1/8" (106mm) Flange - 3,5" Nom
Pharmaceutical
PSWN00106NY

Price On Request

NY-Series 1-Pin Wingnut Clamp - Nylon - 4 3/4" (119mm) Flange - 4" Nom
Pharmaceutical
PSWN00119NY

Price On Request

NY-Series 2-Bolt Wingnut Clamp - Nylon - 6 5/8" (167mm) Flange - 6" Nom
Pharmaceutical
PSWN00167NY

Price On Request

NY-Series 2-Bolt Wingnut Clamp - Nylon - 8 1/2" (217.4mm) Flange - 8" Nom
Pharmaceutical
PSWN00217NY

Price On Request
