Type SH (Single-Bolt | Double-Hinge) 316L

Description

Sanitary (pharmaceutical) SH 316 stainless steel single bolt, double hinge clamps are corrosion resistant, and polished to a high quality surface finish for cleanability. SH 316 clamps are designed and optimised for installation and maintenance, a proven design in the industry for over 30 years. SH316 clamps are for use in normal to heavy duty pharmaceutical applications.

Installation

Supplied assembled: double pin design allows the union to self-align (no pinch points on the gasket).

Specifications

316 / 1.4308 stainless steel
Wing nut & hex nut compatible
Single bolt, double rivet hinge plate layout
Tested by TUV, Forbairt, FORCE

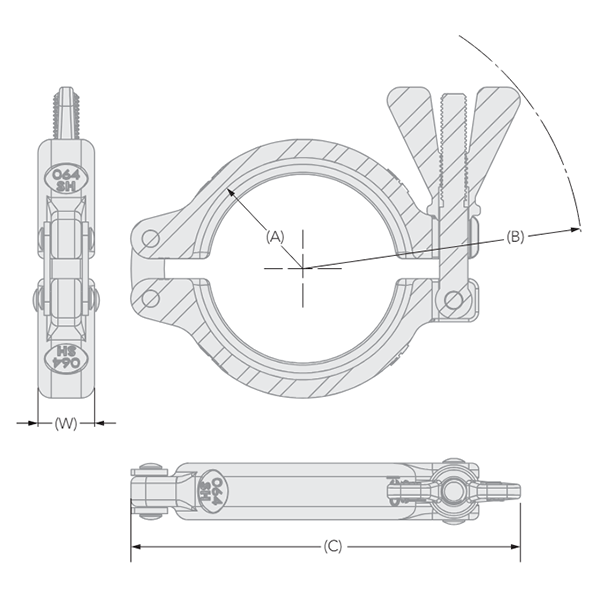

Dimensional Image

(A) Flange
(B) Radius
(C) Length
(W) Width

Features

Clamps are tested periodically to ensure safety and consistency.
Minimum of 0.8Ra um surface finish (external).
Fastener options designed to resist galling.
Clamps are sized between batches to ensure consistency of fit on the union.
Majority of clamp MAWP are calculated to ASME VIII APP 24.
Reduction of CO2. The Euro-Pure clamp is designed to reduce the amount of CO2 used in all aspects of the product life-cycle.
Tested by TUV, Forbairt, FORCE. Currently testing is underway for A2000-A5 (PED) on some of clamp ranges (TUV approved testing).
Packaged loose, in cardboard boxes. No plastic.

Industry PART#	Type	Nom Imperial	Nom Metric/ISO	Flange (A)	Material Grade	EN/ASTM Std	Mechanism	Nut Type	MAWP Bar (metric)	PSI (imperial)	LIST PRICE
Pharmaceutical SHWN0002506	SH	1/4 - 3/4"	DN6-8/DN8-10	1" (25.4mm)	316L	1.4408/J92900	2-Pin	Wingnut	50	725.1886887	Price On Request
View Page Pharmaceutical Tri-Clamp (1/4" - 3/4") \| Type SH \| Stainless Steel 316L \| Wingnut GTIN: 840384300842 Legacy Part Number IE: CL.SH.0050 Legacy Part Number UK: CL00500750SHS4N1 Legacy Part Number DK: CLSH0050 Dimensional Image Key: • Flange (A) mm: 25.4 • Flange (A) in: 1" • B in: 2.56" • B mm: 65 • C mm: 75 • C in: 2.95" • W mm: 17 • W in: 0.67"
Pharmaceutical SHWN0005006	SH	1 - 1 1/2"	DN25-40/DN15-20-25	2" (50.5mm)	316L	1.4408/J92900	2-Pin	Wingnut	50	725.1886887	Price On Request
View Page Pharmaceutical Tri-Clamp (1" - 1 1/2") \| Type SH \| Stainless Steel 316L \| Wingnut GTIN: 840384300859 Legacy Part Number IE: CL.SH.0100 Legacy Part Number UK: CL01000500SHS4N1 Legacy Part Number DK: CLSH0100 Dimensional Image Key: • Flange (A) mm: 50.5 • Flange (A) in: 2" • B in: 3.03" • B mm: 77 • C mm: 102 • C in: 4.02" • W mm: 17 • W in: 0.67"
Pharmaceutical SHWN0006406	SH	2"	DN50/DN32-40	2 1/2" (64mm)	316L	1.4408/J92900	2-Pin	Wingnut	50	725.1886887	Price On Request
View Page Pharmaceutical Tri-Clamp (2") \| Type SH \| Stainless Steel 316L \| Wingnut GTIN: 840384300866 Legacy Part Number IE: CL.SH.0200 Legacy Part Number UK: CL02000-0SH-S4N1 Legacy Part Number DK: CLSH0200 Dimensional Image Key: • Flange (A) mm: 64 • Flange (A) in: 2 1/2" • B in: 3.66" • B mm: 93 • C mm: 123 • C in: 4.84" • W mm: 17 • W in: 0.67"
Pharmaceutical SHWN0003406	SH	DN10	DN10-15-20(metric)	1 3/8" (34mm)	316L	1.4408/J92900	2-Pin	Wingnut	50	725.1886887	Price On Request
View Page Pharmaceutical Tri-Clamp (DN10) \| Type SH \| Stainless Steel 316L \| Wingnut GTIN: 840384301023 Legacy Part Number IE: CL.SH.D010 Legacy Part Number UK: CL101520SHSBS4N1 Legacy Part Number DK: CLSHD010 Dimensional Image Key: • Flange (A) mm: 34 • Flange (A) in: 1 3/8" • B in: 2.64" • B mm: 67 • C mm: 85 • C in: 3.35" • W mm: 17 • W in: 0.67"
Pharmaceutical SHWN0009106	SH	3"	DN65/DN65	3 1/2" (91mm)	316L	1.4408/J92900	2-Pin	Wingnut	40	580.1509509	Price On Request
View Page Pharmaceutical Tri-Clamp (3") \| Type SH \| Stainless Steel 316L \| Wingnut GTIN: 840384300880 Legacy Part Number IE: CL.SH.0300 Legacy Part Number UK: CL03000-0SH-S4N1 Legacy Part Number DK: CLSH0300 Dimensional Image Key: • Flange (A) mm: 91 • Flange (A) in: 3 1/2" • B in: 4.13" • B mm: 105 • C mm: 150 • C in: 5.91" • W mm: 17 • W in: 0.67"
Pharmaceutical SHWN0010606	SH	3 1/2"	DN80/DN80	4 1/8" (106mm)	316L	1.4408/J92900	2-Pin	Wingnut	40	580.1509509	Price On Request
View Page Pharmaceutical Tri-Clamp (3 1/2") \| Type SH \| Stainless Steel 316L \| Wingnut GTIN: 840384300897 Legacy Part Number IE: CL.SH.0350 Legacy Part Number UK: CL03500-0SH-S4N1 Legacy Part Number DK: CLSH0350 Dimensional Image Key: • Flange (A) mm: 106 • Flange (A) in: 4 1/8" • B in: 4.33" • B mm: 110 • C mm: 165 • C in: 6.50" • W mm: 17 • W in: 0.67"
Pharmaceutical SHWN0011906	SH	4"	DN100(metric)	4 3/4" (119mm)	316L	1.4408/J92900	2-Pin	Wingnut	35	507.6320821	Price On Request
View Page Pharmaceutical Tri-Clamp (4") \| Type SH \| Stainless Steel 316L \| Wingnut GTIN: 840384300903 Legacy Part Number IE: CL.SH.0400 Legacy Part Number UK: CL04000-0SH-S4N1 Legacy Part Number DK: CLSH0400 Dimensional Image Key: • Flange (A) mm: 119 • Flange (A) in: 4 3/4" • B in: 4.69" • B mm: 119 • C mm: 185 • C in: 7.28" • W mm: 17 • W in: 0.67"
Pharmaceutical SHWN0013006	SH	4 1/2"	DN100(ISO)	5 1/8" (130mm)	316L	1.4408/J92900	2-Pin	Wingnut	30	435.1132132	Price On Request
View Page Pharmaceutical Tri-Clamp (4 1/2") \| Type SH \| Stainless Steel 316L \| Wingnut GTIN: 840384300910 Legacy Part Number IE: CL.SH.0450 Legacy Part Number UK: CL04500-0SH-S4N1 Legacy Part Number DK: CLSH0450 Dimensional Image Key: • Flange (A) mm: 130 • Flange (A) in: 5 1/8" • B in: 4.69" • B mm: 119 • C mm: 191 • C in: 7.52" • W mm: 17 • W in: 0.67"
Pharmaceutical SHWN0014406	SH	5"		5 5/8" (144.4mm)	316L	1.4408/J92900	2-Pin	Wingnut	30	435.1132132	Price On Request
View Page Pharmaceutical Tri-Clamp (5") \| Type SH \| Stainless Steel 316L \| Wingnut GTIN: 840384300927 Legacy Part Number IE: CL.SH.0500 Legacy Part Number UK: CL05000-0SH-S4N1 Legacy Part Number DK: CLSH0500 Dimensional Image Key: • Flange (A) mm: 144.4 • Flange (A) in: 5 5/8" • B in: 5.16" • B mm: 131 • C mm: 215 • C in: 8.46" • W mm: 19 • W in: 0.75"
Pharmaceutical SHWN0015506	SH	5 1/2"	DN125/DN125	6 1/8" (155mm)	316L	1.4408/J92900	2-Pin	Wingnut	30	435.1132132	Price On Request
View Page Pharmaceutical Tri-Clamp (5 1/2") \| Type SH \| Stainless Steel 316L \| Wingnut GTIN: 840384300934 Legacy Part Number IE: CL.SH.0550 Legacy Part Number UK: CL05500-0SH-S4N1 Legacy Part Number DK: CLSH0550 Dimensional Image Key: • Flange (A) mm: 155 • Flange (A) in: 6 1/8" • B in: 6.10" • B mm: 155 • C mm: 252 • C in: 9.92" • W mm: 24 • W in: 0.94"
Pharmaceutical SHWN0016706	SH	6"		6 5/8" (167mm)	316L	1.4408/J92900	2-Pin	Wingnut	30	435.1132132	Price On Request
View Page Pharmaceutical Tri-Clamp (6") \| Type SH \| Stainless Steel 316L \| Wingnut GTIN: 840384300941 Legacy Part Number IE: CL.SH.0600 Legacy Part Number UK: CL06000-SHSBS4N1 Legacy Part Number DK: CLSH0600 Dimensional Image Key: • Flange (A) mm: 167 • Flange (A) in: 6 5/8" • B in: 6.14" • B mm: 156 • C mm: 262 • C in: 10.31" • W mm: 24 • W in: 0.94"
Pharmaceutical SHWN0018306	SH	6 5/8"	DN150/DN150	7 1/4" (183mm)	316L	1.4408/J92900	2-Pin	Wingnut	25	362.5943443	Price On Request
View Page Pharmaceutical Tri-Clamp (6 5/8") \| Type SH \| Stainless Steel 316L \| Wingnut GTIN: 840384300958 Legacy Part Number IE: CL.SH.0658 Legacy Part Number UK: CL06580-SHSBS4N1 Legacy Part Number DK: CLSH0658 Dimensional Image Key: • Flange (A) mm: 183 • Flange (A) in: 7 1/4" • B in: 6.46" • B mm: 164 • C mm: 280 • C in: 11.02" • W mm: 24 • W in: 0.94"
