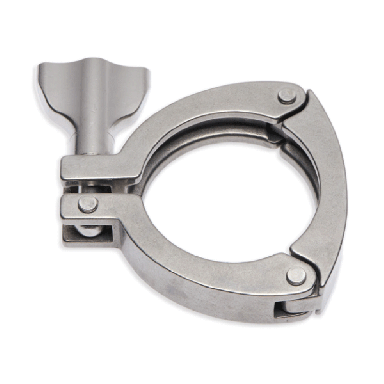

3 Segment Clamp 304

Description

Three segment 304 acl clamp. 304 / 1.4308 cold formed rivet, single bolt, barrel polished tri clamp. Corrosion resistant, high quality surface finish (for cleanability). 3 segment 304 clamps are for use in light duty applications.

Dimensional Image

Features

Material: 304 / 1.4308
Application: Hygienic
Hinge Layout: Interlocking Rivets
Supplied Assembled
Design optimised for one-handed assembly.

Industry PART#	Type	Nom Imperial	Nom Metric/ISO	Flange (A)	Material Grade	EN/ASTM Std	Mechanism	Nut Type	MAWP Bar (metric)	PSI (imperial)	LIST PRICE
Hygienic S3WN0005004	3 SEGMENT	1 - 1 1/2"	DN25-40/DN15-20-25	2" (50.5mm)	304L	1.4308/J92600	3-Pin Interlocking	Wingnut	21	304.5792492	Price On Request
View Page Hygienic Tri-Clamp (1" - 1 1/2") \| Type 3 SEGMENT \| Stainless Steel 304L \| Wingnut GTIN: 840384304246 Legacy Part Number IE: CL.3S.0100 Legacy Part Number UK: CL01500-3SG-S4N0 Legacy Part Number DK: CLD3S0100 Dimensional Image Key: • Flange (A) mm: 50.5 • Flange (A) in: 2" • B in: 3.00" • B mm: 76.2 • C mm: 81.7 • C in: 3.22" • W mm: 19 • W in: 0.75"
Hygienic S3WN0006404	3 SEGMENT	2"	DN50/DN32-40	2 1/2" (64mm)	304L	1.4308/J92600	3-Pin Interlocking	Wingnut	19	275.5717017	Price On Request
View Page Hygienic Tri-Clamp (2") \| Type 3 SEGMENT \| Stainless Steel 304L \| Wingnut GTIN: 840384304253 Legacy Part Number IE: CL.3S.0200 Legacy Part Number UK: CL02000-3SG-S4N0 Legacy Part Number DK: CLD3S0200 Dimensional Image Key: • Flange (A) mm: 64 • Flange (A) in: 2 1/2" • B in: 3.23" • B mm: 82 • C mm: 93.5 • C in: 3.68" • W mm: 19 • W in: 0.75"
Hygienic S3WN0007704	3 SEGMENT	2 1/2"	DN50(ISO)	3" (77.5mm)	304L	1.4308/J92600	3-Pin Interlocking	Wingnut	15	217.5566066	Price On Request
View Page Hygienic Tri-Clamp (2 1/2") \| Type 3 SEGMENT \| Stainless Steel 304L \| Wingnut GTIN: 840384304260 Legacy Part Number IE: CL.3S.0250 Legacy Part Number UK: CL02500-3SG-S4N0 Legacy Part Number DK: CLD3S0250 Dimensional Image Key: • Flange (A) mm: 77.5 • Flange (A) in: 3" • B in: 3.43" • B mm: 87 • C mm: 109 • C in: 4.29" • W mm: 19.5 • W in: 0.77"
Hygienic S3WN0009104	3 SEGMENT	3"	DN65/DN65	3 1/2" (91mm)	304L	1.4308/J92600	3-Pin Interlocking	Wingnut	12	174.0452853	Price On Request
View Page Hygienic Tri-Clamp (3") \| Type 3 SEGMENT \| Stainless Steel 304L \| Wingnut GTIN: 840384304277 Legacy Part Number IE: CL.3S.0300 Legacy Part Number UK: CL03000-3SG-S4N0 Legacy Part Number DK: CLD3S0300 Dimensional Image Key: • Flange (A) mm: 91 • Flange (A) in: 3 1/2" • B in: 3.78" • B mm: 96 • C mm: 126.5 • C in: 4.98" • W mm: 19.5 • W in: 0.77"
Hygienic S3WN0011904	3 SEGMENT	4"	DN100(metric)	4 3/4" (119mm)	304L	1.4308/J92600	3-Pin Interlocking	Wingnut	12	174.0452853	Price On Request
View Page Hygienic Tri-Clamp (4") \| Type 3 SEGMENT \| Stainless Steel 304L \| Wingnut GTIN: 840384304284 Legacy Part Number IE: CL.3S.0400 Legacy Part Number UK: CL04000-3SG-S4N0 Legacy Part Number DK: CLD3S0400 Dimensional Image Key: • Flange (A) mm: 119 • Flange (A) in: 4 3/4" • B in: 4.88" • B mm: 124 • C mm: 150 • C in: 5.91" • W mm: 19.5 • W in: 0.77"

Please Login To Order

3 Segment 304L
