Euro Pure® Clamp 316L Tri-Clamp

Description

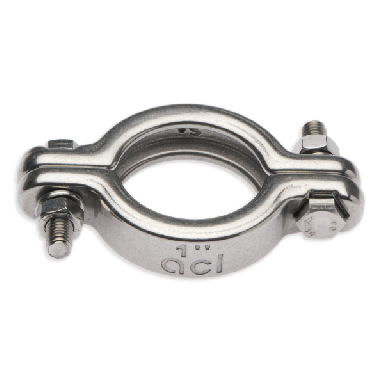

ACL Euro-Pure® clamp, stainless nut, 316L 2 segment bolted assembly. Double bolted clamp with spring washer barrel, polished. Euro pure clamps are made for normal to heavy duty application. Higher strength to weight ratio than any other clamp.

Installation

Ease of installation. Hinge layout; separate segments, bolted assembly.

Specifications

Hot Forged to EN10243-1
Approved for AD2000-A5 (PED)
316 / 1.4404 Stainless steel

Dimensional Image

Features

Hex nut compatible
Lightweight design
Strength maintained due to forging

Industry PART#	Type	Nom Imperial	Nom Metric/ISO	Flange (A)	Material Grade	EN/ASTM Std	Mechanism	Nut Type	MAWP Bar (metric)	PSI (imperial)	LIST PRICE
Pharmaceutical EPHX0002506	EURO-PURE	1/4 - 3/4"	DN6-8/DN8-10	1" (25.4mm)	316L	1.4408/J92900	2-Bolt	Hex Nut	140	2030.528328	Price On Request
View Page Pharmaceutical Tri-Clamp (1/4" - 3/4") \| Type EURO-PURE \| Stainless Steel 316L \| Hex Nut GTIN: 840384305748 Legacy Part Number IE: CL.EP.0050 Legacy Part Number UK: CL00500-EP-S6 Legacy Part Number DK: CLEP0050 Dimensional Image Key: • Flange (A) mm: 25.4 • Flange (A) in: 1" • B in: 1.50" • B mm: 38 • C mm: 73 • C in: 2.87" • W mm: 18 • W in: 0.71"
Pharmaceutical EPHX0003406	EURO-PURE	DN10	DN10-15-20(metric)	1 3/8" (34mm)	316L	1.4408/J92900	2-Bolt	Hex Nut	75	1087.783033	Price On Request
View Page Pharmaceutical Tri-Clamp (DN10) \| Type EURO-PURE \| Stainless Steel 316L \| Hex Nut GTIN: 840384305922 Legacy Part Number IE: CL.EP.D010 Legacy Part Number UK: CLD10-EP-S6 Legacy Part Number DK: CLEPD010 Dimensional Image Key: • Flange (A) mm: 34 • Flange (A) in: 1 3/8" • B in: 1.65" • B mm: 42 • C mm: 74 • C in: 2.91" • W mm: 18 • W in: 0.71"
Pharmaceutical EPHX0005006	EURO-PURE	1 - 1 1/2"	DN25-40/DN15-20-25	2" (50.5mm)	316L	1.4408/J92900	2-Bolt	Hex Nut	125	1812.971722	Price On Request
View Page Pharmaceutical Tri-Clamp (1" - 1 1/2") \| Type EURO-PURE \| Stainless Steel 316L \| Hex Nut GTIN: 840384305755 Legacy Part Number IE: CL.EP.0100 Legacy Part Number UK: CL01000-EP-S6 Legacy Part Number DK: CLEP0100 Dimensional Image Key: • Flange (A) mm: 50.5 • Flange (A) in: 2" • B in: 2.05" • B mm: 52 • C mm: 94 • C in: 3.70" • W mm: 18 • W in: 0.71"
Pharmaceutical EPHX0006406	EURO-PURE	2"	DN50/DN32-40	2 1/2" (64mm)	316L	1.4408/J92900	2-Bolt	Hex Nut	95	1377.858508	Price On Request
View Page Pharmaceutical Tri-Clamp (2") \| Type EURO-PURE \| Stainless Steel 316L \| Hex Nut GTIN: 840384305762 Legacy Part Number IE: CL.EP.0200 Legacy Part Number UK: CL02000-EP-S6 Legacy Part Number DK: CLEP0200 Dimensional Image Key: • Flange (A) mm: 64 • Flange (A) in: 2 1/2" • B in: 2.40" • B mm: 61 • C mm: 121 • C in: 4.76" • W mm: 18 • W in: 0.71"
Pharmaceutical EPHX0007706	EURO-PURE	2 1/2"	DN50(ISO)	3" (77.5mm)	316L	1.4408/J92900	2-Bolt	Hex Nut	90	1305.33964	Price On Request
View Page Pharmaceutical Tri-Clamp (2 1/2") \| Type EURO-PURE \| Stainless Steel 316L \| Hex Nut GTIN: 840384305779 Legacy Part Number IE: CL.EP.0250 Legacy Part Number UK: CL02500-EP-S6 Legacy Part Number DK: CLEP0250 Dimensional Image Key: • Flange (A) mm: 77.5 • Flange (A) in: 3" • B in: 2.68" • B mm: 68 • C mm: 132 • C in: 5.20" • W mm: 18 • W in: 0.71"
Pharmaceutical EPHX0009106	EURO-PURE	3"	DN65/DN65	3 1/2" (91mm)	316L	1.4408/J92900	2-Bolt	Hex Nut	70	1015.264164	Price On Request
View Page Pharmaceutical Tri-Clamp (3") \| Type EURO-PURE \| Stainless Steel 316L \| Hex Nut GTIN: 840384305786 Legacy Part Number IE: CL.EP.0300 Legacy Part Number UK: CL03000-EP-S6 Legacy Part Number DK: CLEP0300 Dimensional Image Key: • Flange (A) mm: 91 • Flange (A) in: 3 1/2" • B in: 2.87" • B mm: 73 • C mm: 141 • C in: 5.55" • W mm: 18 • W in: 0.71"
Pharmaceutical EPHX0010606	EURO-PURE	3 1/2"	DN80/DN80	4 1/8" (106mm)	316L	1.4408/J92900	2-Bolt	Hex Nut	55	797.7075575	Price On Request
View Page Pharmaceutical Tri-Clamp (3 1/2") \| Type EURO-PURE \| Stainless Steel 316L \| Hex Nut GTIN: 840384305793 Legacy Part Number IE: CL.EP.0350 Legacy Part Number UK: CL03500-EP-S6 Legacy Part Number DK: CLEP0350 Dimensional Image Key: • Flange (A) mm: 106 • Flange (A) in: 4 1/8" • B in: 3.23" • B mm: 82 • C mm: 159 • C in: 6.26" • W mm: 18 • W in: 0.71"
Pharmaceutical EPHX0011906	EURO-PURE	4"	DN100(metric)	4 3/4" (119mm)	316L	1.4408/J92900	2-Bolt	Hex Nut	40	580.1509509	Price On Request
View Page Pharmaceutical Tri-Clamp (4") \| Type EURO-PURE \| Stainless Steel 316L \| Hex Nut GTIN: 840384305809 Legacy Part Number IE: CL.EP.0400 Legacy Part Number UK: CL04000-EP-S6 Legacy Part Number DK: CLEP0400 Dimensional Image Key: • Flange (A) mm: 119 • Flange (A) in: 4 3/4" • B in: 3.50" • B mm: 89 • C mm: 170 • C in: 6.69" • W mm: 18 • W in: 0.71"

Please Login To Order

Pharmaceutical Tri-Clamp (1/4" - 3/4") | Type EURO-PURE | Stainless Steel 316L | Hex Nut
Pharmaceutical
EPHX0002506

Price On Request

Pharmaceutical Tri-Clamp (DN10) | Type EURO-PURE | Stainless Steel 316L | Hex Nut
Pharmaceutical
EPHX0003406

Price On Request

Pharmaceutical Tri-Clamp (1" - 1 1/2") | Type EURO-PURE | Stainless Steel 316L | Hex Nut
Pharmaceutical
EPHX0005006

Price On Request

Pharmaceutical Tri-Clamp (2") | Type EURO-PURE | Stainless Steel 316L | Hex Nut
Pharmaceutical
EPHX0006406

Price On Request

Pharmaceutical Tri-Clamp (2 1/2") | Type EURO-PURE | Stainless Steel 316L | Hex Nut
Pharmaceutical
EPHX0007706

Price On Request

Pharmaceutical Tri-Clamp (3") | Type EURO-PURE | Stainless Steel 316L | Hex Nut
Pharmaceutical
EPHX0009106

Price On Request

Pharmaceutical Tri-Clamp (3 1/2") | Type EURO-PURE | Stainless Steel 316L | Hex Nut
Pharmaceutical
EPHX0010606

Price On Request

Pharmaceutical Tri-Clamp (4") | Type EURO-PURE | Stainless Steel 316L | Hex Nut
Pharmaceutical
EPHX0011906

Price On Request

Please Login To Order

Euro-Pure® 316L
