DS Blanks

View Page

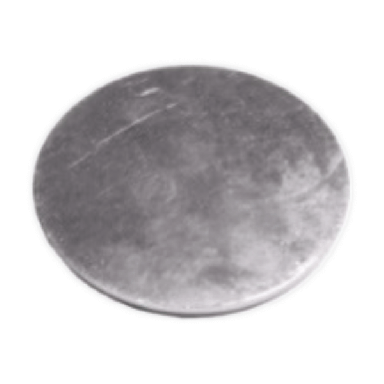

Hygienic DS Union (1") | Blank | 316L GTIN:   840384330658 Legacy Part Number IE:   BK.DS.0100 Legacy Part Number UK:   BK.DS.0100 Legacy Part Number DK:   BKDS0100

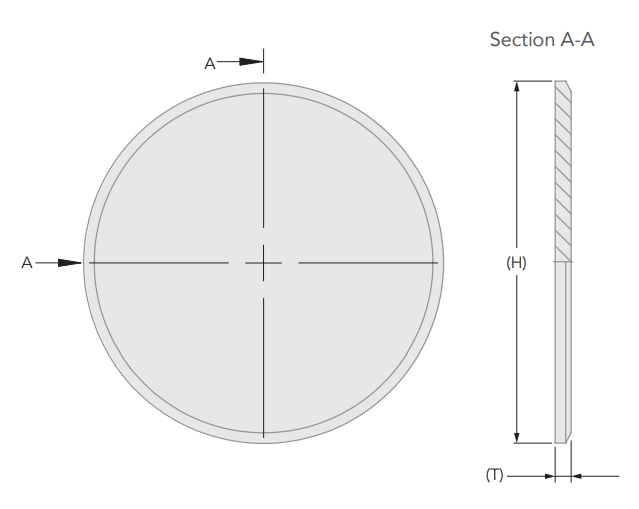

Dimensional Image Key:

• • OD (H) mm:  40
• • Thickness (T) mm:  3
• • OD 2 (H) in:  1.57"
• • Thickness (T) in:  0.12"
• • OD (H) in:  1.57

View Page
Hygienic DS Union (1 1/2") | Blank | 316L GTIN:   840384330665 Legacy Part Number IE:   BK.DS.0150 Legacy Part Number UK:   BK.DS.0150 Legacy Part Number DK:   BKDS0150
Dimensional Image Key:

• • OD (H) mm:  54
• • Thickness (T) mm:  3
• • OD 2 (H) in:  2.13"
• • Thickness (T) in:  0.12"
• • OD (H) in:  2.13

View Page
Hygienic DS Union (2") | Blank | 316L GTIN:   840384330672 Legacy Part Number IE:   BK.DS.0200 Legacy Part Number UK:   BK.DS.0200 Legacy Part Number DK:   BKDS0200
Dimensional Image Key:

• • OD (H) mm:  68
• • Thickness (T) mm:  3
• • OD 2 (H) in:  2.68"
• • Thickness (T) in:  0.12"
• • OD (H) in:  2.68

View Page
Hygienic DS Union (2 1/2") | Blank | 316L GTIN:   840384330689 Legacy Part Number IE:   BK.DS.0250 Legacy Part Number UK:   BK.DS.0250 Legacy Part Number DK:   BKDS0250
Dimensional Image Key:

• • OD (H) mm:  84
• • Thickness (T) mm:  4
• • OD 2 (H) in:  3.31"
• • Thickness (T) in:  0.16"
• • OD (H) in:  3.31

View Page
Hygienic DS Union (3") | Blank | 316L GTIN:   840384330696 Legacy Part Number IE:   BK.DS.0300 Legacy Part Number UK:   BK.DS.0300 Legacy Part Number DK:   BKDS0300
Dimensional Image Key:

• • OD (H) mm:  96
• • Thickness (T) mm:  4
• • OD 2 (H) in:  3.78"
• • Thickness (T) in:  0.16"
• • OD (H) in:  3.78

View Page
Hygienic DS Union (4") | Blank | 316L GTIN:   840384330702 Legacy Part Number IE:   BK.DS.0400 Legacy Part Number UK:   BK.DS.0400 Legacy Part Number DK:   BKDS0400
Dimensional Image Key:

• • OD (H) mm:  124
• • Thickness (T) mm:  4
• • OD 2 (H) in:  4.88"
• • Thickness (T) in:  0.16"
• • OD (H) in:  4.88
