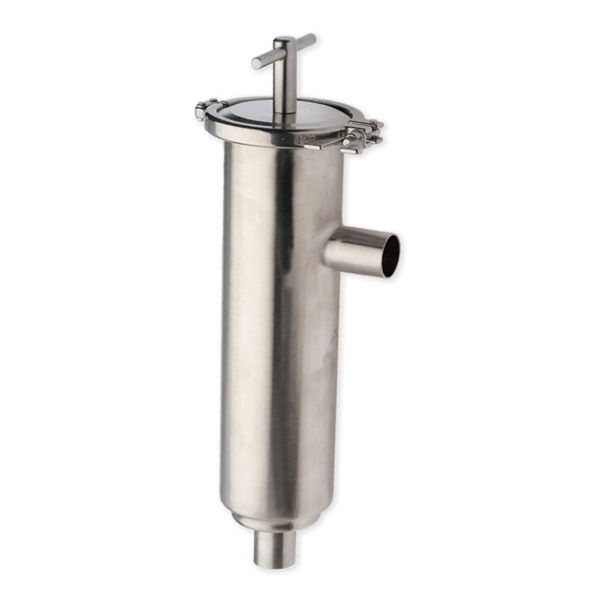

Angle Filters

Industry PART#	Standard	Nom Imperial	Nom Metric/ISO	Flange (A)	Material Grade	EN/ASTM Std	Gasket Seal	OD (D)	Distance (N)	Width (H)	Distance 2(P)	Length (C)	LIST PRICE
Hygienic FCM6DF1191016L	Weld End	4"	101.6(metric)		316L	1.4404/≈ SS2348		4" (101.6mm)	18.5" (470mm)	5.51" (140mm)	5.51" (140mm)	25.2" (640mm)	Price On Request

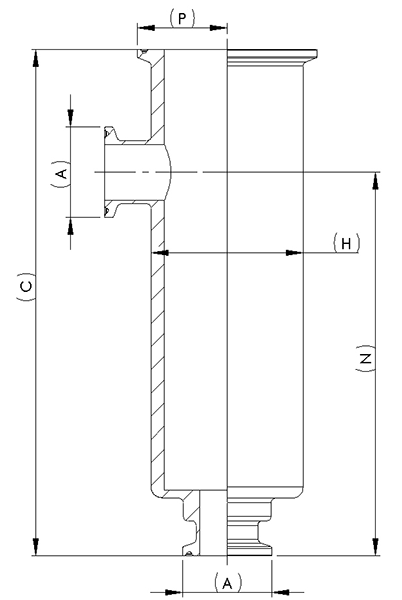

View Page Hygienic Angle Filter (4") | Weld End | 316L (EPDM Mesh 60) GTIN:   840384336247 Dimensional Image Key: • Length (C) mm:  640 • OD (D) mm:  101.6 • Distance (N) mm:  470 • Length (C) in:  25.2" • OD (D) in:  4" • Distance (N) in:  18.5" • Width (H) mm:  140 • Width (H) in:  5.51" • Distance 2 (P) mm:  140 • Distance 2 (P) in:  5.51"
Hygienic FCM6DF0910766L	Weld End	3"	76.2(metric)		316L	1.4404/≈ SS2348		3" (76.2mm)	14.37" (365mm)	4.5" (114.3mm)	4.5" (114.3mm)	20.08" (510mm)	Price On Request
View Page Hygienic Angle Filter (3") | Weld End | 316L (EPDM Mesh 60) GTIN:   840384336230 Dimensional Image Key: • Length (C) mm:  510 • OD (D) mm:  76.2 • Distance (N) mm:  365 • Length (C) in:  20.08" • OD (D) in:  3" • Distance (N) in:  14.37" • Width (H) mm:  114.3 • Width (H) in:  4.5" • Distance 2 (P) mm:  114.3 • Distance 2 (P) in:  4.5"
Hygienic FCM6DF0770636L	Weld End	2 1/2"	63.5(metric)		316L	1.4404/≈ SS2348		2.5" (63.5mm)	12.99" (330mm)	4" (101.6mm)	4" (101.6mm)	18.11" (460mm)	Price On Request
View Page Hygienic Angle Filter (2 1/2") | Weld End | 316L (EPDM Mesh 60) GTIN:   840384336223 Dimensional Image Key: • Length (C) mm:  460 • OD (D) mm:  63.5 • Distance (N) mm:  330 • Length (C) in:  18.11" • OD (D) in:  2.5" • Distance (N) in:  12.99" • Width (H) mm:  101.6 • Width (H) in:  4" • Distance 2 (P) mm:  101.6 • Distance 2 (P) in:  4"
Hygienic FCM6DF0640516L	Weld End	2"	50.8(metric)		316L	1.4404/≈ SS2348		2" (50.8mm)	10.39" (264mm)	3.5" (89mm)	3.5" (89mm)	14.53" (369mm)	Price On Request
View Page Hygienic Angle Filter (2") | Weld End | 316L (EPDM Mesh 60) GTIN:   840384336216 Dimensional Image Key: • Length (C) mm:  369 • OD (D) mm:  50.8 • Distance (N) mm:  264 • Length (C) in:  14.53" • OD (D) in:  2" • Distance (N) in:  10.39" • Width (H) mm:  89 • Width (H) in:  3.5" • Distance 2 (P) mm:  89 • Distance 2 (P) in:  3.5"
Hygienic FCM6DF0500386L	Weld End	1 1/2"	38.1(metric)		316L	1.4404/≈ SS2348		1.5" (38.1mm)	9.8" (249mm)	2.99" (76mm)	2.99" (76mm)	13.54" (344mm)	Price On Request
View Page Hygienic Angle Filter (1 1/2") | Weld End | 316L (EPDM Mesh 60) GTIN:   840384336209 Dimensional Image Key: • Length (C) mm:  344 • OD (D) mm:  38.1 • Distance (N) mm:  249 • Length (C) in:  13.54" • OD (D) in:  1.5" • Distance (N) in:  9.8" • Width (H) mm:  76 • Width (H) in:  2.99" • Distance 2 (P) mm:  76 • Distance 2 (P) in:  2.99"
Hygienic FCM6DF0500256L	Weld End	1"	25.4(metric)		316L	1.4404/≈ SS2348		1" (25.4mm)	9.8" (249mm)	2.99" (76mm)	2.99" (76mm)	13.54" (344mm)	Price On Request
View Page Hygienic Angle Filter (1") | Weld End | 316L (EPDM Mesh 60) GTIN:   840384336193 Dimensional Image Key: • Length (C) mm:  344 • OD (D) mm:  25.4 • Distance (N) mm:  249 • Length (C) in:  13.54" • OD (D) in:  1" • Distance (N) in:  9.8" • Width (H) mm:  76 • Width (H) in:  2.99" • Distance 2 (P) mm:  76 • Distance 2 (P) in:  2.99"
Hygienic FCM6DW1671546L	Ferrule End	6"	152.4(metric)	6.57" (167mm)	316L	1.4404/≈ SS2348			18.19" (462mm)	8.03" (204mm)	9.88" (251mm)	25.37" (644.5mm)	Price On Request
View Page Hygienic Angle Filter (6") | Ferrule End | 316L (EPDM Mesh 60) Dimensional Image Key: • Length (C) mm:  644.5 • Flange (A) mm:  167 • Flange (A) in:  6.57" • Distance (N) mm:  462 • Length (C) in:  25.37" • Distance (N) in:  18.19" • Width (H) mm:  204 • Width (H) in:  8.03" • Distance 2 (P) mm:  251 • Distance 2 (P) in:  9.88"
Hygienic FCM6DW1191016L	Ferrule End	4"	101.6(metric)	4.69" (119mm)	316L	1.4404/≈ SS2348			19.13" (486mm)	5.51" (140mm)	6.14" (156mm)	25.83" (656mm)	Price On Request
View Page Hygienic Angle Filter (4") | Ferrule End | 316L (EPDM Mesh 60) GTIN:   840384336186 Dimensional Image Key: • Length (C) mm:  656 • Flange (A) mm:  119 • Flange (A) in:  4.69" • Distance (N) mm:  486 • Length (C) in:  25.83" • Distance (N) in:  19.13" • Width (H) mm:  140 • Width (H) in:  5.51" • Distance 2 (P) mm:  156 • Distance 2 (P) in:  6.14"
Hygienic FCM6DW0910766L	Ferrule End	3"	76.2(metric)	3.58" (91mm)	316L	1.4404/≈ SS2348			14.86" (377.5mm)	4.5" (114.3mm)	5" (127mm)	20.58" (522.7mm)	Price On Request
View Page Hygienic Angle Filter (3") | Ferrule End | 316L (EPDM Mesh 60) GTIN:   840384336179 Dimensional Image Key: • Length (C) mm:  522.7 • Flange (A) mm:  91 • Flange (A) in:  3.58" • Distance (N) mm:  377.5 • Length (C) in:  20.58" • Distance (N) in:  14.86" • Width (H) mm:  114.3 • Width (H) in:  4.5" • Distance 2 (P) mm:  127 • Distance 2 (P) in:  5"
Hygienic FCM6DW0770636L	Ferrule End	2 1/2"	63.5(metric)	3.05" (77.5mm)	316L	1.4404/≈ SS2348			13.49" (342.7mm)	4" (101.6mm)	4.5" (114.3mm)	18.61" (472.7mm)	Price On Request
View Page Hygienic Angle Filter (2 1/2") | Ferrule End | 316L (EPDM Mesh 60) GTIN:   840384336162 Dimensional Image Key: • Length (C) mm:  472.7 • Flange (A) mm:  77.5 • Flange (A) in:  3.05" • Distance (N) mm:  342.7 • Length (C) in:  18.61" • Distance (N) in:  13.49" • Width (H) mm:  101.6 • Width (H) in:  4" • Distance 2 (P) mm:  114.3 • Distance 2 (P) in:  4.5"
Hygienic FCM6DW0640516L	Ferrule End	2"	50.8(metric)	2.52" (64mm)	316L	1.4404/≈ SS2348			10.89" (276.7mm)	3.5" (89mm)	4" (101.6mm)	14.25" (362mm)	Price On Request
View Page Hygienic Angle Filter (2") | Ferrule End | 316L (EPDM Mesh 60) GTIN:   840384336155 Dimensional Image Key: • Length (C) mm:  362 • Flange (A) mm:  64 • Flange (A) in:  2.52" • Distance (N) mm:  276.7 • Length (C) in:  14.25" • Distance (N) in:  10.89" • Width (H) mm:  89 • Width (H) in:  3.5" • Distance 2 (P) mm:  101.6 • Distance 2 (P) in:  4"
Hygienic FCM6DW0500386L	Ferrule End	1 1/2"	38.1(metric)	1.99" (50.5mm)	316L	1.4404/≈ SS2348			9.84" (250mm)	2.99" (76mm)	3.49" (88.7mm)	13.43" (341mm)	Price On Request
View Page Hygienic Angle Filter (1 1/2") | Ferrule End | 316L (EPDM Mesh 60) GTIN:   840384336148 Dimensional Image Key: • Length (C) mm:  341 • Flange (A) mm:  50.5 • Flange (A) in:  1.99" • Distance (N) mm:  250 • Length (C) in:  13.43" • Distance (N) in:  9.84" • Width (H) mm:  76 • Width (H) in:  2.99" • Distance 2 (P) mm:  88.7 • Distance 2 (P) in:  3.49"
