Industry PART#	Standard	Nom Imperial	Nom Metric/ISO	Flange (A)	Material Grade	EN/ASTM Std	Tube OD (D)	Tube ID (E)	Handle Length (P)	Length (C)	Height Handle(N)	LIST PRICE
Hygienic VC3PDF0251276L	3 Piece Ball Valve - Ferrule Connection	1/2"	12.7(metric)	1 (25.4mm)	316L	14,404/≈ SS2348	0.5" (12.7mm)	0.37" (9.4mm)	5.12" (130mm)	3.56" (90.4mm)	1.43" (36.4mm)	Price On Request

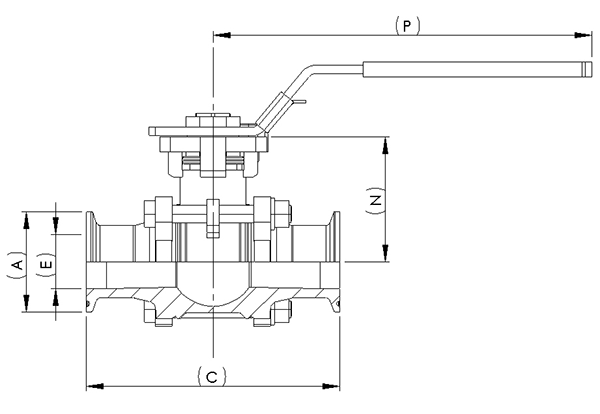

View Page 3 Piece Ball Valve - Ferrule Connection, VC3PDF0251276L GTIN: 840384336001 Dimensional Image Key: • Length (C) mm: 90.4 • Flange (A) mm: 25.4 • Flange (A) in: 1 • Length (C) in: 3.56" • Tube OD (D) mm: 12.7 • Tube OD (D) in: 0.5" • Tube ID (E) mm: 9.4 • Tube ID (E) in: 0.37" • Handle Length (P) mm: 130 • Handle Length (P) in: 5.12" • Height Handle (N) mm: 36.4 • Height Handle (N) in: 1.43"
Hygienic VC3PDF0251956L	3 Piece Ball Valve - Ferrule Connection	3/4"	19.05(metric)	1 (25.4mm)	316L	14,404/≈ SS2348	0.75" (19.05mm)	0.62" (15.75mm)	5.12" (130mm)	4.06" (103.2mm)	1.69" (42.8mm)	Price On Request
View Page 3 Piece Ball Valve - Ferrule Connection, VC3PDF0251956L GTIN: 840384336018 Dimensional Image Key: • Length (C) mm: 103.2 • Flange (A) mm: 25.4 • Flange (A) in: 1 • Length (C) in: 4.06" • Tube OD (D) mm: 19.05 • Tube OD (D) in: 0.75" • Tube ID (E) mm: 15.75 • Tube ID (E) in: 0.62" • Handle Length (P) mm: 130 • Handle Length (P) in: 5.12" • Height Handle (N) mm: 42.8 • Height Handle (N) in: 1.69"
Hygienic VC3PDF0500256L	3 Piece Ball Valve - Ferrule Connection	1"	25.4(metric)	1.99 (50.5mm)	316L	14,404/≈ SS2348	1" (25.4mm)	0.87" (22.1mm)	6.69" (170mm)	4.49" (114mm)	2.01" (51.15mm)	Price On Request
View Page 3 Piece Ball Valve - Ferrule Connection, VC3PDF0500256L GTIN: 840384335974 Dimensional Image Key: • Length (C) mm: 114 • Flange (A) mm: 50.5 • Flange (A) in: 1.99 • Length (C) in: 4.49" • Tube OD (D) mm: 25.4 • Tube OD (D) in: 1" • Tube ID (E) mm: 22.1 • Tube ID (E) in: 0.87" • Handle Length (P) mm: 170 • Handle Length (P) in: 6.69" • Height Handle (N) mm: 51.15 • Height Handle (N) in: 2.01"
Hygienic VC3PDF0500316L	3 Piece Ball Valve - Ferrule Connection	1 1/4"	31.75(metric)	1.99 (50.5mm)	316L	14,404/≈ SS2348	1.25" (31.75mm)	1.12" (28.4mm)	6.69" (170mm)	4.96" (126mm)	2.4" (61mm)	Price On Request
View Page 3 Piece Ball Valve - Ferrule Connection, VC3PDF0500316L Dimensional Image Key: • Length (C) mm: 126 • Flange (A) mm: 50.5 • Flange (A) in: 1.99 • Length (C) in: 4.96" • Tube OD (D) mm: 31.75 • Tube OD (D) in: 1.25" • Tube ID (E) mm: 28.4 • Tube ID (E) in: 1.12" • Handle Length (P) mm: 170 • Handle Length (P) in: 6.69" • Height Handle (N) mm: 61 • Height Handle (N) in: 2.4"
Hygienic VC3PDF0500386L	3 Piece Ball Valve - Ferrule Connection	1 1/2"	38.1(metric)	1.99 (50.5mm)	316L	14,404/≈ SS2348	1.5" (38.1mm)	1.37" (34.8mm)	8.39" (213mm)	5.38" (136.7mm)	2.82" (71.75mm)	Price On Request
View Page 3 Piece Ball Valve - Ferrule Connection, VC3PDF0500386L GTIN: 840384335981 Dimensional Image Key: • Length (C) mm: 136.7 • Flange (A) mm: 50.5 • Flange (A) in: 1.99 • Length (C) in: 5.38" • Tube OD (D) mm: 38.1 • Tube OD (D) in: 1.5" • Tube ID (E) mm: 34.8 • Tube ID (E) in: 1.37" • Handle Length (P) mm: 213 • Handle Length (P) in: 8.39" • Height Handle (N) mm: 71.75 • Height Handle (N) in: 2.82"
Hygienic VC3PDF0640516L	3 Piece Ball Valve - Ferrule Connection	2"	50.8(metric)	2.52 (64mm)	316L	14,404/≈ SS2348	2" (50.8mm)	1.87" (47.5mm)	8.39" (213mm)	6.03" (153.2mm)	3.13" (79.5mm)	Price On Request
View Page 3 Piece Ball Valve - Ferrule Connection, VC3PDF0640516L GTIN: 840384335998 Dimensional Image Key: • Length (C) mm: 153.2 • Flange (A) mm: 64 • Flange (A) in: 2.52 • Length (C) in: 6.03" • Tube OD (D) mm: 50.8 • Tube OD (D) in: 2" • Tube ID (E) mm: 47.5 • Tube ID (E) in: 1.87" • Handle Length (P) mm: 213 • Handle Length (P) in: 8.39" • Height Handle (N) mm: 79.5 • Height Handle (N) in: 3.13"
Hygienic VC3PDF0770636L	3 Piece Ball Valve - Ferrule Connection	2 1/2"	63.5(metric)	3.05 (77.5mm)	316L	14,404/≈ SS2348	2.5" (63.5mm)	2.37" (60.2mm)	8.39" (213mm)	6.58" (167.2mm)	3.69" (93.75mm)	Price On Request
View Page 3 Piece Ball Valve - Ferrule Connection, VC3PDF0770636L GTIN: 840384336025 Dimensional Image Key: • Length (C) mm: 167.2 • Flange (A) mm: 77.5 • Flange (A) in: 3.05 • Length (C) in: 6.58" • Tube OD (D) mm: 63.5 • Tube OD (D) in: 2.5" • Tube ID (E) mm: 60.2 • Tube ID (E) in: 2.37" • Handle Length (P) mm: 213 • Handle Length (P) in: 8.39" • Height Handle (N) mm: 93.75 • Height Handle (N) in: 3.69"
Hygienic VC3PDF0910766L	3 Piece Ball Valve - Ferrule Connection	3"	76.2(metric)	3.58 (91mm)	316L	14,404/≈ SS2348	3" (76.2mm)	2.87" (72.9mm)	12.6" (320mm)	7.56" (192.1mm)	4.32" (109.75mm)	Price On Request
View Page 3 Piece Ball Valve - Ferrule Connection, VC3PDF0910766L GTIN: 840384336032 Dimensional Image Key: • Length (C) mm: 192.1 • Flange (A) mm: 91 • Flange (A) in: 3.58 • Length (C) in: 7.56" • Tube OD (D) mm: 76.2 • Tube OD (D) in: 3" • Tube ID (E) mm: 72.9 • Tube ID (E) in: 2.87" • Handle Length (P) mm: 320 • Handle Length (P) in: 12.6" • Height Handle (N) mm: 109.75 • Height Handle (N) in: 4.32"
Hygienic VC3PDF1191016L	3 Piece Ball Valve - Ferrule Connection	4”	101.6(metric)	4.69 (119mm)	316L	14,404/≈ SS2348	4" (101.6mm)	3.83" (97.4mm)	12.6" (320mm)	9.41" (239mm)	4.83" (122.75mm)	Price On Request
View Page 3 Piece Ball Valve - Ferrule Connection, VC3PDF1191016L GTIN: 840384336049 Dimensional Image Key: • Length (C) mm: 239 • Flange (A) mm: 119 • Flange (A) in: 4.69 • Length (C) in: 9.41" • Tube OD (D) mm: 101.6 • Tube OD (D) in: 4" • Tube ID (E) mm: 97.4 • Tube ID (E) in: 3.83" • Handle Length (P) mm: 320 • Handle Length (P) in: 12.6" • Height Handle (N) mm: 122.75 • Height Handle (N) in: 4.83"
Hygienic VC3PDW0251276L	3 Piece Ball Valve - Weld Connection	1/2"	12.7(metric)		316L	14,404/≈ SS2348	0.5" (12.7mm)	0.37" (9.4mm)	5.16" (131mm)	3.56" (90.4mm)	1.43" (36.4mm)	Price On Request
View Page 3 Piece Ball Valve - Weld Connection, VC3PDW0251276L GTIN: 840384336087 Dimensional Image Key: • Length (C) mm: 90.4 • Length (C) in: 3.56" • Tube OD (D) mm: 12.7 • Tube OD (D) in: 0.5" • Tube ID (E) mm: 9.4 • Tube ID (E) in: 0.37" • Handle Length (P) mm: 131 • Handle Length (P) in: 5.16" • Height Handle (N) mm: 36.4 • Height Handle (N) in: 1.43"
