    SMS Male Long & Short


    SMS Male Long & Short
    Description
    SMS Male Long & Short; flatness of sealing face meets or exceeds guidelines​.

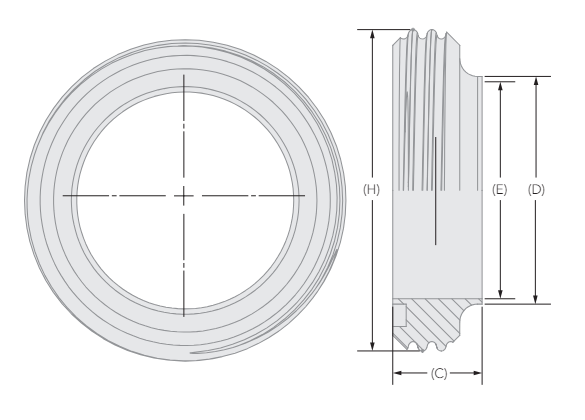

    Dimensional Image
    Total: 12
    Industry
    PART#    		 Standard Flange
    (A)    		 Fitting
    Component    		 Material
    Grade    		 EN/ASTM
    Std    		 ID
    (E)    		 OD
    (D)    		 OD2
    (H)    		 Length
    (C)    		 LIST
    PRICE
    Hygienic
    NISMLV0250126L
    		SMS Male Thread Liner / Nipple - Long 316L 1.4404/S31603 0.89" (22.6mm) 25mm 0.98" (39.8mm) 0.75" (19mm)
    Price On Request
    dimensional image
    View Page
     Hygienic SMS Union (1") | Male Thread Liner / Nipple (Long) | 316L GTIN:   840384330849 Legacy Part Number IE:   NISML0100 Legacy Part Number UK:   NISML0100 Legacy Part Number DK:   NISML0100
    Dimensional Image Key:
    • • Length (C) mm:  19
    • • ID (E) mm:  22.6
    • • OD 2 (H) mm:  39.8
    • • OD (D) mm:  25
    • • OD (H) mm:  25
    • • ID (D) mm:  22.6
    • • ID (E) in:  0.89"
    • • Length (C) in:  0.75"
    • • OD 1 (D) in:  0.98
    • • OD 2 (H) in:  0.98"
    • • OD (H) in:  1.57"
    • • ID (D) in:  0.89"
    Hygienic
    NISMLV0380126L
    		SMS Male Thread Liner / Nipple - Long 316L 1.4404/S31603 1.4" (35.6mm) 38mm 1.5" (59.8mm) 0.91" (23mm)
    Price On Request
    dimensional image
    View Page
     Hygienic SMS Union (1 1/2") | Male Thread Liner / Nipple (Long) | 316L GTIN:   840384330856 Legacy Part Number IE:   NISML0150 Legacy Part Number UK:   NISML0150 Legacy Part Number DK:   NISML0150
    Dimensional Image Key:
    • • Length (C) mm:  23
    • • ID (E) mm:  35.6
    • • OD 2 (H) mm:  59.8
    • • OD (D) mm:  38
    • • OD (H) mm:  38
    • • ID (D) mm:  35.6
    • • ID (E) in:  1.4"
    • • Length (C) in:  0.91"
    • • OD 1 (D) in:  1.5
    • • OD 2 (H) in:  1.5"
    • • OD (H) in:  2.35"
    • • ID (D) in:  1.4"
    Hygienic
    NISMLV0510126L
    		SMS Male Thread Liner / Nipple - Long 316L 1.4404/S31603 1.91" (48.6mm) 51mm 2.01" (69.8mm) 0.91" (23mm)
    Price On Request
    dimensional image
    View Page
     Hygienic SMS Union (2") | Male Thread Liner / Nipple (Long) | 316L GTIN:   840384330863 Legacy Part Number IE:   NISML0200 Legacy Part Number UK:   NISML0200 Legacy Part Number DK:   NISML0200
    Dimensional Image Key:
    • • Length (C) mm:  23
    • • ID (E) mm:  48.6
    • • OD 2 (H) mm:  69.8
    • • OD (D) mm:  51
    • • OD (H) mm:  51
    • • ID (D) mm:  48.6
    • • ID (E) in:  1.91"
    • • Length (C) in:  0.91"
    • • OD 1 (D) in:  2.01
    • • OD 2 (H) in:  2.01"
    • • OD (H) in:  2.75"
    • • ID (D) in:  1.91"
    Hygienic
    NISMLV0630166L
    		SMS Male Thread Liner / Nipple - Long 316L 1.4404/S31603 2.37" (60.3mm) 63.5mm 2.5" (84.8mm) 1.06" (27mm)
    Price On Request
    dimensional image
    View Page
     Hygienic SMS Union (2 1/2") | Male Thread Liner / Nipple (Long) | 316L GTIN:   840384330870 Legacy Part Number IE:   NISML0250 Legacy Part Number UK:   NISML0250 Legacy Part Number DK:   NISML0250
    Dimensional Image Key:
    • • Length (C) mm:  27
    • • ID (E) mm:  60.3
    • • OD 2 (H) mm:  84.8
    • • OD (D) mm:  63.5
    • • OD (H) mm:  63.5
    • • ID (D) mm:  60.3
    • • ID (E) in:  2.37"
    • • Length (C) in:  1.06"
    • • OD 1 (D) in:  2.5
    • • OD 2 (H) in:  2.5"
    • • OD (H) in:  3.34"
    • • ID (D) in:  2.37"
    Hygienic
    NISMLV0760206L
    		SMS Male Thread Liner / Nipple - Long 316L 1.4404/S31603 2.76" (70.1mm) 76.1mm 3" (97.8mm) 1.06" (27mm)
    Price On Request
    dimensional image
    View Page
     Hygienic SMS Union (3") | Male Thread Liner / Nipple (Long) | 316L GTIN:   840384330887 Legacy Part Number IE:   NISML0300 Legacy Part Number UK:   NISML0300 Legacy Part Number DK:   NISML0300
    Dimensional Image Key:
    • • Length (C) mm:  27
    • • ID (E) mm:  70.1
    • • OD 2 (H) mm:  97.8
    • • OD (D) mm:  76.1
    • • OD (H) mm:  76.1
    • • ID (D) mm:  70.1
    • • ID (E) in:  2.76"
    • • Length (C) in:  1.06"
    • • OD 1 (D) in:  3
    • • OD 2 (H) in:  3"
    • • OD (H) in:  3.85"
    • • ID (D) in:  2.76"
    Hygienic
    NISMLV1010206L
    		SMS Male Thread Liner / Nipple - Long 316L 1.4404/S31603 3.84" (97.6mm) 101.6mm 4" (132mm) 1.18" (30mm)
    Price On Request
    dimensional image
    View Page
     Hygienic SMS Union (4") | Male Thread Liner / Nipple (Long) | 316L GTIN:   840384330894 Legacy Part Number IE:   NISML0400 Legacy Part Number UK:   NISML0400 Legacy Part Number DK:   NISML0400
    Dimensional Image Key:
    • • Length (C) mm:  30
    • • ID (E) mm:  97.6
    • • OD 2 (H) mm:  132
    • • OD (D) mm:  101.6
    • • OD (H) mm:  101.6
    • • ID (D) mm:  97.6
    • • ID (E) in:  3.84"
    • • Length (C) in:  1.18"
    • • OD 1 (D) in:  4
    • • OD 2 (H) in:  4"
    • • OD (H) in:  5.2"
    • • ID (D) in:  3.84"
    Hygienic
    NISM000250126L
    		SMS Male Thread Liner / Nipple - Short 316L 1.4404/S31603 0.89" (22.6mm) 25mm 0.98" (39.8mm) 0.59" (15mm)
    Price On Request
    dimensional image
    View Page
     Hygienic SMS Union (1") | Male Thread Liner / Nipple (Short) | 316L GTIN:   840384330771 Legacy Part Number IE:   NISM0100 Legacy Part Number UK:   NISM0100 Legacy Part Number DK:   NISM0100
    Dimensional Image Key:
    • • Length (C) mm:  15
    • • ID (E) mm:  22.6
    • • OD 2 (H) mm:  39.8
    • • OD (D) mm:  25
    • • OD (H) mm:  25
    • • ID (D) mm:  22.6
    • • ID (E) in:  0.89"
    • • Length (C) in:  0.59"
    • • OD 1 (D) in:  0.98
    • • OD 2 (H) in:  0.98"
    • • OD (H) in:  1.57"
    • • ID (D) in:  0.89"
    Hygienic
    NISM000380126L
    		SMS Male Thread Liner / Nipple - Short 316L 1.4404/S31603 1.4" (35.6mm) 38mm 1.5" (59.8mm) 0.79" (20mm)
    Price On Request
    dimensional image
    View Page
     Hygienic SMS Union (1 1/2") | Male Thread Liner / Nipple (Short) | 316L GTIN:   840384330795 Legacy Part Number IE:   NISM0150 Legacy Part Number UK:   NISM0150 Legacy Part Number DK:   NISM0150
    Dimensional Image Key:
    • • Length (C) mm:  20
    • • ID (E) mm:  35.6
    • • OD 2 (H) mm:  59.8
    • • OD (D) mm:  38
    • • OD (H) mm:  38
    • • ID (D) mm:  35.6
    • • ID (E) in:  1.4"
    • • Length (C) in:  0.79"
    • • OD 1 (D) in:  1.5
    • • OD 2 (H) in:  1.5"
    • • OD (H) in:  2.35"
    • • ID (D) in:  1.4"
    Hygienic
    NISM000510126L
    		SMS Male Thread Liner / Nipple - Short 316L 1.4404/S31603 1.91" (48.6mm) 51mm 2.01" (69.8mm) 0.79" (20mm)
    Price On Request
    dimensional image
    View Page
     Hygienic SMS Union (2") | Male Thread Liner / Nipple (Short) | 316L GTIN:   840384330801 Legacy Part Number IE:   NISM0200 Legacy Part Number UK:   NISM0200 Legacy Part Number DK:   NISM0200
    Dimensional Image Key:
    • • Length (C) mm:  20
    • • ID (E) mm:  48.6
    • • OD 2 (H) mm:  69.8
    • • OD (D) mm:  51
    • • OD (H) mm:  51
    • • ID (D) mm:  48.6
    • • ID (E) in:  1.91"
    • • Length (C) in:  0.79"
    • • OD 1 (D) in:  2.01
    • • OD 2 (H) in:  2.01"
    • • OD (H) in:  2.75"
    • • ID (D) in:  1.91"
    Hygienic
    NISM000630166L
    		SMS Male Thread Liner / Nipple - Short 316L 1.4404/S31603 2.37" (60.3mm) 63.5mm 2.5" (84.8mm) 0.94" (24mm)
    Price On Request
    dimensional image
    View Page
     Hygienic SMS Union (2 1/2") | Male Thread Liner / Nipple (Short) | 316L GTIN:   840384330818 Legacy Part Number IE:   NISM0250 Legacy Part Number UK:   NISM0250 Legacy Part Number DK:   NISM0250
    Dimensional Image Key:
    • • Length (C) mm:  24
    • • ID (E) mm:  60.3
    • • OD 2 (H) mm:  84.8
    • • OD (D) mm:  63.5
    • • OD (H) mm:  63.5
    • • ID (D) mm:  60.3
    • • ID (E) in:  2.37"
    • • Length (C) in:  0.94"
    • • OD 1 (D) in:  2.5
    • • OD 2 (H) in:  2.5"
    • • OD (H) in:  3.34"
    • • ID (D) in:  2.37"
    Hygienic
    NISM000760206L
    		SMS Male Thread Liner / Nipple - Short 316L 1.4404/S31603 2.76" (70.1mm) 76.1mm 3" (97.8mm) 0.94" (24mm)
    Price On Request
    dimensional image
    View Page
     Hygienic SMS Union (3") | Male Thread Liner / Nipple (Short) | 316L GTIN:   840384330825 Legacy Part Number IE:   NISM0300 Legacy Part Number UK:   NISM0300 Legacy Part Number DK:   NISM0300
    Dimensional Image Key:
    • • Length (C) mm:  24
    • • ID (E) mm:  70.1
    • • OD 2 (H) mm:  97.8
    • • OD (D) mm:  76.1
    • • OD (H) mm:  76.1
    • • ID (D) mm:  70.1
    • • ID (E) in:  2.76"
    • • Length (C) in:  0.94"
    • • OD 1 (D) in:  3
    • • OD 2 (H) in:  3"
    • • OD (H) in:  3.85"
    • • ID (D) in:  2.76"
    Hygienic
    NISM001010206L
    		SMS Male Thread Liner / Nipple - Short 316L 1.4404/S31603 3.84" (97.6mm) 101.6mm 4" (132mm) 0.98" (25mm)
    Price On Request
    dimensional image
    View Page
     Hygienic SMS Union (4") | Male Thread Liner / Nipple (Short) | 316L GTIN:   840384330832 Legacy Part Number IE:   NISM0400 Legacy Part Number UK:   NISM0400 Legacy Part Number DK:   NISM0400
    Dimensional Image Key:
    • • Length (C) mm:  25
    • • ID (E) mm:  97.6
    • • OD 2 (H) mm:  132
    • • OD (D) mm:  101.6
    • • OD (H) mm:  101.6
    • • ID (D) mm:  97.6
    • • ID (E) in:  3.84"
    • • Length (C) in:  0.98"
    • • OD 1 (D) in:  4
    • • OD 2 (H) in:  4"
    • • OD (H) in:  5.2"
    • • ID (D) in:  3.84"
