Butterfly Valves

Industry PART#	Standard	Nom Imperial	Nom Metric/ISO	Flange (A)	Material Grade	EN/ASTM Std	Tube OD (D)	Tube ID (E)	Handle Length (P)	Length (C)	Height Handle(N)	Valve Body Size(F)	LIST PRICE
Hygienic VCBVDF0500386L	Butterfly Valve - Ferrule Connection	1 1/2"	38.1(metric)	1.99 (50.5mm)	316L	14,404/≈ SS2348	1.5" (38.1mm)	1.37" (34.8mm)	5" (127mm)	2.76" (70mm)	1.69" (43mm)	3.39" (86mm)	Price On Request

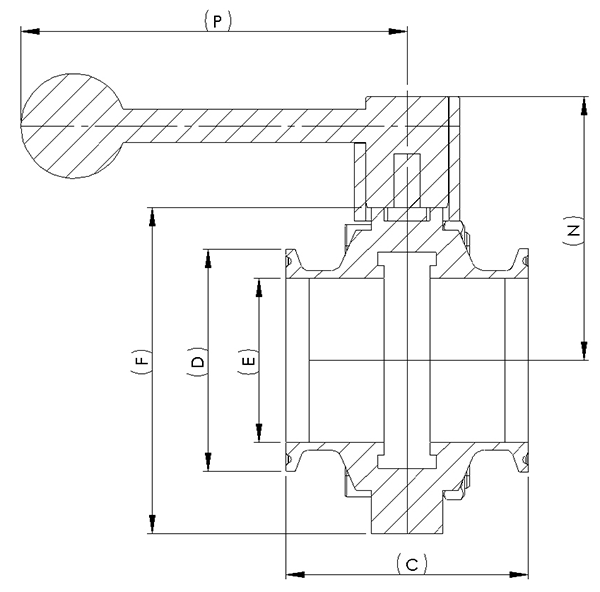

View Page Hygienic (1 1/2") | Butterfly Valve - Ferrule Connection | 316L GTIN:   840384335905 Dimensional Image Key: • Length (C) mm:  70 • Flange (A) mm:  50.5 • Flange (A) in:  1.99 • Length (C) in:  2.76" • Tube OD (D) mm:  38.1 • Tube OD (D) in:  1.5" • Tube ID (E) mm:  34.8 • Tube ID (E) in:  1.37" • Handle Length (P) mm:  127 • Handle Length (P) in:  5" • Height Handle (N) mm:  43 • Height Handle (N) in:  1.69" • Valve Body Size (F) mm:  86 • Valve Body Size (F) in:  3.39"
Hygienic VCBVDW0500386L	Butterfly Valve - Weld Connection	1 1/2"	38.1(metric)		316L	14,404/≈ SS2348	1.5" (38.1mm)	1.37" (34.8mm)	5" (127mm)	1.97" (50mm)	3.03" (77mm)	3.39" (86mm)	Price On Request
View Page Hygienic (1 1/2") | Butterfly Valve - Weld Connection | 316L GTIN:   840384335820 Dimensional Image Key: • Length (C) mm:  50 • Length (C) in:  1.97" • Tube OD (D) mm:  38.1 • Tube OD (D) in:  1.5" • Tube ID (E) mm:  34.8 • Tube ID (E) in:  1.37" • Handle Length (P) mm:  127 • Handle Length (P) in:  5" • Height Handle (N) mm:  77 • Height Handle (N) in:  3.03" • Valve Body Size (F) mm:  86 • Valve Body Size (F) in:  3.39"
Hygienic VCBVDF0500256L	Butterfly Valve - Ferrule Connection	1"	25.4(metric)	1.99 (50.5mm)	316L	14,404/≈ SS2348	1" (25.4mm)	0.87" (22.1mm)	5" (127mm)	2.6" (66mm)	1.54" (39mm)	3.07" (78mm)	Price On Request
View Page Hygienic (1") | Butterfly Valve - Ferrule Connection | 316L GTIN:   840384335899 Dimensional Image Key: • Length (C) mm:  66 • Flange (A) mm:  50.5 • Flange (A) in:  1.99 • Length (C) in:  2.6" • Tube OD (D) mm:  25.4 • Tube OD (D) in:  1" • Tube ID (E) mm:  22.1 • Tube ID (E) in:  0.87" • Handle Length (P) mm:  127 • Handle Length (P) in:  5" • Height Handle (N) mm:  39 • Height Handle (N) in:  1.54" • Valve Body Size (F) mm:  78 • Valve Body Size (F) in:  3.07"
Hygienic VCBVDW0500256L	Butterfly Valve - Weld Connection	1"	25.4(metric)		316L	14,404/≈ SS2348	1" (25.4mm)	0.87" (22.1mm)	5" (127mm)	1.97" (50mm)	2.87" (73mm)	3.07" (78mm)	Price On Request
View Page Hygienic (1") | Butterfly Valve - Weld Connection | 316L GTIN:   840384335813 Dimensional Image Key: • Length (C) mm:  50 • Length (C) in:  1.97" • Tube OD (D) mm:  25.4 • Tube OD (D) in:  1" • Tube ID (E) mm:  22.1 • Tube ID (E) in:  0.87" • Handle Length (P) mm:  127 • Handle Length (P) in:  5" • Height Handle (N) mm:  73 • Height Handle (N) in:  2.87" • Valve Body Size (F) mm:  78 • Valve Body Size (F) in:  3.07"
Hygienic VCBVDF0251276L	Butterfly Valve - Ferrule Connection	1/2"	12.7(metric)	1 (25.4mm)	316L	14,404/≈ SS2348	0.5" (12.7mm)	0.37" (9.4mm)	5" (127mm)	2.6" (66mm)	1.54" (39mm)	3.07" (78mm)	Price On Request
View Page Hygienic (1/2") | Butterfly Valve - Ferrule Connection | 316L GTIN:   840384335929 Dimensional Image Key: • Length (C) mm:  66 • Flange (A) mm:  25.4 • Flange (A) in:  1 • Length (C) in:  2.6" • Tube OD (D) mm:  12.7 • Tube OD (D) in:  0.5" • Tube ID (E) mm:  9.4 • Tube ID (E) in:  0.37" • Handle Length (P) mm:  127 • Handle Length (P) in:  5" • Height Handle (N) mm:  39 • Height Handle (N) in:  1.54" • Valve Body Size (F) mm:  78 • Valve Body Size (F) in:  3.07"
Hygienic VCBVDW0251276L	Butterfly Valve - Weld Connection	1/2"	12.7(metric)		316L	14,404/≈ SS2348	0.5" (12.7mm)	0.37" (9.4mm)	5" (127mm)	1.97" (50mm)	2.87" (73mm)	3.07" (78mm)	Price On Request
View Page Hygienic (1/2") | Butterfly Valve - Weld Connection | 316L GTIN:   840384335844 Dimensional Image Key: • Length (C) mm:  50 • Length (C) in:  1.97" • Tube OD (D) mm:  12.7 • Tube OD (D) in:  0.5" • Tube ID (E) mm:  9.4 • Tube ID (E) in:  0.37" • Handle Length (P) mm:  127 • Handle Length (P) in:  5" • Height Handle (N) mm:  73 • Height Handle (N) in:  2.87" • Valve Body Size (F) mm:  78 • Valve Body Size (F) in:  3.07"
Hygienic VCBVDF0770636L	Butterfly Valve - Ferrule Connection	2 1/2"	63.5(metric)	3.05 (77.5mm)	316L	14,404/≈ SS2348	2.5" (63.5mm)	2.37" (60.2mm)	5.31" (135mm)	3.15" (80mm)	2.26" (57.5mm)	4.53" (115mm)	Price On Request
View Page Hygienic (2 1/2") | Butterfly Valve - Ferrule Connection | 316L GTIN:   840384335943 Dimensional Image Key: • Length (C) mm:  80 • Flange (A) mm:  77.5 • Flange (A) in:  3.05 • Length (C) in:  3.15" • Tube OD (D) mm:  63.5 • Tube OD (D) in:  2.5" • Tube ID (E) mm:  60.2 • Tube ID (E) in:  2.37" • Handle Length (P) mm:  135 • Handle Length (P) in:  5.31" • Height Handle (N) mm:  57.5 • Height Handle (N) in:  2.26" • Valve Body Size (F) mm:  115 • Valve Body Size (F) in:  4.53"
Hygienic VCBVDW0770636L	Butterfly Valve - Weld Connection	2 1/2"	63.5(metric)		316L	14,404/≈ SS2348	2.5" (63.5mm)	2.37" (60.2mm)	5.31" (135mm)	2.2" (56mm)	3.64" (92.5mm)	4.53" (115mm)	Price On Request
View Page Hygienic (2 1/2") | Butterfly Valve - Weld Connection | 316L GTIN:   840384335868 Dimensional Image Key: • Length (C) mm:  56 • Length (C) in:  2.2" • Tube OD (D) mm:  63.5 • Tube OD (D) in:  2.5" • Tube ID (E) mm:  60.2 • Tube ID (E) in:  2.37" • Handle Length (P) mm:  135 • Handle Length (P) in:  5.31" • Height Handle (N) mm:  92.5 • Height Handle (N) in:  3.64" • Valve Body Size (F) mm:  115 • Valve Body Size (F) in:  4.53"
Hygienic VCBVDF0640516L	Butterfly Valve - Ferrule Connection	2"	50.8(metric)	2.52 (64mm)	316L	14,404/≈ SS2348	2" (50.8mm)	1.87" (47.5mm)	5.31" (135mm)	2.99" (76mm)	1.97" (50mm)	3.94" (100mm)	Price On Request
View Page Hygienic (2") | Butterfly Valve - Ferrule Connection | 316L GTIN:   840384335912 Dimensional Image Key: • Length (C) mm:  76 • Flange (A) mm:  64 • Flange (A) in:  2.52 • Length (C) in:  2.99" • Tube OD (D) mm:  50.8 • Tube OD (D) in:  2" • Tube ID (E) mm:  47.5 • Tube ID (E) in:  1.87" • Handle Length (P) mm:  135 • Handle Length (P) in:  5.31" • Height Handle (N) mm:  50 • Height Handle (N) in:  1.97" • Valve Body Size (F) mm:  100 • Valve Body Size (F) in:  3.94"
Hygienic VCBVDW0640516L	Butterfly Valve - Weld Connection	2"	50.8(metric)		316L	14,404/≈ SS2348	2" (50.8mm)	1.87" (47.5mm)	5.31" (135mm)	2.05" (52mm)	3.35" (85mm)	3.94" (100mm)	Price On Request
View Page Hygienic (2") | Butterfly Valve - Weld Connection | 316L GTIN:   840384335837 Dimensional Image Key: • Length (C) mm:  52 • Length (C) in:  2.05" • Tube OD (D) mm:  50.8 • Tube OD (D) in:  2" • Tube ID (E) mm:  47.5 • Tube ID (E) in:  1.87" • Handle Length (P) mm:  135 • Handle Length (P) in:  5.31" • Height Handle (N) mm:  85 • Height Handle (N) in:  3.35" • Valve Body Size (F) mm:  100 • Valve Body Size (F) in:  3.94"
Hygienic VCBVDF0910766L	Butterfly Valve - Ferrule Connection	3"	76.2(metric)	3.58 (91mm)	316L	14,404/≈ SS2348	3" (76.2mm)	2.87" (72.9mm)	5.31" (135mm)	3.31" (84mm)	2.52" (64mm)	5.04" (128mm)	Price On Request
View Page Hygienic (3") | Butterfly Valve - Ferrule Connection | 316L GTIN:   840384335950 Dimensional Image Key: • Length (C) mm:  84 • Flange (A) mm:  91 • Flange (A) in:  3.58 • Length (C) in:  3.31" • Tube OD (D) mm:  76.2 • Tube OD (D) in:  3" • Tube ID (E) mm:  72.9 • Tube ID (E) in:  2.87" • Handle Length (P) mm:  135 • Handle Length (P) in:  5.31" • Height Handle (N) mm:  64 • Height Handle (N) in:  2.52" • Valve Body Size (F) mm:  128 • Valve Body Size (F) in:  5.04"
Hygienic VCBVDW0910766L	Butterfly Valve - Weld Connection	3"	76.2(metric)		316L	14,404/≈ SS2348	3" (76.2mm)	2.87" (72.9mm)	5.31" (135mm)	2.2" (56mm)	3.9" (99mm)	5.04" (128mm)	Price On Request
View Page Hygienic (3") | Butterfly Valve - Weld Connection | 316L GTIN:   840384335875 Dimensional Image Key: • Length (C) mm:  56 • Length (C) in:  2.2" • Tube OD (D) mm:  76.2 • Tube OD (D) in:  3" • Tube ID (E) mm:  72.9 • Tube ID (E) in:  2.87" • Handle Length (P) mm:  135 • Handle Length (P) in:  5.31" • Height Handle (N) mm:  99 • Height Handle (N) in:  3.9" • Valve Body Size (F) mm:  128 • Valve Body Size (F) in:  5.04"

Please Login To Order

Prev 1 2 Next

Hygienic (1 1/2") | Butterfly Valve - Ferrule Connection | 316L Hygienic VCBVDF0500386L Price On Request

Hygienic (1 1/2") | Butterfly Valve - Weld Connection | 316L Hygienic VCBVDW0500386L Price On Request

Hygienic (1") | Butterfly Valve - Ferrule Connection | 316L Hygienic VCBVDF0500256L Price On Request

Hygienic (1") | Butterfly Valve - Weld Connection | 316L Hygienic VCBVDW0500256L Price On Request

Hygienic (1/2") | Butterfly Valve - Ferrule Connection | 316L Hygienic VCBVDF0251276L Price On Request

Hygienic (1/2") | Butterfly Valve - Weld Connection | 316L Hygienic VCBVDW0251276L Price On Request

Hygienic (2 1/2") | Butterfly Valve - Ferrule Connection | 316L Hygienic VCBVDF0770636L Price On Request

Hygienic (2 1/2") | Butterfly Valve - Weld Connection | 316L Hygienic VCBVDW0770636L Price On Request

Hygienic (2") | Butterfly Valve - Ferrule Connection | 316L Hygienic VCBVDF0640516L Price On Request

Hygienic (2") | Butterfly Valve - Weld Connection | 316L Hygienic VCBVDW0640516L Price On Request

Hygienic (3") | Butterfly Valve - Ferrule Connection | 316L Hygienic VCBVDF0910766L Price On Request

Hygienic (3") | Butterfly Valve - Weld Connection | 316L Hygienic VCBVDW0910766L Price On Request
