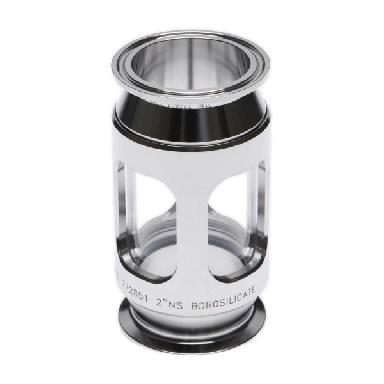

    SVFI Sterile Visual Flow Indicator


    SVFI Sterile Visual Flow Indicator
    Description
    Sterile Visual Flow Indicator; CT-SVFI is a patented design, controlled O-ring compression​, and glass is precision sized to meet the ID of the tube​.
    Installation
    Assembly / disassembly time is reduced due to use of a clamp connection​.
    Specifications
    • Supplied with full document pack​
    • Each assembly is hydrostatically tested to 1.5x MAWP​
    • Polished to ASME:BPE SF4(internal) SF6 (External) - Electro-polished​
    Dimensional Image
    Features
    • Designed to EHEDG design guidelines for cleanability​
    • Suitable for Pharmaceutical Production​
    • Produced from EU materials​
    • Suitable for SIP
    • ASME BPE / 3A BS4825​ compatible
    Materials
    • EU sourced 1.4404​
    • Boro 3.3​
    • EPDM​
    Total: 10
    Industry
    PART#    		 Standard Nom
    Imperial    		 Nom
    Metric/ISO    		 Mating
    Flange (A)    		 Material
    Grade    		 EN/ASTM
    Std    		 Integral
    Flange (D)    		 ID
    (B)    		 Minor OD
    (F/D)    		 Major OD
    (G)    		 Window
    Area(AxW)    		 Width
    (E)    		 Length
    (L)    		 LIST
    PRICE
    Pharmaceutical
    SVEKA1025952S46L
    		ASME BPE 3/8" 9.525(metric) 1" (25.4mm) 316L 1.4404/S31603 0.3" (7.7mm) 0.63" x 0.31" (16 x 8mm) 0.09mm 2.56" (65mm)
    Price On Request
    dimensional image
    View Page
     Sterile Visual Flow Indicator; 3/8” Imperial Nom, Window 16x8, 7.7mm ID. GTIN:   840384323537 Legacy Part Number IE:   SG.SV.038 Legacy Part Number UK:   SG.SV.038 Legacy Part Number DK:   SGSV038SF1
    Dimensional Image Key:
    • • Width (W) mm:  8
    • • Window (A) x (W) mm:  16 x 8
    • • ID (B) mm:  7.7
    • • Mating Flange (C) mm:  25.4
    • • Length (L) mm:  65
    • • Width (E) mm:  0.09
    • • Width (W) in:  0.31"
    • • Mating Flange (C) in:  1"
    • • ID (B) in:  0.3"
    • • Window (A) x (W) in:  0.63" x 0.31"
    • • Window Height (A) mm:  16
    • • Window Height (A) in:  0.63"
    • • Length (L) in:  2.56"
    Pharmaceutical
    SVEKA1025127S46L
    		ASME BPE 1/2" 12.7(metric) 1" (25.4mm) 316L 1.4404/S31603 0.37" (9.5mm) 0.79" x 0.35" (20 x 9mm) 0.12mm 2.99" (76mm)
    Price On Request
    dimensional image
    View Page
     Sterile Visual Flow Indicator; ½” Imperial Nom, Window 20x9, 9.5mm ID. GTIN:   840384323551 Legacy Part Number IE:   SG.SV.050 Legacy Part Number UK:   SG.SV.050 Legacy Part Number DK:   SGSV050SF1
    Dimensional Image Key:
    • • Width (W) mm:  9
    • • Window (A) x (W) mm:  20 x 9
    • • ID (B) mm:  9.5
    • • Mating Flange (C) mm:  25.4
    • • Length (L) mm:  76
    • • Width (E) mm:  0.12
    • • Width (W) in:  0.35"
    • • Mating Flange (C) in:  1"
    • • ID (B) in:  0.37"
    • • Window (A) x (W) in:  0.79" x 0.35"
    • • Window Height (A) mm:  20
    • • Window Height (A) in:  0.79"
    • • Length (L) in:  2.99"
    Pharmaceutical
    SVEKA1025195S46L
    		ASME BPE 3/4" 19.05(metric) 1" (25.4mm) 316L 1.4404/S31603 0.62" (15.8mm) 1.06" x 0.43" (27 x 11mm) 0.15mm 3.43" (87mm)
    Price On Request
    dimensional image
    View Page
     Sterile Visual Flow Indicator; ¾" Imperial Nom, Window 27x11, 15.8mm ID. GTIN:   840384323575 Legacy Part Number IE:   SG.SV.075 Legacy Part Number UK:   SG.SV.075 Legacy Part Number DK:   SGSV075SF4
    Dimensional Image Key:
    • • Width (W) mm:  11
    • • Window (A) x (W) mm:  27 x 11
    • • ID (B) mm:  15.8
    • • Mating Flange (C) mm:  25.4
    • • Length (L) mm:  87
    • • Width (E) mm:  0.15
    • • Width (W) in:  0.43"
    • • Mating Flange (C) in:  1"
    • • ID (B) in:  0.62"
    • • Window (A) x (W) in:  1.06" x 0.43"
    • • Window Height (A) mm:  27
    • • Window Height (A) in:  1.06"
    • • Length (L) in:  3.43"
    Pharmaceutical
    SVEKA1050025S46L
    		ASME BPE 1" 25.4(metric) 1.99" (50.5mm) 316L 1.4404/S31603 0.87" (22.1mm) 1.18" x 0.63" (30 x 16mm) 0.37mm 3.58" (91mm)
    Price On Request
    dimensional image
    View Page
     Sterile Visual Flow Indicator; 1” Imperial Nom, Window 30x16, 22.1mm ID. GTIN:   840384323599 Legacy Part Number IE:   SG.SV.100 Legacy Part Number UK:   SG.SV.100 Legacy Part Number DK:   SGSV100SF1
    Dimensional Image Key:
    • • Width (W) mm:  16
    • • Window (A) x (W) mm:  30 x 16
    • • ID (B) mm:  22.1
    • • Mating Flange (C) mm:  50.5
    • • Length (L) mm:  91
    • • Width (E) mm:  0.37
    • • Width (W) in:  0.63"
    • • Mating Flange (C) in:  1.99"
    • • ID (B) in:  0.87"
    • • Window (A) x (W) in:  1.18" x 0.63"
    • • Window Height (A) mm:  30
    • • Window Height (A) in:  1.18"
    • • Length (L) in:  3.58"
    Pharmaceutical
    SVEKA1050038S46L
    		ASME BPE 1 1/2" 38.1(metric) 1.99" (50.5mm) 316L 1.4404/S31603 1.37" (34.8mm) 1.57" x 0.94" (40 x 24mm) 0.4mm 4.13" (105mm)
    Price On Request
    dimensional image
    View Page
     Sterile Visual Flow Indicator; 1½” Imperial Nom, Window 40x24, 34.8mm ID. GTIN:   840384323612 Legacy Part Number IE:   SG.SV.150 Legacy Part Number UK:   SG.SV.150 Legacy Part Number DK:   SGSV150SF1
    Dimensional Image Key:
    • • Width (W) mm:  24
    • • Window (A) x (W) mm:  40 x 24
    • • ID (B) mm:  34.8
    • • Mating Flange (C) mm:  50.5
    • • Length (L) mm:  105
    • • Width (E) mm:  0.4
    • • Width (W) in:  0.94"
    • • Mating Flange (C) in:  1.99"
    • • ID (B) in:  1.37"
    • • Window (A) x (W) in:  1.57" x 0.94"
    • • Window Height (A) mm:  40
    • • Window Height (A) in:  1.57"
    • • Length (L) in:  4.13"
    Pharmaceutical
    SVEKA1064051S46L
    		ASME BPE 2" 50.8(metric) 2.52" (64mm) 316L 1.4404/S31603 1.87" (47.5mm) 1.89" x 1.34" (48 x 34mm) 0.63mm 4.72" (120mm)
    Price On Request
    dimensional image
    View Page
     Sterile Visual Flow Indicator; 2” Imperial Nom, Window 48x34, 47.5mm ID. GTIN:   840384323636 Legacy Part Number IE:   SG.SV.200 Legacy Part Number UK:   SG.SV.200 Legacy Part Number DK:   SGSV200SF1
    Dimensional Image Key:
    • • Width (W) mm:  34
    • • Window (A) x (W) mm:  48 x 34
    • • ID (B) mm:  47.5
    • • Mating Flange (C) mm:  64
    • • Length (L) mm:  120
    • • Width (E) mm:  0.63
    • • Width (W) in:  1.34"
    • • Mating Flange (C) in:  2.52"
    • • ID (B) in:  1.87"
    • • Window (A) x (W) in:  1.89" x 1.34"
    • • Window Height (A) mm:  48
    • • Window Height (A) in:  1.89"
    • • Length (L) in:  4.72"
    Pharmaceutical
    SVEKA1077063S46L
    		ASME BPE 2 1/2" 63.5(metric) 3.05" (77.5mm) 316L 1.4404/S31603 2.37" (60.3mm) 2.17" x 1.57" (55 x 40mm) 1.15mm 5.94" (151mm)
    Price On Request
    dimensional image
    View Page
     Sterile Visual Flow Indicator; 2½” Imperial Nom, Window 55x40, 60.3mm ID. GTIN:   840384323650 Legacy Part Number IE:   SG.SV.250 Legacy Part Number UK:   SG.SV.250 Legacy Part Number DK:   SGSV250SF1
    Dimensional Image Key:
    • • Width (W) mm:  40
    • • Window (A) x (W) mm:  55 x 40
    • • ID (B) mm:  60.3
    • • Mating Flange (C) mm:  77.5
    • • Length (L) mm:  151
    • • Width (E) mm:  1.15
    • • Width (W) in:  1.57"
    • • Mating Flange (C) in:  3.05"
    • • ID (B) in:  2.37"
    • • Window (A) x (W) in:  2.17" x 1.57"
    • • Window Height (A) mm:  55
    • • Window Height (A) in:  2.17"
    • • Length (L) in:  5.94"
    Pharmaceutical
    SVEKA1091076S46L
    		ASME BPE 3" 76.2(metric) 3.58" (91mm) 316L 1.4404/S31603 2.87" (72.9mm) 3.54" x 1.97" (90 x 50mm) 1.46mm 6.89" (175mm)
    Price On Request
    dimensional image
    View Page
     Sterile Visual Flow Indicator; 3” Imperial Nom, Window 90x50, 72.9mm ID. GTIN:   840384323674 Legacy Part Number IE:   SG.SV.300 Legacy Part Number UK:   SG.SV.300 Legacy Part Number DK:   SGSV300SF4
    Dimensional Image Key:
    • • Width (W) mm:  50
    • • Window (A) x (W) mm:  90 x 50
    • • ID (B) mm:  72.9
    • • Mating Flange (C) mm:  91
    • • Length (L) mm:  175
    • • Width (E) mm:  1.46
    • • Width (W) in:  1.97"
    • • Mating Flange (C) in:  3.58"
    • • ID (B) in:  2.87"
    • • Window (A) x (W) in:  3.54" x 1.97"
    • • Window Height (A) mm:  90
    • • Window Height (A) in:  3.54"
    • • Length (L) in:  6.89"
    Pharmaceutical
    SVEKA1119101S46L
    		ASME BPE 4" 101.6(metric) 4.69" (119mm) 316L 1.4404/S31603 3.83" (97.4mm) 4.33" x 2.36" (110 x 60mm) 2.78mm 7.87" (200mm)
    Price On Request
    dimensional image
    View Page
     Sterile Visual Flow Indicator; 4” Imperial Nom, Window 110x60, 97.4mm ID. GTIN:   840384323698 Legacy Part Number IE:   SG.SV.400 Legacy Part Number UK:   SG.SV.400 Legacy Part Number DK:   SGSV400SF1
    Dimensional Image Key:
    • • Width (W) mm:  60
    • • Window (A) x (W) mm:  110 x 60
    • • ID (B) mm:  97.4
    • • Mating Flange (C) mm:  119
    • • Length (L) mm:  200
    • • Width (E) mm:  2.78
    • • Width (W) in:  2.36"
    • • Mating Flange (C) in:  4.69"
    • • ID (B) in:  3.83"
    • • Window (A) x (W) in:  4.33" x 2.36"
    • • Window Height (A) mm:  110
    • • Window Height (A) in:  4.33"
    • • Length (L) in:  7.87"
    Pharmaceutical
    SVEKA1167152S46L
    		ASME BPE 6" 152.4(metric) 6.57" (167mm) 316L 1.4404/S31603 5.91" (150mm) 5.91" x 3.15" (150 x 80mm) 6mm 9.84" (250mm)
    Price On Request
    dimensional image
    View Page
     Sterile Visual Flow Indicator; 6” Imperial Nom, Window 150x80, 150mm ID. GTIN:   840384323711 Legacy Part Number IE:   SG.SV.600 Legacy Part Number UK:   SG.SV.600 Legacy Part Number DK:   SGSV600SF1
    Dimensional Image Key:
    • • Width (W) mm:  80
    • • Window (A) x (W) mm:  150 x 80
    • • ID (B) mm:  150
    • • Mating Flange (C) mm:  167
    • • Length (L) mm:  250
    • • Width (E) mm:  6
    • • Width (W) in:  3.15"
    • • Mating Flange (C) in:  6.57"
    • • ID (B) in:  5.91"
    • • Window (A) x (W) in:  5.91" x 3.15"
    • • Window Height (A) mm:  150
    • • Window Height (A) in:  5.91"
    • • Length (L) in:  9.84"
