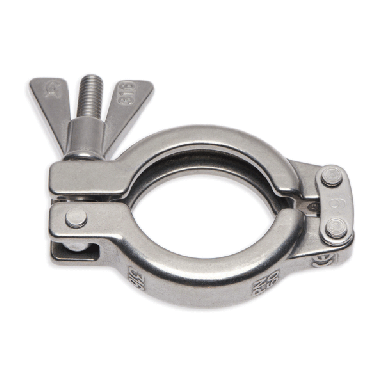

SH Safety Clamp 316 Wing Nut, Double Hinge

Description

SH safety clamp 316 / 1.4408 stainless steel, made for safety critical applications. Corrosion resistant, high quality surface finish (for cleanability).

Specifications

Material: 316 / 1.4401
BPE / 3A sanitary unions

Dimensional Image

Features

Application: Pharmaceutical
Hinge Layout: Safety Gate & Eye Bolt
Supplied Assembled
Design optimised for one-handed assembly.

Industry PART#	Type	Nom Imperial	Nom Metric/ISO	Flange (A)	Material Grade	EN/ASTM Std	Mechanism	Nut Type	MAWP Bar (metric)	PSI (imperial)	LIST PRICE
Pharmaceutical SHSF0002506	SH	1/4 - 3/4"	DN6-8/DN8-10	1" (25.4mm)	316L	1.4408/J92900	2-Pin	Wingnut	50	725.1886887	Price On Request
View Page SH-Series 2-Pin Wingnut Clamp - 316L - 1" (25.4mm) Flange - 1/4" - 3/4" Nom GTIN: 840384301221 Legacy Part Number IE: CL.SAF.0050 Legacy Part Number UK: CL00500750SHS6N2 Legacy Part Number DK: CLSAF0050 Dimensional Image Key: • Flange (A) mm: 25.4 • Flange (A) in: 1" • B in: 2.48" • B mm: 63 • C mm: 75 • C in: 2.95" • W mm: 17 • W in: 0.67"
Pharmaceutical SHSF0005006	SH	1 - 1 1/2"	DN25-40/DN15-20-25	2" (50.5mm)	316L	1.4408/J92900	2-Pin	Wingnut	50	725.1886887	Price On Request
View Page SH-Series 2-Pin Wingnut Clamp - 316L - 2" (50.5mm) Flange - 1" - 1 1/2" Nom GTIN: 840384301238 Legacy Part Number IE: CL.SAF.0100 Legacy Part Number UK: CL01000500SHS6N2 Legacy Part Number DK: CLSAF0100 Dimensional Image Key: • Flange (A) mm: 50.5 • Flange (A) in: 2" • B in: 3.03" • B mm: 77 • C mm: 102 • C in: 4.02" • W mm: 17 • W in: 0.67"
Pharmaceutical SHSF0006406	SH	2"	DN50/DN32-40	2 1/2" (64mm)	316L	1.4408/J92900	2-Pin	Wingnut	50	725.1886887	Price On Request
View Page SH-Series 2-Pin Wingnut Clamp - 316L - 2 1/2" (64mm) Flange - 2" Nom GTIN: 840384301245 Legacy Part Number IE: CL.SAF.0200 Legacy Part Number UK: CL02000-0SH-S6N2 Legacy Part Number DK: CLSAF0200 Dimensional Image Key: • Flange (A) mm: 64 • Flange (A) in: 2 1/2" • B in: 3.66" • B mm: 93 • C mm: 123 • C in: 4.84" • W mm: 17 • W in: 0.67"
Pharmaceutical SHSF0007706	SH	2 1/2"	DN50(ISO)	3" (77.5mm)	316L	1.4408/J92900	2-Pin	Wingnut	50	725.1886887	Price On Request
View Page SH-Series 2-Pin Wingnut Clamp - 316L - 3" (77.5mm) Flange - 2,5" Nom GTIN: 840384301252 Legacy Part Number IE: CL.SAF.0250 Legacy Part Number UK: CL02000250SHS6N2 Legacy Part Number DK: CLSAF0250 Dimensional Image Key: • Flange (A) mm: 77.5 • Flange (A) in: 3" • B in: 3.94" • B mm: 100 • C mm: 140 • C in: 5.51" • W mm: 17 • W in: 0.67"
Pharmaceutical SHSF0009106	SH	3"	DN65/DN65	3 1/2" (91mm)	316L	1.4408/J92900	2-Pin	Wingnut	40	580.1509509	Price On Request
View Page SH-Series 2-Pin Wingnut Clamp - 316L - 3 1/2" (91mm) Flange - 3" Nom GTIN: 840384301269 Legacy Part Number IE: CL.SAF.0300 Legacy Part Number UK: CL03000-0SH-S6N2 Legacy Part Number DK: CLSAF0300 Dimensional Image Key: • Flange (A) mm: 91 • Flange (A) in: 3 1/2" • B in: 4.13" • B mm: 105 • C mm: 150 • C in: 5.91" • W mm: 17 • W in: 0.67"
Pharmaceutical SHSF0010606	SH	3 1/2"	DN80/DN80	4 1/8" (106mm)	316L	1.4408/J92900	2-Pin	Wingnut	40	580.1509509	Price On Request
View Page SH-Series 2-Pin Wingnut Clamp - 316L - 4 1/8" (106mm) Flange - 3,5" Nom GTIN: 840384301276 Legacy Part Number IE: CL.SAF.0350 Legacy Part Number UK: CL03500-0SH-S4N2 Legacy Part Number DK: CLSAF0350 Dimensional Image Key: • Flange (A) mm: 106 • Flange (A) in: 4 1/8" • B in: 4.33" • B mm: 110 • C mm: 165 • C in: 6.50" • W mm: 17 • W in: 0.67"
Pharmaceutical SHSF0011906	SH	4"	DN100(metric)	4 3/4" (119mm)	316L	1.4408/J92900	2-Pin	Wingnut	35	507.6320821	Price On Request
View Page SH-Series 2-Pin Wingnut Clamp - 316L - 4 3/4" (119mm) Flange - 4" Nom GTIN: 840384301283 Legacy Part Number IE: CL.SAF.0400 Legacy Part Number UK: CL04000-0SH-S6N2 Legacy Part Number DK: CLSAF0400 Dimensional Image Key: • Flange (A) mm: 119 • Flange (A) in: 4 3/4" • B in: 4.69" • B mm: 119 • C mm: 185 • C in: 7.28" • W mm: 17 • W in: 0.67"
Pharmaceutical SHSF0013006	SH	4 1/2"	DN100(ISO)	5 1/8" (130mm)	316L	1.4408/J92900	2-Pin	Wingnut	30	435.1132132	Price On Request
View Page SH-Series 2-Pin Wingnut Clamp - 316L - 5 1/8" (130mm) Flange - 4,5" Nom GTIN: 840384301290 Legacy Part Number IE: CL.SAF.0450 Legacy Part Number UK: CL04500-0SH-S6N2 Legacy Part Number DK: CLSAF0450 Dimensional Image Key: • Flange (A) mm: 130 • Flange (A) in: 5 1/8" • B in: 4.69" • B mm: 119 • C mm: 191 • C in: 7.52" • W mm: 17 • W in: 0.67"
Pharmaceutical SHSF0014406	SH	5"		5 5/8" (144.4mm)	316L	1.4408/J92900	2-Pin	Wingnut	30	435.1132132	Price On Request
View Page SH-Series 2-Pin Wingnut Clamp - 316L - 5 5/8" (144.4mm) Flange - 5" Nom GTIN: 840384301306 Legacy Part Number IE: CL.SAF.0500 Legacy Part Number UK: CL05000-0SH-S6N2 Legacy Part Number DK: CLSAF0500 Dimensional Image Key: • Flange (A) mm: 144.4 • Flange (A) in: 5 5/8" • B in: 5.16" • B mm: 131 • C mm: 215 • C in: 8.46" • W mm: 19 • W in: 0.75"
Pharmaceutical SHSF0015506	SH	5 1/2"	DN125/DN125	6 1/8" (155mm)	316L	1.4408/J92900	2-Pin	Wingnut	30	435.1132132	Price On Request
View Page SH-Series 2-Pin Wingnut Clamp - 316L - 6 1/8" (155mm) Flange - 5,5" Nom GTIN: 840384301313 Legacy Part Number IE: CL.SAF.0550 Legacy Part Number UK: CL05500-0SH-S6N3 Legacy Part Number DK: CLSAF0550 Dimensional Image Key: • Flange (A) mm: 155 • Flange (A) in: 6 1/8" • B in: 5.83" • B mm: 148 • C mm: 265 • C in: 10.43" • W mm: 24 • W in: 0.94"
Pharmaceutical SHSF0016706	SH	6"		6 5/8" (167mm)	316L	1.4408/J92900	2-Pin	Wingnut	30	435.1132132	Price On Request
View Page SH-Series 2-Pin Wingnut Clamp - 316L - 6 5/8" (167mm) Flange - 6" Nom GTIN: 840384301320 Legacy Part Number IE: CL.SAF.0600 Legacy Part Number UK: CL06000-SHSBS6N4 Legacy Part Number DK: CLSAF0600 Dimensional Image Key: • Flange (A) mm: 167 • Flange (A) in: 6 5/8" • B in: 5.98" • B mm: 152 • C mm: 277 • C in: 10.91" • W mm: 24 • W in: 0.94"
Pharmaceutical SHSF0018306	SH	6 5/8"	DN150/DN150	7 1/4" (183mm)	316L	1.4408/J92900	2-Pin	Wingnut	25	362.5943443	Price On Request
View Page SH-Series 2-Pin Wingnut Clamp - 316L - 7 1/4" (183mm) Flange - 6,625" Nom GTIN: 840384301337 Legacy Part Number IE: CL.SAF.0658 Legacy Part Number UK: CL06580-0SH-S6N2 Legacy Part Number DK: CLSAF0658 Dimensional Image Key: • Flange (A) mm: 183 • Flange (A) in: 7 1/4" • B in: 6.46" • B mm: 164 • C mm: 297 • C in: 11.69" • W mm: 24 • W in: 0.94"
