    Type Safety SH Lockout (Single-Bolt | Double-Hinge) 316L


    Type Safety SH Lockout (Single-Bolt | Double-Hinge) 316L
    Description

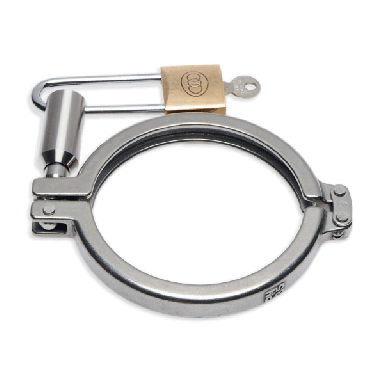

    SH safety clamp, 316 lockout, with eyebolt and padlock, for safety critical applications where removal is prevented by LOTO​. Corrosion resistant, high quality surface finish (for cleanability)​. Sizes ½" to 12 5/8"​.
    Specifications
    • Material: 316 / 1.4401
    • BPE / 3A sanitary unions​
    Dimensional Image
    Features
    • Application: Pharmaceutical
    • Hinge Layout: Safety Gate, Eye Bolt & Padlock
    Total: 19
    Industry
    PART#    		 Type Nom
    Imperial    		 Nom
    Metric/ISO    		 Flange
    (A)    		 Material
    Grade    		 EN/ASTM
    Std    		 Mechanism Nut
    Type    		 MAWP Bar
    (metric)    		 PSI
    (imperial)    		 LIST
    PRICE
    Pharmaceutical
    SHSL0002506
    		1/2" DN 6-8/DN8-10 25.4mm 316L 1.4408/J92900
    Price On Request
    dimensional image
    View Page
     SH Safety Clamp 316 Lockout 25.4mm Flange Legacy Part Number IE:   CL.SAFL.0050 Legacy Part Number UK:   CL.SAFL.0050
    Dimensional Image Key:
    • • Flange (A) mm:  25.4
    • • B mm:  63.00
    • • C mm:  75.00
    • • W mm:  27
    Pharmaceutical
    SHSL0003406
    		DN10 DN 10-20(metric) 34mm 316L 1.4408/J92900
    Price On Request
    dimensional image
    View Page
     SH Safety Clamp 316 Lockout 34mm Flange Legacy Part Number IE:   CL.SAFL.D010
    Dimensional Image Key:
    • • Flange (A) mm:  34
    • • B mm:  65.00
    • • C mm:  83.00
    • • W mm:  27
    Pharmaceutical
    SHSL0005006
    		1 1/2" DN 25-40/DN15-25 50.5mm 316L 1.4408/J92900
    Price On Request
    dimensional image
    View Page
     SH Safety Clamp 316 Lockout 50.5mm Flange Legacy Part Number IE:   CL.SAFL.0100 Legacy Part Number UK:   CL.SAFL.0100
    Dimensional Image Key:
    • • Flange (A) mm:  50.5
    • • B mm:  77.00
    • • C mm:  102.00
    • • W mm:  27
    Pharmaceutical
    SHSL0006406
    		2" DN 50/DN32-40 64mm 316L 1.4408/J92900
    Price On Request
    dimensional image
    View Page
     SH Safety Clamp 316 Lockout 64mm Flange Legacy Part Number IE:   CL.SAFL.0200 Legacy Part Number UK:   CL.SAFL.0200
    Dimensional Image Key:
    • • Flange (A) mm:  64
    • • B mm:  93.00
    • • C mm:  123.00
    • • W mm:  27
    Pharmaceutical
    SHSL0007706
    		2 1/2" DN50(ISO) 77.5mm 316L 1.4408/J92900
    Price On Request
    dimensional image
    View Page
     SH Safety Clamp 316 Lockout 77.5mm Flange Legacy Part Number IE:   CL.SAFL.0250
    Dimensional Image Key:
    • • Flange (A) mm:  77.5
    • • B mm:  100.00
    • • C mm:  140.00
    • • W mm:  27
    Pharmaceutical
    SHSL0009106
    		3" DN65/DN65 91mm 316L 1.4408/J92900
    Price On Request
    dimensional image
    View Page
     SH Safety Clamp 316 Lockout 91mm Flange Legacy Part Number IE:   CL.SAFL.0300
    Dimensional Image Key:
    • • Flange (A) mm:  91
    • • B mm:  105.00
    • • C mm:  150.00
    • • W mm:  27
    Pharmaceutical
    SHSL0010606
    		3 1/2" DN 80/DN80 106mm 316L 1.4408/J92900
    Price On Request
    dimensional image
    View Page
     SH Safety Clamp 316 Lockout 106mm Flange Legacy Part Number IE:   CL.SAFL.0350
    Dimensional Image Key:
    • • Flange (A) mm:  106
    • • B mm:  110.00
    • • C mm:  165.00
    • • W mm:  27
    Pharmaceutical
    SHSL0011906
    		4" DN 100(metric) 119mm 316L 1.4408/J92900
    Price On Request
    dimensional image
    View Page
     SH Safety Clamp 316 Lockout 119mm Flange Legacy Part Number IE:   CL.SAFL.0400 Legacy Part Number UK:   CL.SAFL.0400
    Dimensional Image Key:
    • • Flange (A) mm:  119
    • • B mm:  119.00
    • • C mm:  185.00
    • • W mm:  27
    Pharmaceutical
    SHSL0013006
    		4 1/2" DN100(ISO) 130mm 316L 1.4408/J92900
    Price On Request
    dimensional image
    View Page
     SH Safety Clamp 316 Lockout 130mm Flange Legacy Part Number IE:   CL.SAFL.0450
    Dimensional Image Key:
    • • Flange (A) mm:  130
    • • B mm:  119.00
    • • C mm:  191.00
    • • W mm:  27
    Pharmaceutical
    SHSL0014406
    		5" 144mm 316L 1.4408/J92900
    Price On Request
    dimensional image
    View Page
     SH Safety Clamp 316 Lockout 144mm Flange Legacy Part Number IE:   CL.SAFL.0500
    Dimensional Image Key:
    • • Flange (A) mm:  144
    • • B mm:  131.00
    • • C mm:  215.00
    • • W mm:  27
    Pharmaceutical
    SHSL0015506
    		5 1/2" DN 125/DN125 155mm 316L 1.4408/J92900
    Price On Request
    dimensional image
    View Page
     SH Safety Clamp 316 Lockout 155mm Flange Legacy Part Number IE:   CL.SAFL.0550
    Dimensional Image Key:
    • • Flange (A) mm:  155
    • • B mm:  148.00
    • • C mm:  265.00
    • • W mm:  33
    Pharmaceutical
    SHSL0016706
    		6" 167mm 316L 1.4408/J92900
    Price On Request
    dimensional image
    View Page
     SH Safety Clamp 316 Lockout 167mm Flange Legacy Part Number IE:   CL.SAFL.0600 Legacy Part Number UK:   CL.SAFL.0600
    Dimensional Image Key:
    • • Flange (A) mm:  167
    • • B mm:  152.00
    • • C mm:  277.00
    • • W mm:  33
    Please Login To Order
