Miscellaneous Fittings

End Caps Blanks

Industry PART#	Standard	Nom Imperial	Nom Metric/ISO	Flange (A)	Material Grade	EN/ASTM Std	ID (E)	OD (D)	OD2 (H)	Length (C)	LIST PRICE
Hygienic VANRDW025SD06		1"			316L	1.4408/J92900	Price On Request

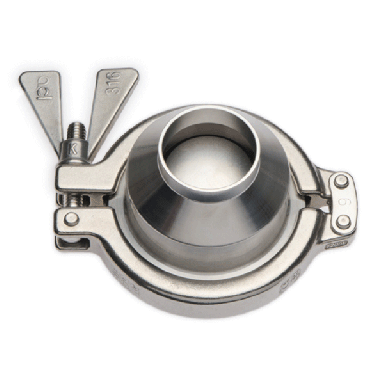

View Page ISO NRV Clamp, 1” Nominal Imperial Legacy Part Number IE:   NRV.E0100
Hygienic VANRDW038SD06		1 1/2"			316L	1.4408/J92900	Price On Request
View Page ISO NRV Clamp, 1½” Nominal Imperial Legacy Part Number IE:   NRV.E0150
Hygienic VANRDW051SD06		2"			316L	1.4408/J92900	Price On Request
View Page ISO NRV Clamp, 2” Nominal Imperial Legacy Part Number IE:   NRV.E0200
Hygienic VANRDW063SD06		2 1/2"			316L	1.4408/J92900	Price On Request
View Page ISO NRV Clamp, 2½” Nominal Imperial Legacy Part Number IE:   NRV.E0250
Hygienic VANRDW076SD06		3"			316L	1.4408/J92900	Price On Request
View Page ISO NRV Clamp, 3” Nominal Imperial Legacy Part Number IE:   NRV.E0300
Hygienic VANRDW101SD06		4"			316L	1.4408/J92900	Price On Request
View Page ISO NRV Clamp, 4” Nominal Imperial Legacy Part Number IE:   NRV.E0400
Hygienic BKBDB4025SD6L		1/2"		1" (25.4mm)	316L	1.4404/≈ SS2348	Price On Request

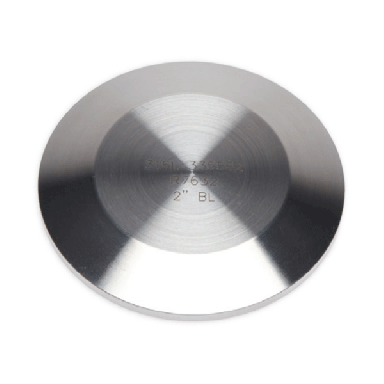

View Page Blanks, ½” Nominal, 12.5 Face mm Legacy Part Number IE:   BKD.0050 Dimensional Image Key: • Width (W) mm:  5.6 • Flange (A) mm:  25.4 • Flange (A) in:  1" • Face (D) mm:  12.5 • Width (W) in:  0.22 • Face (D) in:  0.49
Hygienic BKBDDA034SD6L		DN10		1.34" (34mm)	316L	1.4404/≈ SS2348	Price On Request
View Page Blanks, DIN10 Nominal, 15.5 Face mm Legacy Part Number IE:   BKD.D010 Dimensional Image Key: • Width (W) mm:  7 • Flange (A) mm:  34 • Flange (A) in:  1.34" • Face (D) mm:  15.5 • Width (W) in:  0.28 • Face (D) in:  0.61
Hygienic BKBDB4050SD6L		1 - 1 1/2"		1.99" (50.5mm)	316L	1.4404/≈ SS2348	Price On Request
View Page Blanks, 1 - 1½” Nominal, 24.5 Face mm Legacy Part Number IE:   BKD.0100 Dimensional Image Key: • Width (W) mm:  7 • Flange (A) mm:  50.5 • Flange (A) in:  1.99" • Face (D) mm:  24.5 • Width (W) in:  0.28 • Face (D) in:  0.96
Hygienic BKBDB4064SD6L		2"		2.52" (64mm)	316L	1.4404/≈ SS2348	Price On Request
View Page Blanks, 2” Nominal, 39 Face mm Legacy Part Number IE:   BKD.0200 Dimensional Image Key: • Width (W) mm:  7 • Flange (A) mm:  64 • Flange (A) in:  2.52" • Face (D) mm:  39 • Width (W) in:  0.28 • Face (D) in:  1.54
Hygienic BKBDB4077SD6L		2 1/2"		3.05" (77.5mm)	316L	1.4404/≈ SS2348	Price On Request
View Page Blanks, 2½” Nominal, 53.5 Face mm Legacy Part Number IE:   BKD.0250 Dimensional Image Key: • Width (W) mm:  7 • Flange (A) mm:  77.5 • Flange (A) in:  3.05" • Face (D) mm:  53.5 • Width (W) in:  0.28 • Face (D) in:  2.11
Hygienic BKBDB4091SD6L		3"		3.58" (91mm)	316L	1.4404/≈ SS2348	Price On Request
View Page Blanks, 3” Nominal, 66.5 Face mm Legacy Part Number IE:   BKD.0300 Dimensional Image Key: • Width (W) mm:  7 • Flange (A) mm:  91 • Flange (A) in:  3.58" • Face (D) mm:  66.5 • Width (W) in:  0.28 • Face (D) in:  2.62

Please Login To Order

Prev 1 2 3 4 …5 Next
