    DIN SVFI 32676 Sterile Visual Flow Indicator


    DIN SVFI 32676 Sterile Visual Flow Indicator
    Description
    DIN 32676 Sterile Visual Flow Indicators; CT-SVFI is a patented design, controlled O-ring compression​, and glass is precision sized to meet the ID of the tube​.
    Installation
    Assembly / disassembly time is reduced due to use of a clamp connection​.
    Specifications
    • Supplied with full document pack​
    • Each assembly is hydrostatically tested to 1.5x MAWP​
    • Polished to ASME:BPE SF4(internal) SF6 (External) - Electro-polished​

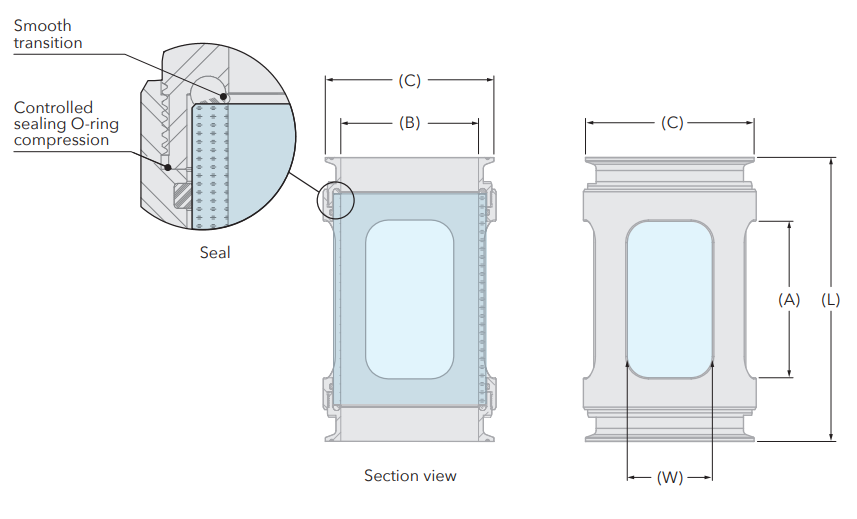

    Dimensional Image
    Features
    • Designed to EHEDG design guidelines for cleanability​
    • Suitable for Pharmaceutical Production​
    • Produced from EU materials​
    • Suitable for SIP
    • ASME BPE / 3A BS4825​ compatible
    Materials
    • EU sourced 1.4404​
    • Boro 3.3​
    • EPDM​
    Total: 12
    Industry
    PART#    		 Standard Nom
    Imperial    		 Nom
    Metric/ISO    		 Mating
    Flange (A)    		 Material
    Grade    		 EN/ASTM
    Std    		 Integral
    Flange (D)    		 ID
    (B)    		 Minor OD
    (F/D)    		 Major OD
    (G)    		 Window
    Area(AxW)    		 Width
    (E)    		 Length
    (L)    		 LIST
    PRICE
    Pharmaceutical
    SVEKDA034013S46L
    		DIN 32676 Table A DIN 10(metric) 1.34" (34mm) 316L 1.4404/S31603 0.39" (10mm) 0.39" x 0.79" (10 x 20mm) 3.15" (80mm)
    Price On Request
    dimensional image
    View Page
     DIN 32676 Sterile Visual Flow Indicator; DIN10 Metric Nom, Window 10x20, 10mm ID. GTIN:   840384323735 Legacy Part Number IE:   SG.SV.D010 Legacy Part Number UK:   SG.SV.D010 Legacy Part Number DK:   SGSVD010
    Dimensional Image Key:
    • • Width (W) mm:  20
    • • Window (A) x (W) mm:  10 x 20
    • • ID (B) mm:  10
    • • Mating Flange (C) mm:  34
    • • Length (L) mm:  80
    • • Flange (C) mm:  34
    • • Width (W) in:  0.79"
    • • Mating Flange (C) in:  1.34"
    • • ID (B) in:  0.39"
    • • Window (A) x (W) in:  0.39" x 0.79"
    • • Window Height (A) mm:  10
    • • Window Height (A) in:  0.39"
    • • Length (L) in:  3.15"
    Pharmaceutical
    SVEKDA034019S46L
    		DIN 32676 Table A DIN 15(metric) 1.34" (34mm) 316L 1.4404/S31603 0.63" (16mm) 0.49" x 1.06" (12.5 x 27mm) 3.43" (87mm)
    Price On Request
    dimensional image
    View Page
     DIN 32676 Sterile Visual Flow Indicator; DIN15 Metric Nom, Window 12.5x27, 16mm ID. GTIN:   840384323759 Legacy Part Number IE:   SG.SV.D015 Legacy Part Number UK:   SG.SV.D015 Legacy Part Number DK:   SGSVD015
    Dimensional Image Key:
    • • Width (W) mm:  27
    • • Window (A) x (W) mm:  12.5 x 27
    • • ID (B) mm:  16
    • • Mating Flange (C) mm:  34
    • • Length (L) mm:  87
    • • Flange (C) mm:  34
    • • Width (W) in:  1.06"
    • • Mating Flange (C) in:  1.34"
    • • ID (B) in:  0.63"
    • • Window (A) x (W) in:  0.49" x 1.06"
    • • Window Height (A) mm:  12.5
    • • Window Height (A) in:  0.49"
    • • Length (L) in:  3.43"
    Pharmaceutical
    SVEKDA034023S46L
    		DIN 32676 Table A DIN 20(metric) 1.34" (34mm) 316L 1.4404/S31603 0.79" (20mm) 0.59" x 1.18" (15 x 30mm) 3.54" (90mm)
    Price On Request
    dimensional image
    View Page
     DIN 32676 Sterile Visual Flow Indicator; DIN20 Metric Nom, Window 15x30, 20mm ID. GTIN:   840384323773 Legacy Part Number IE:   SG.SV.D020 Legacy Part Number UK:   SG.SV.D020 Legacy Part Number DK:   SGSVD020
    Dimensional Image Key:
    • • Width (W) mm:  30
    • • Window (A) x (W) mm:  15 x 30
    • • ID (B) mm:  20
    • • Mating Flange (C) mm:  34
    • • Length (L) mm:  90
    • • Flange (C) mm:  34
    • • Width (W) in:  1.18"
    • • Mating Flange (C) in:  1.34"
    • • ID (B) in:  0.79"
    • • Window (A) x (W) in:  0.59" x 1.18"
    • • Window Height (A) mm:  15
    • • Window Height (A) in:  0.59"
    • • Length (L) in:  3.54"
    Pharmaceutical
    SVEKDA050029S46L
    		DIN 32676 Table A DIN 25(metric) 1.99" (50.5mm) 316L 1.4404/S31603 1.02" (26mm) 0.75" x 1.5" (19 x 38mm) 3.74" (95mm)
    Price On Request
    dimensional image
    View Page
     DIN 32676 Sterile Visual Flow Indicator; DIN25 Metric Nom, Window 19x38, 26mm ID. GTIN:   840384323797 Legacy Part Number IE:   SG.SV.D025 Legacy Part Number UK:   SG.SV.D025 Legacy Part Number DK:   SGSVD025
    Dimensional Image Key:
    • • Width (W) mm:  38
    • • Window (A) x (W) mm:  19 x 38
    • • ID (B) mm:  26
    • • Mating Flange (C) mm:  50.5
    • • Length (L) mm:  95
    • • Flange (C) mm:  50.5
    • • Width (W) in:  1.5"
    • • Mating Flange (C) in:  1.99"
    • • ID (B) in:  1.02"
    • • Window (A) x (W) in:  0.75" x 1.5"
    • • Window Height (A) mm:  19
    • • Window Height (A) in:  0.75"
    • • Length (L) in:  3.74"
    Pharmaceutical
    SVEKDA050035S46L
    		DIN 32676 Table A DIN 32(metric) 1.99" (50.5mm) 316L 1.4404/S31603 1.26" (32mm) 0.93" x 1.65" (23.5 x 42mm) 4.02" (102mm)
    Price On Request
    dimensional image
    View Page
     DIN 32676 Sterile Visual Flow Indicator; DIN32 Metric Nom, Window 23.5x42, 32mm ID. GTIN:   840384323810 Legacy Part Number IE:   SG.SV.D032 Legacy Part Number UK:   SG.SV.D032 Legacy Part Number DK:   SGSVD032
    Dimensional Image Key:
    • • Width (W) mm:  42
    • • Window (A) x (W) mm:  23.5 x 42
    • • ID (B) mm:  32
    • • Mating Flange (C) mm:  50.5
    • • Length (L) mm:  102
    • • Flange (C) mm:  50.5
    • • Width (W) in:  1.65"
    • • Mating Flange (C) in:  1.99"
    • • ID (B) in:  1.26"
    • • Window (A) x (W) in:  0.93" x 1.65"
    • • Window Height (A) mm:  23.5
    • • Window Height (A) in:  0.93"
    • • Length (L) in:  4.02"
    Pharmaceutical
    SVEKDA050041S46L
    		DIN 32676 Table A DIN 40(metric) 1.99" (50.5mm) 316L 1.4404/S31603 1.5" (38mm) 1.1" x 2.01" (28 x 51mm) 4.25" (108mm)
    Price On Request
    dimensional image
    View Page
     DIN 32676 Sterile Visual Flow Indicator; DIN40 Metric Nom, Window 28x51, 38mm ID. GTIN:   840384323834 Legacy Part Number IE:   SG.SV.D040 Legacy Part Number UK:   SG.SV.D040 Legacy Part Number DK:   SGSVD040
    Dimensional Image Key:
    • • Width (W) mm:  51
    • • Window (A) x (W) mm:  28 x 51
    • • ID (B) mm:  38
    • • Mating Flange (C) mm:  50.5
    • • Length (L) mm:  108
    • • Flange (C) mm:  50.5
    • • Width (W) in:  2.01"
    • • Mating Flange (C) in:  1.99"
    • • ID (B) in:  1.5"
    • • Window (A) x (W) in:  1.1" x 2.01"
    • • Window Height (A) mm:  28
    • • Window Height (A) in:  1.1"
    • • Length (L) in:  4.25"
    Pharmaceutical
    SVEKDA064053S46L
    		DIN 32676 Table A DIN 50(metric) 2.52" (64mm) 316L 1.4404/S31603 1.97" (50mm) 1.5" x 2.52" (38 x 64mm) 4.88" (124mm)
    Price On Request
    dimensional image
    View Page
     DIN 32676 Sterile Visual Flow Indicator; DIN50 Metric Nom, Window 38x64, 50mm ID. GTIN:   840384323858 Legacy Part Number IE:   SG.SV.D050 Legacy Part Number UK:   SG.SV.D050 Legacy Part Number DK:   SGSVD050
    Dimensional Image Key:
    • • Width (W) mm:  64
    • • Window (A) x (W) mm:  38 x 64
    • • ID (B) mm:  50
    • • Mating Flange (C) mm:  64
    • • Length (L) mm:  124
    • • Flange (C) mm:  64
    • • Width (W) in:  2.52"
    • • Mating Flange (C) in:  2.52"
    • • ID (B) in:  1.97"
    • • Window (A) x (W) in:  1.5" x 2.52"
    • • Window Height (A) mm:  38
    • • Window Height (A) in:  1.5"
    • • Length (L) in:  4.88"
    Pharmaceutical
    SVEKDA091070S46L
    		DIN 32676 Table A DIN 65(metric) 3.58" (91mm) 316L 1.4404/S31603 2.6" (66mm) 2.01" x 3.27" (51 x 83mm) 6.38" (162mm)
    Price On Request
    dimensional image
    View Page
     DIN 32676 Sterile Visual Flow Indicator; DIN65 Metric Nom, Window 51x83, 66mm ID. GTIN:   840384323872 Legacy Part Number IE:   SG.SV.D065 Legacy Part Number UK:   SG.SV.D065 Legacy Part Number DK:   SGSVD065
    Dimensional Image Key:
    • • Width (W) mm:  83
    • • Window (A) x (W) mm:  51 x 83
    • • ID (B) mm:  66
    • • Mating Flange (C) mm:  91
    • • Length (L) mm:  162
    • • Flange (C) mm:  91
    • • Width (W) in:  3.27"
    • • Mating Flange (C) in:  3.58"
    • • ID (B) in:  2.6"
    • • Window (A) x (W) in:  2.01" x 3.27"
    • • Window Height (A) mm:  51
    • • Window Height (A) in:  2.01"
    • • Length (L) in:  6.38"
    Pharmaceutical
    SVEKDA106085S46L
    		DIN 32676 Table A DIN 80(metric) 4.17" (106mm) 316L 1.4404/S31603 3.19" (81mm) 2.28" x 3.86" (58 x 98mm) 7.2" (183mm)
    Price On Request
    dimensional image
    View Page
     DIN 32676 Sterile Visual Flow Indicator; DIN80 Metric Nom, Window 58x98, 81mm ID. GTIN:   840384323896 Legacy Part Number IE:   SG.SV.D080 Legacy Part Number UK:   SG.SV.D080 Legacy Part Number DK:   SGSVD080
    Dimensional Image Key:
    • • Width (W) mm:  98
    • • Window (A) x (W) mm:  58 x 98
    • • ID (B) mm:  81
    • • Mating Flange (C) mm:  106
    • • Length (L) mm:  183
    • • Flange (C) mm:  106
    • • Width (W) in:  3.86"
    • • Mating Flange (C) in:  4.17"
    • • ID (B) in:  3.19"
    • • Window (A) x (W) in:  2.28" x 3.86"
    • • Window Height (A) mm:  58
    • • Window Height (A) in:  2.28"
    • • Length (L) in:  7.2"
    Pharmaceutical
    SVEKDA119104S46L
    		DIN 32676 Table A DN 100(metric) 4.69" (119mm) 316L 1.4404/S31603 3.94" (100mm) 2.8" x 4.21" (71 x 107mm) 7.95" (202mm)
    Price On Request
    dimensional image
    View Page
     DIN 32676 Sterile Visual Flow Indicator; DIN100 Metric Nom, Window 71x107, 100mm ID. GTIN:   840384323919 Legacy Part Number IE:   SG.SV.D100 Legacy Part Number UK:   SG.SV.D100 Legacy Part Number DK:   SGSVD100
    Dimensional Image Key:
    • • Width (W) mm:  107
    • • Window (A) x (W) mm:  71 x 107
    • • ID (B) mm:  100
    • • Mating Flange (C) mm:  119
    • • Length (L) mm:  202
    • • Flange (C) mm:  119
    • • Width (W) in:  4.21"
    • • Mating Flange (C) in:  4.69"
    • • ID (B) in:  3.94"
    • • Window (A) x (W) in:  2.8" x 4.21"
    • • Window Height (A) mm:  71
    • • Window Height (A) in:  2.8"
    • • Length (L) in:  7.95"
    Pharmaceutical
    SVEKDA155129S46L
    		DIN 32676 Table A DIN 125(metric) 6.1" (155mm) 316L 1.4404/S31603 4.92" (125mm) 3.23" x 5" (82 x 127mm) 8.86" (225mm)
    Price On Request
    dimensional image
    View Page
     DIN 32676 Sterile Visual Flow Indicator; DIN125 Metric Nom, Window 82x127, 125mm ID. GTIN:   840384323933 Legacy Part Number IE:   SG.SV.D125 Legacy Part Number UK:   SG.SV.D125 Legacy Part Number DK:   SGSVD125
    Dimensional Image Key:
    • • Width (W) mm:  127
    • • Window (A) x (W) mm:  82 x 127
    • • ID (B) mm:  125
    • • Mating Flange (C) mm:  155
    • • Length (L) mm:  225
    • • Flange (C) mm:  155
    • • Width (W) in:  5"
    • • Mating Flange (C) in:  6.1"
    • • ID (B) in:  4.92"
    • • Window (A) x (W) in:  3.23" x 5"
    • • Window Height (A) mm:  82
    • • Window Height (A) in:  3.23"
    • • Length (L) in:  8.86"
    Pharmaceutical
    SVEKDA183154S46L
    		DIN 32676 Table A DIN 150(metric) 7.2" (183mm) 316L 1.4404/S31603 5.91" (150mm) 3.74" x 5.83" (95 x 148mm) 9.88" (251mm)
    Price On Request
    dimensional image
    View Page
     DIN 32676 Sterile Visual Flow Indicator; DIN150 Metric Nom, Window 95x148, 150mm ID. GTIN:   840384323957 Legacy Part Number IE:   SG.SV.D150 Legacy Part Number UK:   SG.SV.D150 Legacy Part Number DK:   SGSVD150
    Dimensional Image Key:
    • • Width (W) mm:  148
    • • Window (A) x (W) mm:  95 x 148
    • • ID (B) mm:  150
    • • Mating Flange (C) mm:  183
    • • Length (L) mm:  251
    • • Flange (C) mm:  183
    • • Width (W) in:  5.83"
    • • Mating Flange (C) in:  7.2"
    • • ID (B) in:  5.91"
    • • Window (A) x (W) in:  3.74" x 5.83"
    • • Window Height (A) mm:  95
    • • Window Height (A) in:  3.74"
    • • Length (L) in:  9.88"
