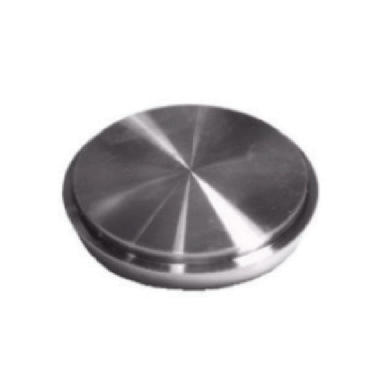

    DIN Blanks


    DIN Blanks
    Total: 12
    Industry
    PART#    		 Standard Flange
    (A)    		 Fitting
    Component    		 Material
    Grade    		 EN/ASTM
    Std    		 ID
    (E)    		 OD
    (D)    		 OD2
    (H)    		 Length
    (C)    		 LIST
    PRICE
    Hygienic
    BLDI000130156L
    		DIN Blank 316L 1.4404/S31603 0.89 (22.5mm) 0.89" 0.35 (9mm)
    Price On Request
    dimensional image
    View Page
     Hygienic DIN Union (10mm) | Blank | 316L GTIN:   840384332065 Legacy Part Number IE:   BKDI0010 Legacy Part Number UK:   BKDI0010 Legacy Part Number DK:   BKDI0010
    Dimensional Image Key:
    • • Length (C) mm:  9
    • • OD (D) mm:  22.5
    • • OD (H) mm:  22.5
    • • Thickness (T) mm:  9
    • • Length (C) in:  0.35
    • • OD (D) in:  0.89
    • • OD 2 (H) in:  0.89"
    • • Thickness (T) in:  0.35"
    Hygienic
    BLDI000190156L
    		DIN Blank 316L 1.4404/S31603 1.12 (28.5mm) 1.12" 0.35 (9mm)
    Price On Request
    dimensional image
    View Page
     Hygienic DIN Union (15mm) | Blank | 316L GTIN:   840384332072 Legacy Part Number IE:   BKDI0015 Legacy Part Number UK:   BKDI0015 Legacy Part Number DK:   BKDI0015
    Dimensional Image Key:
    • • Length (C) mm:  9
    • • OD (D) mm:  28.5
    • • OD (H) mm:  28.5
    • • Thickness (T) mm:  9
    • • Length (C) in:  0.35
    • • OD (D) in:  1.12
    • • OD 2 (H) in:  1.12"
    • • Thickness (T) in:  0.35"
    Hygienic
    BLDI000230156L
    		DIN Blank 316L 1.4404/S31603 1.44 (36.5mm) 1.44" 0.43 (11mm)
    Price On Request
    dimensional image
    View Page
     Hygienic DIN Union (20mm) | Blank | 316L GTIN:   840384332089 Legacy Part Number IE:   BKDI0020 Legacy Part Number UK:   BKDI0020 Legacy Part Number DK:   BKDI0020
    Dimensional Image Key:
    • • Length (C) mm:  11
    • • OD (D) mm:  36.5
    • • OD (H) mm:  36.5
    • • Thickness (T) mm:  11
    • • Length (C) in:  0.43
    • • OD (D) in:  1.44
    • • OD 2 (H) in:  1.44"
    • • Thickness (T) in:  0.43"
    Hygienic
    BLDI000290156L
    		DIN Blank 316L 1.4404/S31603 1.73 (44mm) 1.73" 0.51 (13mm)
    Price On Request
    dimensional image
    View Page
     Hygienic DIN Union (25mm) | Blank | 316L GTIN:   840384332096 Legacy Part Number IE:   BKDI0025 Legacy Part Number UK:   BKDI0025 Legacy Part Number DK:   BKDI0025
    Dimensional Image Key:
    • • Length (C) mm:  13
    • • OD (D) mm:  44
    • • OD (H) mm:  44
    • • Thickness (T) mm:  13
    • • Length (C) in:  0.51
    • • OD (D) in:  1.73
    • • OD 2 (H) in:  1.73"
    • • Thickness (T) in:  0.51"
    Hygienic
    BLDI000350156L
    		DIN Blank 316L 1.4404/S31603 1.97 (50mm) 1.97" 0.51 (13mm)
    Price On Request
    dimensional image
    View Page
     Hygienic DIN Union (32mm) | Blank | 316L GTIN:   840384332102 Legacy Part Number IE:   BKDI0032 Legacy Part Number UK:   BKDI0032 Legacy Part Number DK:   BKDI0032
    Dimensional Image Key:
    • • Length (C) mm:  13
    • • OD (D) mm:  50
    • • OD (H) mm:  50
    • • Thickness (T) mm:  13
    • • Length (C) in:  0.51
    • • OD (D) in:  1.97
    • • OD 2 (H) in:  1.97"
    • • Thickness (T) in:  0.51"
    Hygienic
    BLDI000410156L
    		DIN Blank 316L 1.4404/S31603 2.2 (56mm) 2.2" 0.51 (13mm)
    Price On Request
    dimensional image
    View Page
     Hygienic DIN Union (40mm) | Blank | 316L GTIN:   840384332119 Legacy Part Number IE:   BKDI0040 Legacy Part Number UK:   BKDI0040 Legacy Part Number DK:   BKDI0040
    Dimensional Image Key:
    • • Length (C) mm:  13
    • • OD (D) mm:  56
    • • OD (H) mm:  56
    • • Thickness (T) mm:  13
    • • Length (C) in:  0.51
    • • OD (D) in:  2.2
    • • OD 2 (H) in:  2.2"
    • • Thickness (T) in:  0.51"
    Hygienic
    BLDI000530156L
    		DIN Blank 316L 1.4404/S31603 2.7 (68.5mm) 2.7" 0.55 (14mm)
    Price On Request
    dimensional image
    View Page
     Hygienic DIN Union (50mm) | Blank | 316L GTIN:   840384332126 Legacy Part Number IE:   BKDI0050 Legacy Part Number UK:   BKDI0050 Legacy Part Number DK:   BKDI0050
    Dimensional Image Key:
    • • Length (C) mm:  14
    • • OD (D) mm:  68.5
    • • OD (H) mm:  68.5
    • • Thickness (T) mm:  14
    • • Length (C) in:  0.55
    • • OD (D) in:  2.7
    • • OD 2 (H) in:  2.7"
    • • Thickness (T) in:  0.55"
    Hygienic
    BLDI000700206L
    		DIN Blank 316L 1.4404/S31603 3.39 (86mm) 3.39" 0.63 (16mm)
    Price On Request
    dimensional image
    View Page
     Hygienic DIN Union (65mm) | Blank | 316L GTIN:   840384332133 Legacy Part Number IE:   BKDI0065 Legacy Part Number UK:   BKDI0065 Legacy Part Number DK:   BKDI0065
    Dimensional Image Key:
    • • Length (C) mm:  16
    • • OD (D) mm:  86
    • • OD (H) mm:  86
    • • Thickness (T) mm:  16
    • • Length (C) in:  0.63
    • • OD (D) in:  3.39
    • • OD 2 (H) in:  3.39"
    • • Thickness (T) in:  0.63"
    Hygienic
    BLDI000850206L
    		DIN Blank 316L 1.4404/S31603 3.94 (100mm) 3.94" 0.63 (16mm)
    Price On Request
    dimensional image
    View Page
     Hygienic DIN Union (80mm) | Blank | 316L GTIN:   840384332140 Legacy Part Number IE:   BKDI0080 Legacy Part Number UK:   BKDI0080 Legacy Part Number DK:   BKDI0080
    Dimensional Image Key:
    • • Length (C) mm:  16
    • • OD (D) mm:  100
    • • OD (H) mm:  100
    • • Thickness (T) mm:  16
    • • Length (C) in:  0.63
    • • OD (D) in:  3.94
    • • OD 2 (H) in:  3.94"
    • • Thickness (T) in:  0.63"
    Hygienic
    BLDI001040206L
    		DIN Blank 316L 1.4404/S31603 4.76 (121mm) 4.76" 0.79 (20mm)
    Price On Request
    dimensional image
    View Page
     Hygienic DIN Union (100mm) | Blank | 316L GTIN:   840384332157 Legacy Part Number IE:   BKDI0100 Legacy Part Number UK:   BKDI0100 Legacy Part Number DK:   BKDI0100
    Dimensional Image Key:
    • • Length (C) mm:  20
    • • OD (D) mm:  121
    • • OD (H) mm:  121
    • • Thickness (T) mm:  20
    • • Length (C) in:  0.79
    • • OD (D) in:  4.76
    • • OD 2 (H) in:  4.76"
    • • Thickness (T) in:  0.79"
    Hygienic
    BLDI001290206L
    		DIN Blank 316L 1.4404/S31603 5.91 (150mm) 5.91" 0.87 (22mm)
    Price On Request
    dimensional image
    View Page
     Hygienic DIN Union (125mm) | Blank | 316L GTIN:   840384332164 Legacy Part Number IE:   BKDI0125 Legacy Part Number UK:   BKDI0125 Legacy Part Number DK:   BKDI0125
    Dimensional Image Key:
    • • Length (C) mm:  22
    • • OD (D) mm:  150
    • • OD (H) mm:  150
    • • Thickness (T) mm:  22
    • • Length (C) in:  0.87
    • • OD (D) in:  5.91
    • • OD 2 (H) in:  5.91"
    • • Thickness (T) in:  0.87"
    Hygienic
    BLDI001540206L
    		DIN Blank 316L 1.4404/S31603 6.93 (176mm) 6.93" 0.94 (24mm)
    Price On Request
    dimensional image
    View Page
     Hygienic DIN Union (150mm) | Blank | 316L GTIN:   840384332171 Legacy Part Number IE:   BKDI0150 Legacy Part Number UK:   BKDI0150 Legacy Part Number DK:   BKDI0150
    Dimensional Image Key:
    • • Length (C) mm:  24
    • • OD (D) mm:  176
    • • OD (H) mm:  176
    • • Thickness (T) mm:  24
    • • Length (C) in:  0.94
    • • OD (D) in:  6.93
    • • OD 2 (H) in:  6.93"
    • • Thickness (T) in:  0.94"
    Please Login To Order
    Hygienic DIN Union (10mm) | Blank | 316L
    Hygienic
    BLDI000130156L
    Price On Request
    Hygienic DIN Union (15mm) | Blank | 316L
    Hygienic
    BLDI000190156L
    Price On Request
    Hygienic DIN Union (20mm) | Blank | 316L
    Hygienic
    BLDI000230156L
    Price On Request
    Hygienic DIN Union (25mm) | Blank | 316L
    Hygienic
    BLDI000290156L
    Price On Request
    Hygienic DIN Union (32mm) | Blank | 316L
    Hygienic
    BLDI000350156L
    Price On Request
    Hygienic DIN Union (40mm) | Blank | 316L
    Hygienic
    BLDI000410156L
    Price On Request
    Hygienic DIN Union (50mm) | Blank | 316L
    Hygienic
    BLDI000530156L
    Price On Request
    Hygienic DIN Union (65mm) | Blank | 316L
    Hygienic
    BLDI000700206L
    Price On Request
    Hygienic DIN Union (80mm) | Blank | 316L
    Hygienic
    BLDI000850206L
    Price On Request
    Hygienic DIN Union (100mm) | Blank | 316L
    Hygienic
    BLDI001040206L
    Price On Request
    Hygienic DIN Union (125mm) | Blank | 316L
    Hygienic
    BLDI001290206L
    Price On Request
    Hygienic DIN Union (150mm) | Blank | 316L
    Hygienic
    BLDI001540206L
    Price On Request
