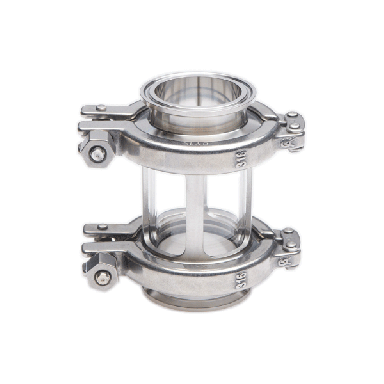

CT-SVFI-SHX Clamp Type Sterile Visual Flow Indicator

Description

CT-SVFI SHX Clamp Type Sterile Visual Flow Indicator for Pharma (F&B / Chem too) applications boasts a patented design, controlled O-ring compression, and glass is precision sized to meet the ID of the tube. Sizes from 3/8" to 6" (Stock), and 6.625" to 12" (Bespoke).

Installation

Assembly / disassembly time is reduced due to use of a clamp connection.

Specifications

ASME BPE / 3A BS4825 compatible
Supplied with full document pack
Each assembly is hydrostatically tested to 1.5x MAWP
Polished to ASME:BPE SF4(internal) SF6 (External) - Electro-polished

ACL® CT-SVFI – SHX Clamp Type Sterile Visual Flow Indicator Data Sheet Download

Dimensional Image

Features

Designed to EHEDG design guidelines for cleanability
Suitable for Pharmaceutical Production
Produced from EU materials
Suitable for SIP
Assembly / disassembly time is reduced due to use of a clamp connection

Materials

EU sourced 1.4404, Boro 3.3, EPDM

Industry PART#	Standard	Nom Imperial	Nom Metric/ISO	Mating Flange (A)	Material Grade	EN/ASTM Std	Integral Flange (D)	ID (B)	Minor OD (F/D)	Major OD (G)	Window Area(AxW)	Width (E)	Length (L)	LIST PRICE
Pharmaceutical SCEKA1025127S46L	ASME BPE	1/2"	12.7(metric)	0.98" (25mm)	316L	1.4404/S31603	1.34" (34mm)	0.37" (9.4mm)	1.82" (46.3mm)	5.35" (136mm)	0.94" x 0.31" (24 x 8mm)	3.35" (85mm)	2.99" (76mm)	Price On Request
View Page Clamp-type Sterile Visual Flow Indicator; ½” Imperial Nom, Window 24x8, 9.4mm ID. GTIN: 840384323353 Legacy Part Number IE: SG.SC.050 Legacy Part Number UK: SG.SC.050 Legacy Part Number DK: CTSVFI0050SF4 Dimensional Image Key: • Width (W) mm: 8 • Window (A) x (W) mm: 24 x 8 • ID (B) mm: 9.4 • Mating Flange (C) mm: 25 • Integral Flange (D) mm: 34 • Length (L) mm: 76 • Width (E) mm: 85 • Minor OD (F) mm: 46.3 • Major OD (G) mm: 136 • Width (W) in: 0.31" • Mating Flange (C) in: 0.98" • Integral Flange (D) in: 1.34" • ID (B) in: 0.37" • Minor OD (F) in: 1.82" • Major OD (G) in: 5.35" • Window (A) x (W) in: 0.94" x 0.31" • Window Height (A) mm: 24 • Window Height (A) in: 0.94" • Width (E) in: 3.35" • Length (L) in: 2.99"
Pharmaceutical SCEKA1025195S46L	ASME BPE	3/4"	19.05(metric)	0.98" (25mm)	316L	1.4404/S31603	1.99" (50.5mm)	0.62" (15.75mm)	2.45" (62.2mm)	6.06" (154mm)	1.14" x 0.51" (29 x 13mm)	4.02" (102mm)	3.43" (87mm)	Price On Request
View Page Clamp-type Sterile Visual Flow Indicator; ¾” Imperial Nom, Window 29x13, 15.75mm ID. GTIN: 840384323377 Legacy Part Number IE: SG.SC.075 Legacy Part Number UK: SG.SC.075 Legacy Part Number DK: SCEKA1025195S46L Dimensional Image Key: • Width (W) mm: 13 • Window (A) x (W) mm: 29 x 13 • ID (B) mm: 15.75 • Mating Flange (C) mm: 25 • Integral Flange (D) mm: 50.5 • Length (L) mm: 87 • Width (E) mm: 102 • Minor OD (F) mm: 62.2 • Major OD (G) mm: 154 • Width (W) in: 0.51" • Mating Flange (C) in: 0.98" • Integral Flange (D) in: 1.99" • ID (B) in: 0.62" • Minor OD (F) in: 2.45" • Major OD (G) in: 6.06" • Window (A) x (W) in: 1.14" x 0.51" • Window Height (A) mm: 29 • Window Height (A) in: 1.14" • Width (E) in: 4.02" • Length (L) in: 3.43"
Pharmaceutical SCEKA1050025S46L	ASME BPE	1"	25.4(metric)	1.99" (50.5mm)	316L	1.4404/S31603	1.99" (50.5mm)	0.87" (22.1mm)	2.45" (62.2mm)	6.06" (154mm)	1.34" x 0.63" (34 x 16mm)	4.02" (102mm)	3.54" (90mm)	Price On Request
View Page Clamp-type Sterile Visual Flow Indicator; 1" Imperial Nom, Window 34x16, 22.1mm ID. GTIN: 840384323391 Legacy Part Number IE: SG.SC.100 Legacy Part Number UK: SG.SC.100 Legacy Part Number DK: SCEKA1050025S46L Dimensional Image Key: • Width (W) mm: 16 • Window (A) x (W) mm: 34 x 16 • ID (B) mm: 22.1 • Mating Flange (C) mm: 50.5 • Integral Flange (D) mm: 50.5 • Length (L) mm: 90 • Width (E) mm: 102 • Minor OD (F) mm: 62.2 • Major OD (G) mm: 154 • Width (W) in: 0.63" • Mating Flange (C) in: 1.99" • Integral Flange (D) in: 1.99" • ID (B) in: 0.87" • Minor OD (F) in: 2.45" • Major OD (G) in: 6.06" • Window (A) x (W) in: 1.34" x 0.63" • Window Height (A) mm: 34 • Window Height (A) in: 1.34" • Width (E) in: 4.02" • Length (L) in: 3.54"
Pharmaceutical SCEKA1050038S46L	ASME BPE	1 1/2"	38.1(metric)	1.99" (50.5mm)	316L	1.4404/S31603	2.52" (64mm)	1.37" (34.8mm)	3.06" (77.7mm)	7.32" (186mm)	1.89" x 1.02" (48 x 26mm)	4.84" (123mm)	4.13" (105mm)	Price On Request
View Page Clamp-type Sterile Visual Flow Indicator; 1½” Imperial Nom, Window 48x26, 34.8mm ID. GTIN: 840384323414 Legacy Part Number IE: SG.SC.150 Legacy Part Number UK: SG.SC.150 Legacy Part Number DK: SCEKA1050038S46L Dimensional Image Key: • Width (W) mm: 26 • Window (A) x (W) mm: 48 x 26 • ID (B) mm: 34.8 • Mating Flange (C) mm: 50.5 • Integral Flange (D) mm: 64 • Length (L) mm: 105 • Width (E) mm: 123 • Minor OD (F) mm: 77.7 • Major OD (G) mm: 186 • Width (W) in: 1.02" • Mating Flange (C) in: 1.99" • Integral Flange (D) in: 2.52" • ID (B) in: 1.37" • Minor OD (F) in: 3.06" • Major OD (G) in: 7.32" • Window (A) x (W) in: 1.89" x 1.02" • Window Height (A) mm: 48 • Window Height (A) in: 1.89" • Width (E) in: 4.84" • Length (L) in: 4.13"
Pharmaceutical SCEKA1050051S46L	ASME BPE	2"	50.8(metric)	2.52" (64mm)	316L	1.4404/S31603	3.05" (77.5mm)	1.87" (47.5mm)	3.59" (91.2mm)	7.87" (200mm)	2.17" x 1.42" (55 x 36mm)	5.51" (140mm)	4.72" (120mm)	Price On Request
View Page Clamp-type Sterile Visual Flow Indicator; 2” Imperial Nom, Window 55x36, 47.5mm ID. GTIN: 840384323438 Legacy Part Number IE: SG.SC.200 Legacy Part Number UK: SG.SC.200 Legacy Part Number DK: SCEKA1050051S46L Dimensional Image Key: • Width (W) mm: 36 • Window (A) x (W) mm: 55 x 36 • ID (B) mm: 47.5 • Mating Flange (C) mm: 64 • Integral Flange (D) mm: 77.5 • Length (L) mm: 120 • Width (E) mm: 140 • Minor OD (F) mm: 91.2 • Major OD (G) mm: 200 • Width (W) in: 1.42" • Mating Flange (C) in: 2.52" • Integral Flange (D) in: 3.05" • ID (B) in: 1.87" • Minor OD (F) in: 3.59" • Major OD (G) in: 7.87" • Window (A) x (W) in: 2.17" x 1.42" • Window Height (A) mm: 55 • Window Height (A) in: 2.17" • Width (E) in: 5.51" • Length (L) in: 4.72"
Pharmaceutical SCEKA1077063S46L	ASME BPE	2 1/2"	63.5(metric)	3.05" (77.5mm)	316L	1.4404/S31603	3.58" (91mm)	2.37" (60.2mm)	4.12" (104.7mm)	8.35" (212mm)	2.83" x 1.3" (72 x 33mm)	5.91" (150mm)	5.94" (151mm)	Price On Request
View Page Clamp-type Sterile Visual Flow Indicator; 2½” Imperial Nom, Window 72x33, 60.2mm ID. GTIN: 840384323452 Legacy Part Number IE: SG.SC.250 Legacy Part Number UK: SG.SC.250 Legacy Part Number DK: SCEKA1077063S46L Dimensional Image Key: • Width (W) mm: 33 • Window (A) x (W) mm: 72 x 33 • ID (B) mm: 60.2 • Mating Flange (C) mm: 77.5 • Integral Flange (D) mm: 91 • Length (L) mm: 151 • Width (E) mm: 150 • Minor OD (F) mm: 104.7 • Major OD (G) mm: 212 • Width (W) in: 1.3" • Mating Flange (C) in: 3.05" • Integral Flange (D) in: 3.58" • ID (B) in: 2.37" • Minor OD (F) in: 4.12" • Major OD (G) in: 8.35" • Window (A) x (W) in: 2.83" x 1.3" • Window Height (A) mm: 72 • Window Height (A) in: 2.83" • Width (E) in: 5.91" • Length (L) in: 5.94"
Pharmaceutical SCEKA1091076S46L	ASME BPE	3"	76.2(metric)	3.58" (91mm)	316L	1.4404/S31603	4.17" (106mm)	2.87" (72.9mm)	4.71" (119.7mm)	8.9" (226mm)	4.25" x 1.42" (108 x 36mm)	6.5" (165mm)	6.89" (175mm)	Price On Request
View Page Clamp-type Sterile Visual Flow Indicator; 3” Imperial Nom, Window 108x36, 72.9mm ID. GTIN: 840384323476 Legacy Part Number IE: SG.SC.300 Legacy Part Number UK: SG.SC.300 Legacy Part Number DK: SCEKA1091076S46L Dimensional Image Key: • Width (W) mm: 36 • Window (A) x (W) mm: 108 x 36 • ID (B) mm: 72.9 • Mating Flange (C) mm: 91 • Integral Flange (D) mm: 106 • Length (L) mm: 175 • Width (E) mm: 165 • Minor OD (F) mm: 119.7 • Major OD (G) mm: 226 • Width (W) in: 1.42" • Mating Flange (C) in: 3.58" • Integral Flange (D) in: 4.17" • ID (B) in: 2.87" • Minor OD (F) in: 4.71" • Major OD (G) in: 8.9" • Window (A) x (W) in: 4.25" x 1.42" • Window Height (A) mm: 108 • Window Height (A) in: 4.25" • Width (E) in: 6.5" • Length (L) in: 6.89"
Pharmaceutical SCEKA1119101S46L	ASME BPE	4"	101.6(metric)	4.69" (119mm)	316L	1.4404/S31603	5.12" (130mm)	3.83" (97.38mm)	5.66" (143.7mm)	10.08" (256mm)	5.31" x 1.89" (135 x 48mm)	7.52" (191mm)	7.87" (200mm)	Price On Request
View Page Clamp-type Sterile Visual Flow Indicator; 4” Imperial Nom, Window 135x48, 97.38mm ID. GTIN: 840384323490 Legacy Part Number IE: SG.SC.400 Legacy Part Number UK: SG.SC.400 Legacy Part Number DK: SCEKA1119101S46L Dimensional Image Key: • Width (W) mm: 48 • Window (A) x (W) mm: 135 x 48 • ID (B) mm: 97.38 • Mating Flange (C) mm: 119 • Integral Flange (D) mm: 130 • Length (L) mm: 200 • Width (E) mm: 191 • Minor OD (F) mm: 143.7 • Major OD (G) mm: 256 • Width (W) in: 1.89" • Mating Flange (C) in: 4.69" • Integral Flange (D) in: 5.12" • ID (B) in: 3.83" • Minor OD (F) in: 5.66" • Major OD (G) in: 10.08" • Window (A) x (W) in: 5.31" x 1.89" • Window Height (A) mm: 135 • Window Height (A) in: 5.31" • Width (E) in: 7.52" • Length (L) in: 7.87"

Please Login To Order

Clamp-type Sterile Visual Flow Indicator; ½” Imperial Nom, Window 24x8, 9.4mm ID.
Pharmaceutical
SCEKA1025127S46L

Price On Request

Clamp-type Sterile Visual Flow Indicator; ¾” Imperial Nom, Window 29x13, 15.75mm ID.
Pharmaceutical
SCEKA1025195S46L

Price On Request

Clamp-type Sterile Visual Flow Indicator; 1" Imperial Nom, Window 34x16, 22.1mm ID.
Pharmaceutical
SCEKA1050025S46L

Price On Request

Clamp-type Sterile Visual Flow Indicator; 1½” Imperial Nom, Window 48x26, 34.8mm ID.
Pharmaceutical
SCEKA1050038S46L

Price On Request

Clamp-type Sterile Visual Flow Indicator; 2” Imperial Nom, Window 55x36, 47.5mm ID.
Pharmaceutical
SCEKA1050051S46L

Price On Request

Clamp-type Sterile Visual Flow Indicator; 2½” Imperial Nom, Window 72x33, 60.2mm ID.
Pharmaceutical
SCEKA1077063S46L

Price On Request

Clamp-type Sterile Visual Flow Indicator; 3” Imperial Nom, Window 108x36, 72.9mm ID.
Pharmaceutical
SCEKA1091076S46L

Price On Request

Clamp-type Sterile Visual Flow Indicator; 4” Imperial Nom, Window 135x48, 97.38mm ID.
Pharmaceutical
SCEKA1119101S46L

Price On Request

Please Login To Order
