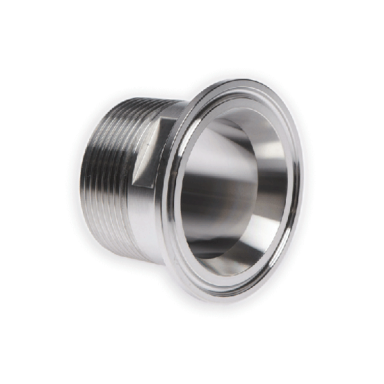

    BSP Male Adapters Metric


    BSP Male Adapters Metric
    Description
    BSP Male Adapters Metric; flatness of sealing face meets or exceeds guidelines​. Designed for Pharma (F&B / Dairy / Chem ) applications. Sizes 1/2" to 2" (Stock) <2" (Bespoke).
    Specifications
    • Materials are AD2000 (PED) and ASME VIII​
    • Surface finish is 0.8Ra um minimum​
    Dimensional Image
    Features
    • Produced in the UK​
    • Quality checks by ACL are at the highest level for fitting manufacturers:​ JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC
    • Circularity of components is within 0.1mm​
    Total: 24
    Industry
    PART#    		 Standard Nom
    Imperial    		 Nom
    Metric/ISO    		 Flange
    (A)    		 Material
    Grade    		 EN/ASTM
    Std    		 Gender Thread
    (T)    		 Mating
    (F)    		 Length
    (C)    		 LIST
    PRICE
    Hygienic
    ADDAMB013635006L
    		1.34" (34mm) 316L 1.4404/≈ SS2348 0.39 (10mm) 1.18 (30mm)
    Price On Request
    dimensional image
    View Page
     BSP Male Adaptor, Metric, DIN10 Nominal, ¼” Connection Legacy Part Number IE:   AMD.D10.025
    Dimensional Image Key:
    • • Length (C) mm:  30
    • • Flange (A) mm:  34
    • • Flange (A) in:  1.34"
    • • Mating (F) mm:  10
    • • Ferrule Connection (T):  .25"
    • • Mating (F) in:  0.39
    • • Length (C) in:  1.18
    Hygienic
    ADDAMB013952006L
    		1.34" (34mm) 316L 1.4404/≈ SS2348 0.39 (10mm) 1.18 (30mm)
    Price On Request
    dimensional image
    View Page
     BSP Male Adaptor, Metric, DIN10 Nominal, 3/8” Connection Legacy Part Number IE:   AMD.D10.038
    Dimensional Image Key:
    • • Length (C) mm:  30
    • • Flange (A) mm:  34
    • • Flange (A) in:  1.34"
    • • Mating (F) mm:  10
    • • Ferrule Connection (T):  .375"
    • • Mating (F) in:  0.39
    • • Length (C) in:  1.18
    Hygienic
    ADDAMB013127006L
    		1.34" (34mm) 316L 1.4404/≈ SS2348 0.39 (10mm) 1.18 (30mm)
    Price On Request
    dimensional image
    View Page
     BSP Male Adaptor, Metric, DIN10 Nominal, ½” Connection Legacy Part Number IE:   AMD.D10.050
    Dimensional Image Key:
    • • Length (C) mm:  30
    • • Flange (A) mm:  34
    • • Flange (A) in:  1.34"
    • • Mating (F) mm:  10
    • • Ferrule Connection (T):  .5"
    • • Mating (F) in:  0.39
    • • Length (C) in:  1.18
    Hygienic
    ADDAMB013195006L
    		1.34" (34mm) 316L 1.4404/≈ SS2348 0.39 (10mm) 1.18 (30mm)
    Price On Request
    dimensional image
    View Page
     BSP Male Adaptor, Metric, DIN15 Nominal, 3/4” Connection Legacy Part Number IE:   AMD.D10.075
    Dimensional Image Key:
    • • Length (C) mm:  30
    • • Flange (A) mm:  34
    • • Flange (A) in:  1.34"
    • • Mating (F) mm:  10
    • • Ferrule Connection (T):  .75"
    • • Mating (F) in:  0.39
    • • Length (C) in:  1.18
    Hygienic
    ADDAMB019635006L
    		1.34" (34mm) 316L 1.4404/≈ SS2348 0.63 (16mm) 1.18 (30mm)
    Price On Request
    dimensional image
    View Page
     BSP Male Adaptor, Metric, DIN15 Nominal, ¼” Connection Legacy Part Number IE:   AMD.D15.025
    Dimensional Image Key:
    • • Length (C) mm:  30
    • • Flange (A) mm:  34
    • • Flange (A) in:  1.34"
    • • Mating (F) mm:  16
    • • Ferrule Connection (T):  .25"
    • • Mating (F) in:  0.63
    • • Length (C) in:  1.18
    Hygienic
    ADDAMB019127006L
    		1.34" (34mm) 316L 1.4404/≈ SS2348 0.63 (16mm) 1.18 (30mm)
    Price On Request
    dimensional image
    View Page
     BSP Male Adaptor, Metric, DIN15 Nominal, 3/8” Connection Legacy Part Number IE:   AMD.D15.038
    Dimensional Image Key:
    • • Length (C) mm:  30
    • • Flange (A) mm:  34
    • • Flange (A) in:  1.34"
    • • Mating (F) mm:  16
    • • Ferrule Connection (T):  .375"
    • • Mating (F) in:  0.63
    • • Length (C) in:  1.18
    Hygienic
    ADDAMB019195006L
    		1.34" (34mm) 316L 1.4404/≈ SS2348 0.63 (16mm) 1.18 (30mm)
    Price On Request
    dimensional image
    View Page
     BSP Male Adaptor, Metric, DIN15 Nominal, ½” Connection Legacy Part Number IE:   AMD.D15.050
    Dimensional Image Key:
    • • Length (C) mm:  30
    • • Flange (A) mm:  34
    • • Flange (A) in:  1.34"
    • • Mating (F) mm:  16
    • • Ferrule Connection (T):  .5"
    • • Mating (F) in:  0.63
    • • Length (C) in:  1.18
    Hygienic
    ADDAMB023635006L
    		1.34" (34mm) 316L 1.4404/≈ SS2348 0.63 (16mm) 1.18 (30mm)
    Price On Request
    dimensional image
    View Page
     BSP Male Adaptor, Metric, DIN20 Nominal, ¾” Connection Legacy Part Number IE:   AMD.D15.075
    Dimensional Image Key:
    • • Length (C) mm:  30
    • • Flange (A) mm:  34
    • • Flange (A) in:  1.34"
    • • Mating (F) mm:  16
    • • Ferrule Connection (T):  .75"
    • • Mating (F) in:  0.63
    • • Length (C) in:  1.18
    Hygienic
    ADDAMB023952006L
    		1.34" (34mm) 316L 1.4404/≈ SS2348 0.79 (20mm) 1.18 (30mm)
    Price On Request
    dimensional image
    View Page
     BSP Male Adaptor, Metric, DIN20 Nominal, ¼” Connection Legacy Part Number IE:   AMD.D20.025
    Dimensional Image Key:
    • • Length (C) mm:  30
    • • Flange (A) mm:  34
    • • Flange (A) in:  1.34"
    • • Mating (F) mm:  20
    • • Ferrule Connection (T):  .25"
    • • Mating (F) in:  0.79
    • • Length (C) in:  1.18
    Hygienic
    ADDAMB023127006L
    		1.34" (34mm) 316L 1.4404/≈ SS2348 0.79 (20mm) 1.18 (30mm)
    Price On Request
    dimensional image
    View Page
     BSP Male Adaptor, Metric, DIN20 Nominal, 3/8” Connection Legacy Part Number IE:   AMD.D20.038
    Dimensional Image Key:
    • • Length (C) mm:  30
    • • Flange (A) mm:  34
    • • Flange (A) in:  1.34"
    • • Mating (F) mm:  20
    • • Ferrule Connection (T):  .375"
    • • Mating (F) in:  0.79
    • • Length (C) in:  1.18
    Hygienic
    ADDAMB023195006L
    		1.34" (34mm) 316L 1.4404/≈ SS2348 0.79 (20mm) 1.18 (30mm)
    Price On Request
    dimensional image
    View Page
     BSP Male Adaptor, Metric, DIN20 Nominal, ½” Connection Legacy Part Number IE:   AMD.D20.050
    Dimensional Image Key:
    • • Length (C) mm:  30
    • • Flange (A) mm:  34
    • • Flange (A) in:  1.34"
    • • Mating (F) mm:  20
    • • Ferrule Connection (T):  .5"
    • • Mating (F) in:  0.79
    • • Length (C) in:  1.18
    Hygienic
    ADDAMB023025006L
    		1.34" (34mm) 316L 1.4404/≈ SS2348 0.79 (20mm) 1.18 (30mm)
    Price On Request
    dimensional image
    View Page
     BSP Male Adaptor, Metric, DIN10 Nominal, ¾” Connection Legacy Part Number IE:   AMD.D20.075
    Dimensional Image Key:
    • • Length (C) mm:  30
    • • Flange (A) mm:  34
    • • Flange (A) in:  1.34"
    • • Mating (F) mm:  20
    • • Ferrule Connection (T):  .75"
    • • Mating (F) in:  0.79
    • • Length (C) in:  1.18
