    BSP Female Metric


    BSP Female Metric
    Description
    BSP Female Adapters Metric; flatness of sealing face meets or exceeds guidelines​. Designed for Pharma (F&B / Dairy / Chem ) applications. Sizes 1/2" to 2" (Stock) <2" (Bespoke).
    Specifications
    • Materials are AD2000 (PED) and ASME VIII​
    • Surface finish is 0.8Ra um minimum​

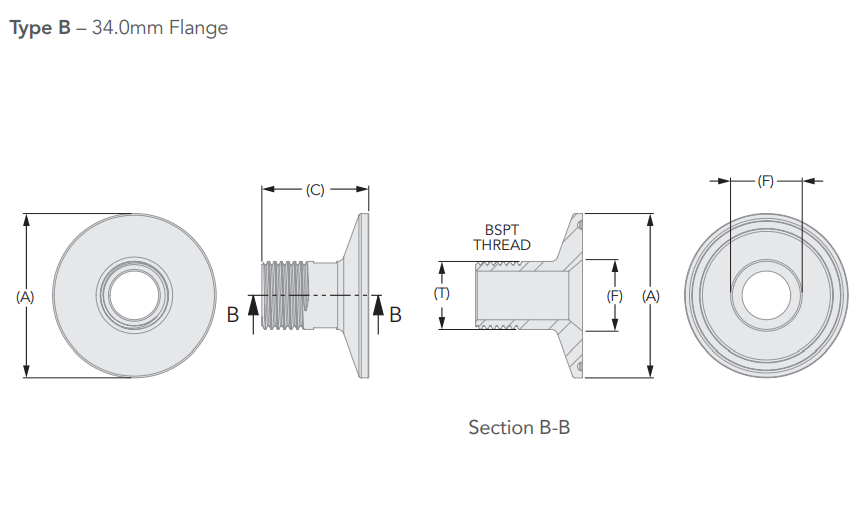

    Dimensional Image
    Features
    • Produced in the UK​
    • Quality checks by ACL are at the highest level for fitting manufacturers:​ JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC
    • Circularity of components is within 0.1mm​
    Total: 24
    Industry
    PART#    		 Standard Nom
    Imperial    		 Nom
    Metric/ISO    		 Flange
    (A)    		 Material
    Grade    		 EN/ASTM
    Std    		 Gender Thread
    (T)    		 Mating
    (F)    		 Length
    (C)    		 LIST
    PRICE
    Pharmaceutical
    ADPAFB013635006L
    		BSP DIN 10(metric) 34mm 316L 1.4404/≈ SS2348 Female 1/4" 10mm 25mm
    Price On Request
    dimensional image
    View Page
     Pharmaceutical Adaptor (DN10) | Female BSP | 316L (Thread 1/4") GTIN:   840384321274 Legacy Part Number IE:   AF.D10.025 Legacy Part Number UK:   AF.D10.025 Legacy Part Number DK:   AFD10025
    Dimensional Image Key:
    • • Length (C) mm:  25
    • • Flange (A) mm:  34
    • • Mating (F) mm:  10
    • • Ferrule Connection (T):  .25"
    • • Thread (T):  1/4"
    Pharmaceutical
    ADPAFB013952006L
    		BSP DIN 10(metric) 34mm 316L 1.4404/≈ SS2348 Female 3/8" 10mm 25mm
    Price On Request
    dimensional image
    View Page
     Pharmaceutical Adaptor (DN10) | Female BSP | 316L (Thread 3/8") GTIN:   840384321281 Legacy Part Number IE:   AF.D10.038 Legacy Part Number UK:   AF.D10.038 Legacy Part Number DK:   AFD10038
    Dimensional Image Key:
    • • Length (C) mm:  25
    • • Flange (A) mm:  34
    • • Mating (F) mm:  10
    • • Ferrule Connection (T):  .375"
    • • Thread (T):  3/8"
    Pharmaceutical
    ADPAFB013127006L
    		BSP DIN 10(metric) 34mm 316L 1.4404/≈ SS2348 Female 1/2" 10mm 30mm
    Price On Request
    dimensional image
    View Page
     Pharmaceutical Adaptor (DN10) | Female BSP | 316L (Thread 1/2") GTIN:   840384321298 Legacy Part Number IE:   AF.D10.050 Legacy Part Number UK:   AF.D10.050 Legacy Part Number DK:   AFD10050
    Dimensional Image Key:
    • • Length (C) mm:  30
    • • Flange (A) mm:  34
    • • Mating (F) mm:  10
    • • Ferrule Connection (T):  .5"
    • • Thread (T):  1/2"
    Pharmaceutical
    ADPAFB013195006L
    		BSP DIN 10(metric) 34mm 316L 1.4404/≈ SS2348 Female 3/4" 10mm 30mm
    Price On Request
    dimensional image
    View Page
     Pharmaceutical Adaptor (DN10) | Female BSP | 316L (Thread 3/4") Legacy Part Number IE:   AF.D10.075 Legacy Part Number UK:   AF.D10.075
    Dimensional Image Key:
    • • Length (C) mm:  30
    • • Flange (A) mm:  34
    • • Mating (F) mm:  10
    • • Ferrule Connection (T):  .75"
    • • Thread (T):  3/4"
    Pharmaceutical
    ADPAFB019635006L
    		BSP DIN 15(metric) 34mm 316L 1.4404/≈ SS2348 Female 1/4" 16mm 25mm
    Price On Request
    dimensional image
    View Page
     Pharmaceutical Adaptor (DN15) | Female BSP | 316L (Thread 1/4") GTIN:   840384321304 Legacy Part Number IE:   AF.D15.025 Legacy Part Number UK:   AF.D15.025 Legacy Part Number DK:   AFD15025
    Dimensional Image Key:
    • • Length (C) mm:  25
    • • Flange (A) mm:  34
    • • Mating (F) mm:  16
    • • Ferrule Connection (T):  .25"
    • • Thread (T):  1/4"
    Pharmaceutical
    ADPAFB019127006L
    		BSP DIN 15(metric) 34mm 316L 1.4404/≈ SS2348 Female 3/8" 16mm 25mm
    Price On Request
    dimensional image
    View Page
     Pharmaceutical Adaptor (DN15) | Female BSP | 316L (Thread 3/8") GTIN:   840384321328 Legacy Part Number IE:   AF.D15.038 Legacy Part Number UK:   AF.D15.038 Legacy Part Number DK:   AFD15050
    Dimensional Image Key:
    • • Length (C) mm:  25
    • • Flange (A) mm:  34
    • • Mating (F) mm:  16
    • • Ferrule Connection (T):  .375"
    • • Thread (T):  3/8"
    Pharmaceutical
    ADPAFB019195006L
    		BSP DIN 15(metric) 34mm 316L 1.4404/≈ SS2348 Female 1/2" 16mm 30mm
    Price On Request
    dimensional image
    View Page
     Pharmaceutical Adaptor (DN15) | Female BSP | 316L (Thread 1/2") GTIN:   840384321335 Legacy Part Number IE:   AF.D15.050 Legacy Part Number UK:   AF.D15.050 Legacy Part Number DK:   AFD15075
    Dimensional Image Key:
    • • Length (C) mm:  30
    • • Flange (A) mm:  34
    • • Mating (F) mm:  16
    • • Ferrule Connection (T):  .5"
    • • Thread (T):  1/2"
    Pharmaceutical
    ADPAFB023635006L
    		BSP DIN 15(metric) 34mm 316L 1.4404/≈ SS2348 Female 3/4" 16mm 30mm
    Price On Request
    dimensional image
    View Page
     Pharmaceutical Adaptor (DN15) | Female BSP | 316L (Thread 3/4") GTIN:   840384321342 Legacy Part Number IE:   AF.D15.075 Legacy Part Number UK:   AF.D15.075
    Dimensional Image Key:
    • • Length (C) mm:  30
    • • Flange (A) mm:  34
    • • Mating (F) mm:  16
    • • Ferrule Connection (T):  .75"
    • • Thread (T):  3/4"
    Pharmaceutical
    ADPAFB023952006L
    		BSP DIN 20(metric) 34mm 316L 1.4404/≈ SS2348 Female 1/4" 20mm 25mm
    Price On Request
    dimensional image
    View Page
     Pharmaceutical Adaptor (DN20) | Female BSP | 316L (Thread 1/4") GTIN:   840384321359 Legacy Part Number IE:   AF.D20.025 Legacy Part Number UK:   AF.D20.025 Legacy Part Number DK:   AFD20038
    Dimensional Image Key:
    • • Length (C) mm:  25
    • • Flange (A) mm:  34
    • • Mating (F) mm:  20
    • • Ferrule Connection (T):  .25"
    • • Thread (T):  1/4"
    Pharmaceutical
    ADPAFB023127006L
    		BSP DIN 20(metric) 34mm 316L 1.4404/≈ SS2348 Female 3/8" 20mm 25mm
    Price On Request
    dimensional image
    View Page
     Pharmaceutical Adaptor (DN20) | Female BSP | 316L (Thread 3/8") GTIN:   840384321366 Legacy Part Number IE:   AF.D20.038 Legacy Part Number UK:   AF.D20.038 Legacy Part Number DK:   AFD20050
    Dimensional Image Key:
    • • Length (C) mm:  25
    • • Flange (A) mm:  34
    • • Mating (F) mm:  20
    • • Ferrule Connection (T):  .375"
    • • Thread (T):  3/8"
    Pharmaceutical
    ADPAFB023195006L
    		BSP DIN 20(metric) 34mm 316L 1.4404/≈ SS2348 Female 1/2" 20mm 30mm
    Price On Request
    dimensional image
    View Page
     Pharmaceutical Adaptor (DN20) | Female BSP | 316L (Thread 1/2") GTIN:   840384321373 Legacy Part Number IE:   AF.D20.050 Legacy Part Number UK:   AF.D20.050 Legacy Part Number DK:   AFD20075
    Dimensional Image Key:
    • • Length (C) mm:  30
    • • Flange (A) mm:  34
    • • Mating (F) mm:  20
    • • Ferrule Connection (T):  .5"
    • • Thread (T):  1/2"
    Pharmaceutical
    ADPAFB023025006L
    		BSP DIN 20(metric) 34mm 316L 1.4404/≈ SS2348 Female 3/4" 20mm 30mm
    Price On Request
    dimensional image
    View Page
     Pharmaceutical Adaptor (DN20) | Female BSP | 316L (Thread 3/4") Legacy Part Number IE:   AF.D20.075 Legacy Part Number UK:   AF.D20.075
    Dimensional Image Key:
    • • Length (C) mm:  30
    • • Flange (A) mm:  34
    • • Mating (F) mm:  20
    • • Ferrule Connection (T):  .75"
    • • Thread (T):  3/4"
