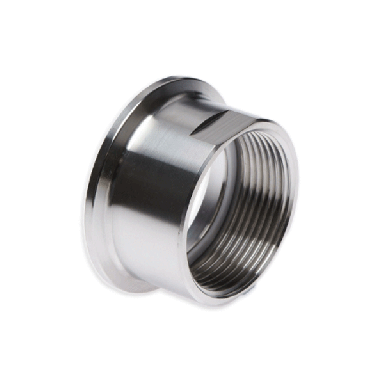

    BSP Female Imperial


    BSP Female Imperial
    Description
    BSP Female Adapters Imperial; flatness of sealing face meets or exceeds guidelines​. Designed for Pharma (F&B / Dairy / Chem ) applications. Sizes 1/2" to 2" (Stock) <2" (Bespoke).
    Specifications
    • Materials are AD2000 (PED) and ASME VIII​
    • Surface finish is 0.8Ra um minimum​
    Dimensional Image
    Features
    • Produced in the UK​
    • Quality checks by ACL are at the highest level for fitting manufacturers:​ JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC
    • Circularity of components is within 0.1mm​
    Total: 54
    Industry
    PART#    		 Standard Nom
    Imperial    		 Nom
    Metric/ISO    		 Flange
    (A)    		 Material
    Grade    		 EN/ASTM
    Std    		 Gender Thread
    (T)    		 Mating
    (F)    		 Length
    (C)    		 LIST
    PRICE
    Pharmaceutical
    ADPAFB127317006L
    		BSP 1/2" 25mm 316L 1.4404/≈ SS2348 Female 1/8" 10mm 25mm
    Price On Request
    dimensional image
    View Page
     Pharmaceutical Adaptor (1/2") | Female BSP | 316L (Thread 1/8") GTIN:   840384320833 Legacy Part Number IE:   AF.050.018 Legacy Part Number UK:   AF.050.018
    Dimensional Image Key:
    • • Length (C) mm:  25
    • • Flange (A) mm:  25
    • • Mating (F) mm:  10
    • • Ferrule Connection (T):  .125"
    • • Thread (T):  1/8"
    Pharmaceutical
    ADPAFB127635006L
    		BSP 1/2" 25mm 316L 1.4404/≈ SS2348 Female 1/4" 10mm 25mm
    Price On Request
    dimensional image
    View Page
     Pharmaceutical Adaptor (1/2") | Female BSP | 316L (Thread 1/4") GTIN:   840384320840 Legacy Part Number IE:   AF.050.025 Legacy Part Number UK:   AF.050.025
    Dimensional Image Key:
    • • Length (C) mm:  25
    • • Flange (A) mm:  25
    • • Mating (F) mm:  10
    • • Ferrule Connection (T):  .25"
    • • Thread (T):  1/4"
    Pharmaceutical
    ADPAFB127952006L
    		BSP 1/2" 25mm 316L 1.4404/≈ SS2348 Female 3/8" 10mm 25mm
    Price On Request
    dimensional image
    View Page
     Pharmaceutical Adaptor (1/2") | Female BSP | 316L (Thread 3/8") GTIN:   840384320857 Legacy Part Number IE:   AF.050.038 Legacy Part Number UK:   AF.050.038
    Dimensional Image Key:
    • • Length (C) mm:  25
    • • Flange (A) mm:  25
    • • Mating (F) mm:  10
    • • Ferrule Connection (T):  .375"
    • • Thread (T):  3/8"
    Pharmaceutical
    ADPAFB127127006L
    		BSP 1/2" 25mm 316L 1.4404/≈ SS2348 Female 1/2" 10mm 30mm
    Price On Request
    dimensional image
    View Page
     Pharmaceutical Adaptor (1/2") | Female BSP | 316L (Thread 1/2") GTIN:   840384320864 Legacy Part Number IE:   AF.050.050 Legacy Part Number UK:   AF.050.050
    Dimensional Image Key:
    • • Length (C) mm:  30
    • • Flange (A) mm:  25
    • • Mating (F) mm:  10
    • • Ferrule Connection (T):  .5"
    • • Thread (T):  1/2"
    Pharmaceutical
    ADPAFB127195006L
    		BSP 1/2" 25mm 316L 1.4404/≈ SS2348 Female 3/4" 10mm 30mm
    Price On Request
    dimensional image
    View Page
     Pharmaceutical Adaptor (1/2") | Female BSP | 316L (Thread 3/4") GTIN:   840384320871 Legacy Part Number IE:   AF.050.075 Legacy Part Number UK:   AF.050.075
    Dimensional Image Key:
    • • Length (C) mm:  30
    • • Flange (A) mm:  25
    • • Mating (F) mm:  10
    • • Ferrule Connection (T):  .75"
    • • Thread (T):  3/4"
    Pharmaceutical
    ADPAFB195317006L
    		BSP 3/4" 25mm 316L 1.4404/≈ SS2348 Female 1/8" 16mm 25mm
    Price On Request
    dimensional image
    View Page
     Pharmaceutical Adaptor (3/4") | Female BSP | 316L (Thread 1/8") GTIN:   840384320888 Legacy Part Number IE:   AF.075.018 Legacy Part Number UK:   AF.075.018
    Dimensional Image Key:
    • • Length (C) mm:  25
    • • Flange (A) mm:  25
    • • Mating (F) mm:  16
    • • Ferrule Connection (T):  .125"
    • • Thread (T):  1/8"
    Pharmaceutical
    ADPAFB195635006L
    		BSP 3/4" 25mm 316L 1.4404/≈ SS2348 Female 1/4" 16mm 25mm
    Price On Request
    dimensional image
    View Page
     Pharmaceutical Adaptor (3/4") | Female BSP | 316L (Thread 1/4") GTIN:   840384320895 Legacy Part Number IE:   AF.075.025 Legacy Part Number UK:   AF.075.025
    Dimensional Image Key:
    • • Length (C) mm:  25
    • • Flange (A) mm:  25
    • • Mating (F) mm:  16
    • • Ferrule Connection (T):  .25"
    • • Thread (T):  1/4"
    Pharmaceutical
    ADPAFB195952006L
    		BSP 3/4" 25mm 316L 1.4404/≈ SS2348 Female 3/8" 16mm 25mm
    Price On Request
    dimensional image
    View Page
     Pharmaceutical Adaptor (3/4") | Female BSP | 316L (Thread 3/8") GTIN:   840384320901 Legacy Part Number IE:   AF.075.038 Legacy Part Number UK:   AF.075.038
    Dimensional Image Key:
    • • Length (C) mm:  25
    • • Flange (A) mm:  25
    • • Mating (F) mm:  16
    • • Ferrule Connection (T):  .375"
    • • Thread (T):  3/8"
    Pharmaceutical
    ADPAFB195127006L
    		BSP 3/4" 25mm 316L 1.4404/≈ SS2348 Female 1/2" 16mm 30mm
    Price On Request
    dimensional image
    View Page
     Pharmaceutical Adaptor (3/4") | Female BSP | 316L (Thread 1/2") GTIN:   840384320918 Legacy Part Number IE:   AF.075.050 Legacy Part Number UK:   AF.075.050
    Dimensional Image Key:
    • • Length (C) mm:  30
    • • Flange (A) mm:  25
    • • Mating (F) mm:  16
    • • Ferrule Connection (T):  .5"
    • • Thread (T):  1/2"
    Pharmaceutical
    ADPAFB195195006L
    		BSP 3/4" 25mm 316L 1.4404/≈ SS2348 Female 3/4" 16mm 30mm
    Price On Request
    dimensional image
    View Page
     Pharmaceutical Adaptor (3/4") | Female BSP | 316L (Thread 3/4") GTIN:   840384320925 Legacy Part Number IE:   AF.075.075 Legacy Part Number UK:   AF.075.075
    Dimensional Image Key:
    • • Length (C) mm:  30
    • • Flange (A) mm:  25
    • • Mating (F) mm:  16
    • • Ferrule Connection (T):  .75"
    • • Thread (T):  3/4"
    Pharmaceutical
    ADPAFB025317006L
    		BSP 1" 50.5mm 316L 1.4404/≈ SS2348 Female 1/8" 22mm 25mm
    Price On Request
    dimensional image
    View Page
     Pharmaceutical Adaptor (1") | Female BSP | 316L (Thread 1/8") GTIN:   840384320932 Legacy Part Number IE:   AF.100.018 Legacy Part Number UK:   AF.100.018
    Dimensional Image Key:
    • • Length (C) mm:  25
    • • Flange (A) mm:  50.5
    • • Mating (F) mm:  22
    • • Ferrule Connection (T):  .125"
    • • Thread (T):  1/8"
    Pharmaceutical
    ADPAFB025635006L
    		BSP 1" 50.5mm 316L 1.4404/≈ SS2348 Female 1/4" 22mm 25mm
    Price On Request
    dimensional image
    View Page
     Pharmaceutical Adaptor (1") | Female BSP | 316L (Thread 1/4") GTIN:   840384320949 Legacy Part Number IE:   AF.100.025 Legacy Part Number UK:   AF.100.025 Legacy Part Number DK:   AF100025
    Dimensional Image Key:
    • • Length (C) mm:  25
    • • Flange (A) mm:  50.5
    • • Mating (F) mm:  22
    • • Ferrule Connection (T):  .25"
    • • Thread (T):  1/4"
