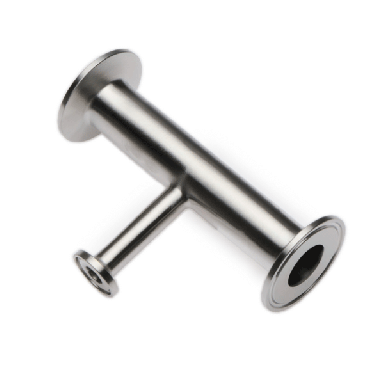

    BPE Reducing Tee DT-4.1.2-8


    BPE Reducing Tee DT-4.1.2-8
    Description
    BPE Reducing Tee DT-4.1.2-8; flatness of sealing face meets or exceeds guidelines​.
    Specifications
    • Materials are AD2000 (PED) and ASME VIII​
    • Surface finish is 0.8Ra um minimum​
    Dimensional Image
    Features
    • Produced in the UK​
    • Quality checks by ACL are at the highest level for fitting manufacturers:​ JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC
    • Circularity of components is within 0.1mm​
    Total: 20
    Industry
    PART#    		 Standard Nom
    Imperial    		 Nom
    Metric/ISO    		 Flange
    (A)    		 Material
    Grade    		 EN/ASTM
    Std    		 Nom Branch
    Imperial/Metric    		 Distance
    (N)    		 Flange 2
    (J)    		 ID
    (E)    		 ID2
    (G)    		 OD
    (D)    		 OD2
    (H)    		 LIST
    PRICE
    Hygienic
    DFRSA1000195127S16L
    		BPE Reducing Tee 3/4" 19.05(metric) 0.98" (25mm) 316L 1.4404/≈ SS2348 1/2" (0.5mm) 2.5" (63.5mm) 0.98" (25mm) 0.62" (15.75mm) 0.37" (9.4mm) 0.75" (19.05mm) 0.5" (12.7mm)
    Price On Request
    dimensional image
    View Page
     BPE Reducing Tee DT-4.1.2-8en, ¾” Nominal 1 Tube, ½” Nominal 2 Branch Legacy Part Number IE:   RT.BPE.075.050 Legacy Part Number UK:   RT.BPE.075.050
    Dimensional Image Key:
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • OD 1 (D) mm:  19.05
    • • ID (E) mm:  15.75
    • • OD 2 (H) mm:  12.7
    • • ID 2 (G) mm:  9.4
    • • Flange 2 (J):  25
    • • Distance (N):  63.5
    • • OD (D) mm:  19.05
    • • Flange 1 (A) mm:  25
    • • ID 1 (E) mm:  15.75
    • • Flange 2 (J) mm:  25
    • • Distance (N) mm:  63.5
    • • ID (E) in:  0.62"
    • • OD (D) in:  0.75"
    • • Flange 1 (A) in:  0.98
    • • ID 1 (E) in:  0.62
    • • Flange 2 (J) in:  0.98"
    • • ID 2 (G) in:  0.37"
    • • OD 1 (D) in:  0.75
    • • Distance (N) in:  2.5"
    • • OD 2 (H) in:  0.5"
    Hygienic
    DFRSA1000025127S16L
    		BPE Reducing Tee 1" 25.4(metric) 1.99" (50.5mm) 316L 1.4404/≈ SS2348 1/2" (0.5mm) 2.63" (66.68mm) 0.98" (25mm) 0.87" (22.1mm) 0.37" (9.4mm) 1" (25.4mm) 0.5" (12.7mm)
    Price On Request
    dimensional image
    View Page
     BPE Reducing Tee DT-4.1.2-8en, 1” Nominal 1 Tube, ½” Nominal 2 Branch Legacy Part Number IE:   RT.BPE.100.050 Legacy Part Number UK:   RT.BPE.100.050
    Dimensional Image Key:
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  25.4
    • • ID (E) mm:  22.1
    • • OD 2 (H) mm:  12.7
    • • ID 2 (G) mm:  9.4
    • • Flange 2 (J):  25
    • • Distance (N):  66.68
    • • OD (D) mm:  25.4
    • • Flange 1 (A) mm:  50.5
    • • ID 1 (E) mm:  22.1
    • • Flange 2 (J) mm:  25
    • • Distance (N) mm:  66.68
    • • ID (E) in:  0.87"
    • • OD (D) in:  1"
    • • Flange 1 (A) in:  1.99
    • • ID 1 (E) in:  0.87
    • • Flange 2 (J) in:  0.98"
    • • ID 2 (G) in:  0.37"
    • • OD 1 (D) in:  1
    • • Distance (N) in:  2.63"
    • • OD 2 (H) in:  0.5"
    Hygienic
    DFRSA1000025195S16L
    		BPE Reducing Tee 1" 25.4(metric) 1.99" (50.5mm) 316L 1.4404/≈ SS2348 3/4" (0.75mm) 2.63" (66.68mm) 0.98" (25mm) 0.87" (22.1mm) 0.62" (15.75mm) 1" (25.4mm) 0.75" (19.05mm)
    Price On Request
    dimensional image
    View Page
     BPE Reducing Tee DT-4.1.2-8en, 1” Nominal 1 Tube, ¾” Nominal 2 Branch Legacy Part Number IE:   RT.BPE.100.075 Legacy Part Number UK:   RT.BPE.100.075
    Dimensional Image Key:
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  25.4
    • • ID (E) mm:  22.1
    • • OD 2 (H) mm:  19.05
    • • ID 2 (G) mm:  15.75
    • • Flange 2 (J):  25
    • • Distance (N):  66.68
    • • OD (D) mm:  25.4
    • • Flange 1 (A) mm:  50.5
    • • ID 1 (E) mm:  22.1
    • • Flange 2 (J) mm:  25
    • • Distance (N) mm:  66.68
    • • ID (E) in:  0.87"
    • • OD (D) in:  1"
    • • Flange 1 (A) in:  1.99
    • • ID 1 (E) in:  0.87
    • • Flange 2 (J) in:  0.98"
    • • ID 2 (G) in:  0.62"
    • • OD 1 (D) in:  1
    • • Distance (N) in:  2.63"
    • • OD 2 (H) in:  0.75"
    Hygienic
    DFRSA1000038127S16L
    		BPE Reducing Tee 1 1/2" 38.1(metric) 1.99" (50.5mm) 316L 1.4404/≈ SS2348 1/2" (0.5mm) 2.88" (73.03mm) 0.98" (25mm) 1.37" (34.8mm) 0.37" (9.4mm) 1.5" (38.1mm) 0.5" (12.7mm)
    Price On Request
    dimensional image
    View Page
     BPE Reducing Tee DT-4.1.2-8en, 1½” Nominal 1 Tube, ½” Nominal 2 Branch Legacy Part Number IE:   RT.BPE.150.050 Legacy Part Number UK:   RT.BPE.150.050
    Dimensional Image Key:
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  38.1
    • • ID (E) mm:  34.8
    • • OD 2 (H) mm:  12.7
    • • ID 2 (G) mm:  9.4
    • • Flange 2 (J):  25
    • • Distance (N):  73.03
    • • OD (D) mm:  38.1
    • • Flange 1 (A) mm:  50.5
    • • ID 1 (E) mm:  34.8
    • • Flange 2 (J) mm:  25
    • • Distance (N) mm:  73.03
    • • ID (E) in:  1.37"
    • • OD (D) in:  1.5"
    • • Flange 1 (A) in:  1.99
    • • ID 1 (E) in:  1.37
    • • Flange 2 (J) in:  0.98"
    • • ID 2 (G) in:  0.37"
    • • OD 1 (D) in:  1.5
    • • Distance (N) in:  2.88"
    • • OD 2 (H) in:  0.5"
    Hygienic
    DFRSA1000038195S16L
    		BPE Reducing Tee 1 1/2" 38.1(metric) 1.99" (50.5mm) 316L 1.4404/≈ SS2348 3/4" (0.75mm) 2.88" (73.03mm) 0.98" (25mm) 1.37" (34.8mm) 0.62" (15.75mm) 1.5" (38.1mm) 0.75" (19.05mm)
    Price On Request
    dimensional image
    View Page
     BPE Reducing Tee DT-4.1.2-8en, 1½” Nominal 1 Tube, ¾” Nominal 2 Branch Legacy Part Number IE:   RT.BPE.150.075 Legacy Part Number UK:   RT.BPE.150.075
    Dimensional Image Key:
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  38.1
    • • ID (E) mm:  34.8
    • • OD 2 (H) mm:  19.05
    • • ID 2 (G) mm:  15.75
    • • Flange 2 (J):  25
    • • Distance (N):  73.03
    • • OD (D) mm:  38.1
    • • Flange 1 (A) mm:  50.5
    • • ID 1 (E) mm:  34.8
    • • Flange 2 (J) mm:  25
    • • Distance (N) mm:  73.03
    • • ID (E) in:  1.37"
    • • OD (D) in:  1.5"
    • • Flange 1 (A) in:  1.99
    • • ID 1 (E) in:  1.37
    • • Flange 2 (J) in:  0.98"
    • • ID 2 (G) in:  0.62"
    • • OD 1 (D) in:  1.5
    • • Distance (N) in:  2.88"
    • • OD 2 (H) in:  0.75"
    Hygienic
    DFRSA1000038025S16L
    		BPE Reducing Tee 1 1/2" 38.1(metric) 1.99" (50.5mm) 316L 1.4404/≈ SS2348 1" (1mm) 2.88" (73.03mm) 1.99" (50.5mm) 1.37" (34.8mm) 0.87" (22.1mm) 1.5" (38.1mm) 1" (25.4mm)
    Price On Request
    dimensional image
    View Page
     BPE Reducing Tee DT-4.1.2-8en, 1½” Nominal 1 Tube, 1” Nominal 2 Branch Legacy Part Number IE:   RT.BPE.150.100 Legacy Part Number UK:   RT.BPE.150.100
    Dimensional Image Key:
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  38.1
    • • ID (E) mm:  34.8
    • • OD 2 (H) mm:  25.4
    • • ID 2 (G) mm:  22.1
    • • Flange 2 (J):  50.5
    • • Distance (N):  73.03
    • • OD (D) mm:  38.1
    • • Flange 1 (A) mm:  50.5
    • • ID 1 (E) mm:  34.8
    • • Flange 2 (J) mm:  50.5
    • • Distance (N) mm:  73.03
    • • ID (E) in:  1.37"
    • • OD (D) in:  1.5"
    • • Flange 1 (A) in:  1.99
    • • ID 1 (E) in:  1.37
    • • Flange 2 (J) in:  1.99"
    • • ID 2 (G) in:  0.87"
    • • OD 1 (D) in:  1.5
    • • Distance (N) in:  2.88"
    • • OD 2 (H) in:  1"
    Hygienic
    DFRSA1000051127S16L
    		BPE Reducing Tee 2" 50.8(metric) 2.52" (64mm) 316L 1.4404/≈ SS2348 1/2" (0.5mm) 3.38" (85.73mm) 0.98" (25mm) 1.87" (47.5mm) 0.37" (9.4mm) 2" (50.8mm) 0.5" (12.7mm)
    Price On Request
    dimensional image
    View Page
     BPE Reducing Tee DT-4.1.2-8en, 2” Nominal 1 Tube, ½” Nominal 2 Branch Legacy Part Number IE:   RT.BPE.200.050 Legacy Part Number UK:   RT.BPE.200.050
    Dimensional Image Key:
    • • Flange (A) mm:  64
    • • Flange (A) in:  2.52"
    • • OD 1 (D) mm:  50.8
    • • ID (E) mm:  47.5
    • • OD 2 (H) mm:  12.7
    • • ID 2 (G) mm:  9.4
    • • Flange 2 (J):  25
    • • Distance (N):  85.73
    • • OD (D) mm:  50.8
    • • Flange 1 (A) mm:  64
    • • ID 1 (E) mm:  47.5
    • • Flange 2 (J) mm:  25
    • • Distance (N) mm:  85.73
    • • ID (E) in:  1.87"
    • • OD (D) in:  2"
    • • Flange 1 (A) in:  2.52
    • • ID 1 (E) in:  1.87
    • • Flange 2 (J) in:  0.98"
    • • ID 2 (G) in:  0.37"
    • • OD 1 (D) in:  2
    • • Distance (N) in:  3.38"
    • • OD 2 (H) in:  0.5"
    Hygienic
    DFRSA1000051195S16L
    		BPE Reducing Tee 2" 50.8(metric) 2.52" (64mm) 316L 1.4404/≈ SS2348 3/4" (0.75mm) 3.38" (85.73mm) 0.98" (25mm) 1.87" (47.5mm) 0.62" (15.75mm) 2" (50.8mm) 0.75" (19.05mm)
    Price On Request
    dimensional image
    View Page
     BPE Reducing Tee DT-4.1.2-8en, 2” Nominal 1 Tube, ¾” Nominal 2 Branch Legacy Part Number IE:   RT.BPE.200.075 Legacy Part Number UK:   RT.BPE.200.075
    Dimensional Image Key:
    • • Flange (A) mm:  64
    • • Flange (A) in:  2.52"
    • • OD 1 (D) mm:  50.8
    • • ID (E) mm:  47.5
    • • OD 2 (H) mm:  19.05
    • • ID 2 (G) mm:  15.75
    • • Flange 2 (J):  25
    • • Distance (N):  85.73
    • • OD (D) mm:  50.8
    • • Flange 1 (A) mm:  64
    • • ID 1 (E) mm:  47.5
    • • Flange 2 (J) mm:  25
    • • Distance (N) mm:  85.73
    • • ID (E) in:  1.87"
    • • OD (D) in:  2"
    • • Flange 1 (A) in:  2.52
    • • ID 1 (E) in:  1.87
    • • Flange 2 (J) in:  0.98"
    • • ID 2 (G) in:  0.62"
    • • OD 1 (D) in:  2
    • • Distance (N) in:  3.38"
    • • OD 2 (H) in:  0.75"
    Hygienic
    DFRSA1000051025S16L
    		BPE Reducing Tee 2" 50.8(metric) 2.52" (64mm) 316L 1.4404/≈ SS2348 1" (1mm) 3.38" (85.73mm) 1.99" (50.5mm) 1.87" (47.5mm) 0.87" (22.1mm) 2" (50.8mm) 1" (25.4mm)
    Price On Request
    dimensional image
    View Page
     BPE Reducing Tee DT-4.1.2-8en, 2” Nominal 1 Tube, 1” Nominal 2 Branch Legacy Part Number IE:   RT.BPE.200.100 Legacy Part Number UK:   RT.BPE.200.100
    Dimensional Image Key:
    • • Flange (A) mm:  64
    • • Flange (A) in:  2.52"
    • • OD 1 (D) mm:  50.8
    • • ID (E) mm:  47.5
    • • OD 2 (H) mm:  25.4
    • • ID 2 (G) mm:  22.1
    • • Flange 2 (J):  50.5
    • • Distance (N):  85.73
    • • OD (D) mm:  50.8
    • • Flange 1 (A) mm:  64
    • • ID 1 (E) mm:  47.5
    • • Flange 2 (J) mm:  50.5
    • • Distance (N) mm:  85.73
    • • ID (E) in:  1.87"
    • • OD (D) in:  2"
    • • Flange 1 (A) in:  2.52
    • • ID 1 (E) in:  1.87
    • • Flange 2 (J) in:  1.99"
    • • ID 2 (G) in:  0.87"
    • • OD 1 (D) in:  2
    • • Distance (N) in:  3.38"
    • • OD 2 (H) in:  1"
    Hygienic
    DFRSA1000051038S16L
    		BPE Reducing Tee 2" 50.8(metric) 2.52" (64mm) 316L 1.4404/≈ SS2348 1 1/2" (1.5mm) 3.38" (85.73mm) 1.99" (50.5mm) 1.87" (47.5mm) 1.37" (34.8mm) 2" (50.8mm) 1.5" (38.1mm)
    Price On Request
    dimensional image
    View Page
     BPE Reducing Tee DT-4.1.2-8en, 2” Nominal 1 Tube, 1½” Nominal 2 Branch Legacy Part Number IE:   RT.BPE.200.150 Legacy Part Number UK:   RT.BPE.200.150
    Dimensional Image Key:
    • • Flange (A) mm:  64
    • • Flange (A) in:  2.52"
    • • OD 1 (D) mm:  50.8
    • • ID (E) mm:  47.5
    • • OD 2 (H) mm:  38.1
    • • ID 2 (G) mm:  34.8
    • • Flange 2 (J):  50.5
    • • Distance (N):  85.73
    • • OD (D) mm:  50.8
    • • Flange 1 (A) mm:  64
    • • ID 1 (E) mm:  47.5
    • • Flange 2 (J) mm:  50.5
    • • Distance (N) mm:  85.73
    • • ID (E) in:  1.87"
    • • OD (D) in:  2"
    • • Flange 1 (A) in:  2.52
    • • ID 1 (E) in:  1.87
    • • Flange 2 (J) in:  1.99"
    • • ID 2 (G) in:  1.37"
    • • OD 1 (D) in:  2
    • • Distance (N) in:  3.38"
    • • OD 2 (H) in:  1.5"
    Pharmaceutical
    PFRSA1000195127S16L
    		BPE Reducing Tee 3/4" 19.05(metric) 0.98" (25mm) 316L 1.4404/≈ SS2348 1/2" (0.5mm) 2.5" (63.5mm) 0.98" (25mm) 0.62" (15.75mm) 0.37" (9.4mm) 0.75" (19.05mm) 0.5" (12.7mm)
    Price On Request
    dimensional image
    View Page
     BPE Reducing Tee DT-4.1.2-8en, ¾” Nominal 1 Tube, ½” Nominal 2 Branch GTIN:   840384324442 Legacy Part Number IE:   RT.BPE.075.050
    Dimensional Image Key:
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • OD 1 (D) mm:  19.05
    • • ID (E) mm:  15.75
    • • OD 2 (H) mm:  12.7
    • • ID 2 (G) mm:  9.4
    • • Flange 2 (J):  25
    • • Distance (N):  —
    • • OD (D) mm:  19.05
    • • Flange 1 (A) mm:  25
    • • ID 1 (E) mm:  15.75
    • • Flange 2 (J) mm:  25
    • • Distance (N) mm:  63.5
    • • ID (E) in:  0.62"
    • • OD (D) in:  0.75"
    • • Flange 1 (A) in:  —
    • • ID 1 (E) in:  —
    • • Flange 2 (J) in:  0.98"
    • • ID 2 (G) in:  0.37"
    • • OD 1 (D) in:  —
    • • Distance (N) in:  2.5"
    • • OD 2 (H) in:  0.5"
    Pharmaceutical
    PFRSA1000025127S16L
    		BPE Reducing Tee 1" 25.4(metric) 1.99" (50.5mm) 316L 1.4404/≈ SS2348 1/2" (0.5mm) 2.63" (66.68mm) 0.98" (25mm) 0.87" (22.1mm) 0.37" (9.4mm) 1" (25.4mm) 0.5" (12.7mm)
    Price On Request
    dimensional image
    View Page
     BPE Reducing Tee DT-4.1.2-8en, 1” Nominal 1 Tube, ½” Nominal 2 Branch GTIN:   840384324459 Legacy Part Number IE:   RT.BPE.100.050
    Dimensional Image Key:
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  25.4
    • • ID (E) mm:  22.1
    • • OD 2 (H) mm:  12.7
    • • ID 2 (G) mm:  9.4
    • • Flange 2 (J):  25
    • • Distance (N):  —
    • • OD (D) mm:  25.4
    • • Flange 1 (A) mm:  50.5
    • • ID 1 (E) mm:  22.1
    • • Flange 2 (J) mm:  25
    • • Distance (N) mm:  66.68
    • • ID (E) in:  0.87"
    • • OD (D) in:  1"
    • • Flange 1 (A) in:  —
    • • ID 1 (E) in:  —
    • • Flange 2 (J) in:  0.98"
    • • ID 2 (G) in:  0.37"
    • • OD 1 (D) in:  —
    • • Distance (N) in:  2.63"
    • • OD 2 (H) in:  0.5"
    Please Login To Order
    Prev 1 2 Next
    BPE Reducing Tee DT-4.1.2-8en, ¾” Nominal 1 Tube, ½” Nominal 2 Branch
    Hygienic
    DFRSA1000195127S16L
    Price On Request
    BPE Reducing Tee DT-4.1.2-8en, 1” Nominal 1 Tube, ½” Nominal 2 Branch
    Hygienic
    DFRSA1000025127S16L
    Price On Request
    BPE Reducing Tee DT-4.1.2-8en, 1” Nominal 1 Tube, ¾” Nominal 2 Branch
    Hygienic
    DFRSA1000025195S16L
    Price On Request
    BPE Reducing Tee DT-4.1.2-8en, 1½” Nominal 1 Tube, ½” Nominal 2 Branch
    Hygienic
    DFRSA1000038127S16L
    Price On Request
    BPE Reducing Tee DT-4.1.2-8en, 1½” Nominal 1 Tube, ¾” Nominal 2 Branch
    Hygienic
    DFRSA1000038195S16L
    Price On Request
    BPE Reducing Tee DT-4.1.2-8en, 1½” Nominal 1 Tube, 1” Nominal 2 Branch
    Hygienic
    DFRSA1000038025S16L
    Price On Request
    BPE Reducing Tee DT-4.1.2-8en, 2” Nominal 1 Tube, ½” Nominal 2 Branch
    Hygienic
    DFRSA1000051127S16L
    Price On Request
    BPE Reducing Tee DT-4.1.2-8en, 2” Nominal 1 Tube, ¾” Nominal 2 Branch
    Hygienic
    DFRSA1000051195S16L
    Price On Request
    BPE Reducing Tee DT-4.1.2-8en, 2” Nominal 1 Tube, 1” Nominal 2 Branch
    Hygienic
    DFRSA1000051025S16L
    Price On Request
    BPE Reducing Tee DT-4.1.2-8en, 2” Nominal 1 Tube, 1½” Nominal 2 Branch
    Hygienic
    DFRSA1000051038S16L
    Price On Request
    BPE Reducing Tee DT-4.1.2-8en, ¾” Nominal 1 Tube, ½” Nominal 2 Branch
    Pharmaceutical
    PFRSA1000195127S16L
    Price On Request
    BPE Reducing Tee DT-4.1.2-8en, 1” Nominal 1 Tube, ½” Nominal 2 Branch
    Pharmaceutical
    PFRSA1000025127S16L
    Price On Request
    Please Login To Order
    Prev 1 2 Next
