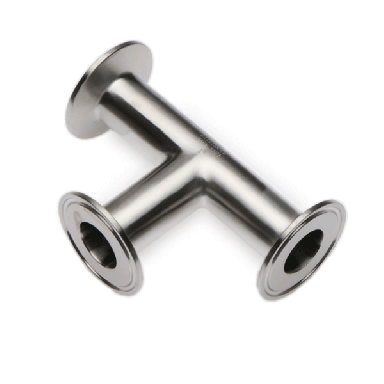

    BPE Equal Tee DT-4.1.2-4


    BPE Equal Tee DT-4.1.2-4
    Description
    BPE Equal Tee DT-4.1.2-4; flatness of sealing face meets or exceeds guidelines​.
    Dimensional Image
    Total: 22
    Industry
    PART#    		 Standard Nom
    Imperial    		 Nom
    Metric/ISO    		 Flange
    (A)    		 Material
    Grade    		 EN/ASTM
    Std    		 Nom Branch
    Imperial/Metric    		 Distance
    (N)    		 Flange 2
    (J)    		 ID
    (E)    		 ID2
    (G)    		 OD
    (D)    		 OD2
    (H)    		 LIST
    PRICE
    Hygienic
    DFTEA1025635S16L
    		BPE Equal Tee 1/4" 6.35(metric) 0.98" (25mm) 316L 1.4404/≈ SS2348 2.25" (57.15mm) 0.17" (4.35mm) 0.25" (6.35mm)
    Price On Request
    dimensional image
    View Page
     BPE Equal Tee DT-4.1.2-4, ¼” Nominal Imperial, 25mm Flange Legacy Part Number IE:   TP.BPE.025 Legacy Part Number UK:   TP.BPE.025
    Dimensional Image Key:
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • ID (E) mm:  4.35
    • • Distance (N):  57.15
    • • OD (D) mm:  6.35
    • • Distance (N) mm:  57.15
    • • ID (E) in:  0.17"
    • • OD (D) in:  0.25"
    • • Distance (N) in:  2.25"
    Hygienic
    DFTEA1025952S16L
    		BPE Equal Tee 3/8" 9.525(metric) 0.98" (25mm) 316L 1.4404/≈ SS2348 2.25" (57.15mm) 0.31" (7.75mm) 0.38" (9.53mm)
    Price On Request
    dimensional image
    View Page
     BPE Equal Tee DT-4.1.2-4, 3/8” Nominal Imperial, 25mm Flange Legacy Part Number IE:   TP.BPE.038 Legacy Part Number UK:   TP.BPE.038
    Dimensional Image Key:
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • ID (E) mm:  7.75
    • • Distance (N):  57.15
    • • OD (D) mm:  9.53
    • • Distance (N) mm:  57.15
    • • ID (E) in:  0.31"
    • • OD (D) in:  0.38"
    • • Distance (N) in:  2.25"
    Hygienic
    DFTEA1025127S16L
    		BPE Equal Tee 1/2" 12.7(metric) 0.98" (25mm) 316L 1.4404/≈ SS2348 2.38" (60.33mm) 0.37" (9.4mm) 0.5" (12.7mm)
    Price On Request
    dimensional image
    View Page
     BPE Equal Tee DT-4.1.2-4, ½” Nominal Imperial, 25mm Flange Legacy Part Number IE:   TP.BPE.050 Legacy Part Number UK:   TP.BPE.050
    Dimensional Image Key:
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • ID (E) mm:  9.4
    • • Distance (N):  60.33
    • • OD (D) mm:  12.7
    • • Distance (N) mm:  60.33
    • • ID (E) in:  0.37"
    • • OD (D) in:  0.5"
    • • Distance (N) in:  2.38"
    Hygienic
    DFTEA1025195S16L
    		BPE Equal Tee 3/4" 19.05(metric) 0.98" (25mm) 316L 1.4404/≈ SS2348 2.5" (63.5mm) 0.62" (15.75mm) 0.75" (19.05mm)
    Price On Request
    dimensional image
    View Page
     BPE Equal Tee DT-4.1.2-4, ¾” Nominal Imperial, 25mm Flange Legacy Part Number IE:   TP.BPE.075 Legacy Part Number UK:   TP.BPE.075
    Dimensional Image Key:
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • ID (E) mm:  15.75
    • • Distance (N):  63.5
    • • OD (D) mm:  19.05
    • • Distance (N) mm:  63.5
    • • ID (E) in:  0.62"
    • • OD (D) in:  0.75"
    • • Distance (N) in:  2.5"
    Hygienic
    DFTEA1050025S16L
    		BPE Equal Tee 1" 25.4(metric) 1.99" (50.5mm) 316L 1.4404/≈ SS2348 2.63" (66.68mm) 0.87" (22.1mm) 1" (25.4mm)
    Price On Request
    dimensional image
    View Page
     BPE Equal Tee DT-4.1.2-4, 1” Nominal Imperial, 50.5mm Flange Legacy Part Number IE:   TP.BPE.100 Legacy Part Number UK:   TP.BPE.100
    Dimensional Image Key:
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • ID (E) mm:  22.1
    • • Distance (N):  66.68
    • • OD (D) mm:  25.4
    • • Distance (N) mm:  66.68
    • • ID (E) in:  0.87"
    • • OD (D) in:  1"
    • • Distance (N) in:  2.63"
    Hygienic
    DFTEA1050038S16L
    		BPE Equal Tee 1 1/2" 38.1(metric) 1.99" (50.5mm) 316L 1.4404/≈ SS2348 2.88" (73.03mm) 1.37" (34.8mm) 1.5" (38.1mm)
    Price On Request
    dimensional image
    View Page
     BPE Equal Tee DT-4.1.2-4, 1½” Nominal Imperial, 50.5mm Flange Legacy Part Number IE:   TP.BPE.0150 Legacy Part Number UK:   TP.BPE.0150
    Dimensional Image Key:
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • ID (E) mm:  34.8
    • • Distance (N):  73.03
    • • OD (D) mm:  38.1
    • • Distance (N) mm:  73.03
    • • ID (E) in:  1.37"
    • • OD (D) in:  1.5"
    • • Distance (N) in:  2.88"
    Hygienic
    DFTEA1064051S16L
    		BPE Equal Tee 2" 50.8(metric) 2.52" (64mm) 316L 1.4404/≈ SS2348 3.38" (85.73mm) 1.87" (47.5mm) 2" (50.8mm)
    Price On Request
    dimensional image
    View Page
     BPE Equal Tee DT-4.1.2-4, 2” Nominal Imperial, 64mm Flange Legacy Part Number IE:   TP.BPE.200 Legacy Part Number UK:   TP.BPE.200
    Dimensional Image Key:
    • • Flange (A) mm:  64
    • • Flange (A) in:  2.52"
    • • ID (E) mm:  47.5
    • • Distance (N):  85.73
    • • OD (D) mm:  50.8
    • • Distance (N) mm:  85.73
    • • ID (E) in:  1.87"
    • • OD (D) in:  2"
    • • Distance (N) in:  3.38"
    Hygienic
    DFTEA1077063S16L
    		BPE Equal Tee 2 1/2" 63.5(metric) 3.03" (77mm) 316L 1.4404/≈ SS2348 3.63" (92.08mm) 2.37" (60.2mm) 2.5" (63.5mm)
    Price On Request
    dimensional image
    View Page
     BPE Equal Tee DT-4.1.2-4, 2½” Nominal Imperial, 77mm Flange Legacy Part Number IE:   TP.BPE.250 Legacy Part Number UK:   TP.BPE.250
    Dimensional Image Key:
    • • Flange (A) mm:  77
    • • Flange (A) in:  3.03"
    • • ID (E) mm:  60.2
    • • Distance (N):  92.08
    • • OD (D) mm:  63.5
    • • Distance (N) mm:  92.08
    • • ID (E) in:  2.37"
    • • OD (D) in:  2.5"
    • • Distance (N) in:  3.63"
    Hygienic
    DFTEA1091076S46L
    		BPE Equal Tee 3" 76.2(metric) 3.58" (91mm) 316L 1.4404/≈ SS2348 3.88" (98.43mm) 2.87" (72.9mm) 3" (76.2mm)
    Price On Request
    dimensional image
    View Page
     BPE Equal Tee DT-4.1.2-4, 3” Nominal Imperial, 91mm Flange Legacy Part Number IE:   TP.BPE.300 Legacy Part Number UK:   TP.BPE.300
    Dimensional Image Key:
    • • Flange (A) mm:  91
    • • Flange (A) in:  3.58"
    • • ID (E) mm:  72.9
    • • Distance (N):  98.43
    • • OD (D) mm:  76.2
    • • Distance (N) mm:  98.43
    • • ID (E) in:  2.87"
    • • OD (D) in:  3"
    • • Distance (N) in:  3.88"
    Hygienic
    DFTEA1119101S16L
    		BPE Equal Tee 4" 101.6(metric) 4.69" (119mm) 316L 1.4404/≈ SS2348 4.75" (120.65mm) 3.83" (97.38mm) 4" (101.6mm)
    Price On Request
    dimensional image
    View Page
     BPE Equal Tee DT-4.1.2-4, 4” Nominal Imperial, 119mm Flange Legacy Part Number IE:   TP.BPE.400 Legacy Part Number UK:   TP.BPE.400
    Dimensional Image Key:
    • • Flange (A) mm:  119
    • • Flange (A) in:  4.69"
    • • ID (E) mm:  97.38
    • • Distance (N):  120.65
    • • OD (D) mm:  101.6
    • • Distance (N) mm:  120.65
    • • ID (E) in:  3.83"
    • • OD (D) in:  4"
    • • Distance (N) in:  4.75"
    Hygienic
    DFTEA167152S16L
    		BPE Equal Tee 6" 152.4(metric) 6.57" (167mm) 316L 1.4404/≈ SS2348 7.13" (180.98mm) 5.78" (146.86mm) 6" (152.4mm)
    Price On Request
    dimensional image
    View Page
     BPE Equal Tee DT-4.1.2-4, 6” Nominal Imperial, 167mm Flange Legacy Part Number IE:   TP.BPE.600 Legacy Part Number UK:   TP.BPE.600
    Dimensional Image Key:
    • • Flange (A) mm:  167
    • • Flange (A) in:  6.57"
    • • ID (E) mm:  146.86
    • • Distance (N):  180.98
    • • OD (D) mm:  152.4
    • • Distance (N) mm:  180.98
    • • ID (E) in:  5.78"
    • • OD (D) in:  6"
    • • Distance (N) in:  7.13"
    Pharmaceutical
    PFTEA1025635S16L
    		BPE Equal Tee 1/4" 6.35(metric) 0.98" (25mm) 316L 1.4404/≈ SS2348 2.25" (57.15mm) 0.17" (4.35mm) 0.25" (6.35mm)
    Price On Request
    dimensional image
    View Page
     BPE Equal Tee DT-4.1.2-4, ¼” Nominal Imperial, 25mm Flange Legacy Part Number IE:   TP.BPE.025
    Dimensional Image Key:
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • ID (E) mm:  4.35
    • • Distance (N):  57.15
    • • OD (D) mm:  6.35
    • • Distance (N) mm:  57.15
    • • ID (E) in:  0.17"
    • • OD (D) in:  0.25"
    • • Distance (N) in:  2.25"
