BPE 90º Elbow SF1 & SF4 - DT-4.1.1-3

Description

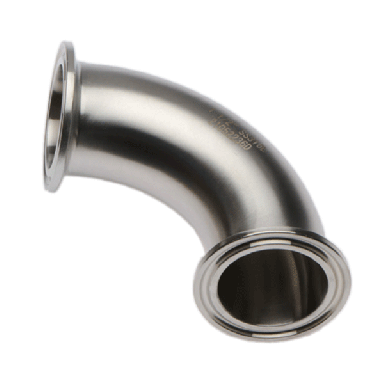

BPE 90º Elbow SF1 & SF4 - DT-4.1.1-3; flatness of sealing face meets or exceeds guidelines.

Dimensional Image

Industry PART#	Standard	Nom Imperial	Nom Metric/ISO	Flange (A)	Material Grade	EN/ASTM Std	Distance (N)	ID (E)	OD (D)	LIST PRICE
Hygienic DFE9A1025635S16L	BPE 90° Elbow - SF1	1/4"	6.35(metric)	0.98" (25mm)	316L	1.4404/≈ SS2348	1.63" (41.28mm)	0.17" (4.35mm)	0.25" (6.35mm)	Price On Request
View Page BPE 90º Elbow DT-4.1.1-6, SF1, ¼” Nominal, 25mm Flange Legacy Part Number IE: EL.BPE.90.025.SF1 Legacy Part Number UK: EL.BPE.90.025.SF1 Dimensional Image Key: • Flange (A) mm: 25 • Flange (A) in: 0.98" • ID (E) mm: 4.35 • OD (D) mm: 6.35 • Distance (N) mm: 41.28 • ID (E) in: 0.17" • OD (D) in: 0.25" • Distance (N) in: 1.63"
Hygienic DFE9A1025952S16L	BPE 90° Elbow - SF1	3/8"	9.525(metric)	0.98" (25mm)	316L	1.4404/≈ SS2348	1.63" (41.29mm)	0.31" (7.75mm)	0.38" (9.53mm)	Price On Request
View Page BPE 90º Elbow DT-4.1.1-6, SF1, 3/8” Nominal, 25mm Flange Legacy Part Number IE: EL.BPE.90.038.SF1 Legacy Part Number UK: EL.BPE.90.038.SF1 Dimensional Image Key: • Flange (A) mm: 25 • Flange (A) in: 0.98" • ID (E) mm: 7.75 • OD (D) mm: 9.53 • Distance (N) mm: 41.29 • ID (E) in: 0.31" • OD (D) in: 0.38" • Distance (N) in: 1.63"
Hygienic DFE9A1025127S16L	BPE 90° Elbow - SF1	1/2"	12.7(metric)	0.98" (25mm)	316L	1.4404/≈ SS2348	1.63" (41.3mm)	0.37" (9.4mm)	0.5" (12.7mm)	Price On Request
View Page BPE 90º Elbow DT-4.1.1-6, SF1, ½” Nominal, 25mm Flange Legacy Part Number IE: EL.BPE.90.050.SF1 Legacy Part Number UK: EL.BPE.90.050.SF1 Dimensional Image Key: • Flange (A) mm: 25 • Flange (A) in: 0.98" • ID (E) mm: 9.4 • OD (D) mm: 12.7 • Distance (N) mm: 41.3 • ID (E) in: 0.37" • OD (D) in: 0.5" • Distance (N) in: 1.63"
Hygienic DFE9A1025195S16L	BPE 90° Elbow - SF1	3/4"	19.05(metric)	0.98" (25mm)	316L	1.4404/≈ SS2348	1.63" (41.31mm)	0.62" (15.75mm)	0.75" (19.05mm)	Price On Request
View Page BPE 90º Elbow DT-4.1.1-6, SF1, ¾” Nominal, 25mm Flange Legacy Part Number IE: EL.BPE.90.075.SF1 Legacy Part Number UK: EL.BPE.90.075.SF1 Dimensional Image Key: • Flange (A) mm: 25 • Flange (A) in: 0.98" • ID (E) mm: 15.75 • OD (D) mm: 19.05 • Distance (N) mm: 41.31 • ID (E) in: 0.62" • OD (D) in: 0.75" • Distance (N) in: 1.63"
Hygienic DFE9A1050025S16L	BPE 90° Elbow - SF1	1"	25.4(metric)	1.99" (50.5mm)	316L	1.4404/≈ SS2348	2" (50.8mm)	0.87" (22.1mm)	1" (25.4mm)	Price On Request
View Page BPE 90º Elbow DT-4.1.1-6, SF1, 1” Nominal, 50.5mm Flange Legacy Part Number IE: EL.BPE.90.100.SF1 Legacy Part Number UK: EL.BPE.90.100.SF1 Dimensional Image Key: • Flange (A) mm: 50.5 • Flange (A) in: 1.99" • ID (E) mm: 22.1 • OD (D) mm: 25.4 • Distance (N) mm: 50.8 • ID (E) in: 0.87" • OD (D) in: 1" • Distance (N) in: 2"
Hygienic DFE9A1050038S16L	BPE 90° Elbow - SF1	1 1/2"	38.1(metric)	1.99" (50.5mm)	316L	1.4404/≈ SS2348	2.75" (69.85mm)	1.37" (34.8mm)	1.5" (38.1mm)	Price On Request
View Page BPE 90º Elbow DT-4.1.1-6, SF1, 1½” Nominal, 50.5mm Flange Legacy Part Number IE: EL.BPE.90.150.SF1 Legacy Part Number UK: EL.BPE.90.150.SF1 Dimensional Image Key: • Flange (A) mm: 50.5 • Flange (A) in: 1.99" • ID (E) mm: 34.8 • OD (D) mm: 38.1 • Distance (N) mm: 69.85 • ID (E) in: 1.37" • OD (D) in: 1.5" • Distance (N) in: 2.75"
Hygienic DFE9A1064051S16L	BPE 90° Elbow - SF1	2"	50.8(metric)	2.52" (64mm)	316L	1.4404/≈ SS2348	3.5" (88.9mm)	1.87" (47.5mm)	2" (50.8mm)	Price On Request
View Page BPE 90º Elbow DT-4.1.1-6, SF1, 2” Nominal, 64mm Flange Legacy Part Number IE: EL.BPE.90.200.SF1 Legacy Part Number UK: EL.BPE.90.200.SF1 Dimensional Image Key: • Flange (A) mm: 64 • Flange (A) in: 2.52" • ID (E) mm: 47.5 • OD (D) mm: 50.8 • Distance (N) mm: 88.9 • ID (E) in: 1.87" • OD (D) in: 2" • Distance (N) in: 3.5"
Hygienic DFE9A1077063S16L	BPE 90° Elbow - SF1	2 1/2"	63.5(metric)	3.05" (77.5mm)	316L	1.4404/≈ SS2348	4.25" (107.95mm)	2.37" (60.2mm)	2.5" (63.5mm)	Price On Request
View Page BPE 90º Elbow DT-4.1.1-6, SF1, 2½” Nominal, 77.5mm Flange Legacy Part Number IE: EL.BPE.90.250.SF1 Legacy Part Number UK: EL.BPE.90.250.SF1 Dimensional Image Key: • Flange (A) mm: 77.5 • Flange (A) in: 3.05" • ID (E) mm: 60.2 • OD (D) mm: 63.5 • Distance (N) mm: 107.95 • ID (E) in: 2.37" • OD (D) in: 2.5" • Distance (N) in: 4.25"
Hygienic DFE9A1091076S16L	BPE 90° Elbow - SF1	3"	76.2(metric)	3.58" (91mm)	316L	1.4404/≈ SS2348	5" (127mm)	2.87" (72.9mm)	3" (76.2mm)	Price On Request
View Page BPE 90º Elbow DT-4.1.1-6, SF1, 3” Nominal, 91mm Flange Legacy Part Number IE: EL.BPE.90.300.SF1 Legacy Part Number UK: EL.BPE.90.300.SF1 Dimensional Image Key: • Flange (A) mm: 91 • Flange (A) in: 3.58" • ID (E) mm: 72.9 • OD (D) mm: 76.2 • Distance (N) mm: 127 • ID (E) in: 2.87" • OD (D) in: 3" • Distance (N) in: 5"
Hygienic DFE9A1119101S16L	BPE 90° Elbow - SF1	4"	101.6(metric)	4.69" (119mm)	316L	1.4404/≈ SS2348	6.63" (168.28mm)	3.83" (97.38mm)	4" (101.6mm)	Price On Request
View Page BPE 90º Elbow DT-4.1.1-6, SF1, 4” Nominal, 119mm Flange Legacy Part Number IE: EL.BPE.90.400.SF1 Legacy Part Number UK: EL.BPE.90.400.SF1 Dimensional Image Key: • Flange (A) mm: 119 • Flange (A) in: 4.69" • ID (E) mm: 97.38 • OD (D) mm: 101.6 • Distance (N) mm: 168.28 • ID (E) in: 3.83" • OD (D) in: 4" • Distance (N) in: 6.63"
Hygienic DFE9A1167152S16L	BPE 90° Elbow - SF1	6"	152.4(metric)	6.57" (167mm)	316L	1.4404/≈ SS2348	10.5" (266.7mm)	5.78" (146.86mm)	6" (152.4mm)	Price On Request
View Page BPE 90º Elbow DT-4.1.1-6, SF1, 6” Nominal, 167mm Flange Legacy Part Number IE: EL.BPE.90.600.SF1 Legacy Part Number UK: EL.BPE.90.600.SF1 Dimensional Image Key: • Flange (A) mm: 167 • Flange (A) in: 6.57" • ID (E) mm: 146.86 • OD (D) mm: 152.4 • Distance (N) mm: 266.7 • ID (E) in: 5.78" • OD (D) in: 6" • Distance (N) in: 10.5"
Hygienic DFE9A1025635S46L	BPE 90° Elbow - SF4	1/4"	6.35(metric)	0.98" (25mm)	316L	1.4404/≈ SS2348	1.63" (41.28mm)	0.17" (4.35mm)	0.25" (6.35mm)	Price On Request
View Page BPE 90º Elbow DT-4.1.1-6, SF4, ¼” Nominal, 25mm Flange Legacy Part Number IE: EL.BPE.90.025.SF4 Legacy Part Number UK: EL.BPE.90.025.SF4 Dimensional Image Key: • Flange (A) mm: 25 • Flange (A) in: 0.98" • ID (E) mm: 4.35 • OD (D) mm: 6.35 • Distance (N) mm: 41.28 • ID (E) in: 0.17" • OD (D) in: 0.25" • Distance (N) in: 1.63"
